Details

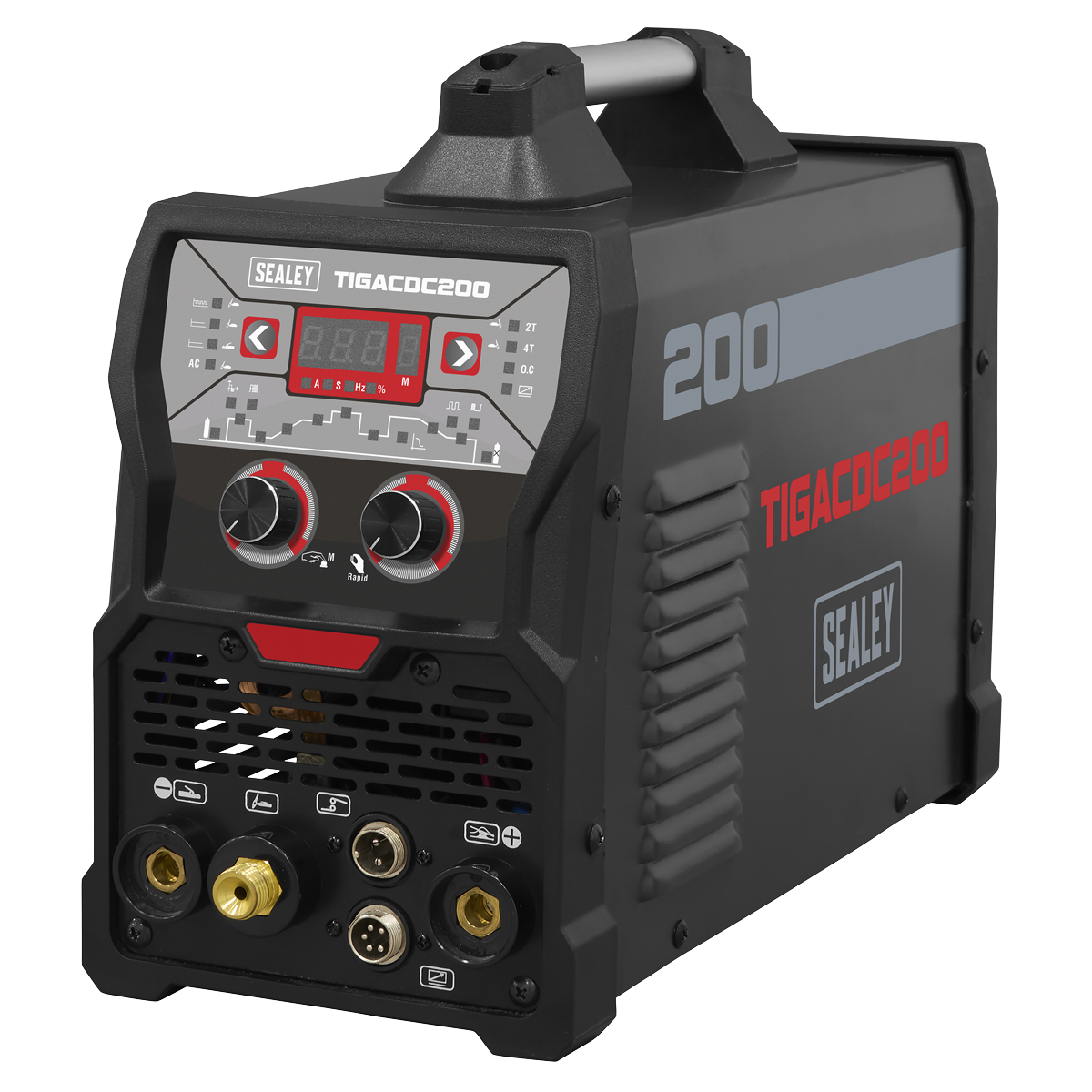

IGBT INVERTER TECHNOLOGY - IGBT Inverter technology fitted with fan-cooled AC/DC power supply suitable for both TIG and MMA/ARC welding applications up to 200A.
SUITABLE FOR WELDING A VARTIETY OF METALS - Suitable for welding a variety of metals including aluminium, magnesium, stainless steel, steel, copper, nickel and titanium.
MULTI-STAGE INVERTER - 20-stage parameter adjustment program to suit welder's requirements.
LIGHTWEIGHT AND PORTABLE - Weighing 8.5kg this welder is highly portable allowing the welder to be taken to the job at hand making it ideal for the mobile technician.
FEATURING - Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption.
LIFT START - Suitable for MMA/ARC welding using the lift start method for better weld quality.
ACCESSORIES SUPPLIED - Supplied with earth clamp, TIG torch and accessories, electrode holder and foot pedal.
Features
Features
Brand: | Sealey |
---|
|
Nett Weight: | 8.5kg |
---|
|
Power Output: | 10-200A |
---|
|
Duty Cycle: | AC - 100% @ 110A, 60% @ 141A, 30% @ 200A
DC - 100% @ 93A, 60% @ 120A, 30% @170A |
---|
|
Electrode Capacity: | ø1.6-4mm |
---|
|
Absorbed Power: | 5.4KW |
---|
|
Supply: | 230V* |
---|
|
Insulation Class: | F |
---|
|
Protection: | IP21S |
---|
|
Note: | *to achieve maxiumum power a 32A supply may be required. |
---|
