- Description
-
Details
Designed for the automotive electrician and conforms to EN61010 CAT III 600V.

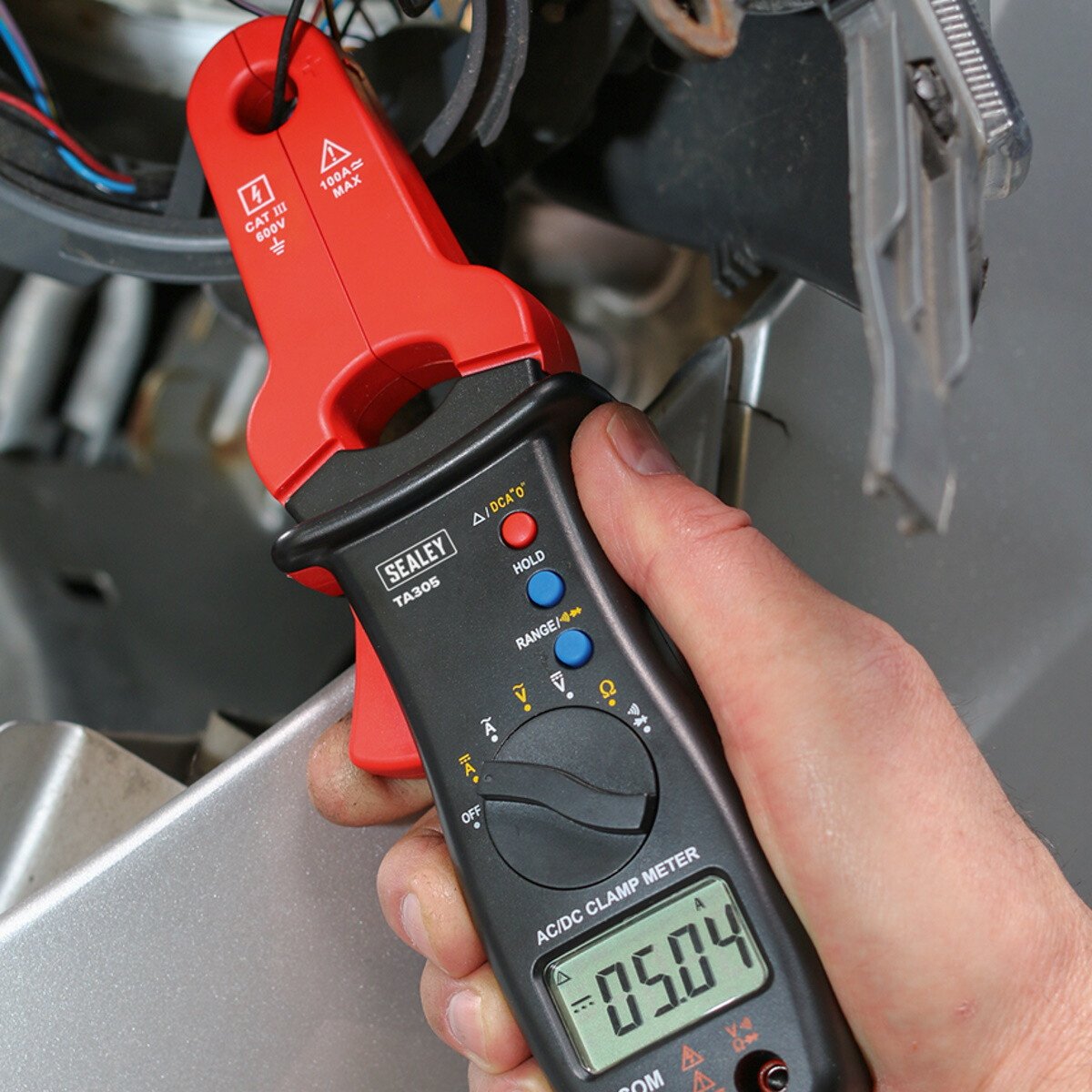

Ideal for measuring current draw from vehicle components in situ.
Features 12mm clamp.
Supplied in pouch.- Features
Features
Batteries (Supplied): 2 x 1.5V Hi-Impact Case: No Auto Power Off: Yes AC Current (Accuracy): 40A, 100A (2.5%) Dwell: No Specification Table: Low Battery Indicator: Yes Auto-Ranging: Yes Transistor Test: No Continuity: <50Ω Digits Height: 11mm Insulation Test: No DC Voltage (Accuracy): 400mV (0.8%), 4V, 40V, 400V, 600V (1.0%) Bar Graph Display: No Back Light: No Capacitance: No Data Hold: Yes Resistance: 4001.2%), 4k1.0%), 4M1.2%), 40M1.5%) Size (L x W x D): 226 x 71 x 38mm PC Interface: No Duty Cycle: No DC Current (Accuracy): 40A, 100A (2.5%) Tach (rpm): No Inductive Coupler: No Pulse Width: No AC Voltage (Accuracy): 400mV, 4V (1.2%), 40V, 400V, 600V (1.5%) Weight: 185g Frequency: No Diode Test: Yes IR Temperature: No Temperature: No
