Details

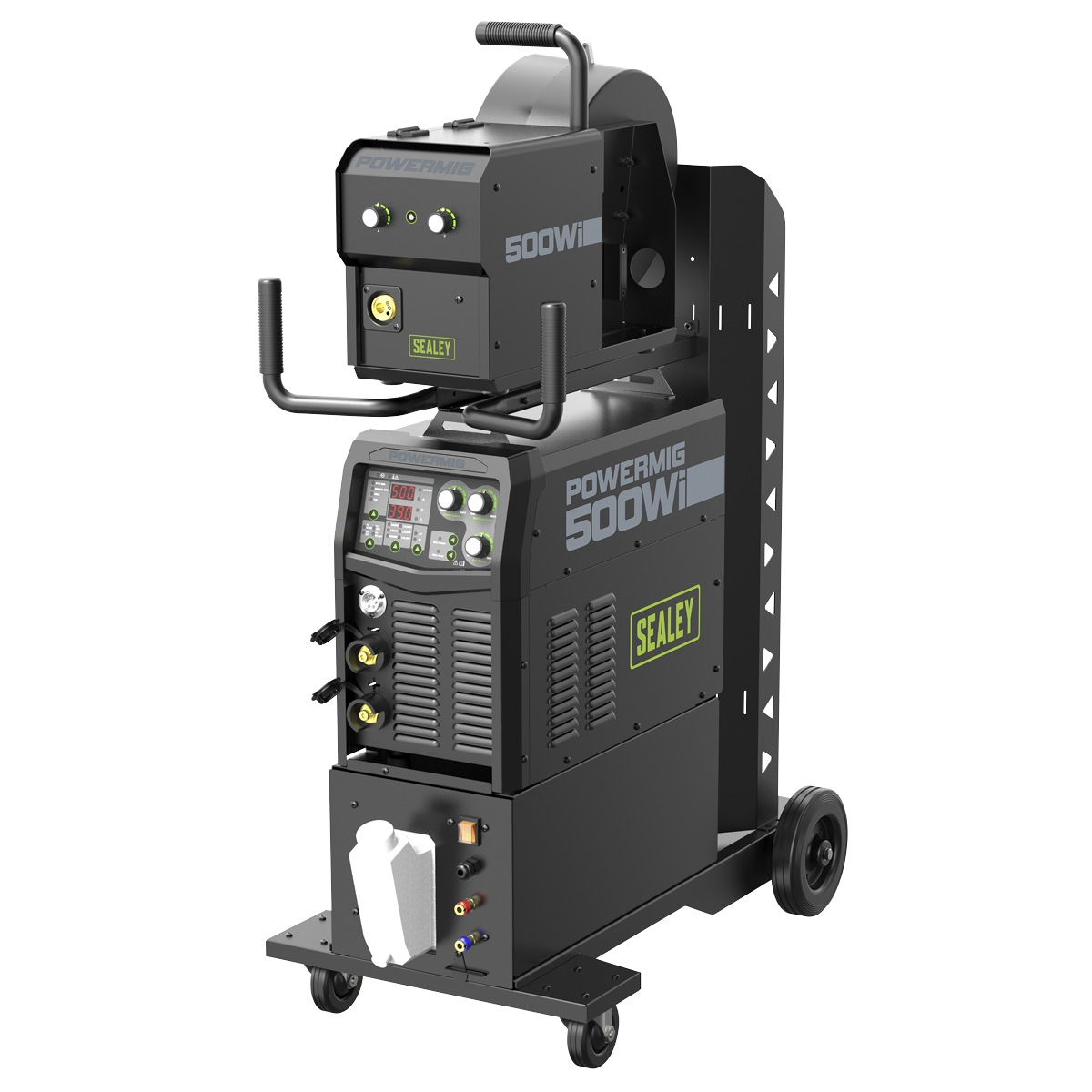

MULTI PROCESS INVERTER WELDER - Multi process IGBT inverter Gas/Gasless MIG/TIG/MMA welder suitable for professional fabricators and workshops, as well as mechanics and technicians.
PORTABLE WIRE FEEDER - Fitted with a portable wire feeder allowing access into high or tight spaces that otherwise would not be possible.
WATER COOLED - In-built water cooler allows the torch to remain cooler for longer enhancing efficiency and productivity.
500A MAX OUTPUT - Maximum output of 500A making it ideal for welding a large variety of metals including Steel, Stainless Steel up to 20mm.
2T/4T TRIGGER FUNCTION - 2T/4T torch trigger function allowing greater precision during longer welds.
ACCESSORIES INCLUDED - Supplied with 2m power cable, 2m earth clamp, 3m Euro Mig torch and 2m Electrode holder.
WIRE CAPACITY - Wire capacity of 5-15kg with a diameter of 0.6mm to 1.6mm.
ELECTRODE CAPACITY - Electrode capacity from 1.6mm to 5mm.
3 YEAR GUARANTEE*.
Features
Features
Brand: | Sealey |
---|
|
Nett Weight: | 55.7kg |
---|
|
Welding Current: | 30-500A |
---|
|
Wire Capacity: | 5-15kg |
---|
|
Electrode Capacity: | 1.6-5mm |
---|
|
Duty Cycle MIG: | 60% @ 500A
100% @ 388A |
---|
|
Duty Cycle TIG: | 60% @ 500A
100% @ 388A |
---|
|
Duty Cycle MMA: | 60% @ 500A
100% @ 388A |
---|
|
Gas Type: | CO2, Argon, CO2/Argon Mix |
---|
|
Mig Torch (inc): | 3m Euro Non-Live Torch |
---|
|
Supply: | 230V - 50Hz |
---|
|
Plug Type: | Bare Wire |
---|
|
Power Supply Cable Length: | 2m |
---|
|
Weight: | 15kg |
---|
|
IP Rating: | IP21S |
---|
|
Absorbed Power: | 19.04kW |
---|
|
Input Current: | 39.5A (MMA), 40A (MIG) |
---|
|
Output Voltage: | 50A/22V to 500A/40V (MMA), 30A/15.5V to 500A/39V (MIG) |
---|
|
No Load Voltage: | 85V (MMA), 85V (MIG) |
---|
|
Efficeincy: | 0.8 |
---|
|
Specifications for Water Cooler: | |
---|
|
Power: | 370W |
---|
|
Coolant: | Distilled Water |
---|
|
Max Pressure: | 3kg/cm |
---|
|
Feed Rate: | 8L/min |
---|
|
Tank Capacity: | 6L |
---|
|
IP Rating: | IP21S |
---|
|
Note* | In freezing conditions add antifreeze to the coolant. |
---|
