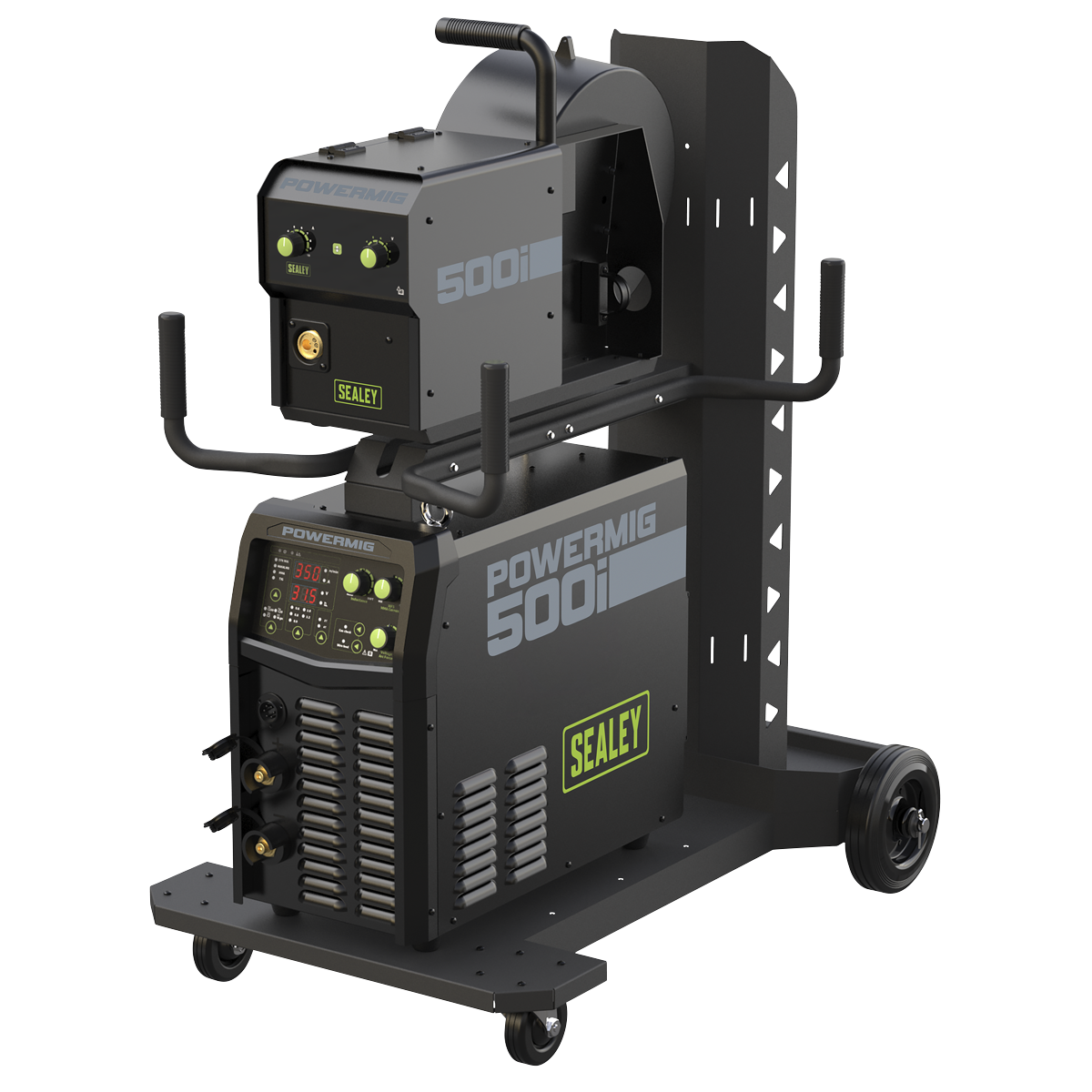

Sealey POWERMIG500i 500A Professional Gas/Gasless MIG/TIG/MMA Inverter Welder With Portable Wire Feeder 400V 3ph
MULTI PROCESS INVERTER WELDER - Multi process IGBT inverter Gas/Gasless MIG/TIG/MMA welder suitable for professional fabricators and workshops, as well as mechanics and technicians
SKU
S-POWERMIG500i
Barcode
5054630530272
£2,039.94
(
£1,699.95
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / POWERMIG500i
MULTI PROCESS INVERTER WELDER - Multi process IGBT inverter Gas/Gasless MIG/TIG/MMA welder suitable for professional fabricators and workshops, as well as mechanics and technicians.
PORTABLE WIRE FEEDER - Fitted with a portable wire feeder allowing access into high or tight spaces that otherwise would not be possible.
500A MAX OUTPUT - Maximum output of 500A making it ideal for welding a large variety of metals including Steel, Stainless Steel up to 20mm.
2T/4T TRIGGER FUNCTION - 2T/4T torch trigger function allowing greater precision during longer welds.
SAFETY FEATURES INCLUDE - Features short circuit, over-heating and over-current protection.
ACCESSORIES INCLUDED - Supplied with 2m power cable, 2m earth clamp, 3m Euro Mig torch and 2m Electrode holder.
WIRE CAPACITY - Wire capacity of 5-15kg with a diameter of 0.6mm to 1.6mm.
ELECTRODE CAPACITY - Electrode capacity from 1.6mm to 5mm.
3 YEAR GUARANTEE*.
PORTABLE WIRE FEEDER - Fitted with a portable wire feeder allowing access into high or tight spaces that otherwise would not be possible.
500A MAX OUTPUT - Maximum output of 500A making it ideal for welding a large variety of metals including Steel, Stainless Steel up to 20mm.
2T/4T TRIGGER FUNCTION - 2T/4T torch trigger function allowing greater precision during longer welds.
SAFETY FEATURES INCLUDE - Features short circuit, over-heating and over-current protection.
ACCESSORIES INCLUDED - Supplied with 2m power cable, 2m earth clamp, 3m Euro Mig torch and 2m Electrode holder.
WIRE CAPACITY - Wire capacity of 5-15kg with a diameter of 0.6mm to 1.6mm.
ELECTRODE CAPACITY - Electrode capacity from 1.6mm to 5mm.
3 YEAR GUARANTEE*.
Features / Specification
| Brand: | Sealey |
|---|---|
| Nett Weight: | 42.5kg |
| Welding Current: | 30-500A |
| Wire Capacity: | 5-15kg |
| Electrode Capacity: | 1.6-5mm |
| Duty Cycle MIG: | 60% @500A 100% @ 388A |
| Duty Cycle MMA: | 60% @ 500A 100% @ 388A |
| Duty Cycle TIG: | 60% @ 500A 100% @ 388A |
| Gas Type: | CO2, Argon, CO2/Argon Mix |
| Mig Torch (inc): | 3m Euro Non-Live Torch |
| Supply: | 400V 3ph |
| Power Supply Cable Length: | 2m |
| Weight: | 42.5kg |
| IP Rating: | IP21S |
| Absorbed Power: | 19.04kW |
| Input Current: | 39.5A (MMA), 40A (MIG) |
| Output Voltage: | 50A/22V to 500A/40V (MMA), 30A/15.5V to 500A/39V (MIG) |
| No Load Voltage: | 85V (MMA), 85V (MIG) |
| Efficeincy: | 0.8 |
