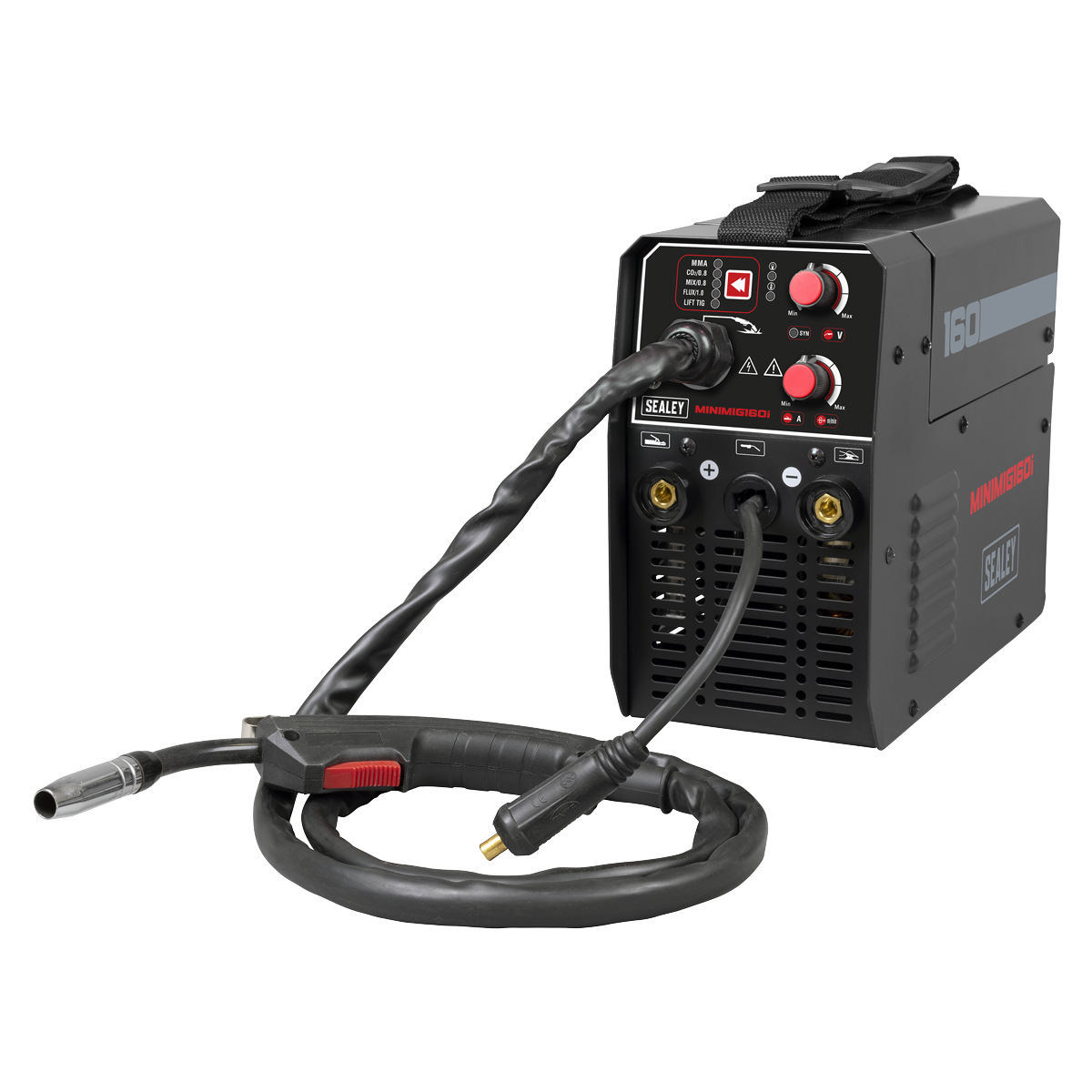

IGBT INVERTER TECHNOLOGY - IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 160A.
3-IN-1 FUNCTION - Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians.
HIGHLY PORTABLE - Ultra-compact and lightweight weighing just 6.9kg and supplied with handy carry strap making this unit highly portable allowing the welder to be taken to the job at hand.
FEATURING - Hot start, anti-stick, forced air cooling and thermal cut out protection.
WELDING CAPABILITY - Unit can MIG weld using 1kg ø0.8/0.9/1mm solid wire and ø0.8/0.9mm flux cored MIG wire, MMA/ARC weld ø1.6 up to ø4mm electrode.
SUPPLIED WITH - Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
DUTY CYCLE - MIG - 60% @ 160A, TIG - 60% @ 160A, MMA/ARC - 60% @ 160A.- Features
Features
Brand: Sealey Nett Weight: 6.9kg Welding Current: 10-160A Duty Cycle MIG: 60% @ 160A, 100% @ 124A Duty Cycle MMA/ARC: 60% @ 160A, 100% @ 124A Duty Cycle TIG: 60% @ 160A, 100% @ 124A Wire Capacity: 1kg ø0.8/0.9/1mm solid wire and ø0.8/ø0.9mm flux cored MIG wire Electrode Capacity: 1.6-4mm Absorbed Power: 4.4kW Supply: 230V 16A* Insulation Class: H IP Rating: IP21S Note * To achieve maximum power a 16A supply may be required.
