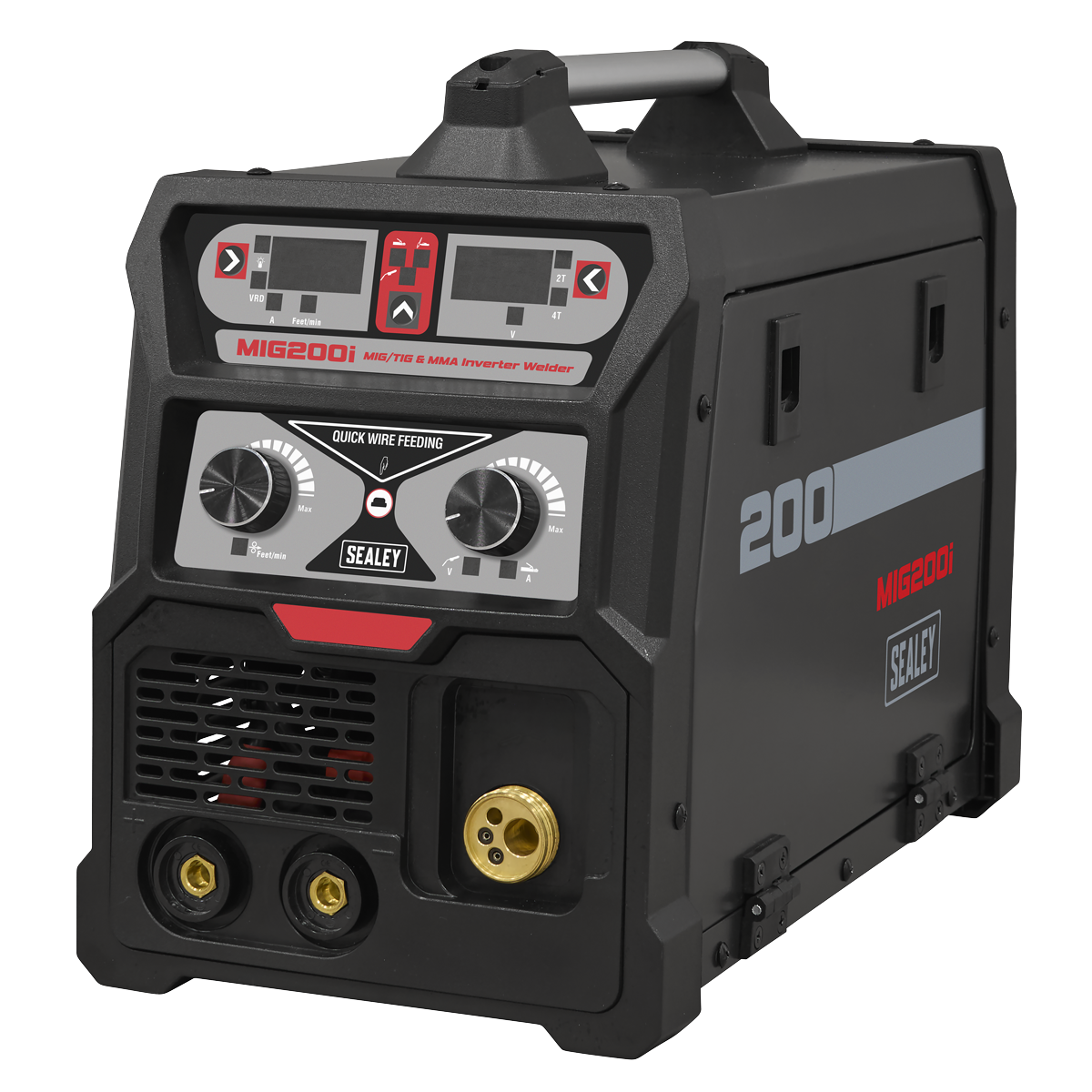

IGBT INVERTER TECHNOLOGY - IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 200A.
3 IN 1 FUNCTION - Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians.
HIGHLY PORTABLE - Ultra-compact and lightweight weighing just 11.1kg and supplied with carry handle making this unit highly portable allowing the welder to be taken to the job at hand.
FEATURING - Featuring hot start, anti-stick, forced air cooling and thermal cut out protection.
WELDING CAPABILITY - Unit can MIG weld using 5kg ø0.8/ø0.9/ø1mm solid wire and flux cored MIG wire, MMA/ARC weld ø1.6 up to ø4mm electrode.
SUPPLIED WITH - Supplied with fixed non-live MIG torch 2.8m, 1.4m earth cable/clamp, 1.6m electrode holder.
DUTY CYCLE - MIG - 60% @ 200A, TIG - @ 60% 170A, MMA/ARC - 60% @ 170A.
Features
Features
Brand: | Sealey |
---|
|
Nett Weight: | 11.1kg |
---|
|
Welding Current: | 50-200A |
---|
|
Duty Cycle Mig: | 60% @ 200A, 100% @ 154A |
---|
|
Duty Cycle MMA: | 60% @ 170A, 100% @ 131A |
---|
|
Duty Cycle TIG: | 60% @ 170A, 100% @ 131A |
---|
|
Wire Capacity: | 5kg |
---|
|
Electrode Capacity: | ø1.6-4mm |
---|
|
Absorbed Power: | 7.7kW |
---|
|
Insualtion Class: | H |
---|
|
IP Rating: | IP21S |
---|
|
| |
---|
