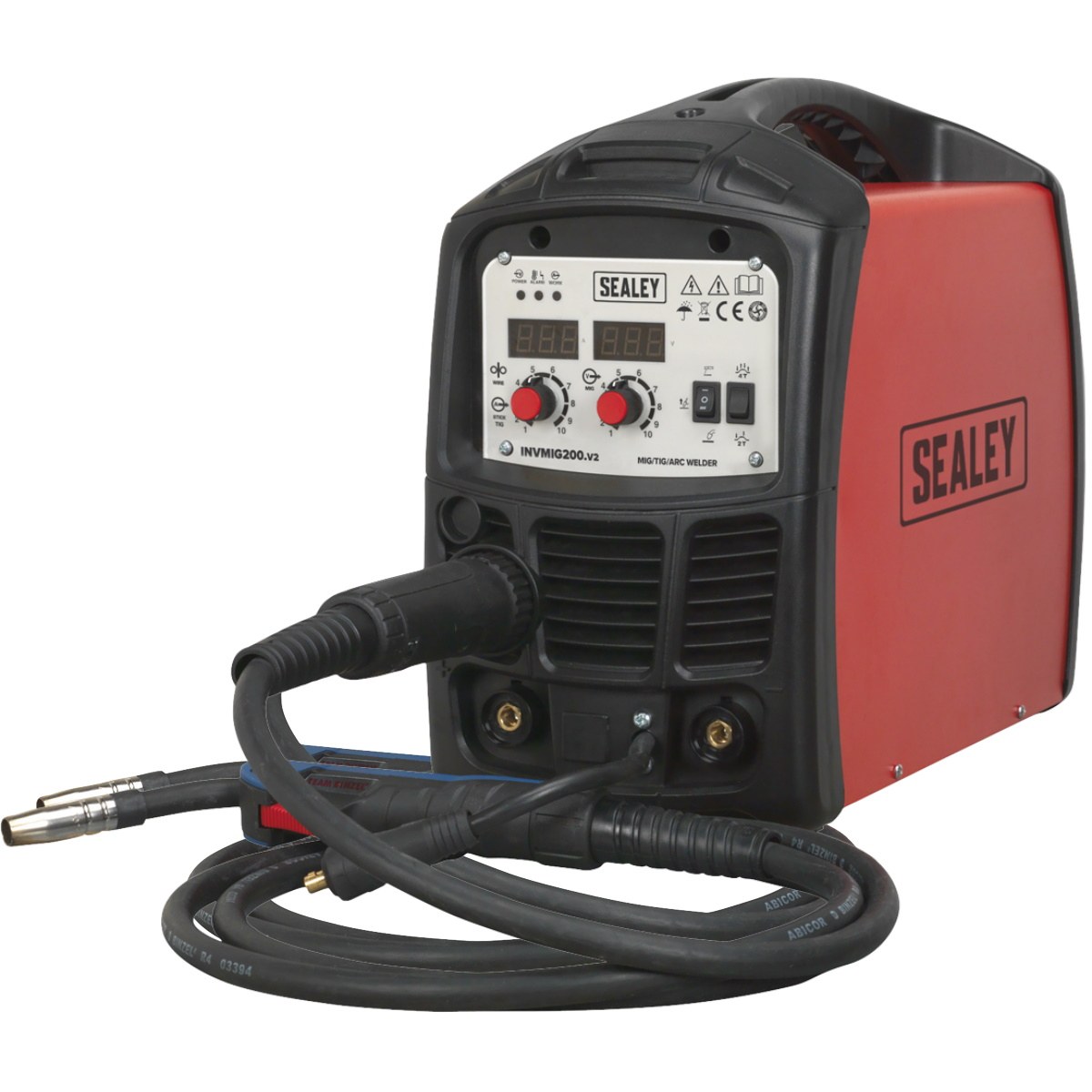

Sealey INVMIG200 Inverter MIG, TIG & MMA 200Amp
Description / Sealey INVMIG200
Manufactured with a pressed steel outer casing.
• Suitable for arc welding a variety of rods including rutile, basic and stainless from Ø1.6mm to Ø4mm.
• Fan cooled DC power supply for MIG and TIG, suitable to weld steel, stainless steel, cooper, nickel, titanium and their alloys.
• Rocker switch between MIG, TIG* and MMA* welding modes (*optional extra torches required).
• Thermal overload protection which automatically switches unit off when it exceeds maximum temperature.
• Fully functional front panel with self explanatory pictograms for each dial and switch.
• Wire feed control used to control the speed of wire fed through the torch during welding.
• Polarity change terminals allow the operator to change polarity of welding torch depending on whether the applications are MIG or flux-cored welding.
• Includes 3m MIG torch, 3m Earth cable, gas hose and regulator.
• Contact Tips: 0.6, 0.8 (x2), 0.9, 1.0mm.
Features / Specification
Nett Weight: | 17.4kg |
|---|---|
| Duty Cycle: | MIG 20% @ 200A, 100% @ 90A TIG 20% @ 200A, 100% @ 90A MMA (Arc) 20%@170A, 100%@76A |
| Wire Capacity: | 5kg |
| Electrode Capacity: | Ø1.6-4mm |
| Absorbed Power: | 6.64kW |
| Supply: | 230V** |
| Insulation: | IP21S |
| Protection: | F |
| Weight: | 20kg |
| MIG Torch: | Euro Non-Live BINZEL® MB15* MMA |
| Accessory Kit (Optional): | MMA01 TIG |
| Accessory Kit (Optional): | TIG10S |
| Note: | *Included as standard, **To achieve maximum power a 32A supply may be required. |
