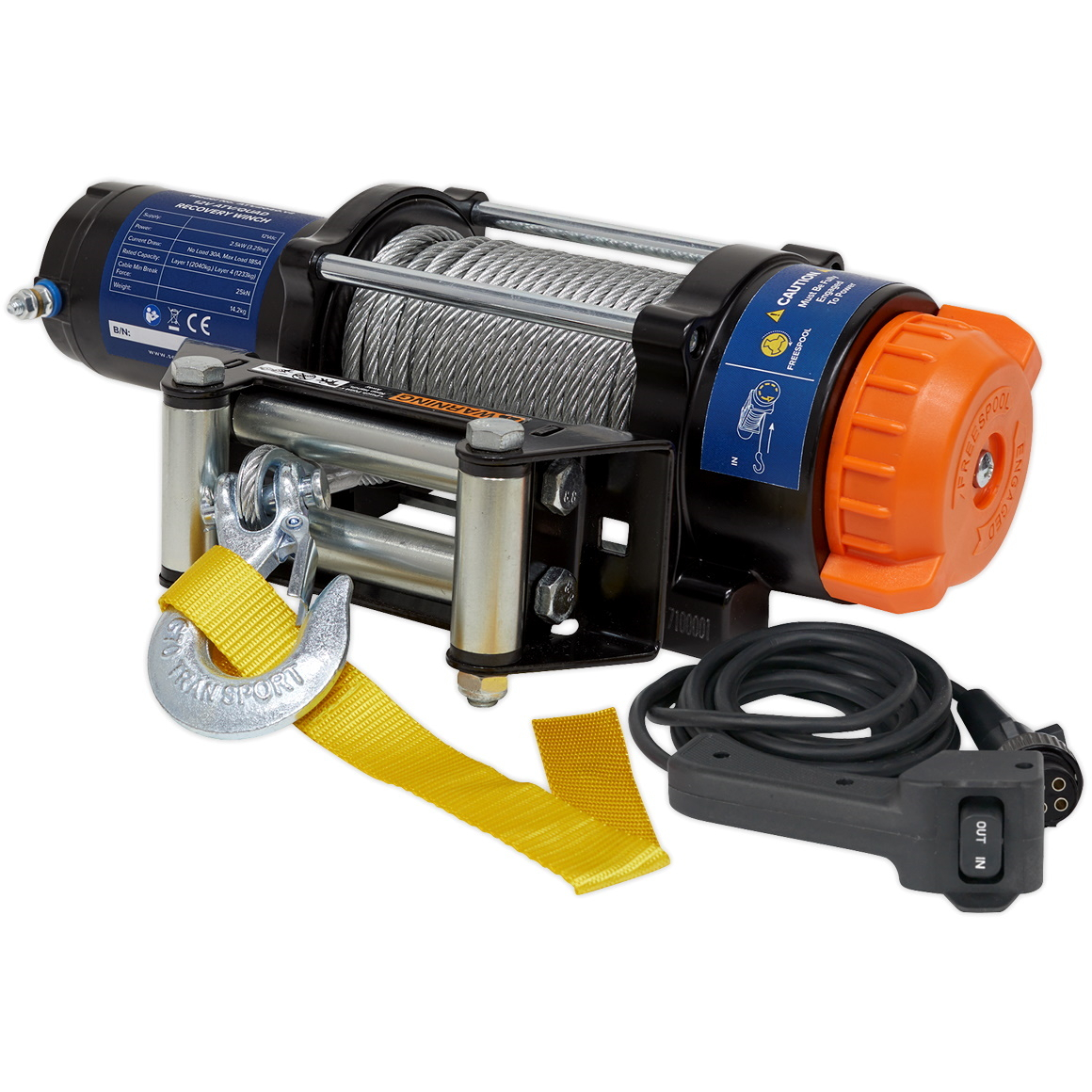

Sealey ATV2040 ATV/Quad Winch 2040kg Line Pull 12V
Suitable for ATV and quadbike mounting, these high speed winches offer a combination of performance with durability
Order within
SKU
S-ATV2040
Barcode
5054511366297
£254.34
(
£211.95
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Sealey ATV2040
Suitable for ATV and quadbike mounting, these high speed winches offer a combination of performance with durability.
Designed and built with the toughest jobs in mind.
Check out the features:
- Heavy-duty all-weather housing.
- High power 1kW 12V DC motor with 1.8hp permanent magnet gives first class pulling power.
- 3-Stage planetary gears using oversized components for greater torque plus mechanical and dynamic braking.
- Drum clutch with ergonomic hand control allows free spooling of cable.
- High quality wire rope with a 4-way roller fairlead with mounting bracket for smooth and even distribution of cable onto drum.

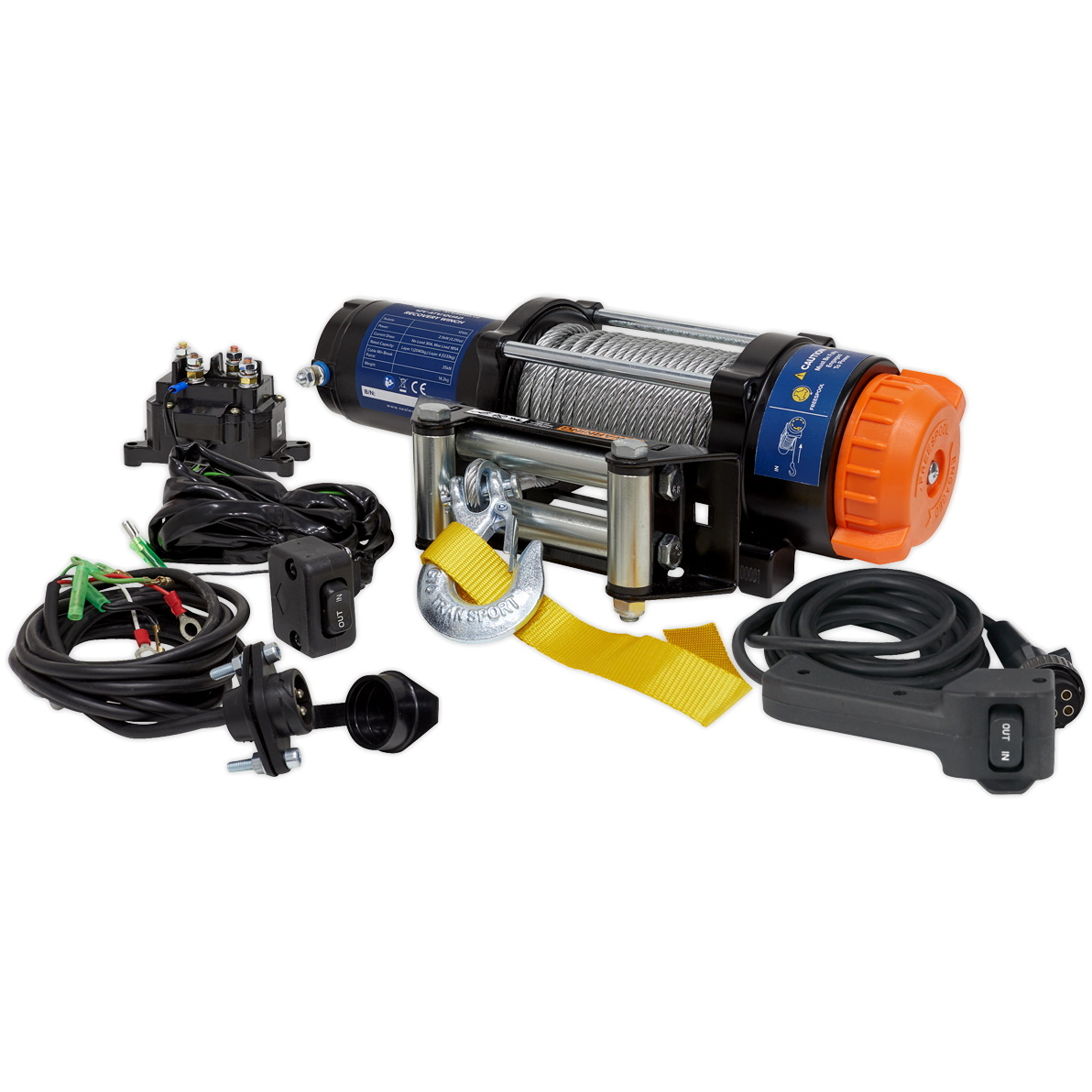

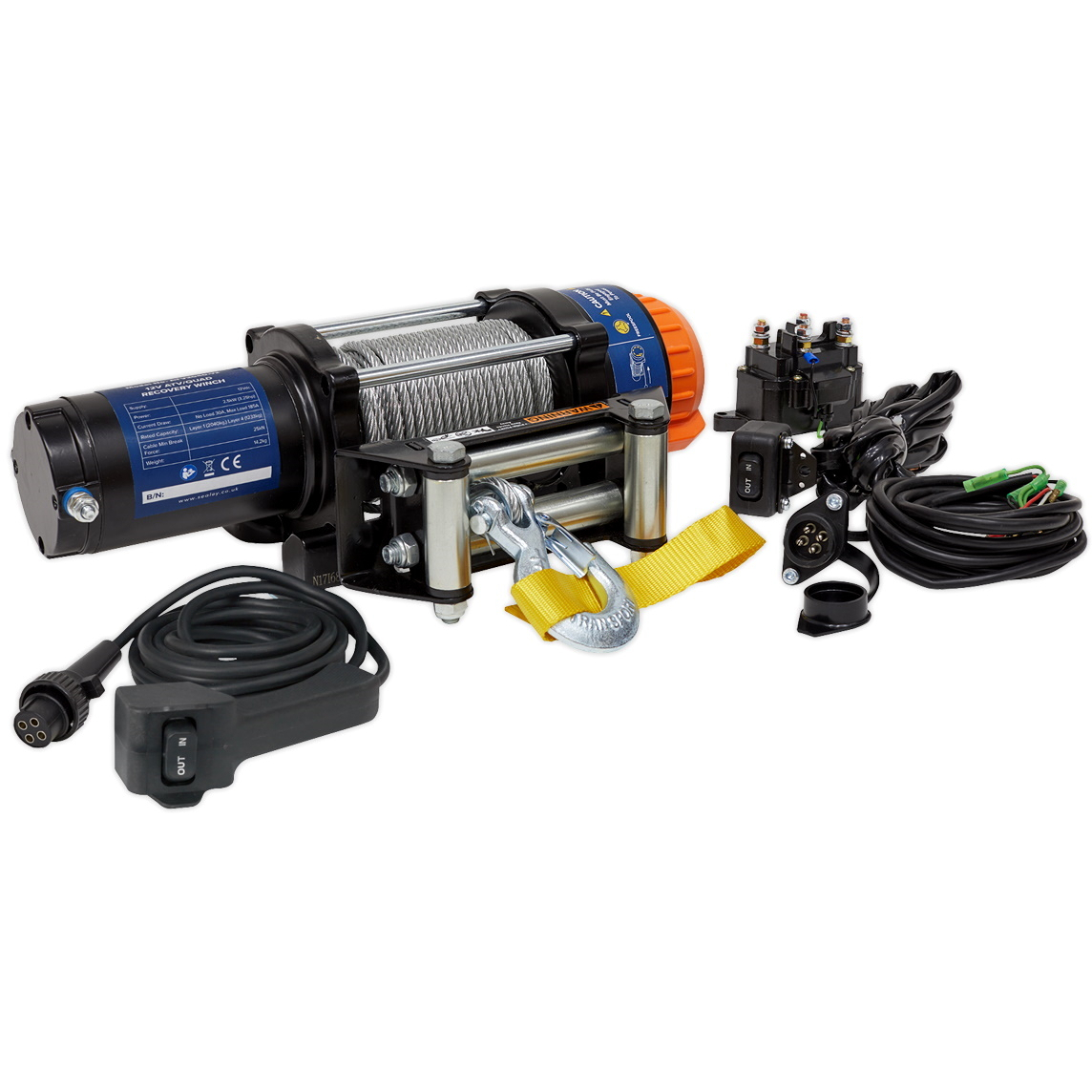

- Plug-in hand held controller, handle bar switch and mounting hardware are included as standard.
IP67 Ingress Protection rating.
Designed and built with the toughest jobs in mind.
Check out the features:
- Heavy-duty all-weather housing.
- High power 1kW 12V DC motor with 1.8hp permanent magnet gives first class pulling power.
- 3-Stage planetary gears using oversized components for greater torque plus mechanical and dynamic braking.
- Drum clutch with ergonomic hand control allows free spooling of cable.
- High quality wire rope with a 4-way roller fairlead with mounting bracket for smooth and even distribution of cable onto drum.
- Plug-in hand held controller, handle bar switch and mounting hardware are included as standard.
IP67 Ingress Protection rating.
Features / Specification
Consumable Parts: | ATV2040.WR - Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (Ø5.5mm x 17m) for ATV2040 | |
|---|---|---|
| Current Draw: | No-Load - 30A, Maximum Load - 185A | |
| Gear Ratio: | 180: | 1 |
| Line Pull*: | 2040kg(4500lb) | |
| Line Speed*: | No Load - 4.5m/min, Maximum Load - 1.3m/min | |
| Motor Power: | 2.5kW(3.25hp) | |
| Note: | *Performance quoted at first layer of cable on drum | |
| Supply: | 12V | |
| Wire Rope Diameter: | 5.4mm | |
| Wire Rope Length: | 17m |
