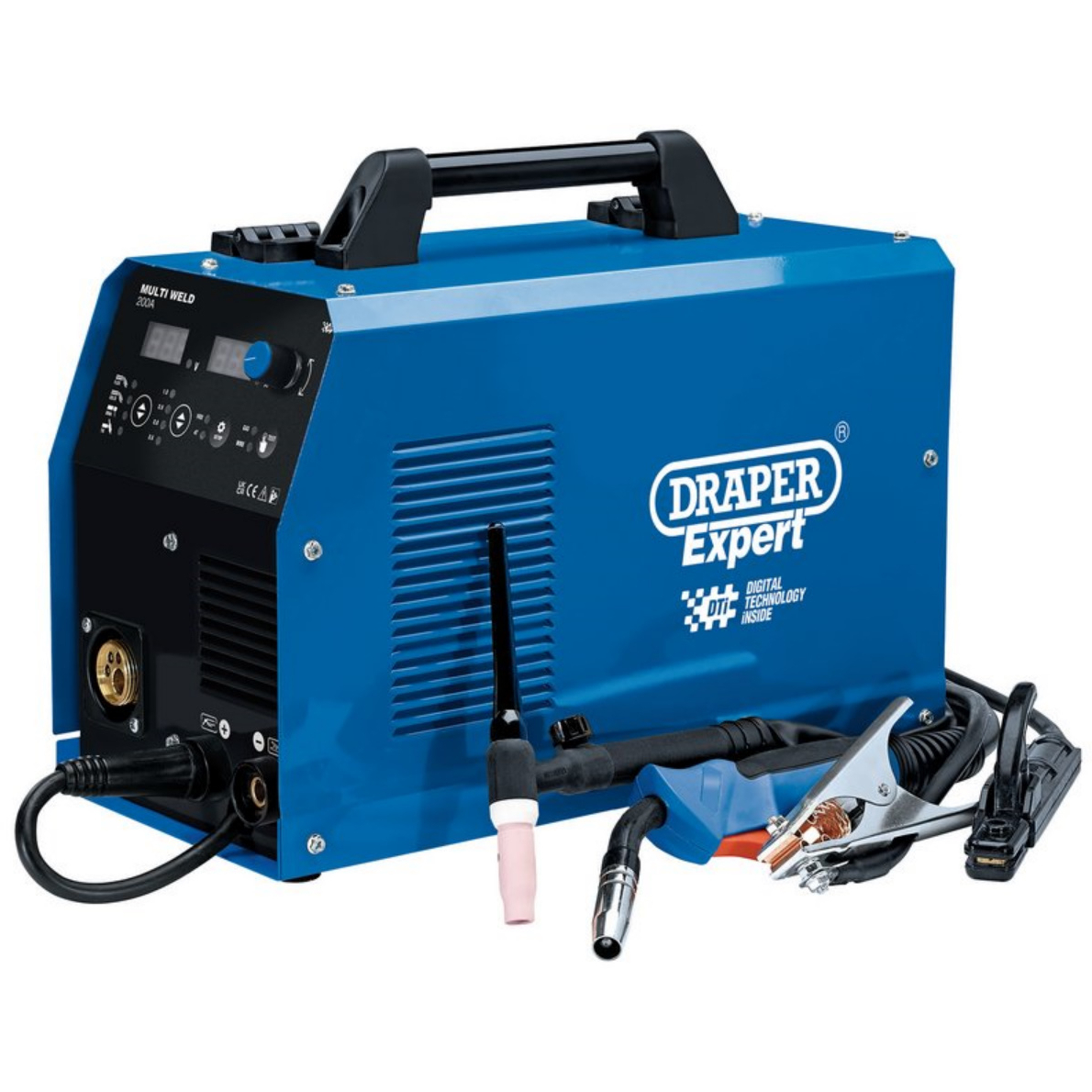

Draper 70043 MW200A 3-In-1 200A MIG/TIG/MMA Multi Process Welder

Expert Quality

SKU DRA70043
Barcode 5059482015137

Description / Draper 70043

Expert Quality.
Highly versatile multi-function 3-in-1 welder (MIG/MMA/TIG) that can be used as a gas/gasless welder.
Compact design features powerful IGBT inverter technology to create a very efficient machine that is optimised for improved productivity and ease of use.
Includes the latest digital technology (DTi) to allow more functionality, superior performance and precision control welding.
Lightweight and portable design, with carry handle.

Features / Specification

Welding type:

MIG/MAG/Fluxed cored/MMA/TIG-Lift
Amperage range:MIG 30-200A, MMA 20-200A, TIG 20-200A
Power supply:230V-32A
MMA Electrode size:1.6-5.0mm
MIG Wire size:0.6-1.2mm
Flux core wire:0.6-1.2mm
Duty cycle:60% @200A / 100% @160A
Dimensions:420 x 205 x 300mm
Weight:13.7kg

Supplied With

  • 1 X 200A Electrode holder (1.8m cable)
  • 1 X 300A Earth clamp (1.8m cable)
  • 1 X 0.8 and 1.0 contact tips
  • 1 X AK15 Euro MIG torch (3m cable)
  • 1 X TIG torch (3m cable)
  • 1 X Gas hose (2m)
  • 1 X Chipping hammer/wire brush
  • 1 X Face mask
