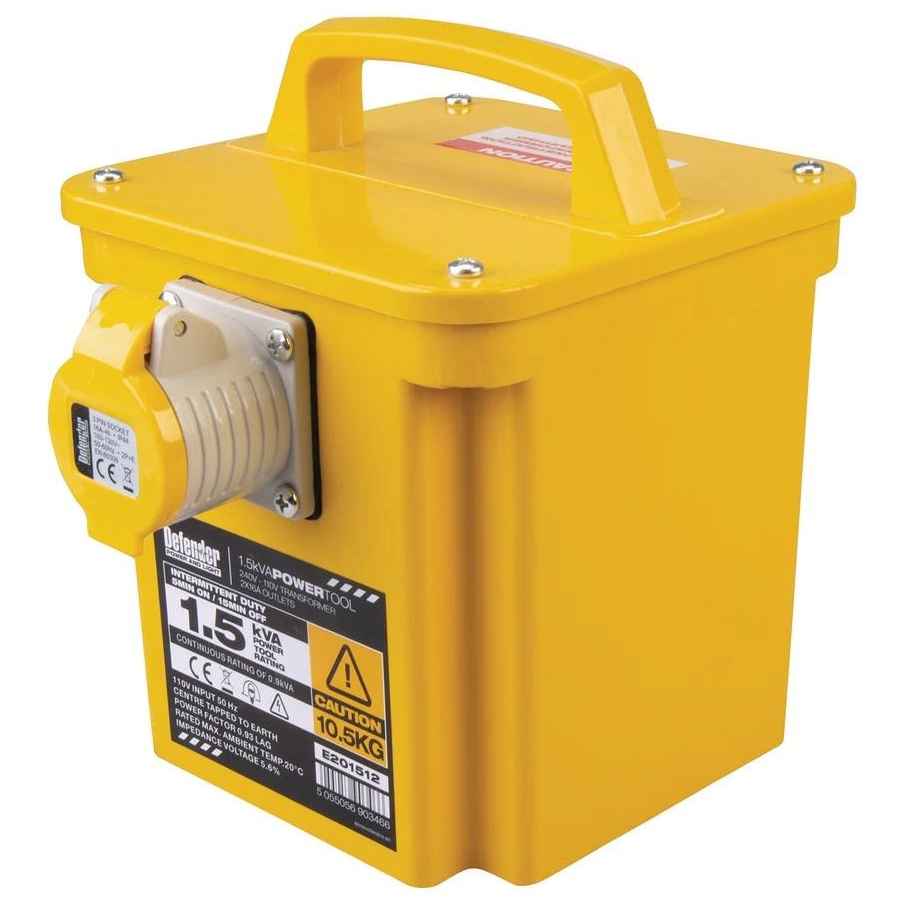

Draper 36397 Defender E201512 110V 1.5kVA Transformer, 16A

Popular transformer built for demanding construction tasks where mains voltage needs stepping down and isolating

SKU DRA36397
Barcode 5059482126123

Description / Draper 36397

  • Popular transformer built for demanding construction tasks where mains voltage needs stepping down and isolating.
  • Tough GRP case with 2 x 16A 110V outlets
  • Resettable overload protection keeps tools and appliances safe while maximising work times
  • For use with lighting applications and corded power tools such as hammer drills, impact drills, percussion drills and rotary hammer drills
  • Also suitable for use with other industrial appliances such as fume extractors
  • Intermittent rating: 1500VA. Duty cycle 5min on / 15min off. Continuous rating: 900VA. BSEN61558-1 compliant
  • Fitted with 110V 13A plug
  • Centre-tapped to earth for extra safety
  • 2m rubber-sheathed H07RN-F cable with 1.5mm² 3-core conductor
  • Ingress protection rating: IP44.
  • Dimensions: 180 x 255 x 230mm
  • Weight: 11kg

Features / Specification

Input voltage 230-240V
Output voltage 110V
Apparent Power (kVA) 1.5KVA
Intermittent duty rated output 1500VA(1.5KVA)
Continuous duty rated output 900VA(0.9KVA)
Output current 2x16A
IP IP44
Rated Power Factor 0.93 cos
Cooling Air Cooling
Dimensions 225 x 272 x 180mm
Weight 10.5KG
