Trend TEMP/CDH/A Template cabinet door hinge 35 & 26mm

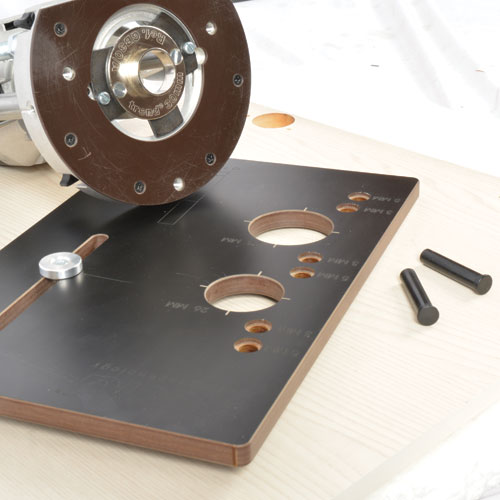

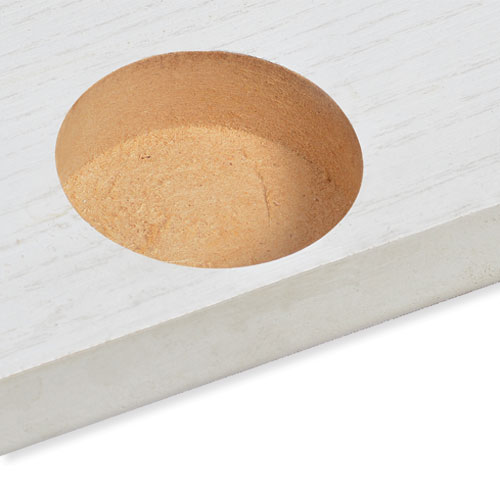

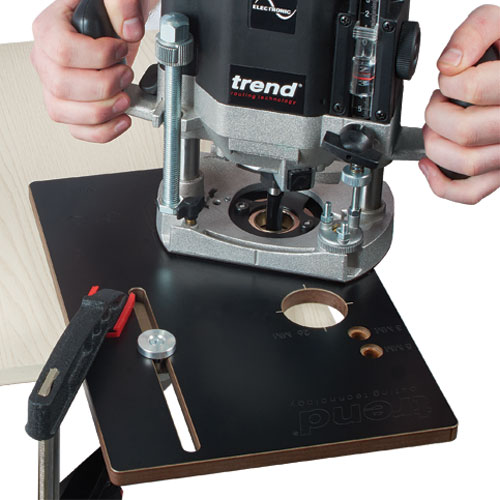

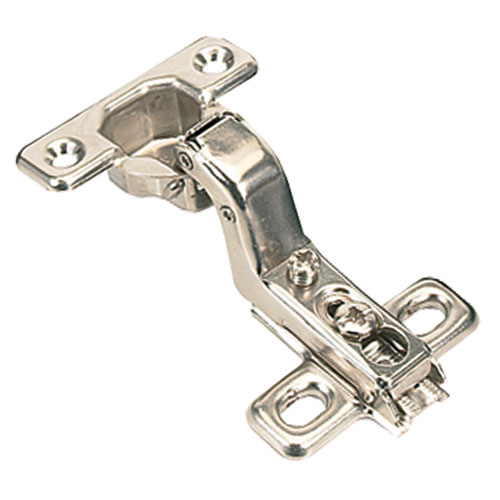

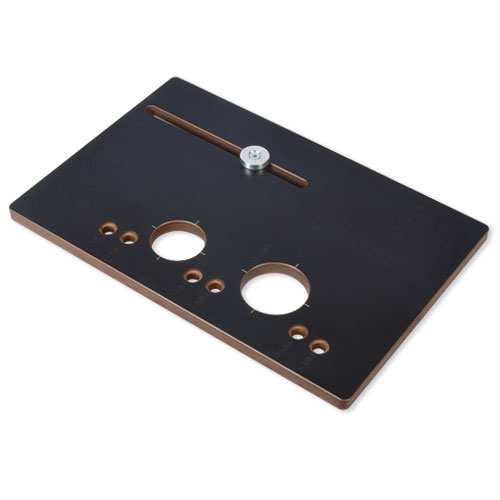

A routing template that allows a router to create a 26mm or 35mm diameter blind hole recess for a circular cabinet door hinge
Order within
SKU
TR-TEMP/CDH/A
Barcode
5027654054123
£73.63
(
£61.36
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Trend TEMP/CDH/A
- A routing template that allows a router to create a 26mm or 35mm diameter blind hole recess for a circular cabinet door hinge
- Cuts an accurate recess for either 26mm or 35mm circular hinges
- Adjustable alloy edge guide for adjustment of recess position from top or bottom of door
- Removable alloy edge guide for middle hinge recess
- 3mm and 5mm location holes to accurately position the recesses relative to the edge of the door
- Engraved centre sight lines
- Pin holes reversible for left hand and right hand doors
- Made from hard wearing 12mm thick high pressure laminate
- Requires 12.7mm diameter cutter, 30mm guide bush and two 100mm throat F-clamps
Features / Specification
| Size: | 355 mm x 320 mm x 12 mm |
|---|
