Trend TEMP/BH/A Template butt hinge

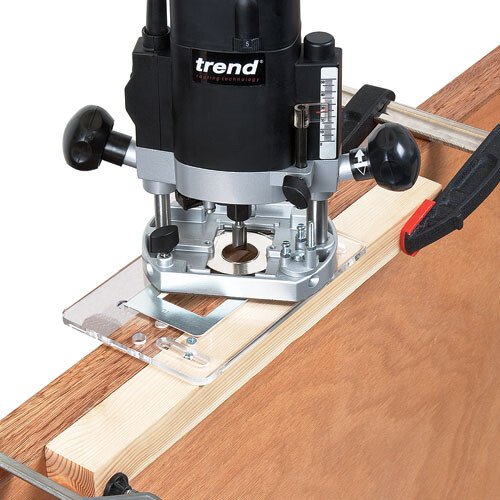

A routing template that allows a router to create a hinge recess on a door
Order within
SKU
TR-TEMP/BH/A
Barcode
5027654537695
£59.88
(
£49.90
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Trend TEMP/BH/A
- A routing template that allows a router to create a hinge recess on a door
- Made from clear 8mm thick plastic

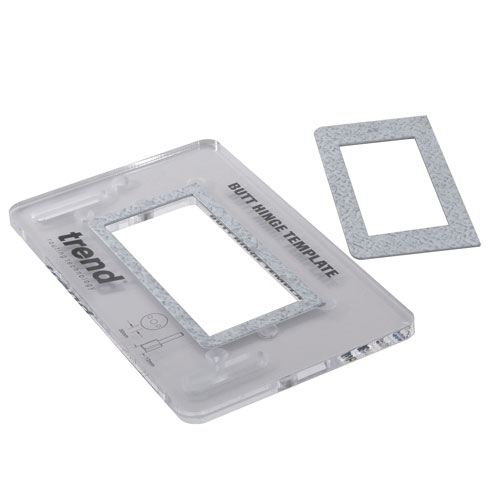

- Includes metal templates for 75mm and 100mm butt hinges
- Magnets in template frame to hold templates
- Cuts rounded corners which can be removed with a corner chisel or chisel
- Use on doors from 35mm to 44mm thick
- Requires 12mm diameter cutter and 30mm guide bush
- A user made batten 44mm x 34mm x 450mm is also needed
- Design Reg. No. 00132246-001
Features / Specification
| Size: | 214 mm x 135 mm x 8 mm |
|---|
