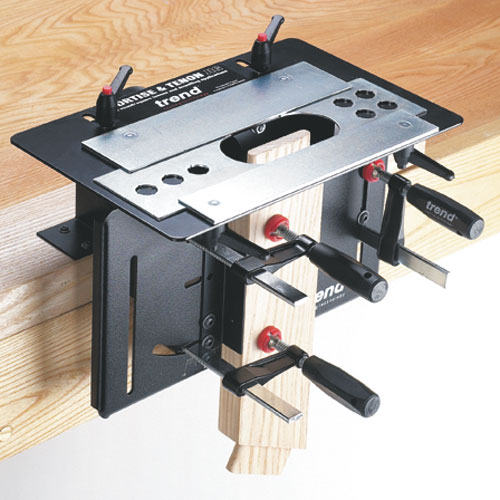

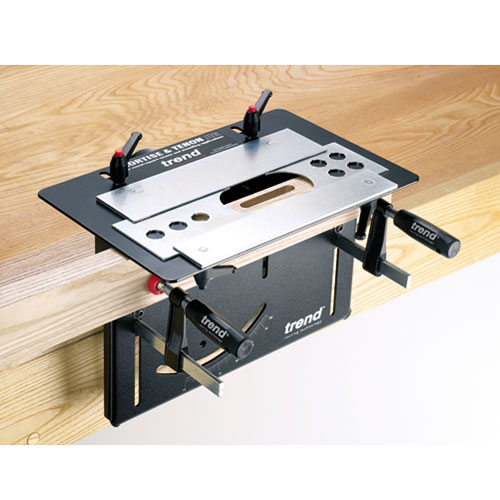

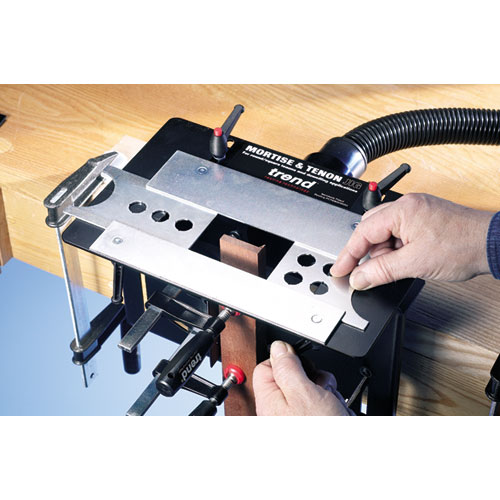

Trend MT/JIG Mortise and Tenon Jig (Imperial Size)

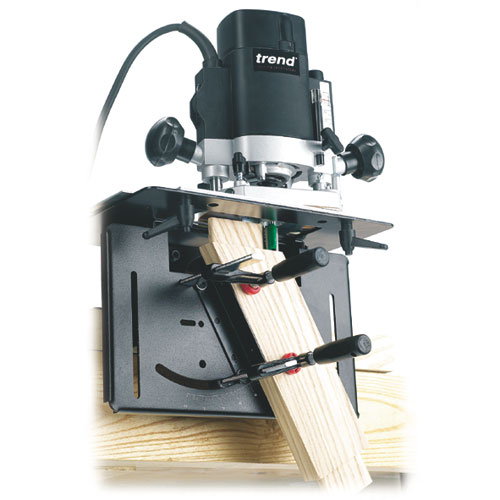

Enables mortise & tenons and dowel joints to be cut with a router
Order within
SKU
TR-MT/JIG
Barcode
5027654523889
£245.98
(
£204.98
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Trend MT/JIG

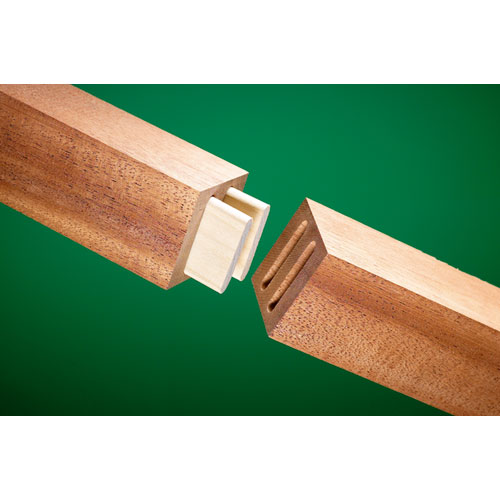

- Enables mortise & tenons and dowel joints to be cut with a router
- Ideal for cabinet, chair and table
- CNC precision manufactured plates and body
- One set-up for both mortise and tenon giving perfectly fitting joints

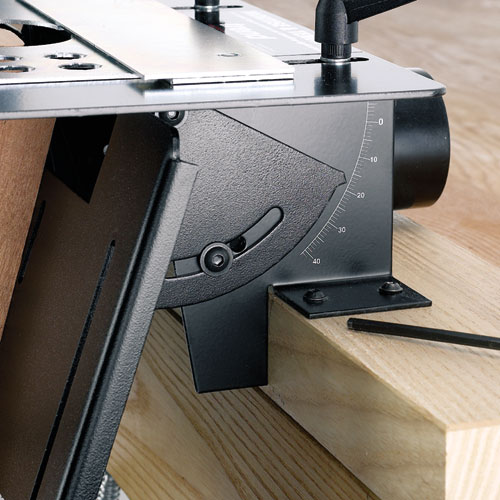

- Fully adjustable for compound angle joints up to 45 degree

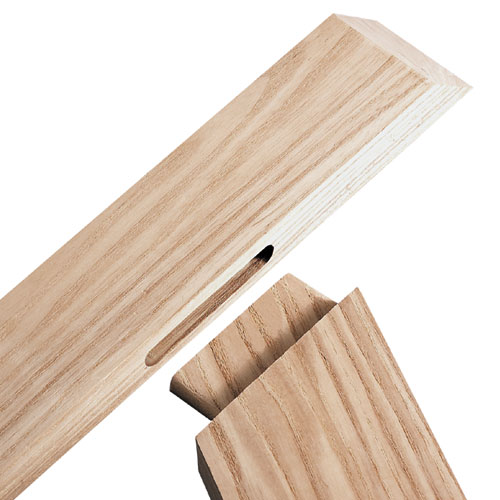

- Reversible templates to produce round and square end tenons

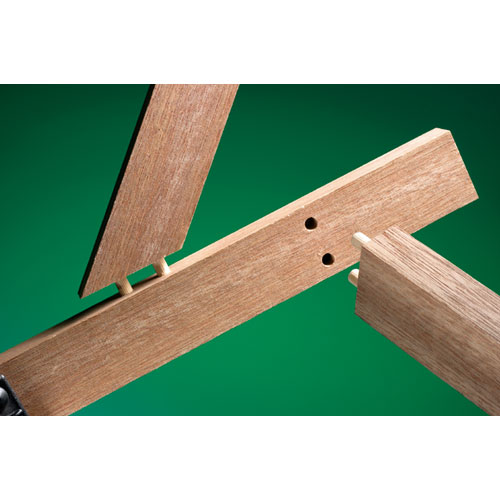

- Templates can be used for accurate dowelling applications
- Cuts mortise & tenon sizes of 1/4 inch (6.35mm) to 5/8 inch (15.9mm)

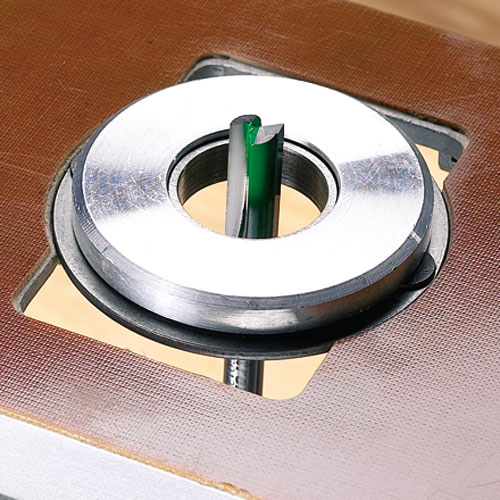

- Guide bushes are included but cutters are required
- A Unibase may be required for certain makes & models of router
- All tenons are cut with a 5/8 inch diameter straight cutter (Ref. C026)
- The width of the tenon is adjusted by using different guide bush diameters
- International PCT Appl No. PCT/GB02/00253
- Jig requires:
- A portable plunge router with 6.35 mm (1/4 inch) shank capacity
Features / Specification
| Material thickness min.: | 12 mm |
|---|
