Trend HINGE/JIG Hinge recessing Jig Single Piece

More Views

Trend HINGE/JIG Hinge recessing Jig Single Piece
Ex. VAT £208.32 Inc. VAT £249.98

Usually ships within 3 working days with Free Shipping

Description

Details

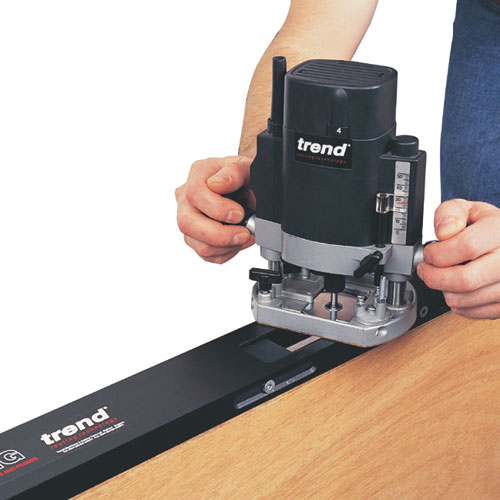

  • The single piece Contractor Hinge Jig is designed for recessing hinges in wooden doors & frames with a plunge router
  • It is easy to use with minimal setting-up time, completing the job both accurately & quickly
  • Used on-site & in joinery shops to increase productivity with excellent results
  • Four apertures for fire door requirements
  • No need for marking out in the conventional way
  • Quick & simple to set-up as the hinge is used as the pattern
  • Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
  • Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops
  • Use with a light duty plunge router with 1/4 inch collet
  • Long reach router cutter required, 12mm diameter with 70mm overall length
  • Angled position slots to prevent creep
  • Unibase may be needed
  • T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160
Features

Features

Hinge sizes possible
