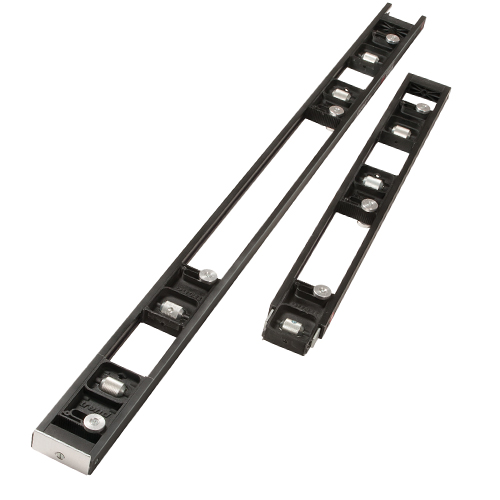

Trend H/JIG/C Hinge jig Skeleton two part in case from Lawson HIS

The two part Contractor Hinge Jig is a portable fully adjustable block template set designed for recessing hinges in wooden doors & frames using a plunge router
It is easy to use with minimal setting-up time, completing the job both accurately & quickly
Used on-site & in joinery shops to increase productivity with excellent results
Fully adjustable apertures for fire door requirements and renovation work
Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops
Ideal for fitting a new door in an old frame
No need for marking out in the conventional way
Quick & simple to set-up as the hinge is used as the pattern
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
Use with a light duty plunge router with 1/4 inch collet
Long reach router cutter required, 12mm diameter with 70mm overall length
Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
Unibase may be needed
Patent No. GB2490139
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160

Trend H/JIG/C Hinge jig Skeleton two part in case
