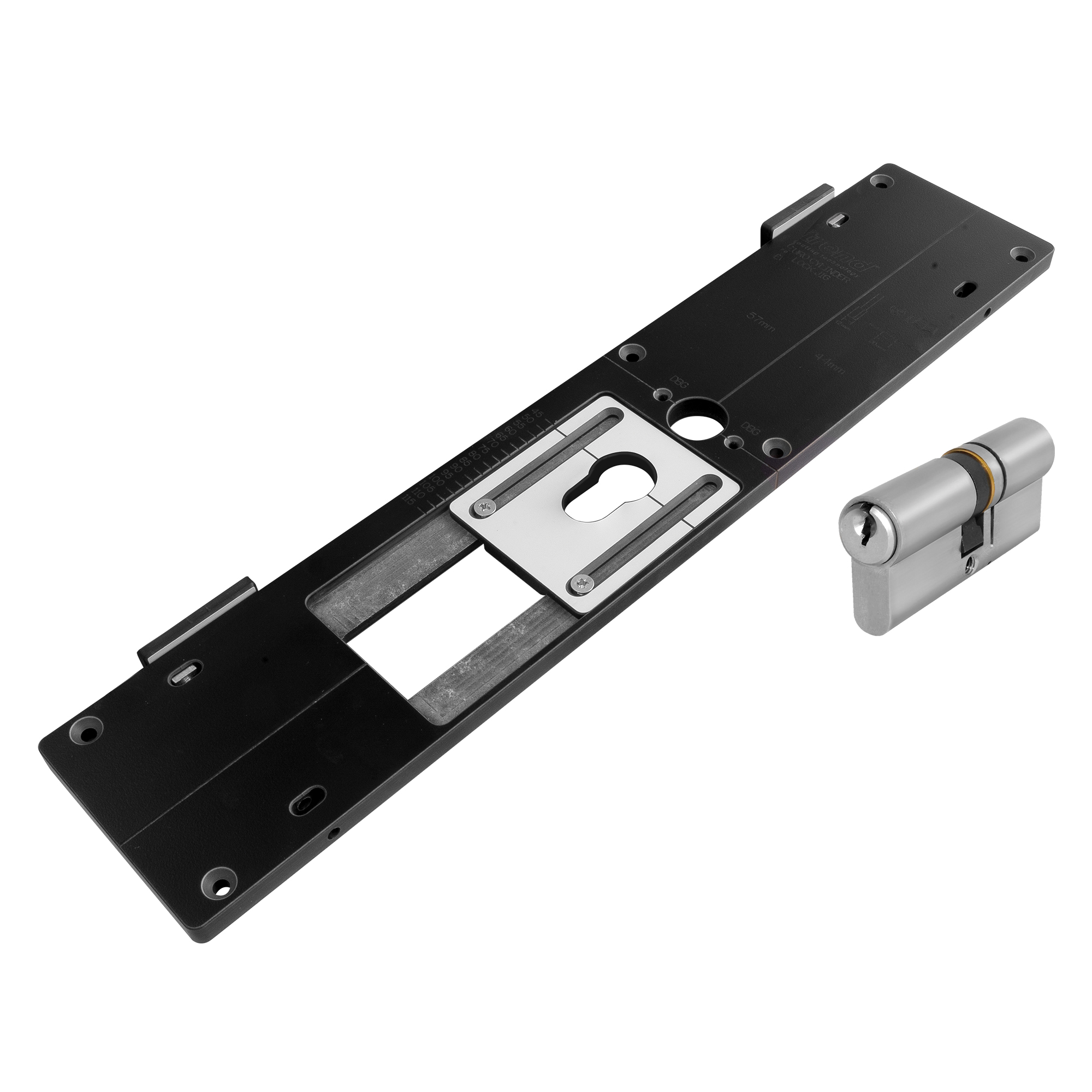

Trend ECL/JIG Euro Cylinder Lock Barrel Jig
A quick and easy routing jig to cut hole for Euro Cylinder Lock barrels
Order within
SKU
TR-ECL/JIG
Barcode
5027654059760
£95.32
(
£79.43
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Trend ECL/JIG

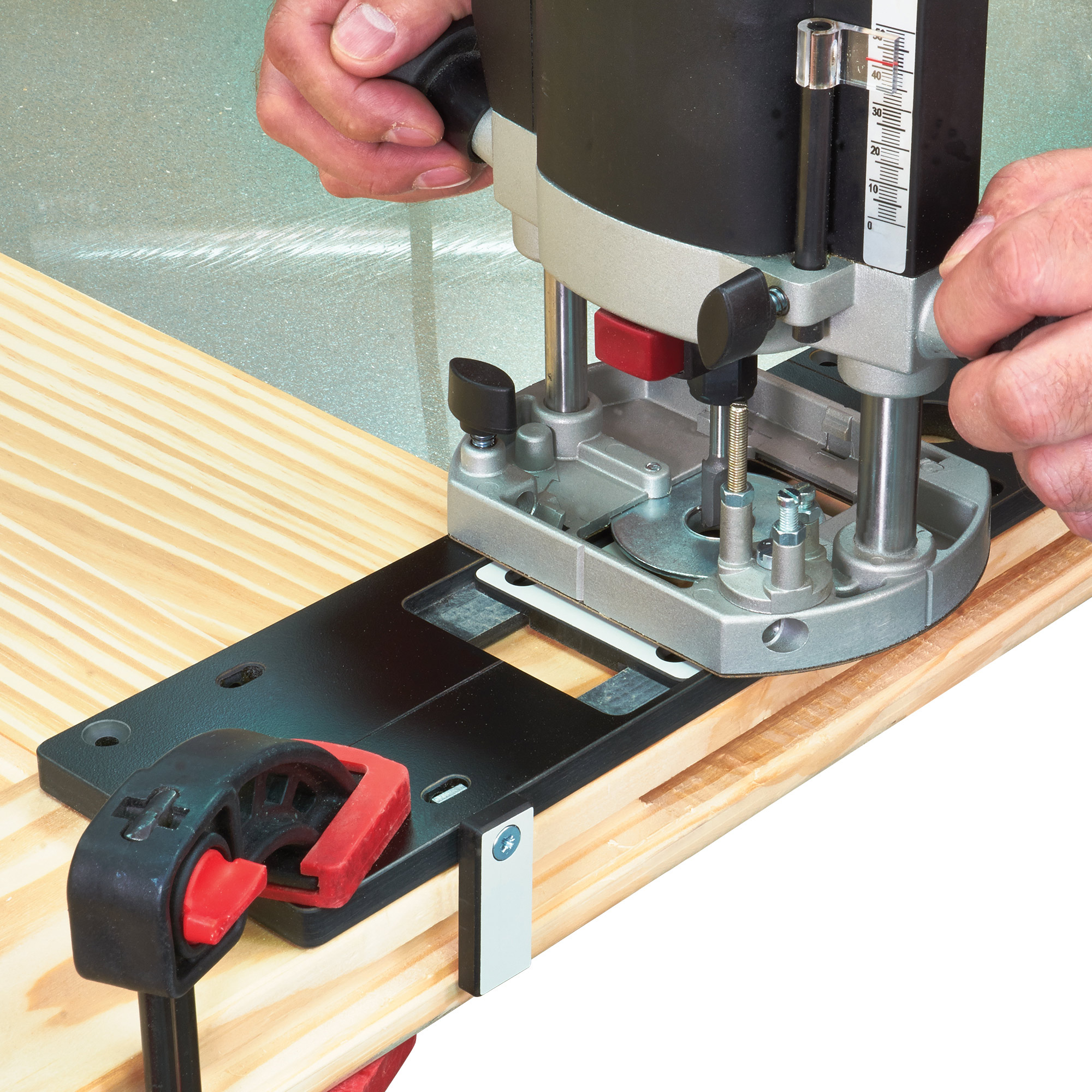

- A quick and easy routing jig to cut hole for Euro Cylinder Lock barrels
- Routs out recess to suit Euro lock cylinder barrel size 33mm x 17mm/10mm
- Sliding plate allows handle pitch to lock body adjustment from 45mm to 115mm
- 44mm and 57mm backset
- Jig is designed to give a 1mm clearance around the barrel
- Allows 16mm diameter hole for handle spindle to be routed
- Holes for use with 2.75mm diameter Trend Snappy drill bit guide for marking handle lock plate at 40mm centres
- Made from 12mm thick High Pressure Laminate for longer life
- Long rotating edge stops for use with 44mm doors with leading edge
- Reversible design
- Includes spacer pack to allow for slightly deeper backset
- Accessory sliding plates available for small oval and large oval cylinder locks
- Requires plunge router, 12mm diameter cutter and 20mm diameter guide bush

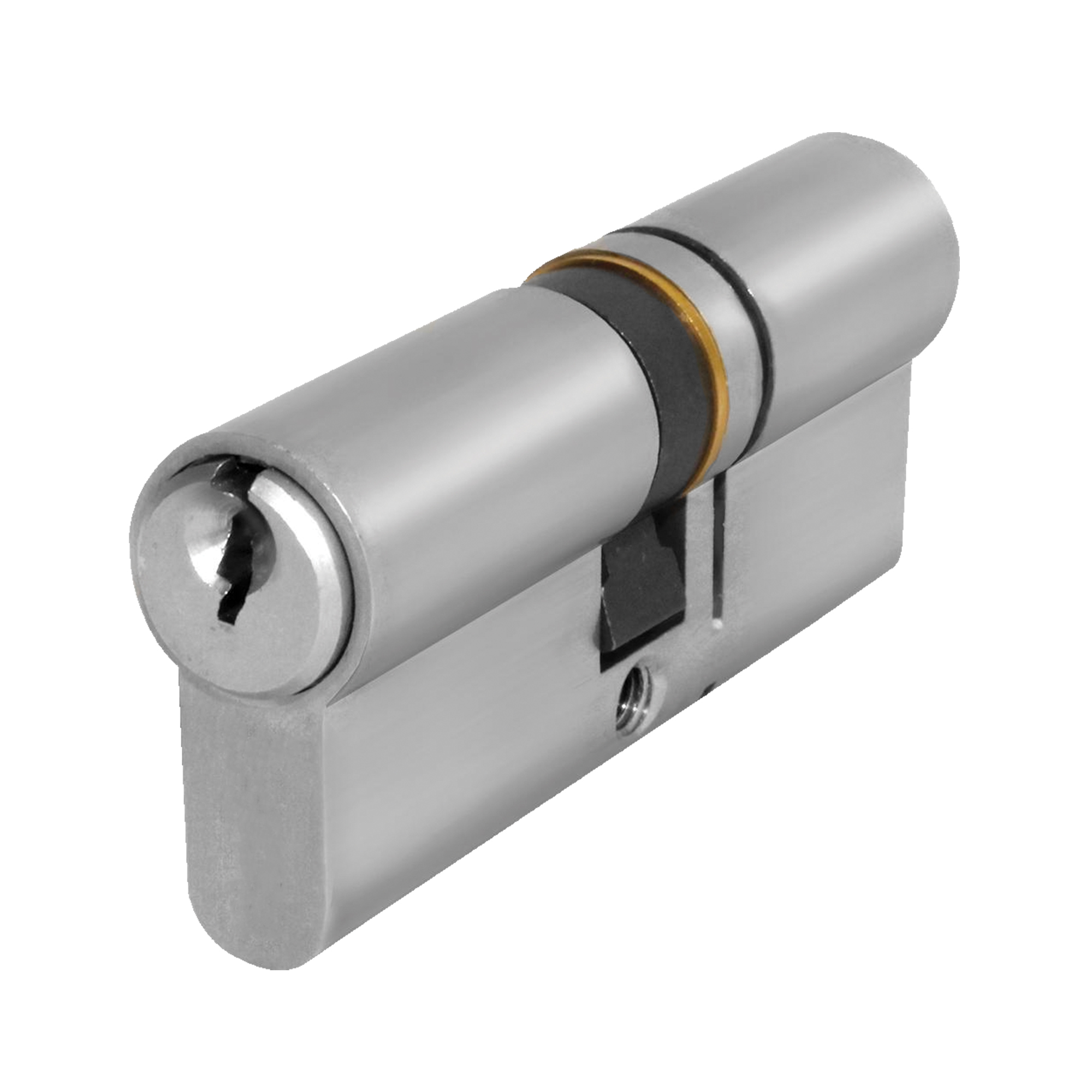

- Cylinder not included
Features / Specification
| Barrel size: | 33 mm x 17/10 mm |
|---|
