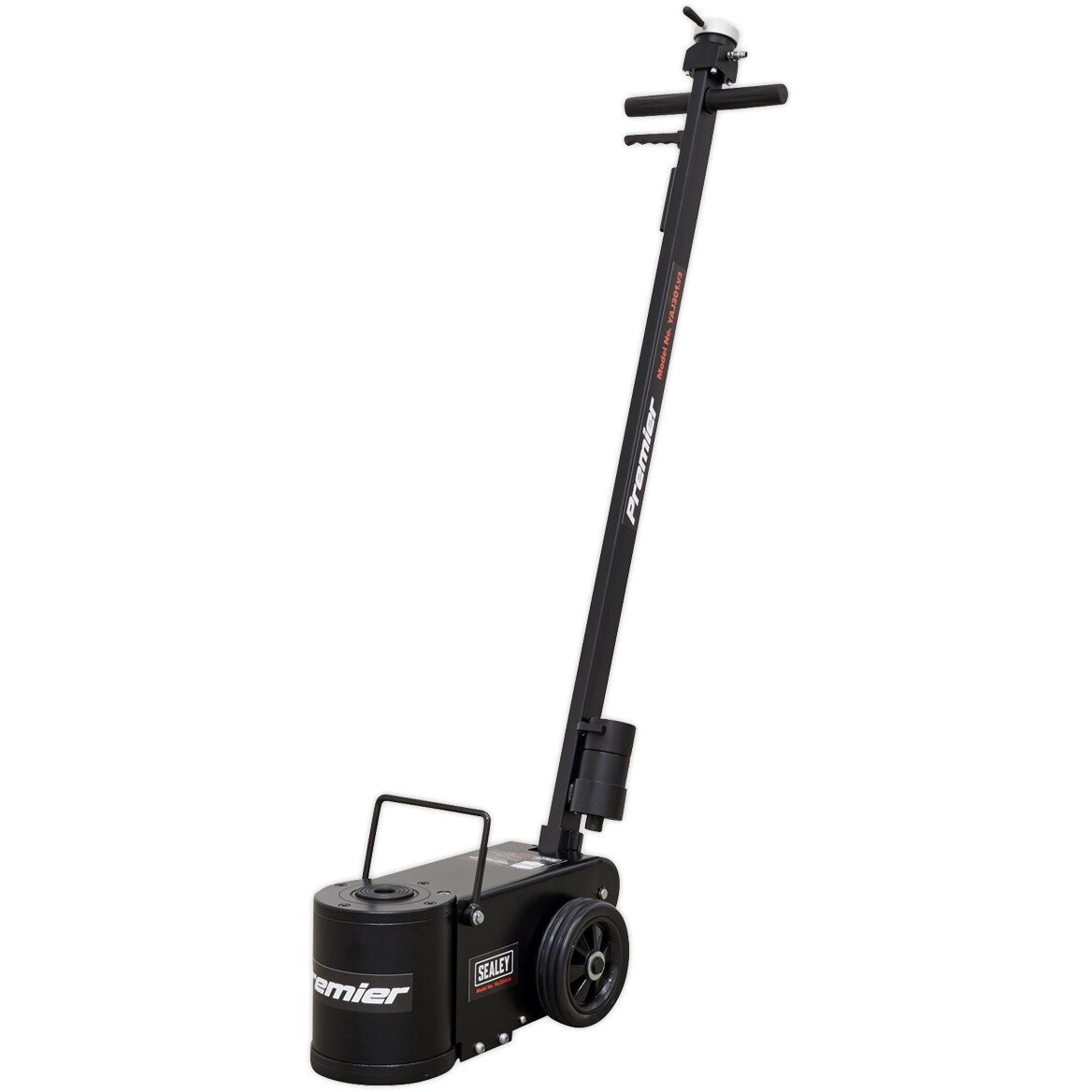

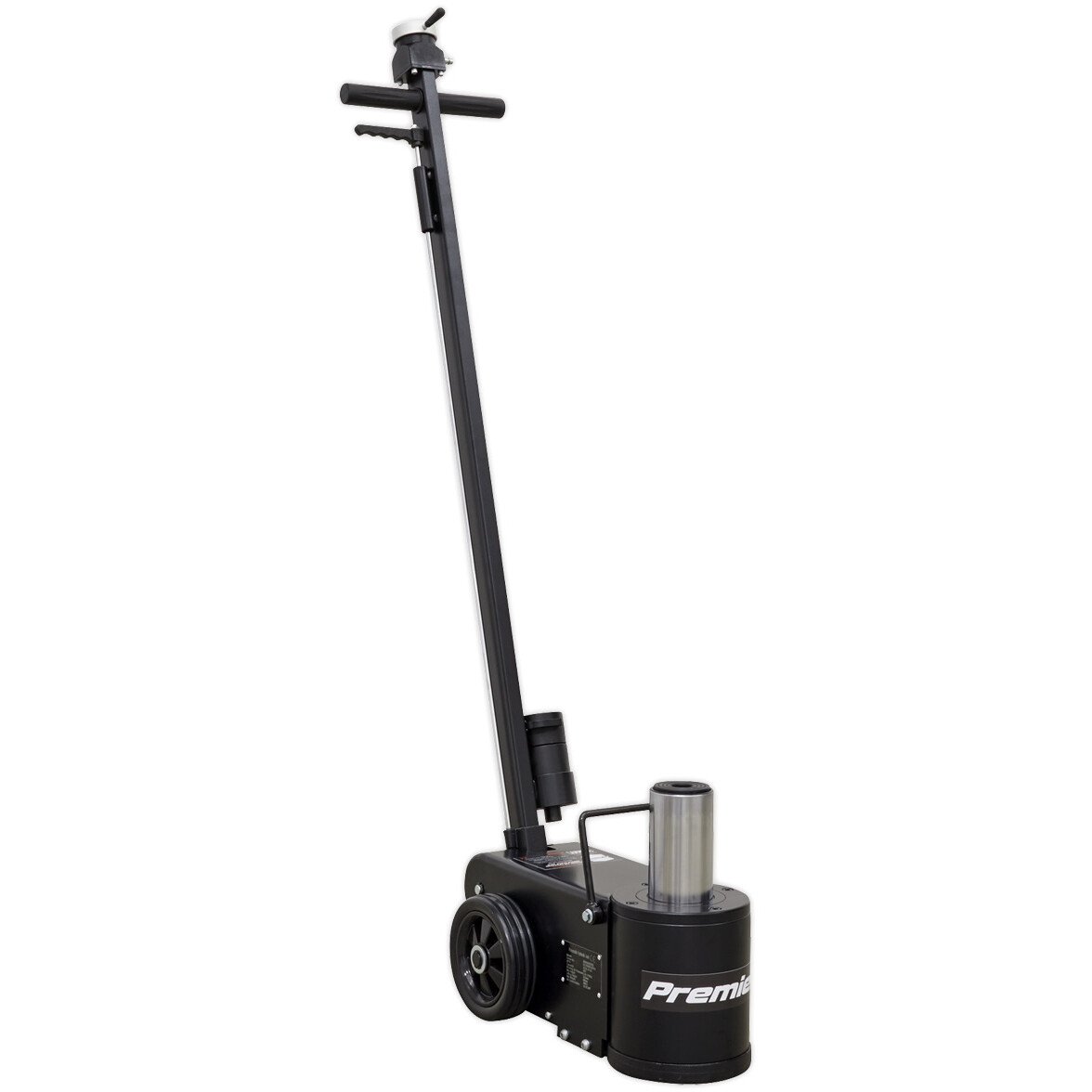

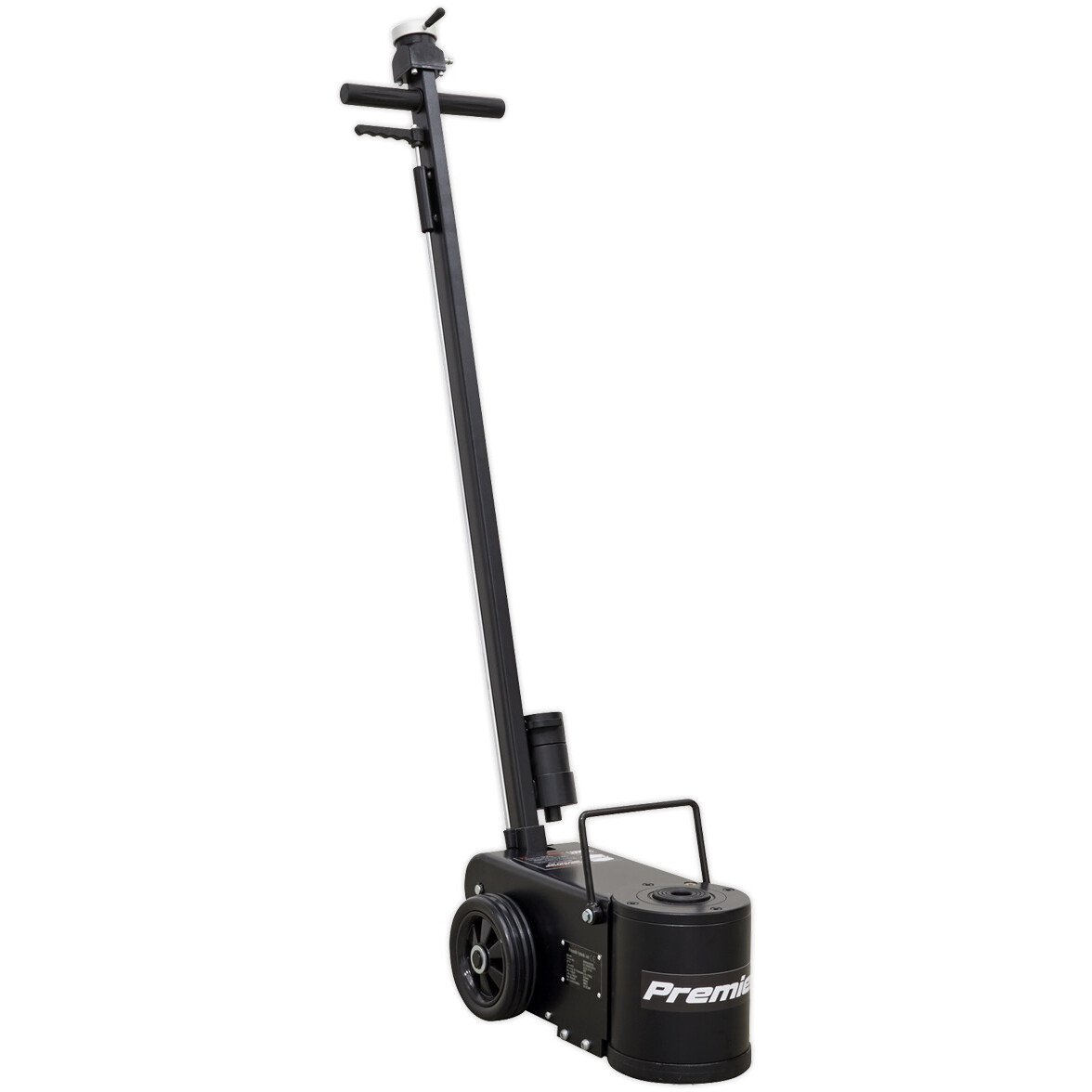

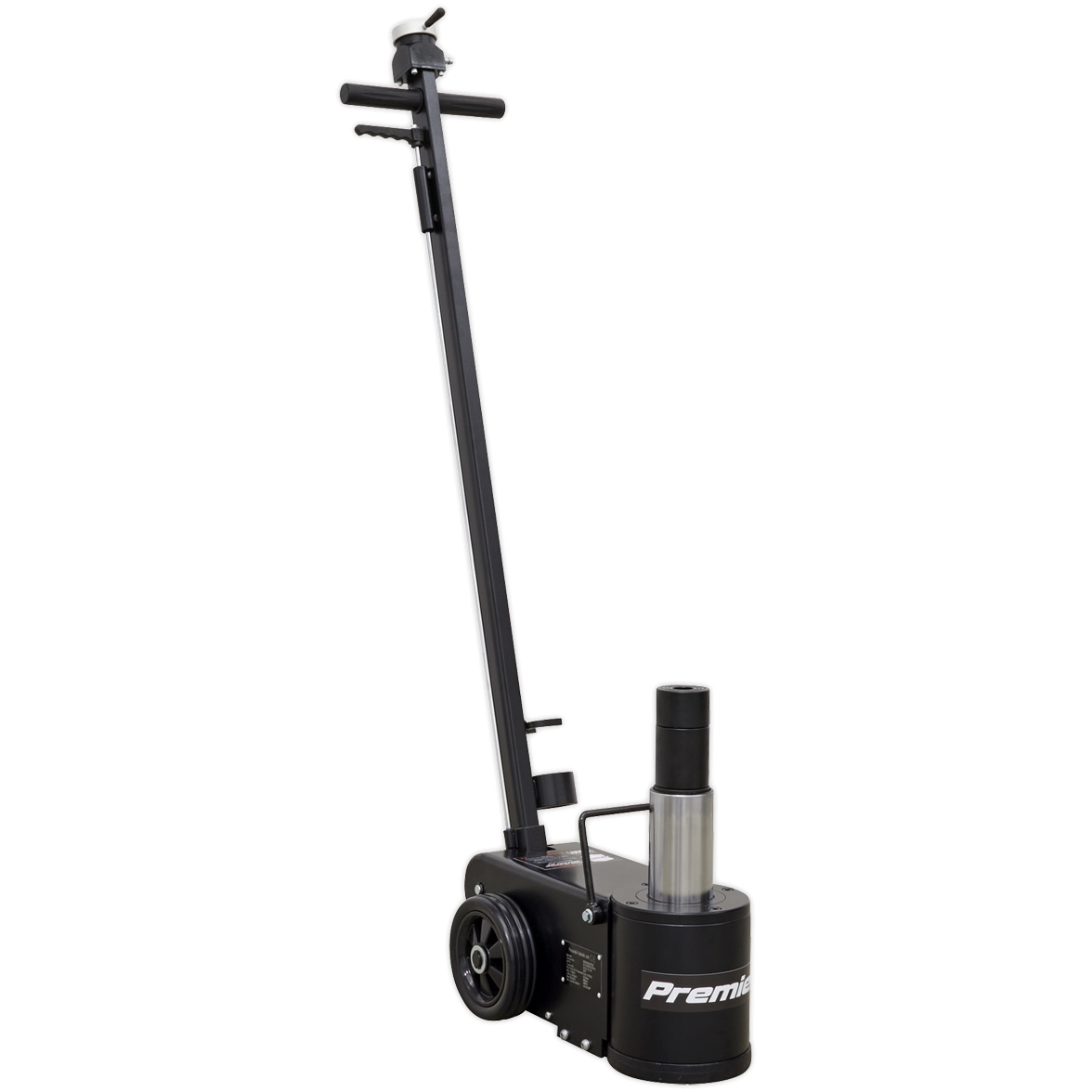

Sealey YAJ301 Air Operated Jack 30tonne - Single Stage
Spring loaded dead man's control enables safe, controlled lifting/lowering of vehicle
Order within
SKU
S-YAJ301
Barcode
5054630309472
£971.12
(
£809.27
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Sealey YAJ301

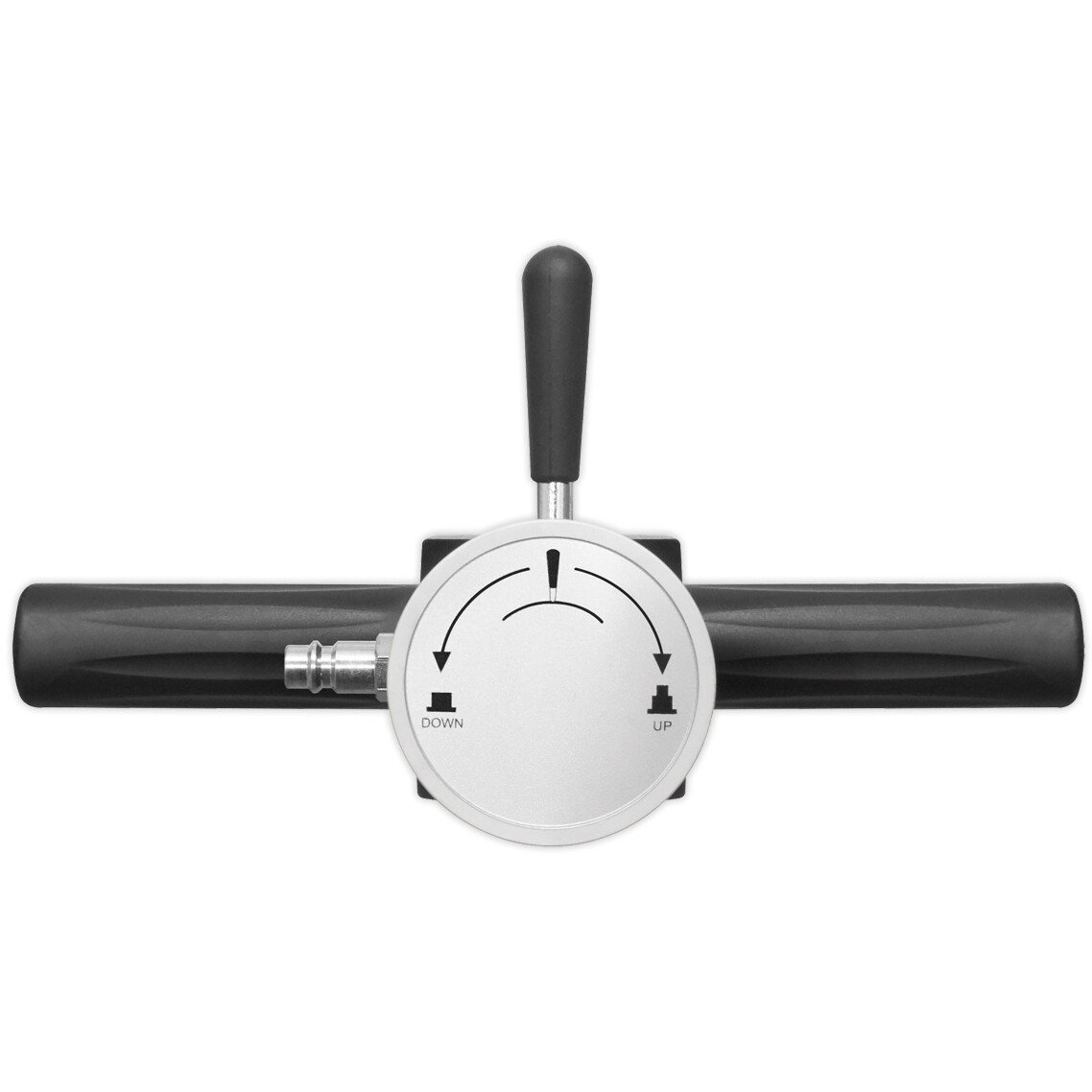

Spring loaded dead man's control enables safe, controlled lifting/lowering of vehicle.

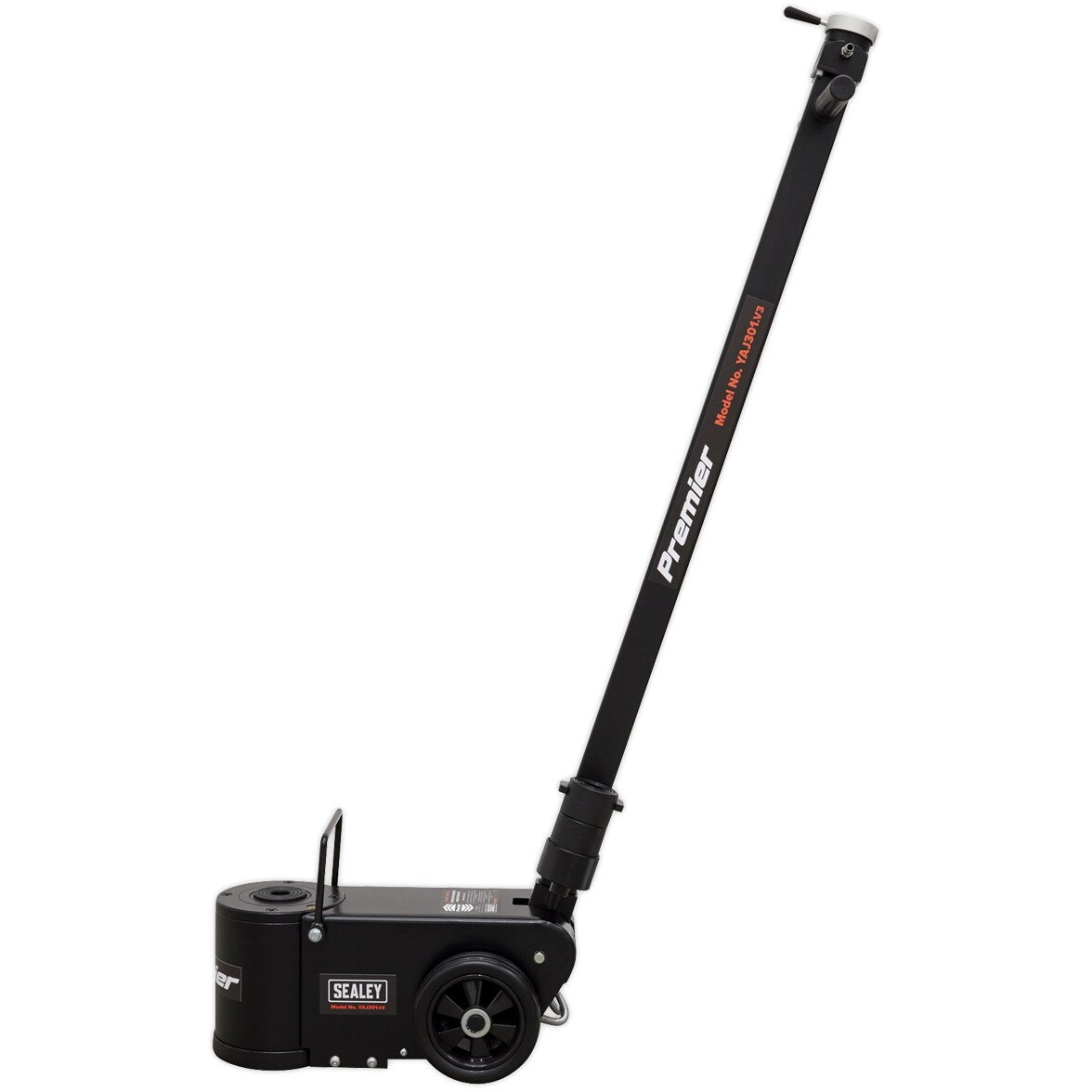

Handle locks in position and can be used at three different angles to allow improved manoeuvrability and access around the vehicle.
Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles.

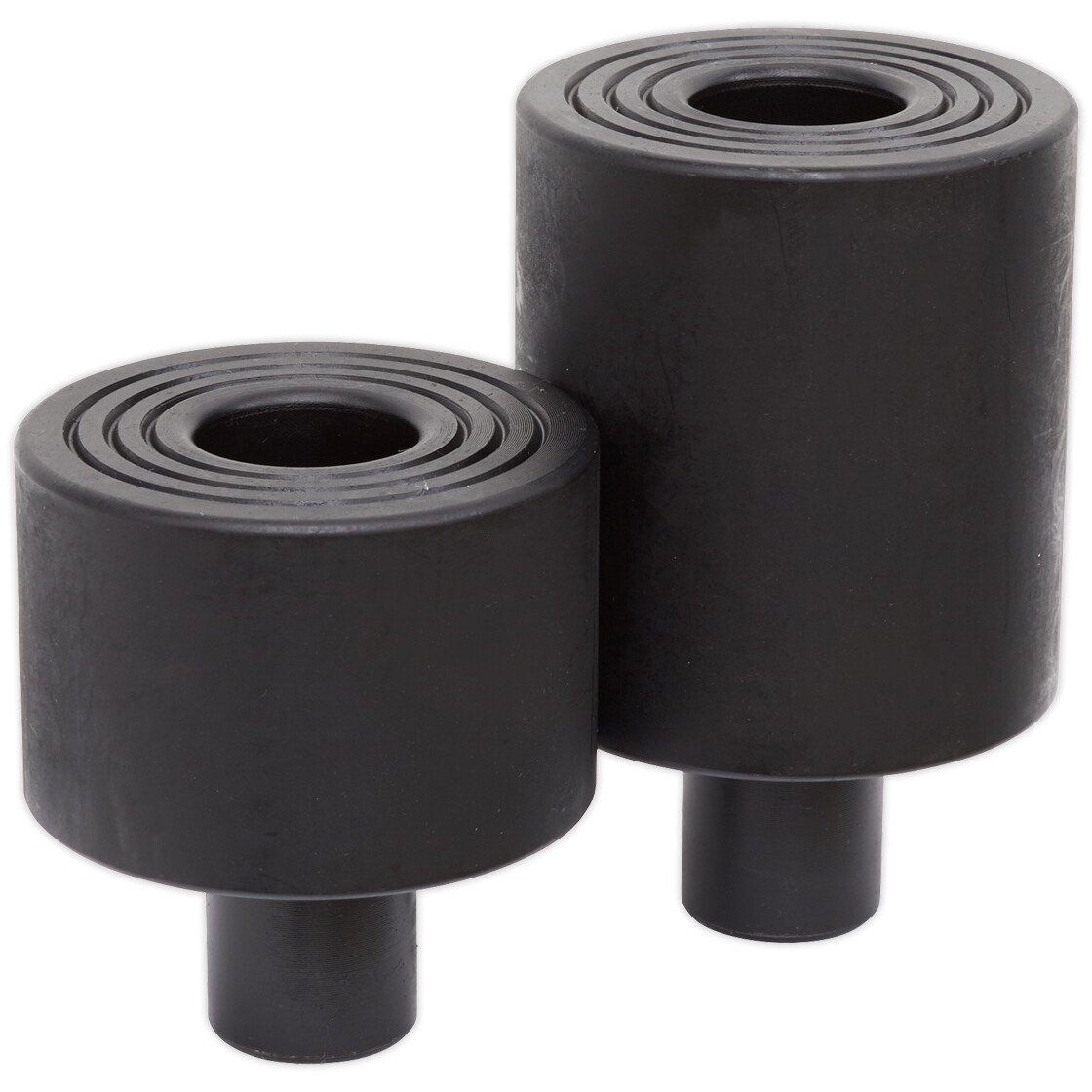

Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point.
Handle locks in position and can be used at three different angles to allow improved manoeuvrability and access around the vehicle.
Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles.
Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point.
Features / Specification
Air Consumption: | 10.5cfm |
|---|---|
| Capacity: | 30tonne |
| Chassis Length: | 490mm |
| Extensions: | 45/75mm |
| Max. Height (inc. Extn)/Capacity-Stage 1 (mm/tonne): | 463/30 |
| Max. Height (inc. Extn)/Capacity-Stage 2 (mm/tonne): | n/a |
| Max. Height (inc. Extn)/Capacity-Stage 3 (mm/tonne): | n/a |
| Maximum Length: | 1700mm |
| Minimum Saddle Height: | 210mm |
| Overall Width: | 290mm |
| Piston Stroke: | 133mm |
| Screw Extension: | n/a |
| Width without Wheels: | 176mm |
| Working Pressure: | 116-174psi |
