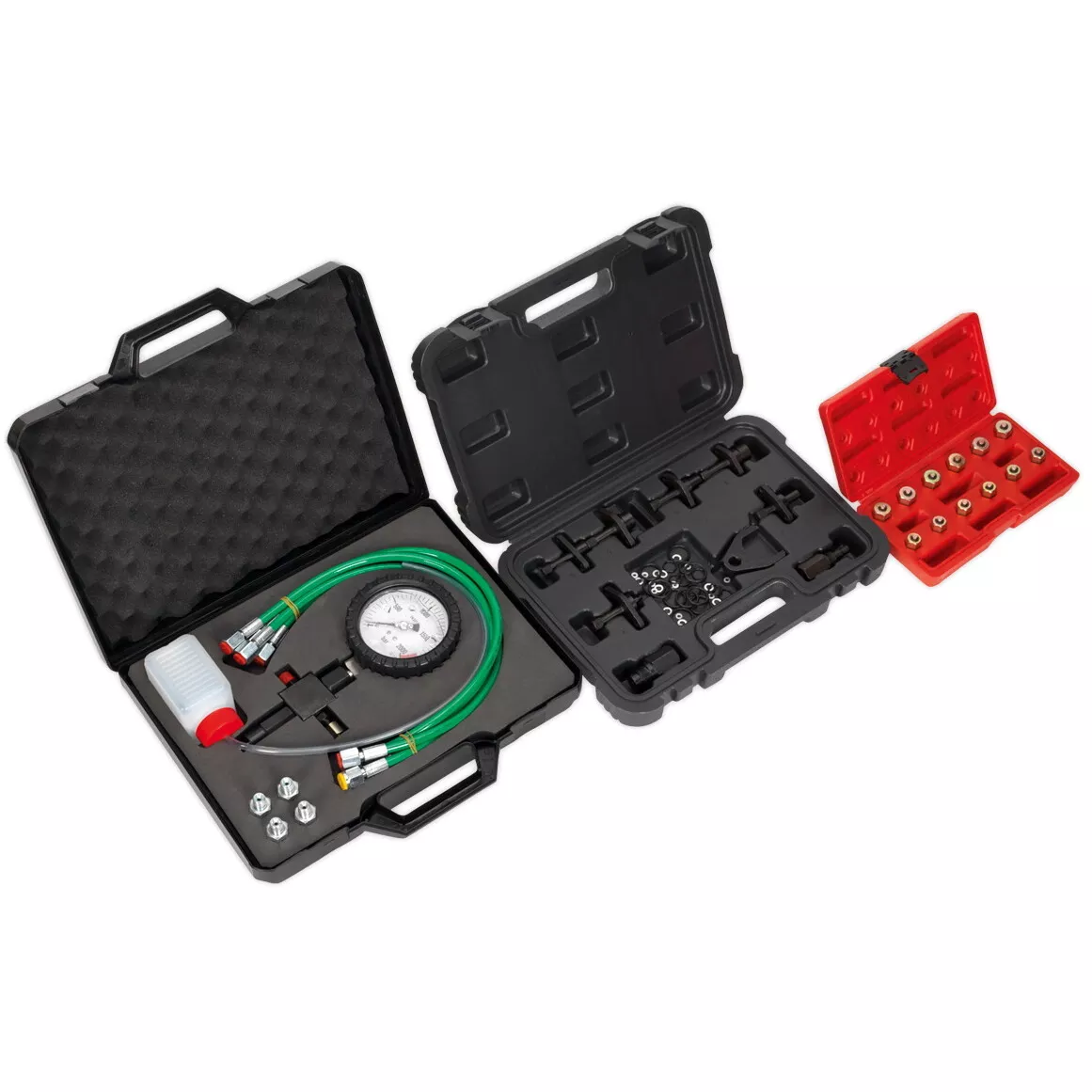

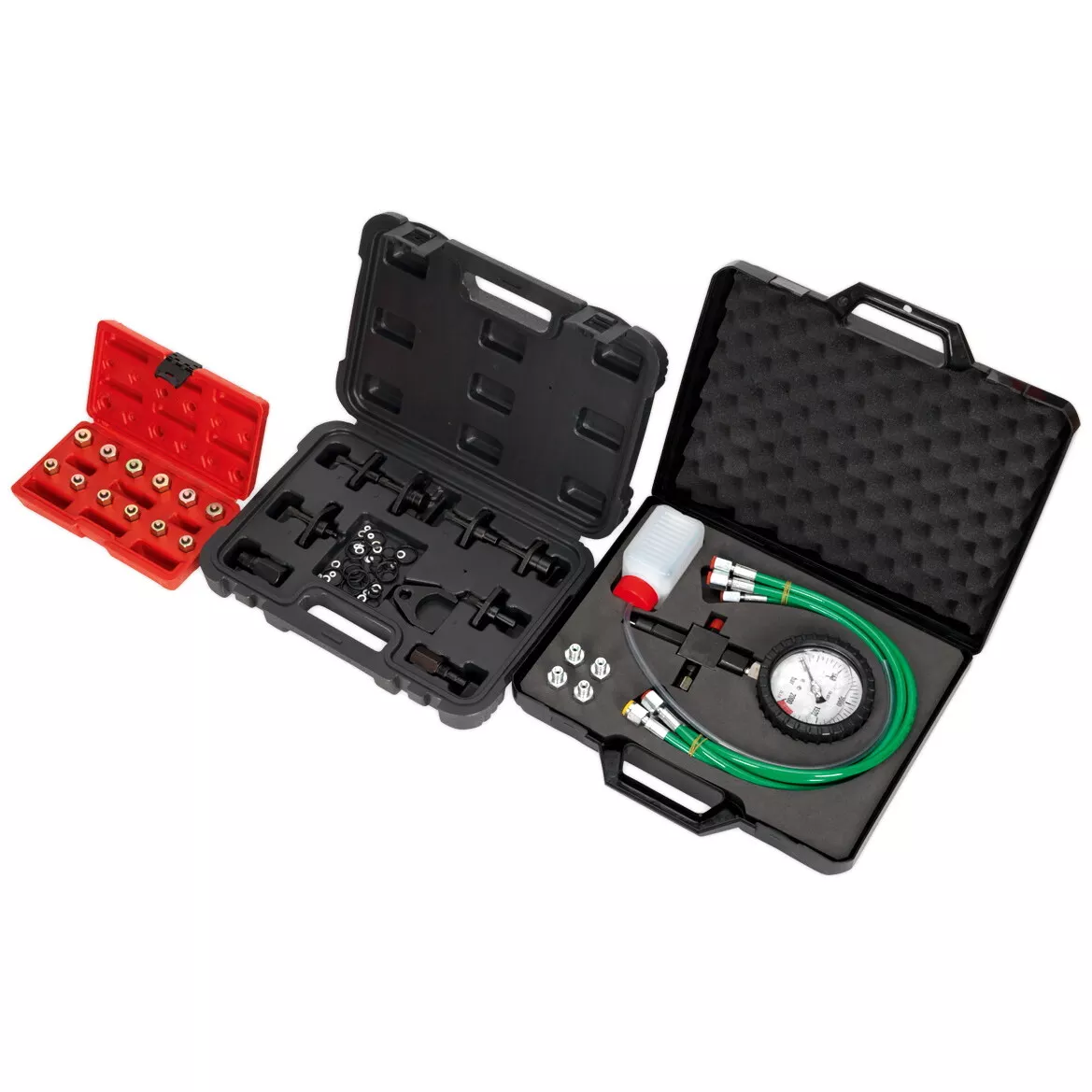

Sealey VS216 Diesel High Pressure Pump Test Kit
Essential tool for accurately measuring the high pressure fuel circuit of diesel common rail systems
SKU
S-VS216
Barcode
5054511978940
£1,099.96
(
£916.63
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Sealey VS216
Essential tool for accurately measuring the high pressure fuel circuit of diesel common rail systems.

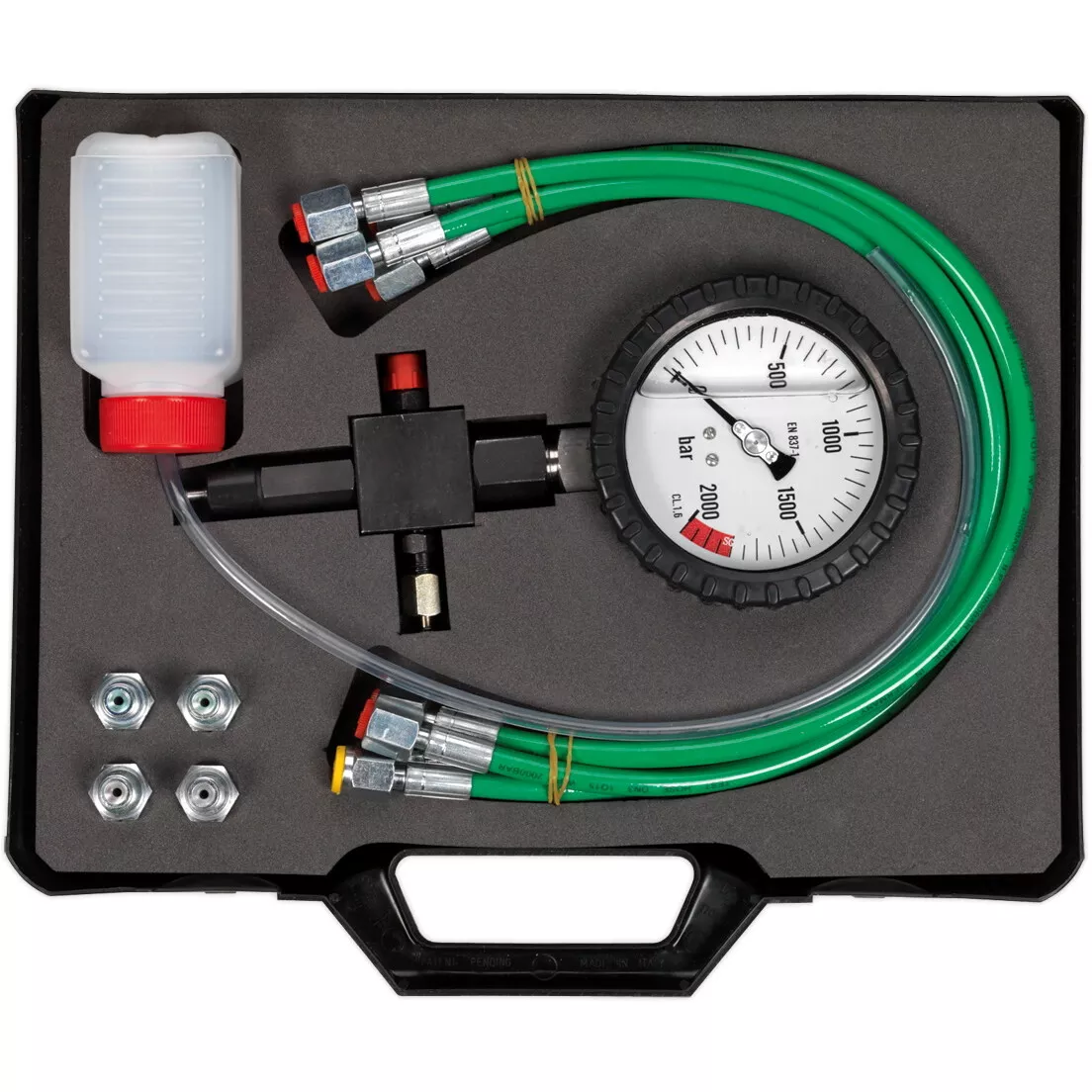

Features 2,000bar gauge, pressure relief valve and high pressure flexible hoses.

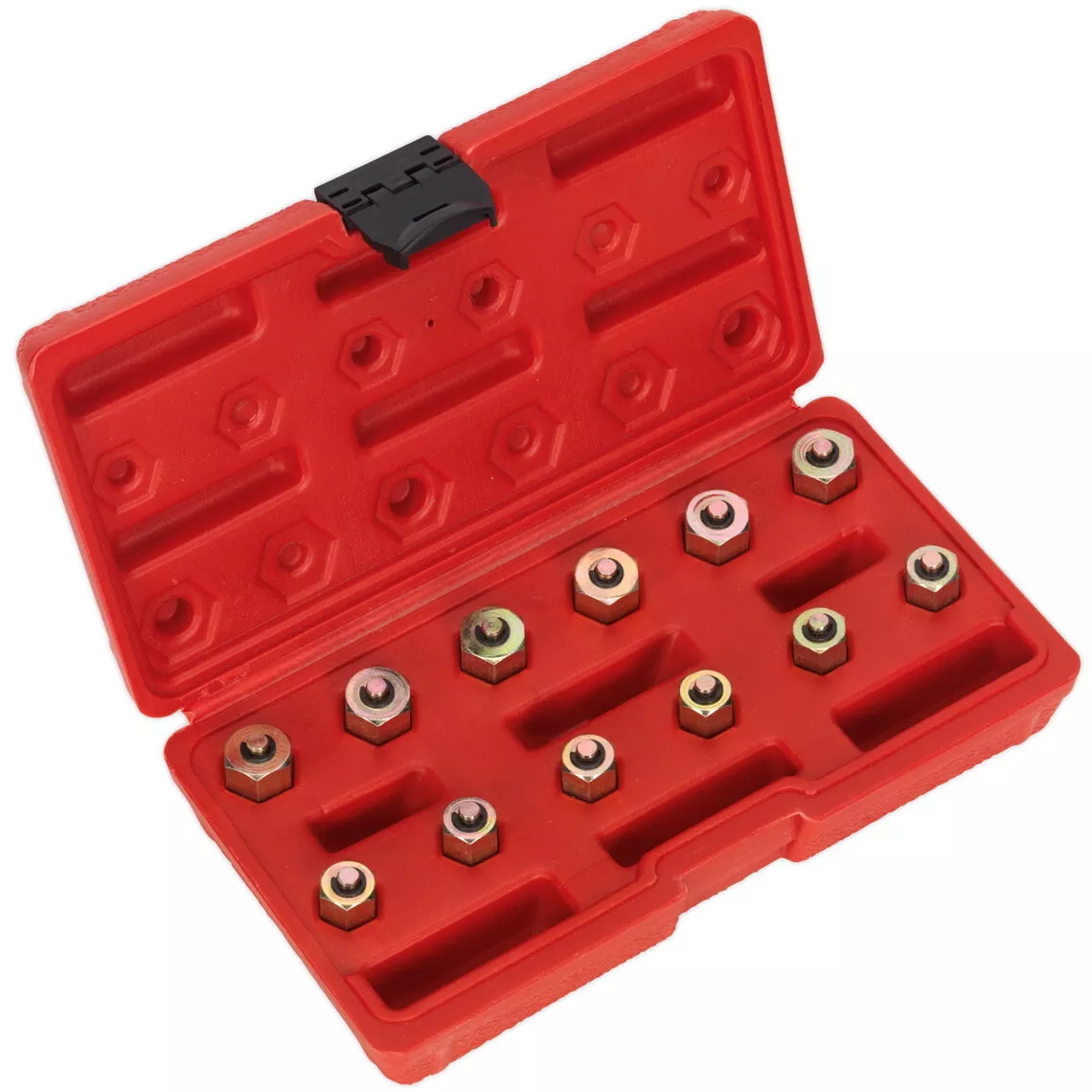

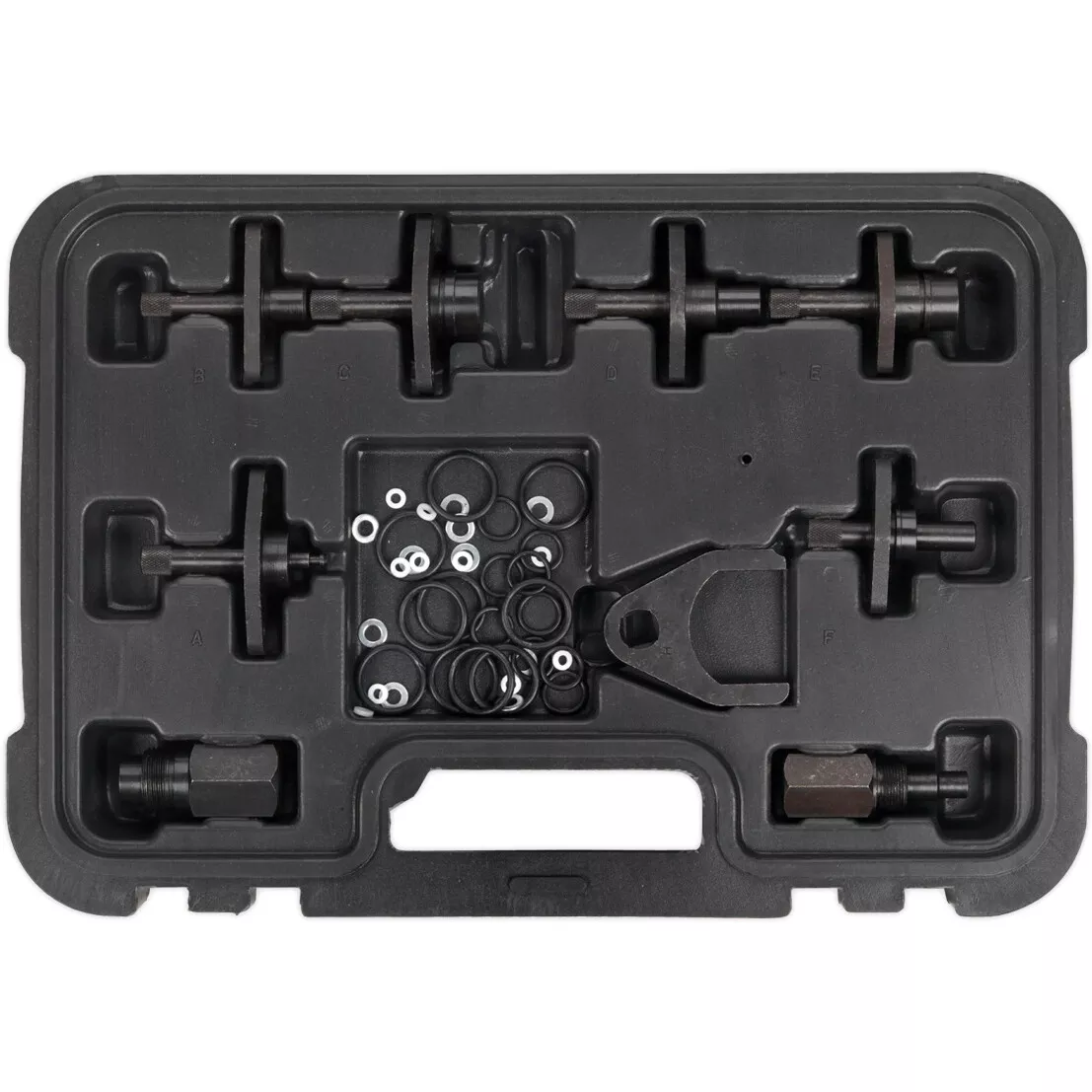

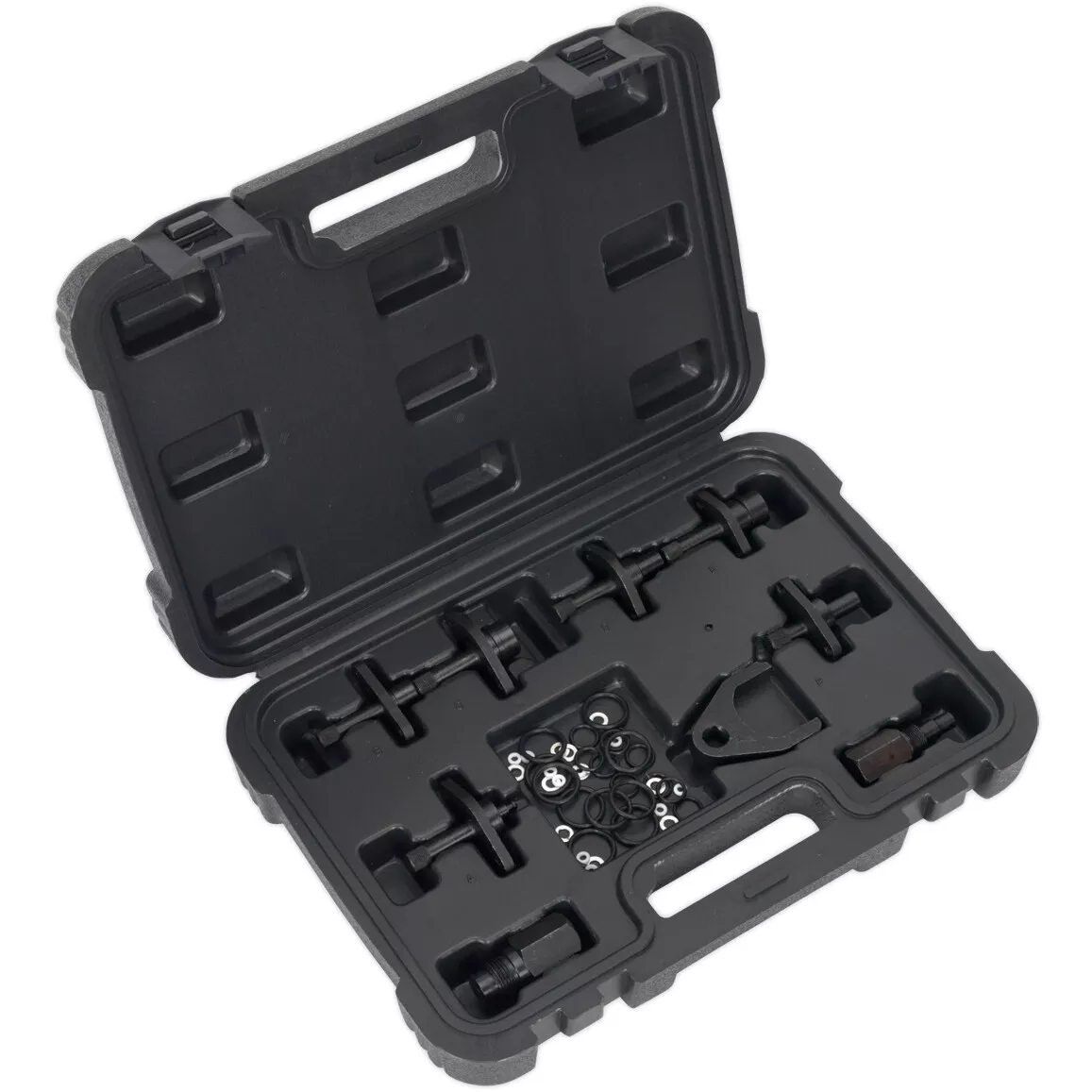

The kit also includes a set of dummy pump regulator and injector pipe blanks.
Kit allows for a variety of tests to be conducted:
- Engine cranking/running pressure test
- Maximum pump pressure test
- Pump pressure regulator test
- Injector leakage test
Features 2,000bar gauge, pressure relief valve and high pressure flexible hoses.
The kit also includes a set of dummy pump regulator and injector pipe blanks.
Kit allows for a variety of tests to be conducted:
- Engine cranking/running pressure test
- Maximum pump pressure test
- Pump pressure regulator test
- Injector leakage test
Features / Specification
| Hose Length: | 500mm (x4) |
|---|---|
| Dummy Regulator Applications: | Bosch CP1, Bosch CP3, Delphi DFP1/DFP3, Denso HP1/HP2, Denso HP3, Siemens DCP1, Siemens DCP2 |
| Specification Table: | |
| Injector Pipe Blanks: | M12 x 1.5 (x6), M14 x 1.5 (x6) |
| Gauge Pressure Range: | 0-2000bar |
| Hose Fittings: | M12 x 1.5 (x2), M14 x 1.5 (x2) |
| Hose Fitting 15mm Extension Adaptors: | M12 x 1.5 (x2), M14 x 1.5 (x2) |
