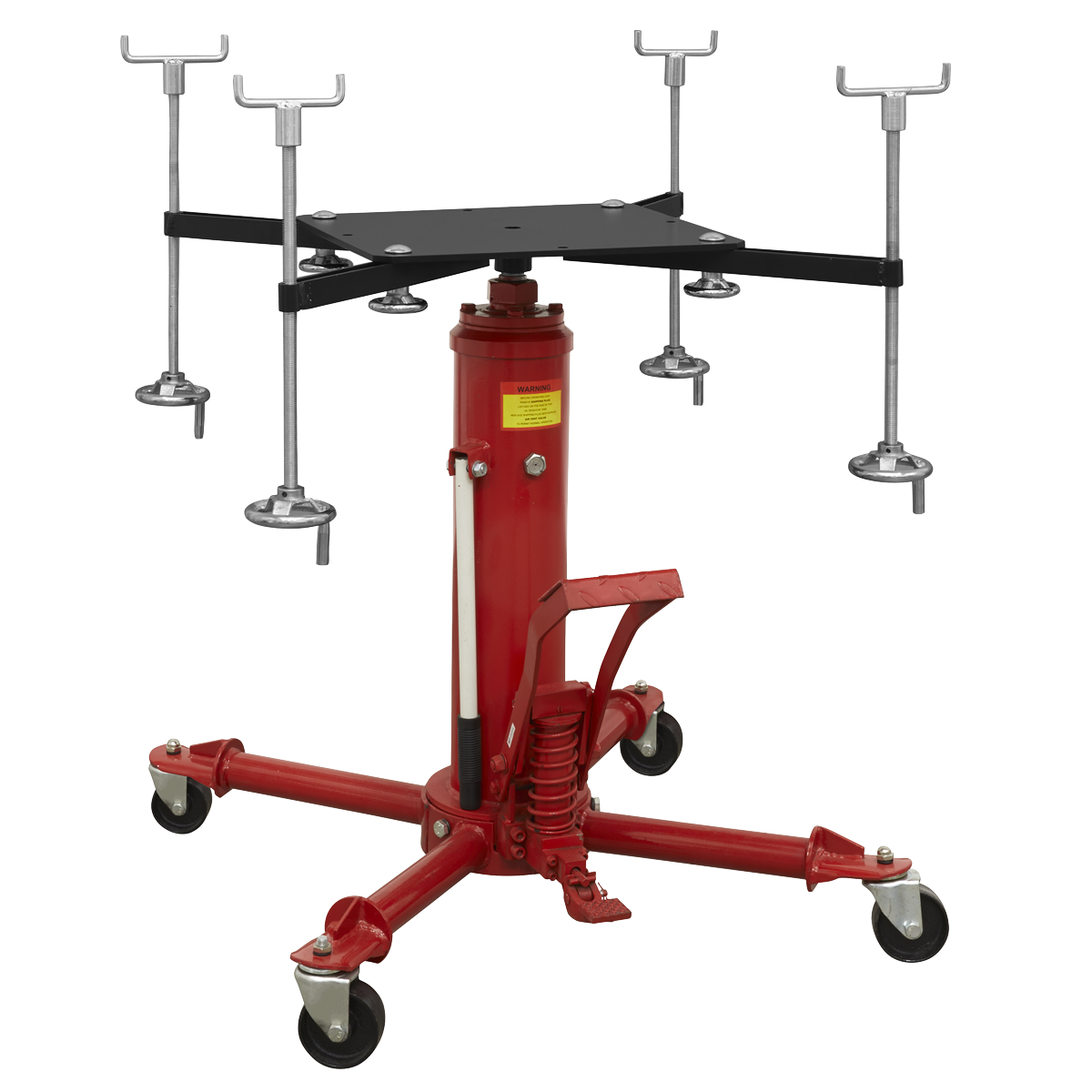

Sealey SFC500COMBO Subframe Cradle and 500kg Transmission Jack Combo
TELESCOPIC RAM - a two-stage ram reduces the clearance
Order within
SKU
S-SFC500COMBO
Barcode
5054630284083
£1,261.96
(
£1,051.63
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Sealey SFC500COMBO
TELESCOPIC RAM - a two-stage ram reduces the clearance.
HIGH SPEED LIFT - quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.
FOOT PEDAL OPERATION - keeping hands free for fixings and adjustments.
SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
HIGHLY MANOEUVRABLE - large, smooth running castors, make positioning quick and easy.
VERSATILE ADAPTOR - Fully adjustable Subframe/Engine support and supplied with various designs of fittings to suit different applications.
WILL ASSIST - in the removal and fitting of complete engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems and other awkward loads.
LABOUR SAVING DESIGN - allows many jobs to be carried out by one person.
EASY ASSEMBLY - the adaptor can be fitted and removed from the transmission jack with ease as required.
HIGH SPEED LIFT - quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.
FOOT PEDAL OPERATION - keeping hands free for fixings and adjustments.
SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
HIGHLY MANOEUVRABLE - large, smooth running castors, make positioning quick and easy.
VERSATILE ADAPTOR - Fully adjustable Subframe/Engine support and supplied with various designs of fittings to suit different applications.
WILL ASSIST - in the removal and fitting of complete engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems and other awkward loads.
LABOUR SAVING DESIGN - allows many jobs to be carried out by one person.
EASY ASSEMBLY - the adaptor can be fitted and removed from the transmission jack with ease as required.
Features / Specification
| Base Size: | 1000 x 1000mm |
|---|---|
| Brand: | Sealey |
| Capacity: | 500TTJ - 500kg and SFC01 - 450kg |
| Fixed/Adjustable Saddle: | Adjustable |
| Maximum Saddle Height: | 1875mm |
| Minimum Saddle Height: | 890mm |
| Nett Weight: | 95.5kg |
| Optional Accessories: | N/A |
| Pump Strokes to Maximum Height: | N/A |
| Ram Extensions: | 2 |
| Saddle Adjustment - Left-to-Right: | 65mm |
| Saddle Tilt - Backward: | 22 |
| Saddle Tilt - Forward: | 28 |
