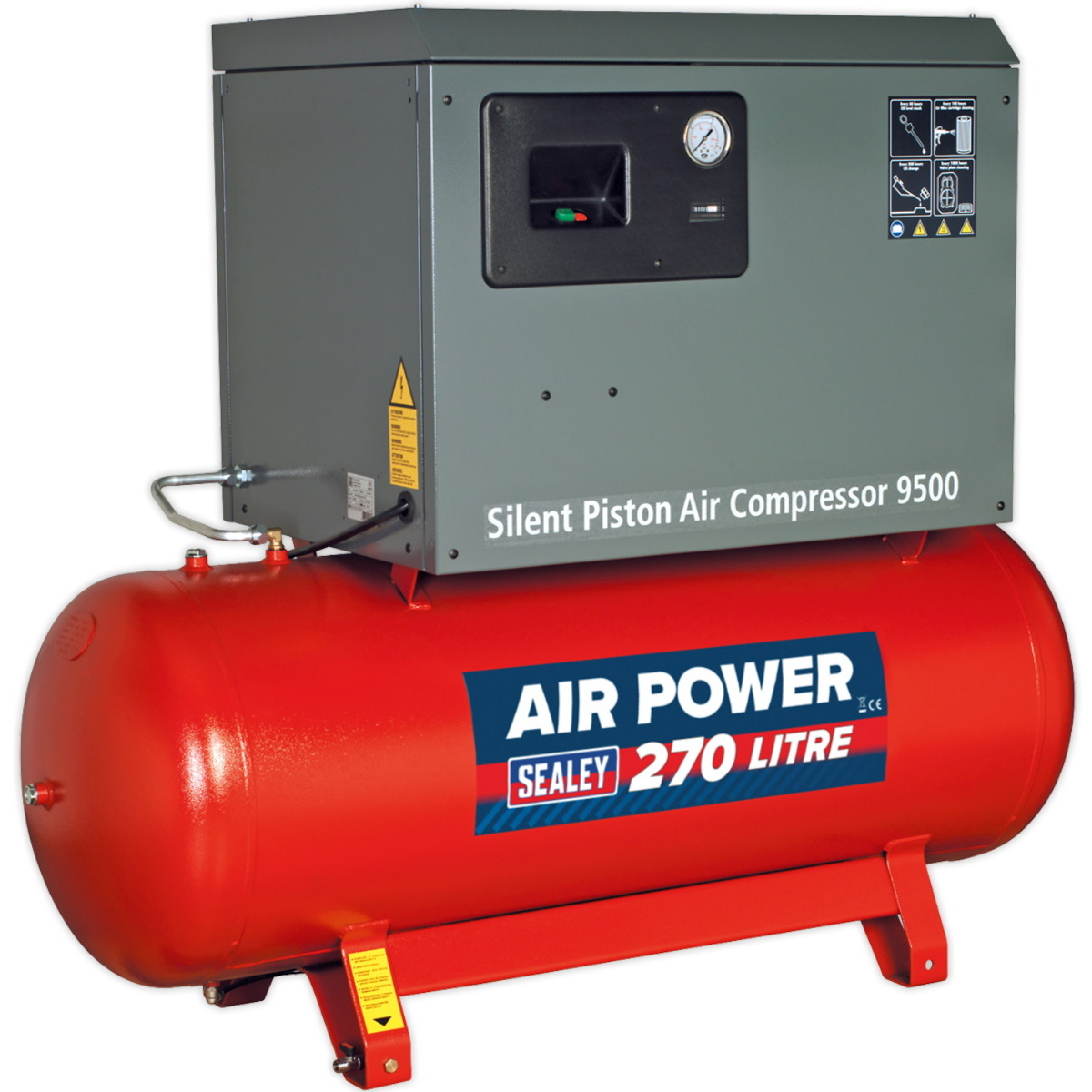

Sealey SAC72775BLN Compressor 270ltr Belt Drive 7.5hp 3ph 2-Stage 415V with Cast Cylinders Low Noise
Description / Sealey SAC72775BLN
Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications.
Fitted with cast iron cylinder head enabling slower revving and improved pump life.
Fully enclosed, insulated design gives quiet running at just 66dB.A (at 1mtr) and protects vital components from damage.
Features fully automatic pressure cut out switch and tank pressure gauge.
Heavy-duty three phase electric motor with soft start feature.
Control box features tachometer for monitoring use and optimizing service times.
Supplied with full CE certification, test certificate, operating/maintenance manual.

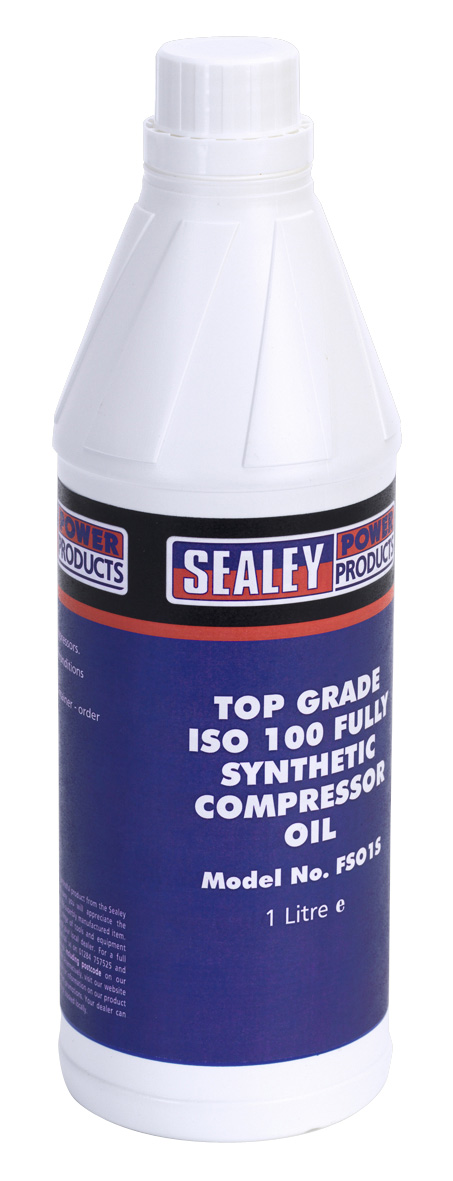

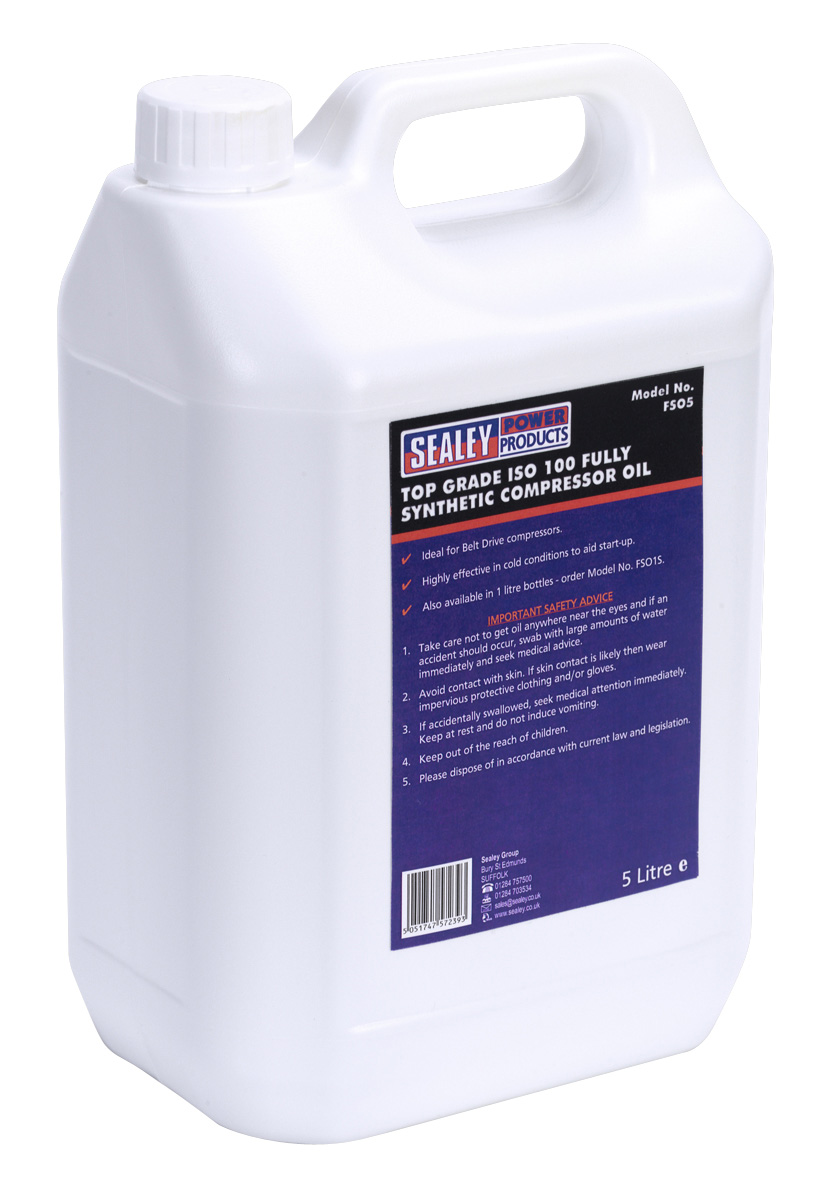

WARNING: Before using the compressor, check the oil level by observing the sight glass. If the oil is not up to the max mark it should be topped up with synthetic oil suitable for temperatures ranging from -5°C to 45°C (viscosity 5W50). Do NOT use mineral oil in these compressors.
For further information please click here to view user instructions.
Features / Specification
Motor Output: | 7.5hp |
|---|---|
| Supply: | 415V |
| Phase: | 3ph |
| Minimum Rated Supply: | 32A |
| Speed: | 1280rpm |
| Noise Level: | 66dB(A) |
| Air Displacement cfm(ltr/min): | 32.6(924) |
| Maximum Free Air Delivery cfm(ltr/min): | 23.6(668) |
| Maximum Pressure: | 145psi(10bar) |
| Receiver Capacity: | 270ltr |
| Outlet: | 1/2"BSP Female Tap |
| Size (W x D x H): | 1550 x 600 x 1260mm |
| Weight: | 213kg |
