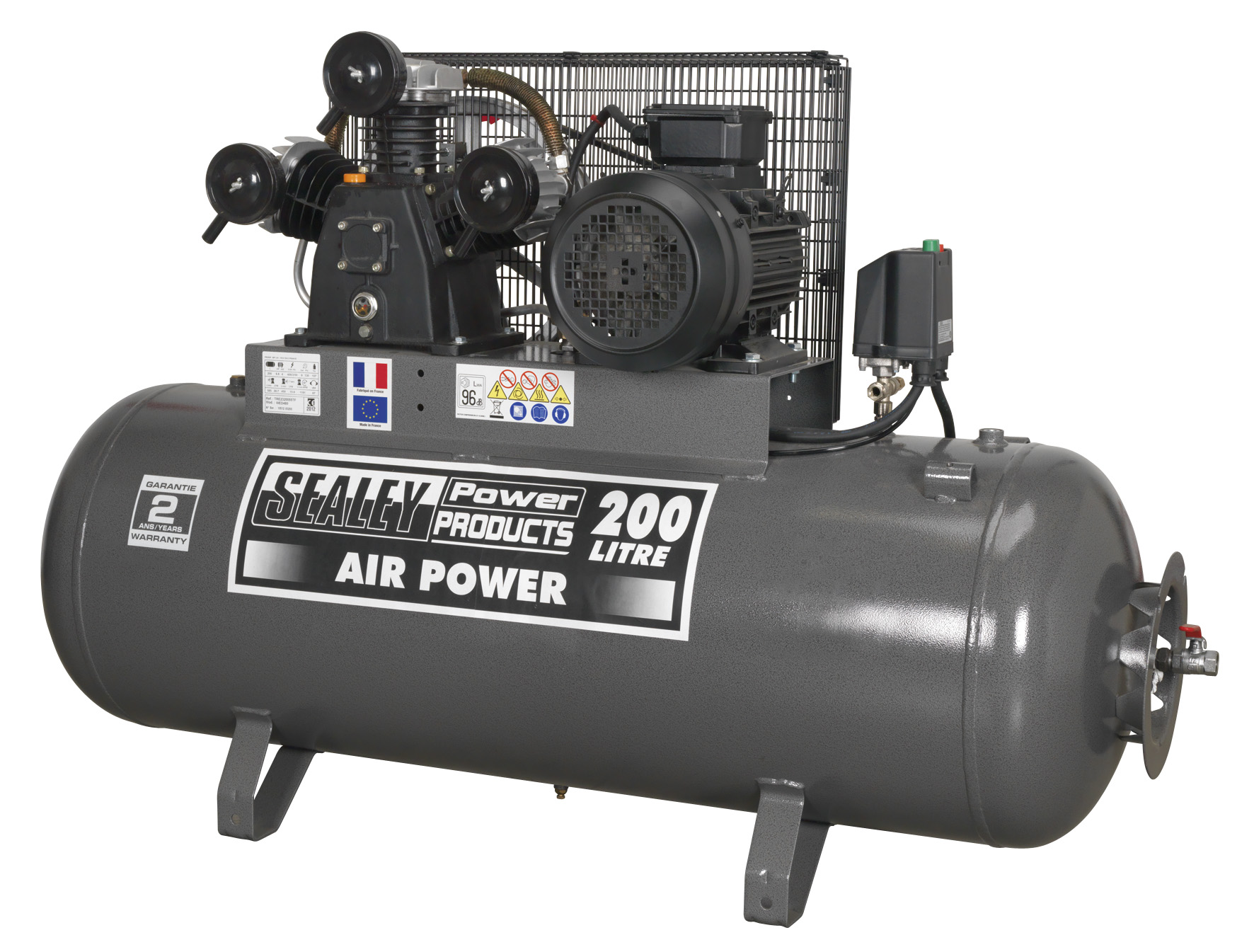

Sealey SAC32055B Compressor 200ltr Belt Drive 5.5hp 3 Phase 415V
Description / Sealey SAC32055B
Heavy-duty three phase compressor suitable for the professional workshop.
Triple cylinder pump system coupled with a 5.5hp motor maximises performance to keep running costs low compared to single stage, single phase models.
Pump features heavy-duty full cast cylinders, capped by an alloy heads for improved heat dissipation and long life.
Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
Includes a drain valve for easy release of condensed water build up in the tank.

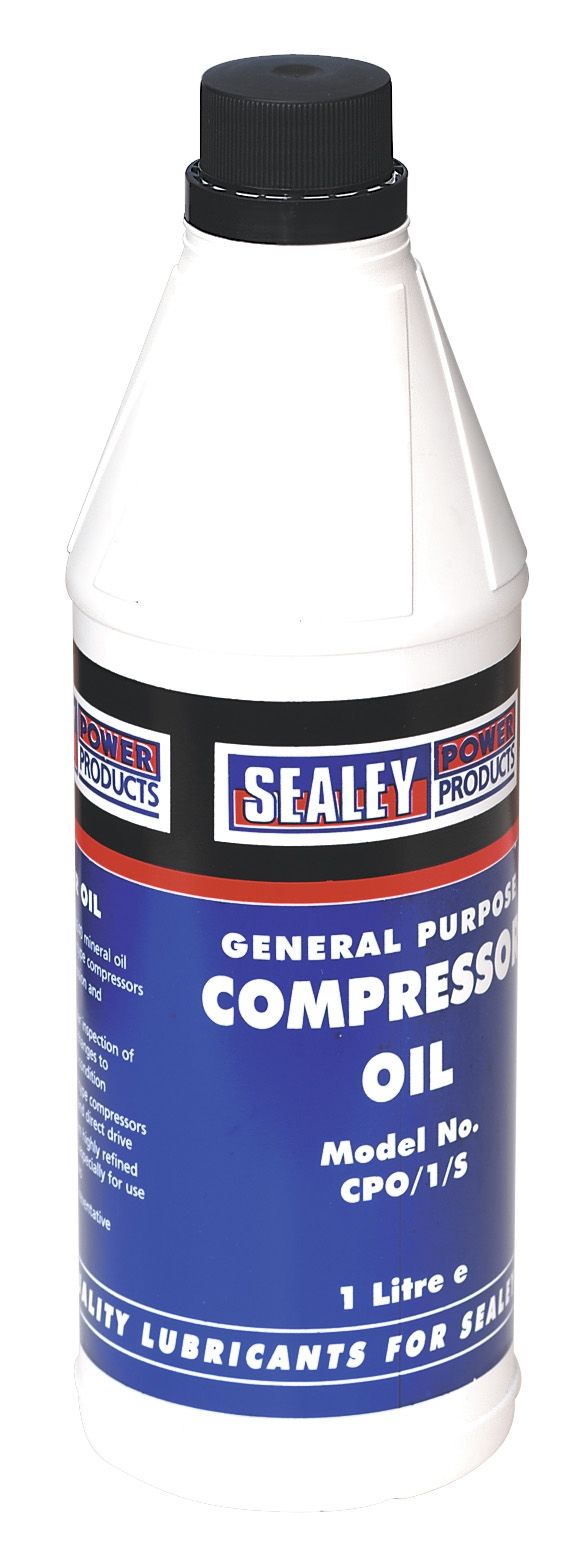

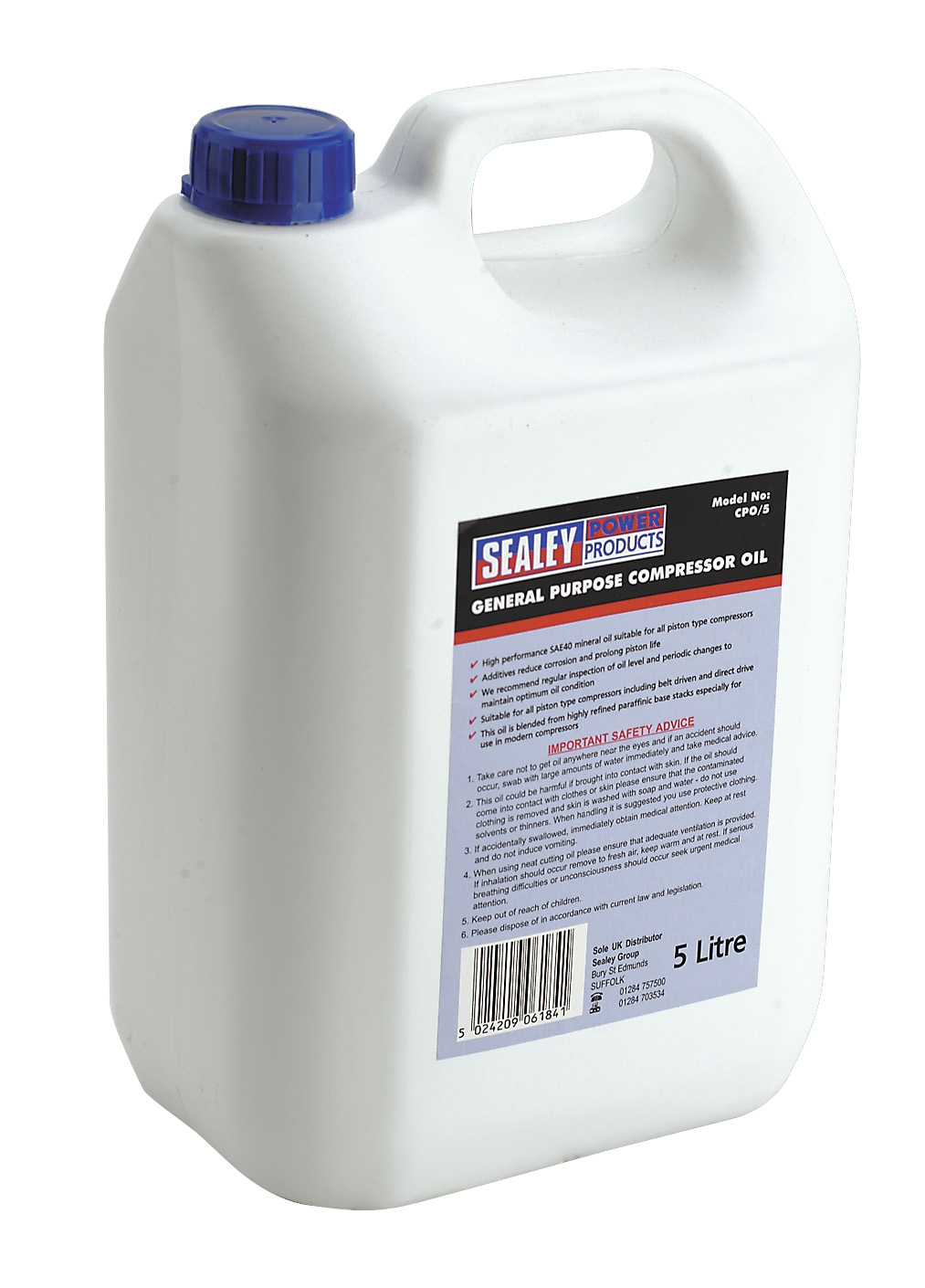

WARNING: Before using the compressor, check the oil level by observing the sight glass. If the oil is not up to the max mark it should be topped up with the recommended oil: Sealey CPO or equivalent SAE 40 compressor oil. Room temperature below +5°C: SAE 20 compressor oil.
For further information please click here to view user instructions.
Features / Specification
Motor Output: | 5.5hp |
|---|---|
| Supply: | 415V |
| Phase: | 3ph |
| Minimum Rated Supply: | 32A |
| Speed: | 1181rpm |
| Air Displacement cfm(ltr/min): | 20.7(585) |
| Maximum Free Air Delivery cfm(ltr/min): | 15.9(450) |
| Maximum Pressure: | 145psi(10bar) |
| Receiver Capacity: | 200ltr |
| Outlet: | 1/2"BSP Female Tap |
| Size (W x D x H): | 1430 x 500 x 970mm |
| Weight: | 121kg |
