- Description
-
Details
This product is large and/or heavy, and as such, some destinations may incur an additional shipping surcharge. If this applies, we will contact you prior to despatch to confirm. For particularly heavy items delivered on a pallet, delivery may be to the kerbside only. It is the customer’s responsibility to move the item from the drop-off point into the property.

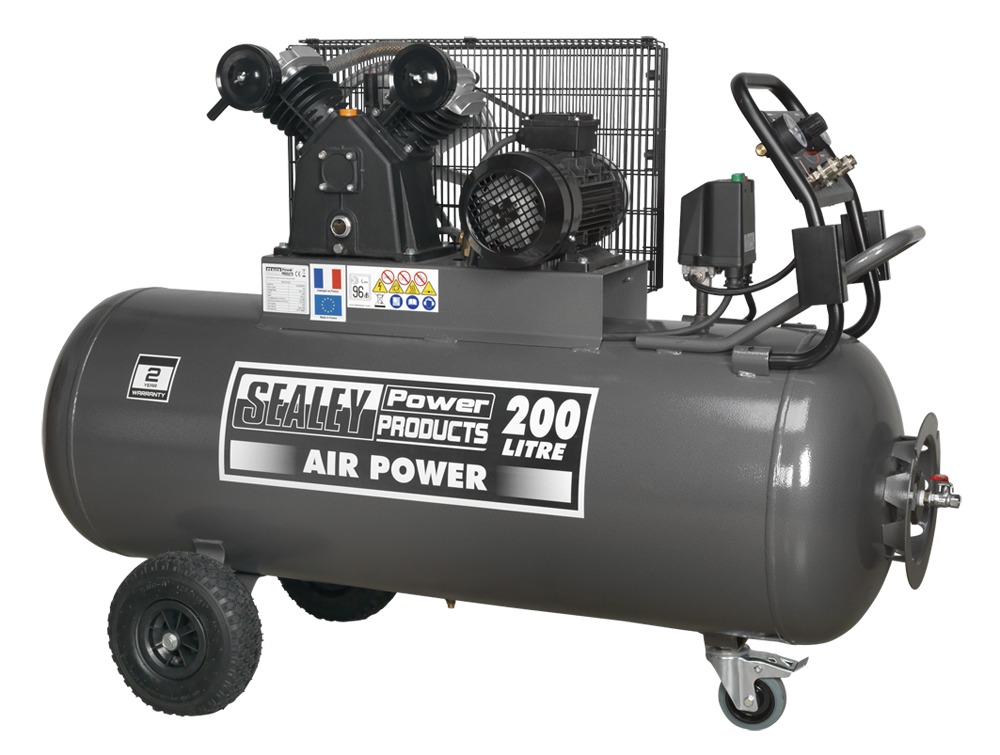

Heavy-duty three phase compressor suitable for the professional workshop.
Triple cylinder pump system coupled with a 3hp motor maximises performance to keep running costs low compared to single stage, single phase models.
Pump features heavy-duty full cast cylinders, capped by an alloy heads for improved heat dissipation and long life.
Features an easy to use bespoke control panel with two outlets, one regulated and one direct.
Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Heavy-duty pneumatic wheels with single front lockable castor for easy manoeuvrability.
Supplied with hose reel to keep your workspace tidy.
Full CE certification, test certificates and operating/maintenance manual.
Includes a drain valve for easy release of condensed water build up in the tank.
WARNING: Before using the compressor, check the oil level by observing the sight glass. If the oil is not up to the max mark it should be topped up with the recommended oil: Sealey CPO or equivalent SAE 40 compressor oil. Room temperature below +5°C: SAE 20 compressor oil.
For further information please click here to view user instructions.- Features
Features
Dimensions (W x D x H): 1410 x 600 x 1020mm Speed: 1243rpm Weight: 103kg Maximum Free Air Delivery cfm(ltr/min): 10.9 (310) Air Displacement cfm(ltr/min): 13.4 (380) Receiver Capacity: 200ltr Motor Output: 3hp Maximum Pressure: 145psi/10bar Minimum Rated Supply: 32A Votage/Phase: 415V - 3ph - Shipping
