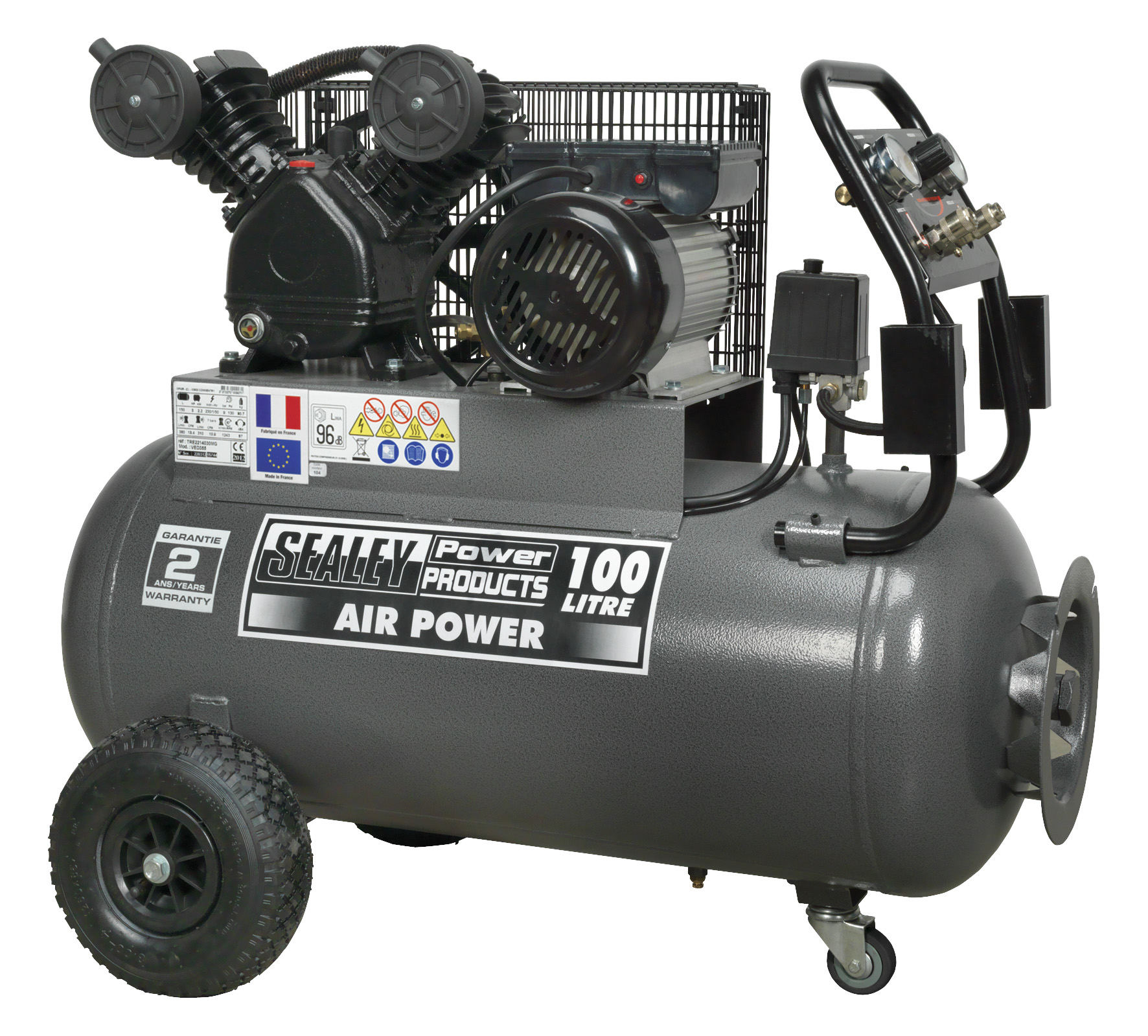

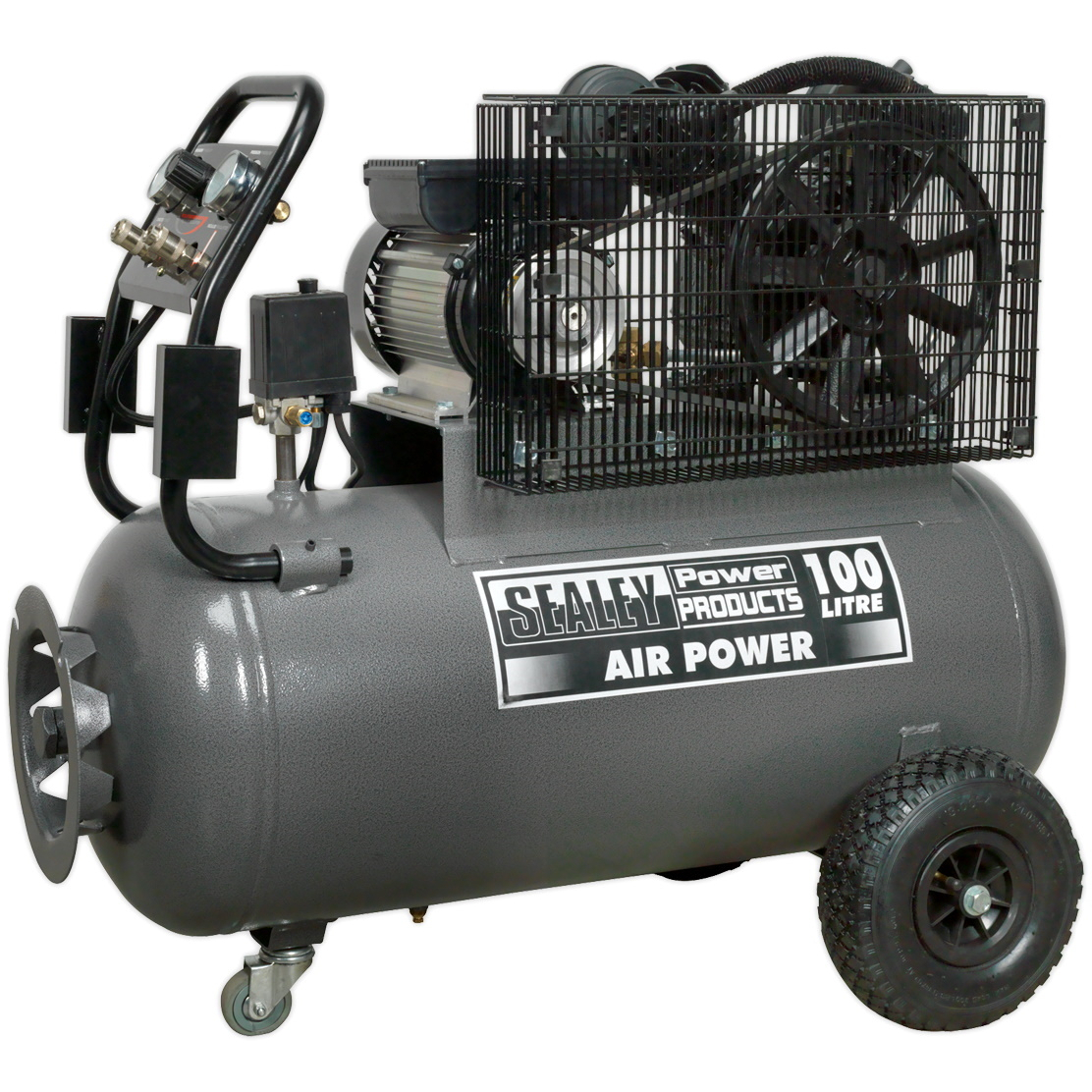

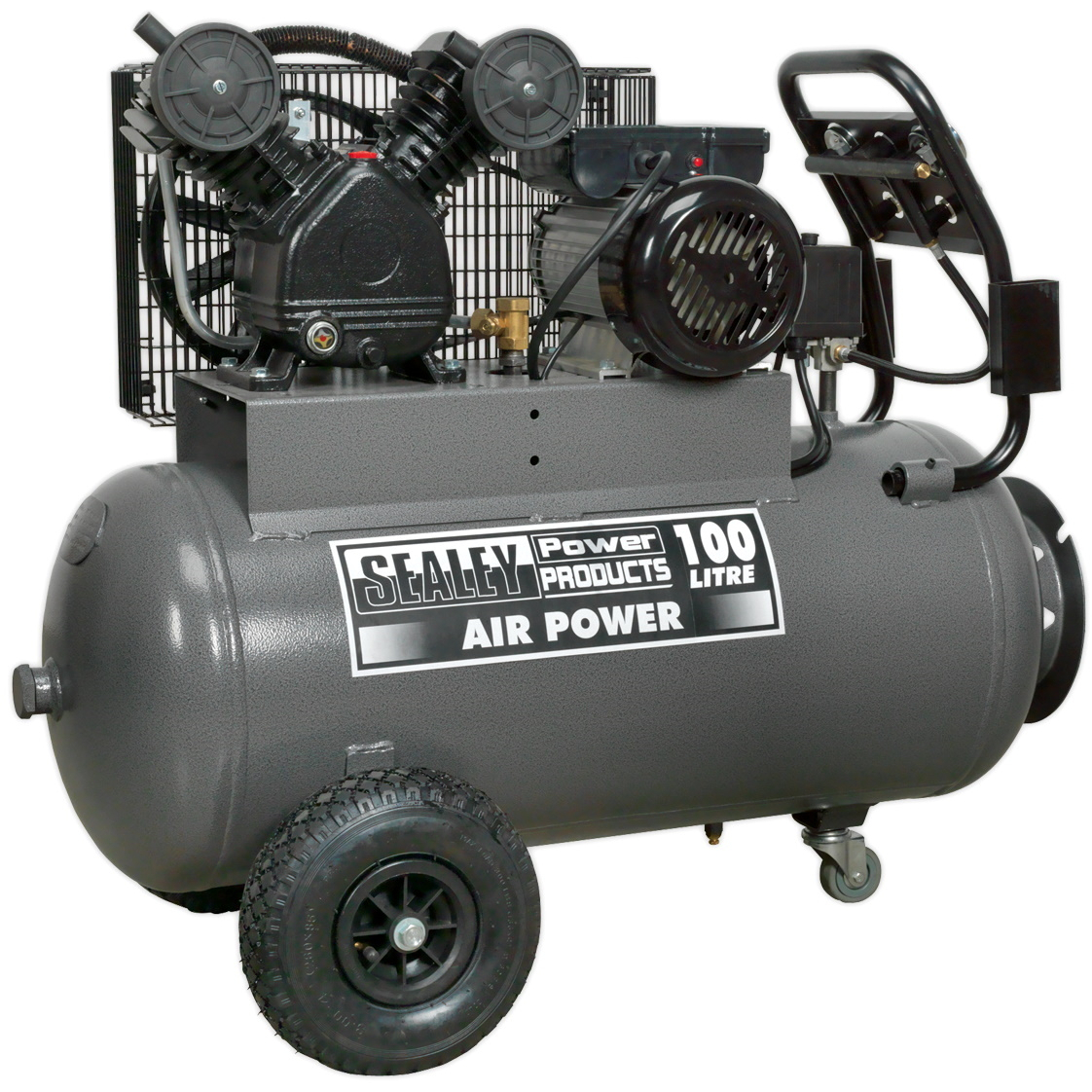

Sealey SAC3103B Compressor 100ltr Belt Drive 3hp with Front Control Panel 230V
Description / Sealey SAC3103B
Twin capacitors and a centrifugal switch aid trouble free start up on a good 13Amp supply.

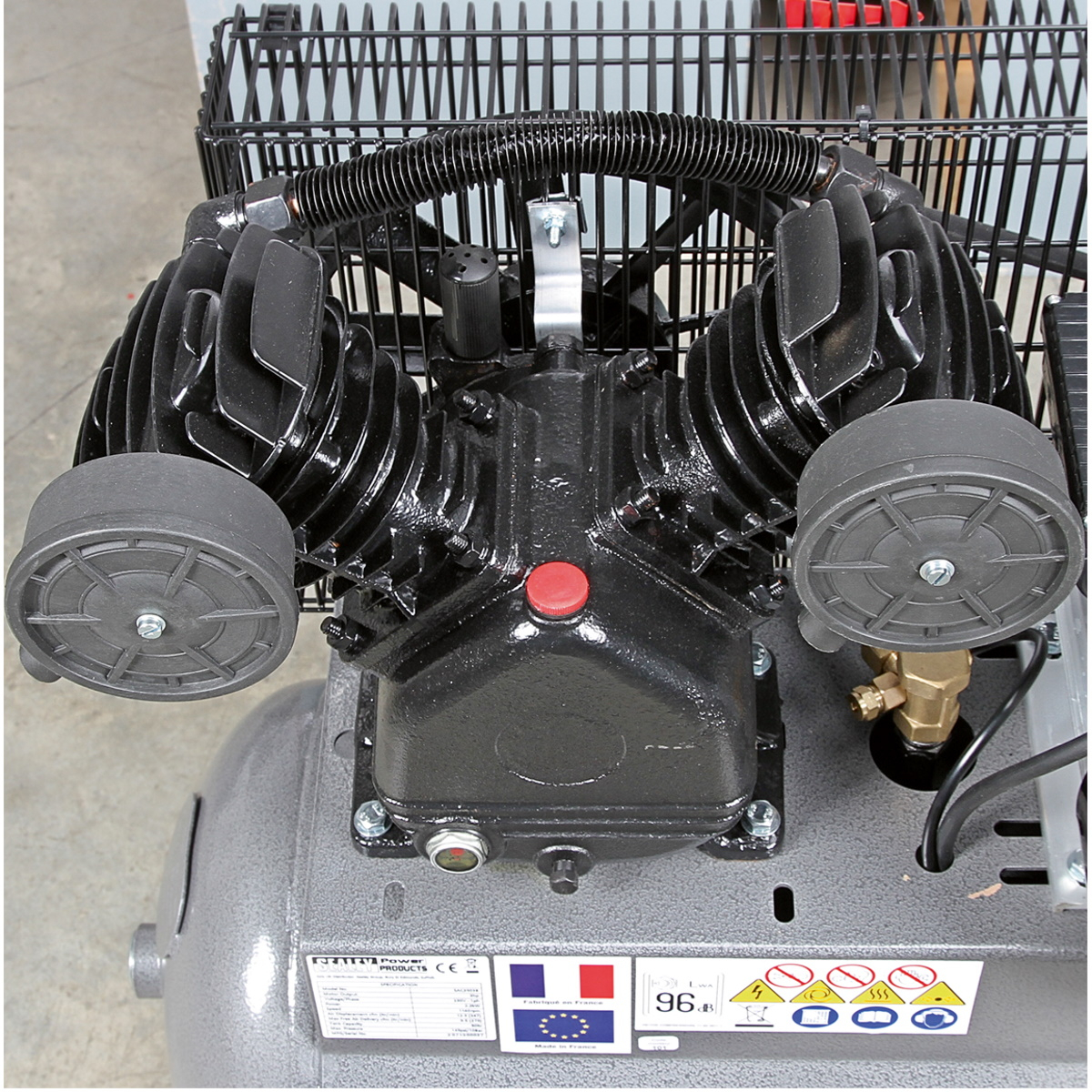

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life.

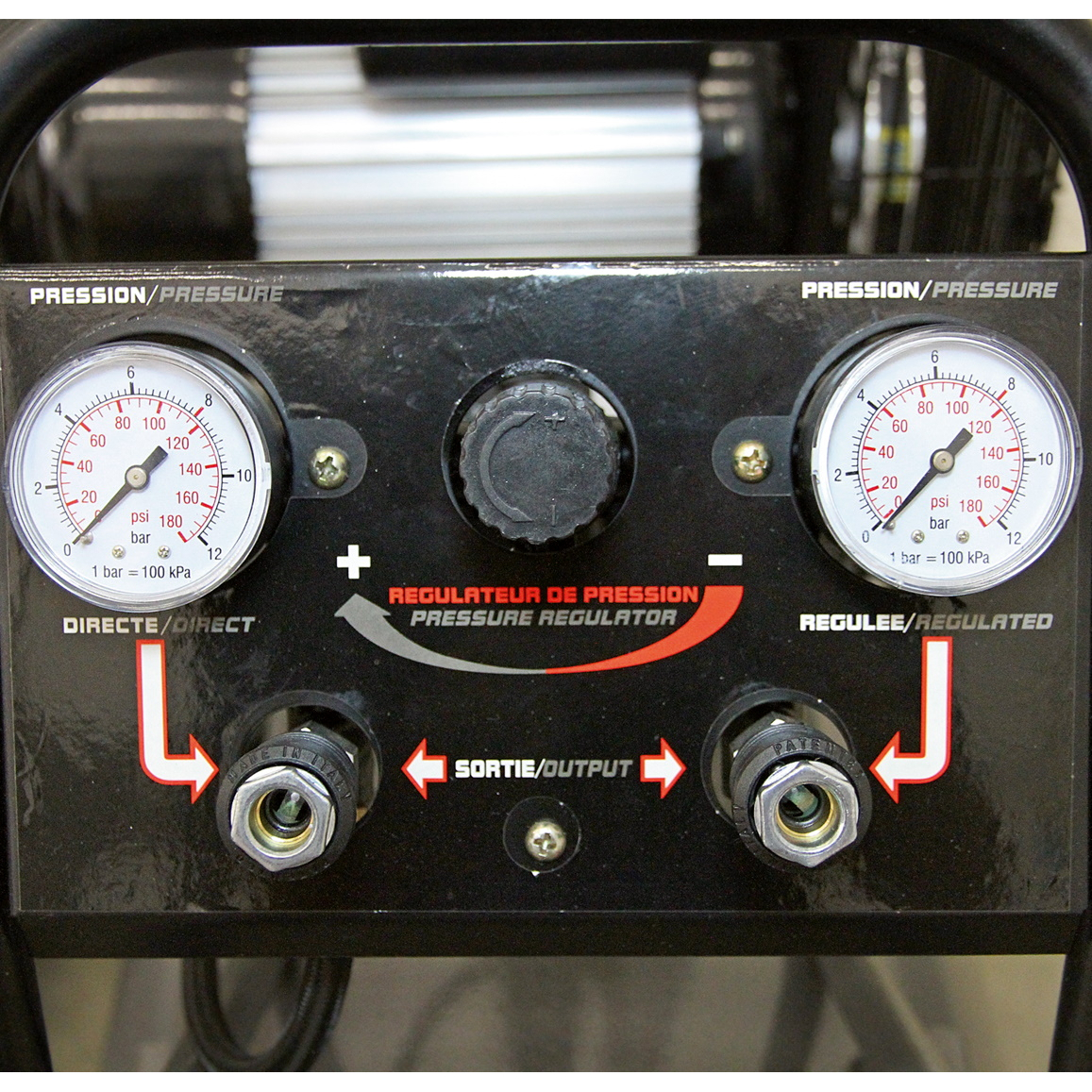

Features an easy to use bespoke control panel with two outlets, one regulated and one direct.
Heavy-duty pneumatic wheels with single front castor for easy manoeuvrability.
Supplied with hose reel to keep your workspace tidy.
Includes a drain valve for easy release of condensed water build up in the tank.
WARNING: Before using the compressor, check the oil level by observing the sight glass. If the oil is not up to the max mark it should be topped up with the recommended oil: Sealey CPO or equivalent SAE 40 compressor oil. Room temperature below +5°C: SAE 20 compressor oil.
For further information please click here to view user instructions.
Features / Specification
Motor Output: | 3hp |
|---|---|
| Supply: | 230V |
| Phase: | 1ph |
| Minimum Rated Supply: | 16A |
| Speed: | 1140rpm |
| Air Displacement cfm(ltr/min): | 12.3(347) |
| Maximum Free Air Delivery cfm(ltr/min): | 9.5(270) |
| Maximum Pressure: | 145psi(10bar) |
| Receiver Capacity: | 100ltr |
| Outlet: | Hi-Flow Quick Release Coupling |
| Size (W x D x H): | 980 x 500 x 800mm |
| Weight: | 76kg |
