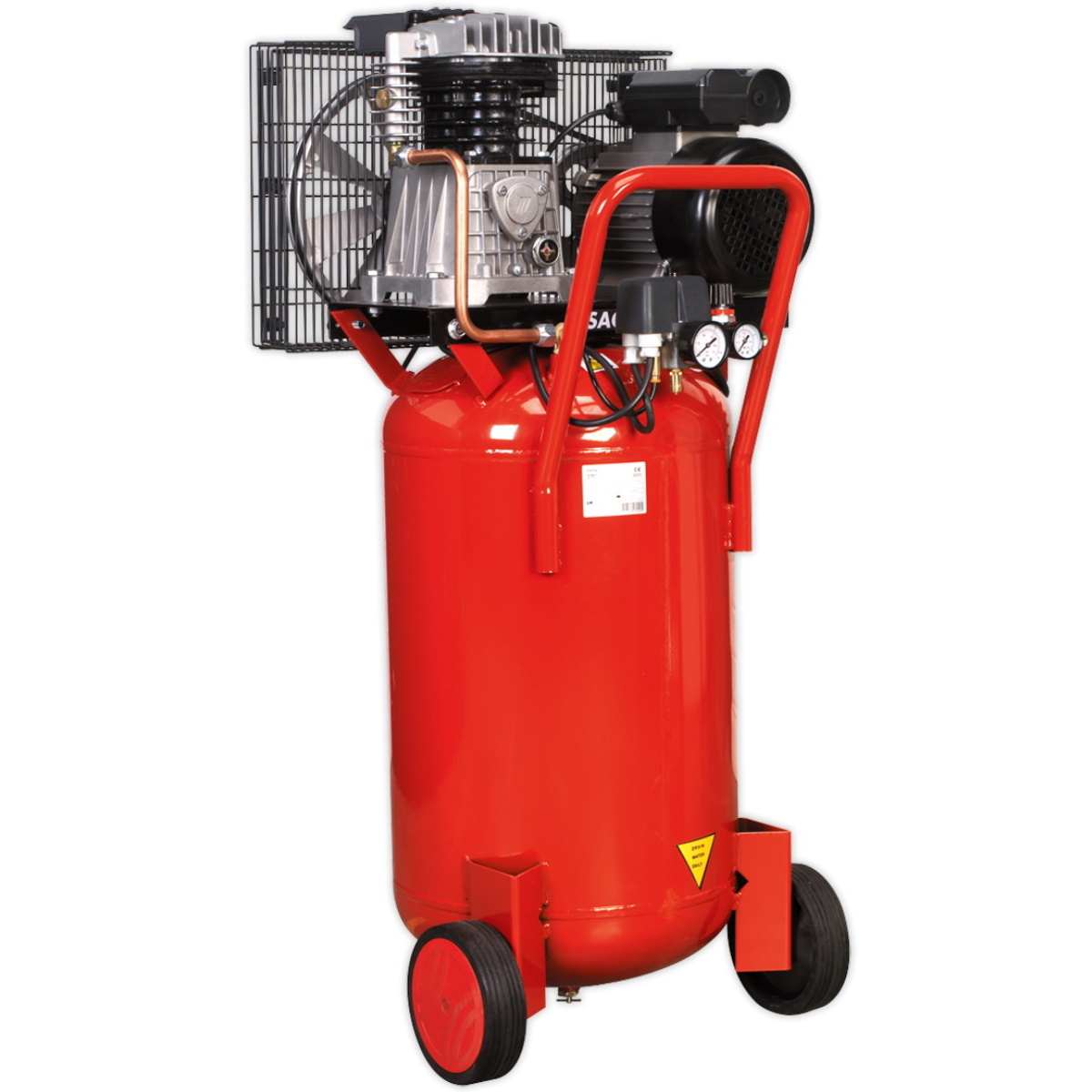

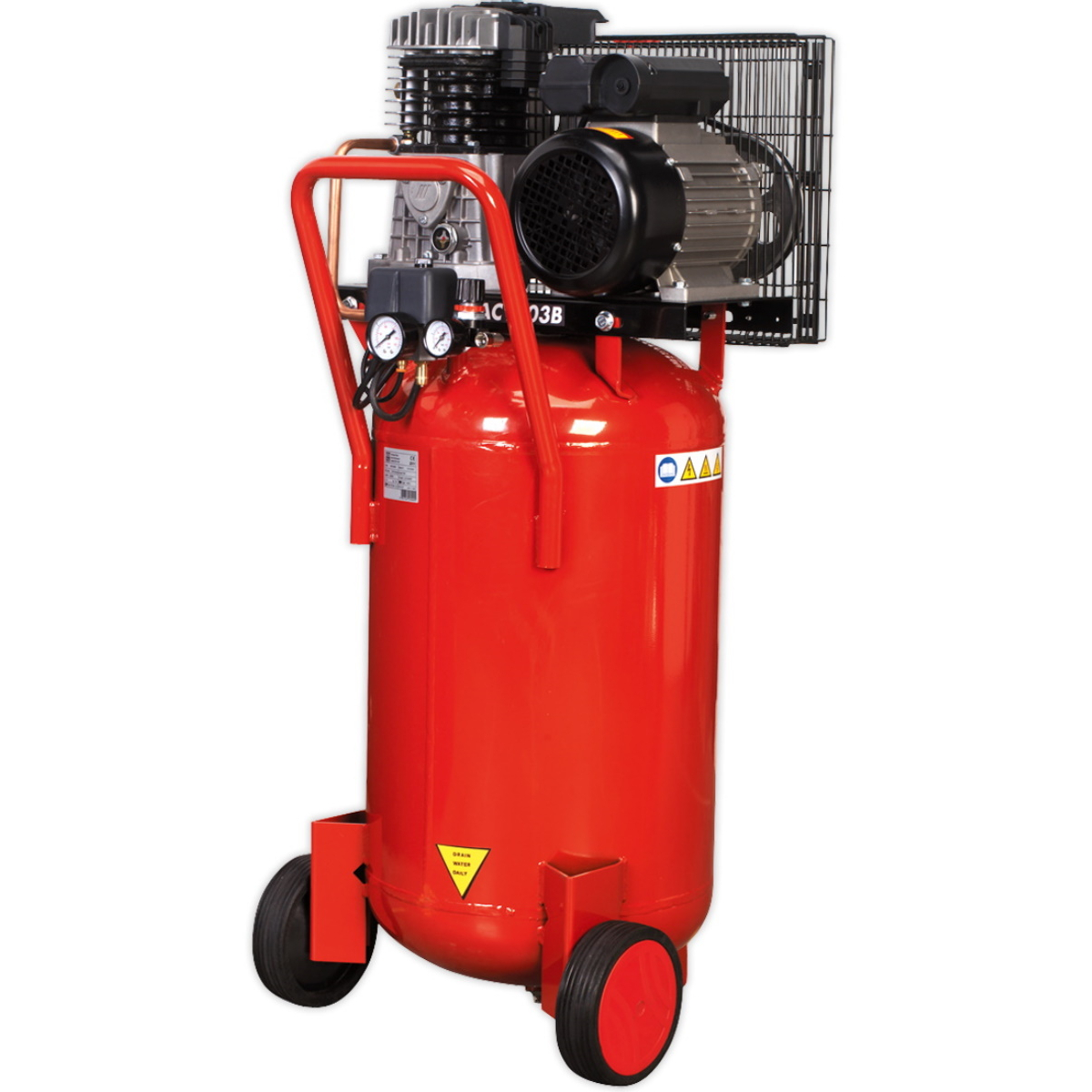

Sealey SAC1903B Compressor 90ltr Vertical Belt Drive 3hp 230V
Description / Sealey SAC1903B
Suitable for the professional workshop these units are fitted with a genuine 3hp motor.
Vertical tank offers horizontal space saving without compromising any performance.
Twin capacitors and a centrifugal switch aid trouble free start up on a 13amp supply.

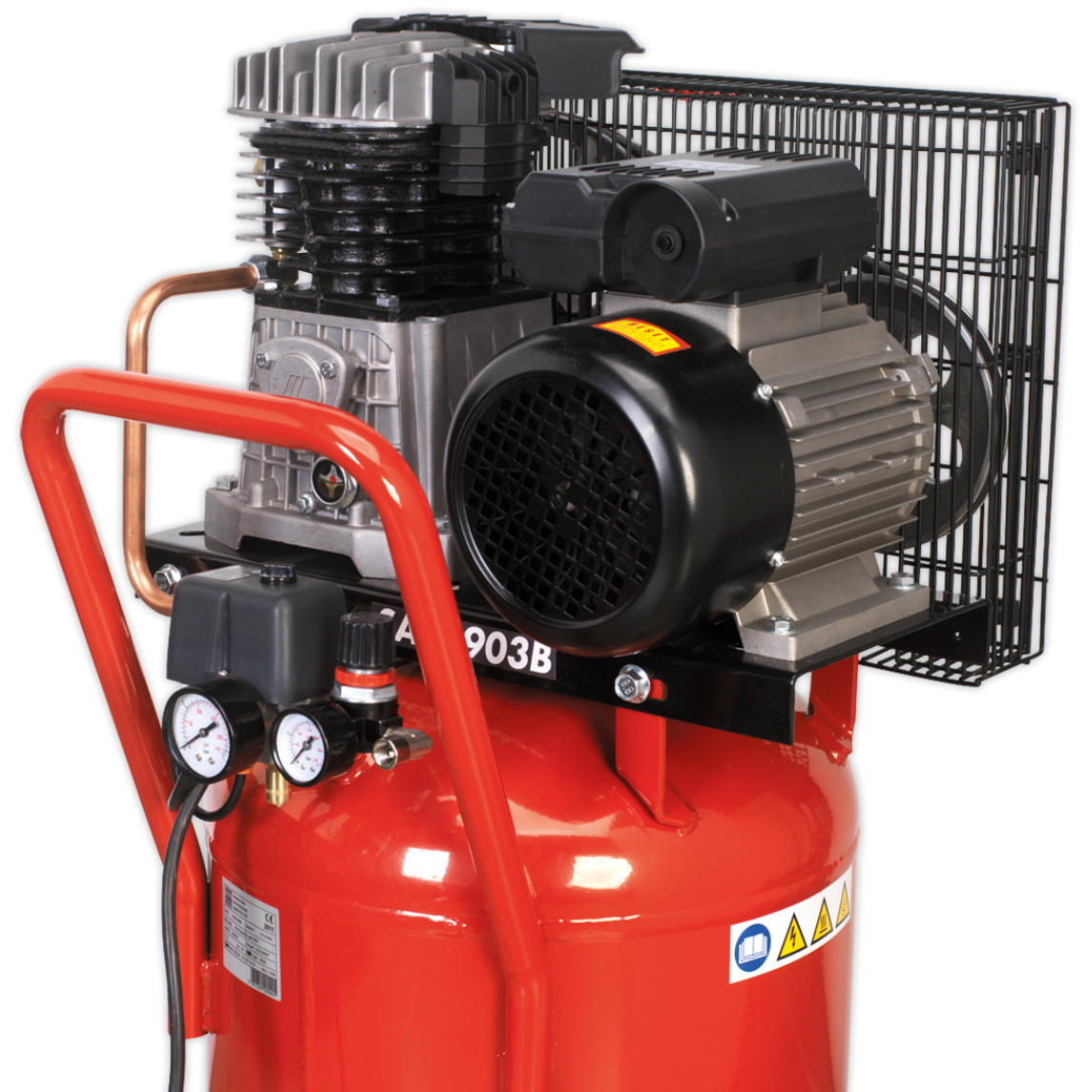

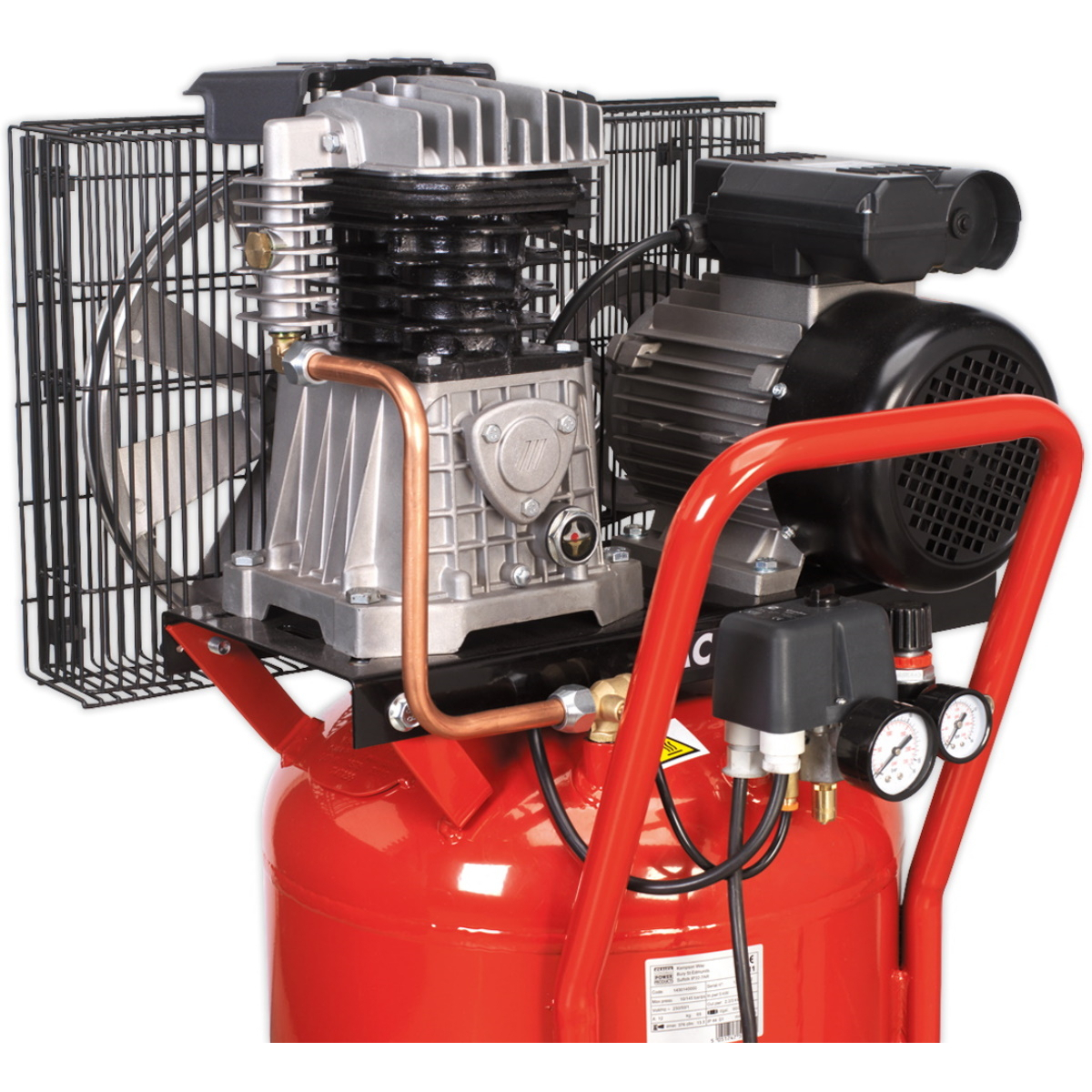

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life.

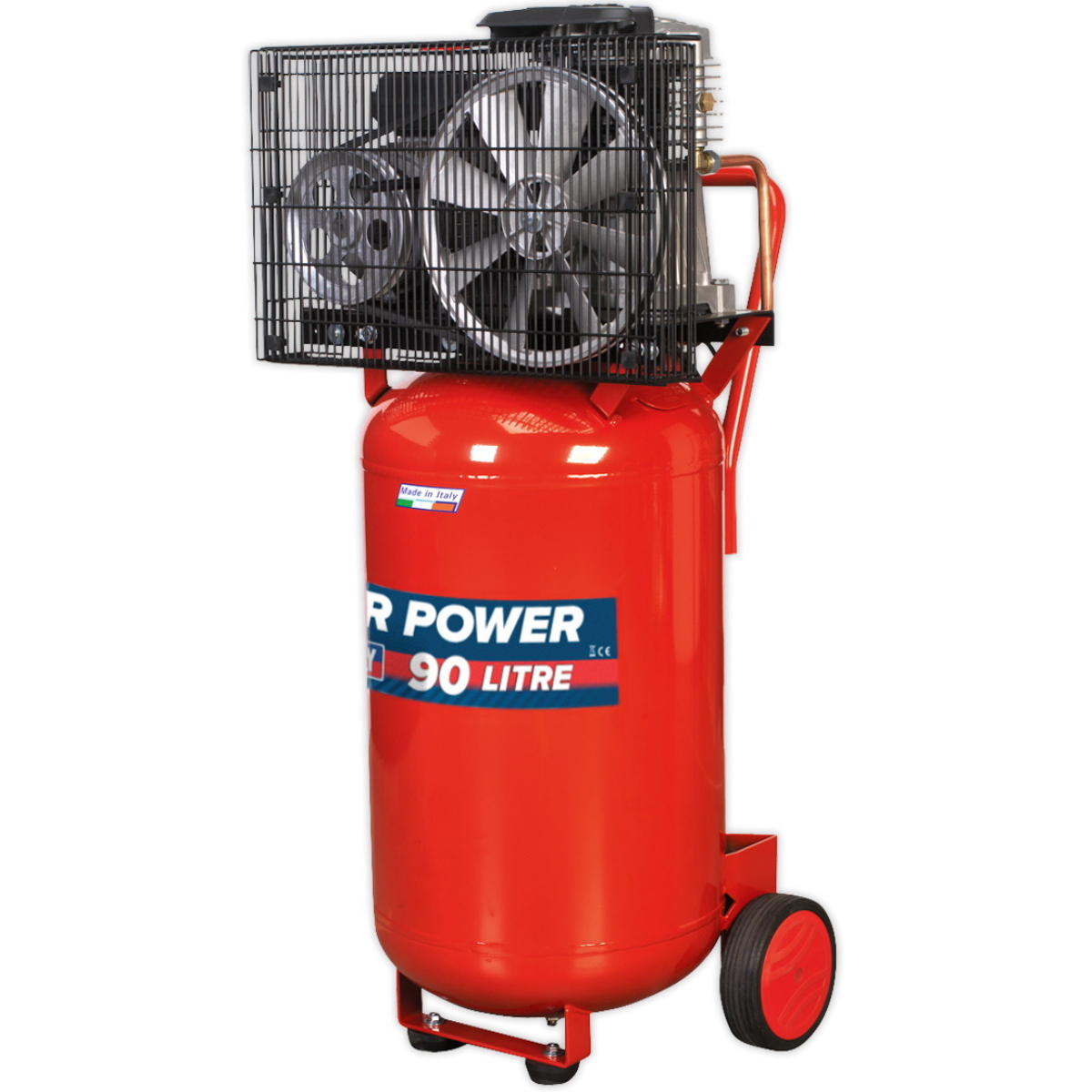

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
WARNING: Before using the compressor, check the oil level by observing the sight glass. If the oil is not up to the max mark it should be topped up with synthetic oil suitable for temperatures ranging from -5°C to 45°C (viscosity 5W50).
For further information please click here to view user instructions.
Features / Specification
Motor Output: | 3hp |
|---|---|
| Supply: | 230V |
| Phase: | 1ph |
| Minimum Rated Supply: | 13A |
| Speed: | 1636rpm |
| Air Displacement cfm(ltr/min): | 13.4(380) |
| Maximum Free Air Delivery cfm(ltr/min): | 9.7(275) |
| Maximum Pressure: | 145psi(10bar) |
| Receiver Capacity: | 90ltr |
| Outlet: | 1/4"BSP Female Thread |
| Size (W x D x H): | 525 x 495 x 1130mm |
| Weight: | 65kg |
