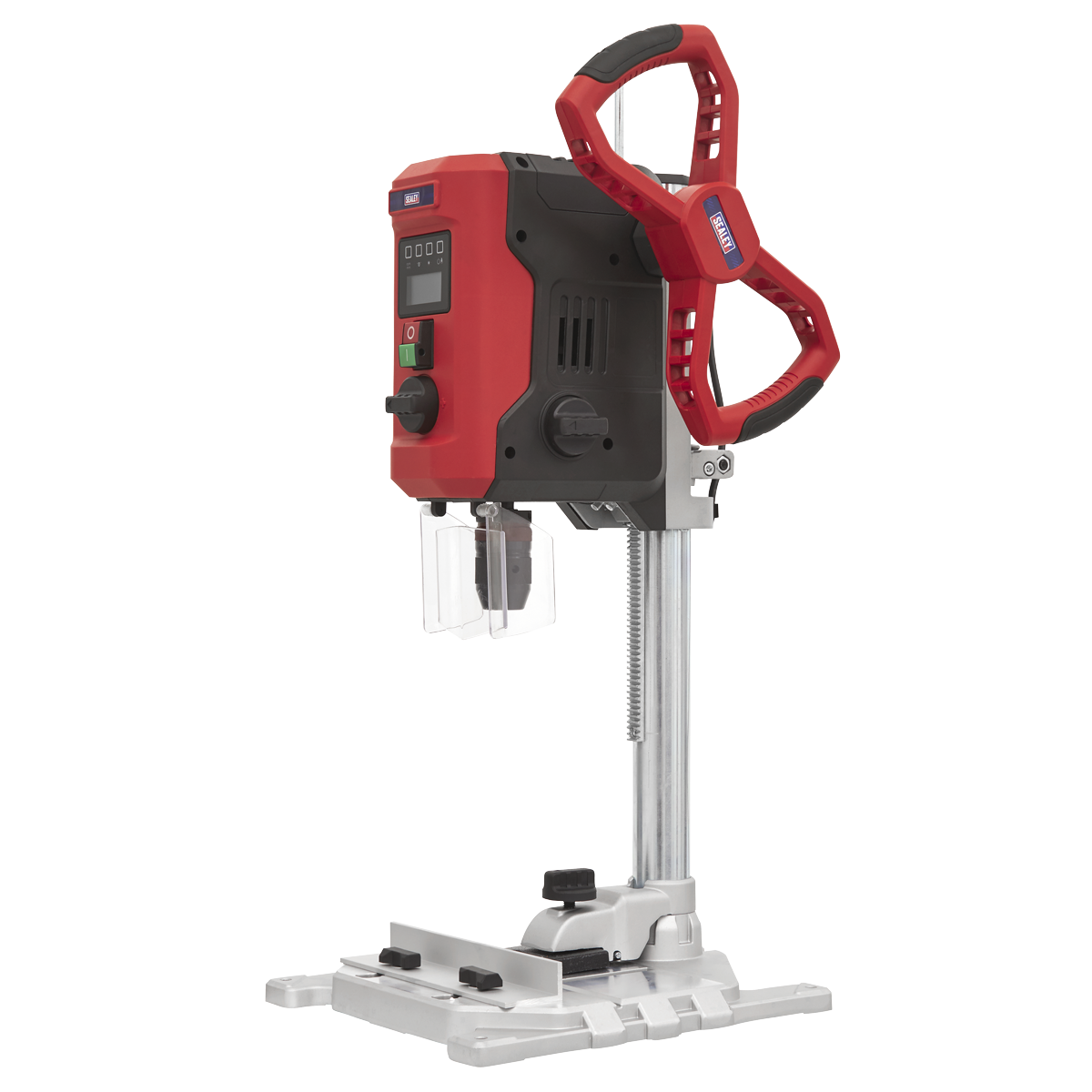

Sealey PDM10B Bench Pillar Drill with Digital Display & Laser Guide 720W
PRECISION - Good workspace illumination and accuracy thanks to the integrated LED light and laser
Order within
SKU
S-PDM10B
Barcode
5054630276880
£187.48
(
£156.23
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Sealey PDM10B
PRECISION - Good workspace illumination and accuracy thanks to the integrated LED light and laser.
CLARITY - Easy to read LCD display shows rpm as well as spindle travel for exact drilling depth (100mm stroke).
CONTROL - 2 gears with variable speed adjustment from 170 to 880rpm and 490 to 2600rpm.
CONVENIENT - Quick release 1.5 to 13mm chuck.
STURDY - Wide (300 x 330mm) aluminium base gives increased stability and is corrosion free.
EXACT - Parallel workpiece guide makes repeated drilling of large surfaces along edge more precise.
POSITIVE - Rubber grip on stylish handle design gives great control during repeated use.
INTERGRATED LASER - for easy and precise drilling.
INTERGRATED LED - for perfect illumination.
DIGITAL DISPLAY - for accurate drilling.
CLARITY - Easy to read LCD display shows rpm as well as spindle travel for exact drilling depth (100mm stroke).
CONTROL - 2 gears with variable speed adjustment from 170 to 880rpm and 490 to 2600rpm.
CONVENIENT - Quick release 1.5 to 13mm chuck.
STURDY - Wide (300 x 330mm) aluminium base gives increased stability and is corrosion free.
EXACT - Parallel workpiece guide makes repeated drilling of large surfaces along edge more precise.
POSITIVE - Rubber grip on stylish handle design gives great control during repeated use.
INTERGRATED LASER - for easy and precise drilling.
INTERGRATED LED - for perfect illumination.
DIGITAL DISPLAY - for accurate drilling.
Features / Specification
| Base Size: | 330mm x 300mm |
|---|---|
| Brand: | Sealey |
| Collar Diameter: | ø43mm |
| Column Diameter: | ø46mm |
| Drilling Capacity (Chuck Size): | 13mm |
| Integral Work Light: | Yes, Including Laser Guide. |
| Maximum Distance Spindle to Base: | 280mm |
| Maximum Distance Spindle to Table: | N/A |
| Motor Power (Start): | 720W(900W) |
| Nett Weight: | 10.2kg |
| Number of Speeds: | 2 Variable Speed Range : First : 170-880/min. Second : 490-2600/min |
| Optional Accessories: | N/A |
| Overall Height: | 660mm |
| Speed Range: | 170-880/min, 490-2600/min |
| Spindle Centre to Column: | 125mm |
| Spindle Nose Taper: | N/A |
| Spindle Travel: | 100mm |
| Supply: | 230V |
| Swing: | 250mm |
| Working Table Surface Size: | N/A |
