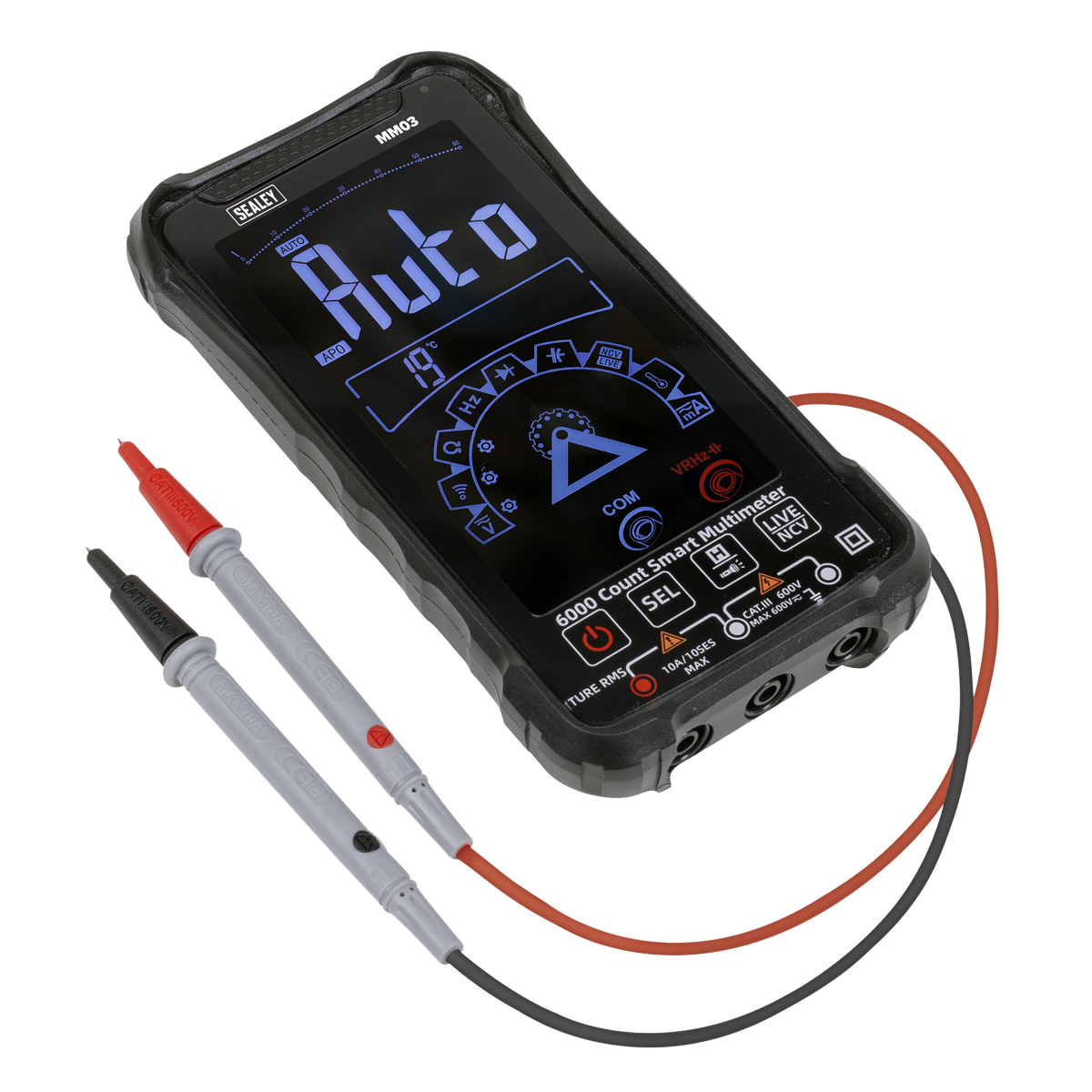

Sealey MM03 Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function

Sealey MM03 Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function

Name: Sealey MM03 Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function
Brand: Sealey
SKU: S-MM03
Price: 37.39 GBP
Availability: InStock

More Views

Ex. VAT £31.16 Inc. VAT £37.39

Usually ships within 3 working days

Qty:

Description

Details

LARGE LCD TOUCHSCREEN - That is easy to navigate.
INTELLIGENT - The multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity.
VERSATILE FEATURES - Includes temperature measurement capability, data-hold and auto-power-off function.
NON-CONTACT VOLTAGE DETECTION (NCVD) - Enables one-handed use.
6000 COUNT - High precision measurements.
LIVE TEST FEATURE - A single probe can test for live feeds.
LED WORK LIGHT - Enhances visibility in low light conditions.
RECHARGABLE - Supplied with Type-C USB charging cable.
INCLUDES - Probes and thermocouple probe.
HEAVEY DUTY - High-impact case.
SUPPLIED IN A STORAGE CASE - For secure storage and portability solutions.
CONFIRMS TO EN 61010-2 CATIII 600V SAFETY REQUIRMENTS - For electrical equipment for measurement, control and laboratory use.

Features

Features

Brand:	Sealey
Nett Weight:	0.317kg
DC Voltage (Accuracy):	Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
AC Voltage (Accuracy):	Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
DC Current (Accuracy):	Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(2.5% of reading +10 digits)
AC Current (Accuracy):	Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(3% +10 digits)
Resistance (Accuracy):	Range: 600/6k/60/600k (Ohm), Resolution: 0.1/1/0.01k/0.1k (Ohm), Accuracy: =-(1.2% +3 digits)
Resistance:	Range: 6M/60M (Ohm), Resolution: 0.001M/0.01M(Ohm), Accuracy: =-(2% +5 digits)
Capacitance (Accuracy):	Range: 6/60/600nF, 6/60/600uF, 60mF, Resolution: 0.001/0.01/0.1nF, 0.001/0.01/0.1uF, 0.001mF, Accuracy: =(4.5% +5 digits)
Frequency (Accuracy):	Range: 6/60/600Hz, 6/60/600kHz, 6MHz, Resolution: 0.001/0.01/0.1Hz, 0.001/0.01/0.1kHz, 1kHz, Accuracy: =-(0.1% +3 digits)
Temperature (Accuracy):	Range: -200C to 1200C -328F to 2192F, Resolution: 1C, Accuracy: =-(5/1/2% + 4/3/5 digits)
Auto Range:	YES
Auto Scan:	V/R/CONT
Duty Cycle:	NO
Continuity Audible:	YES
Diode Test:	YES
Backlit/Torch:	YES
Transistor Test:	NO
Hi-Impact Rubber Case:	YES
Digits x Height:	4 x 23mm
Low Battery Indicator:	YES
Battery:	Rechargeable 3.7V Li-ion
Information:	Data-Hold, Auto-Power-Off, Integral Stand & Live Test
Size:	158 x 82 x 23mm
Nett Weight:	0.317kg
Conformity:	EN 61010-2
