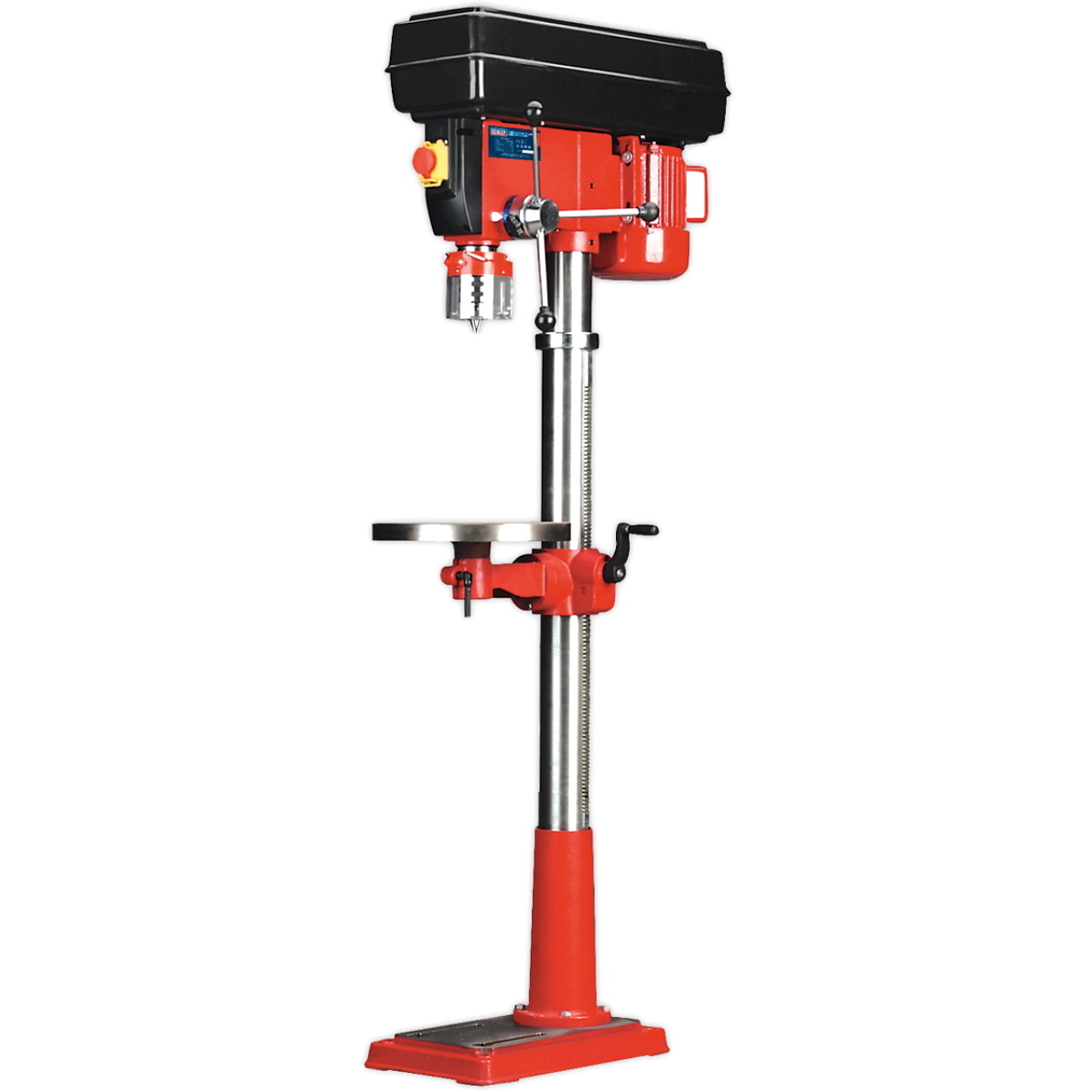

Sealey GDM200F/VS Pillar Drill Floor Variable Speed 1630mm Height 650W/230V
Variable speed model allows stepless control of drilling speed between minimum and maximum enabling finer control of finish and tolerance
Order within
SKU
S-GDM200F/VS
Barcode
5024209548397
£689.00
(
£574.17
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Sealey GDM200F/VS
Variable speed model allows stepless control of drilling speed between minimum and maximum enabling finer control of finish and tolerance.

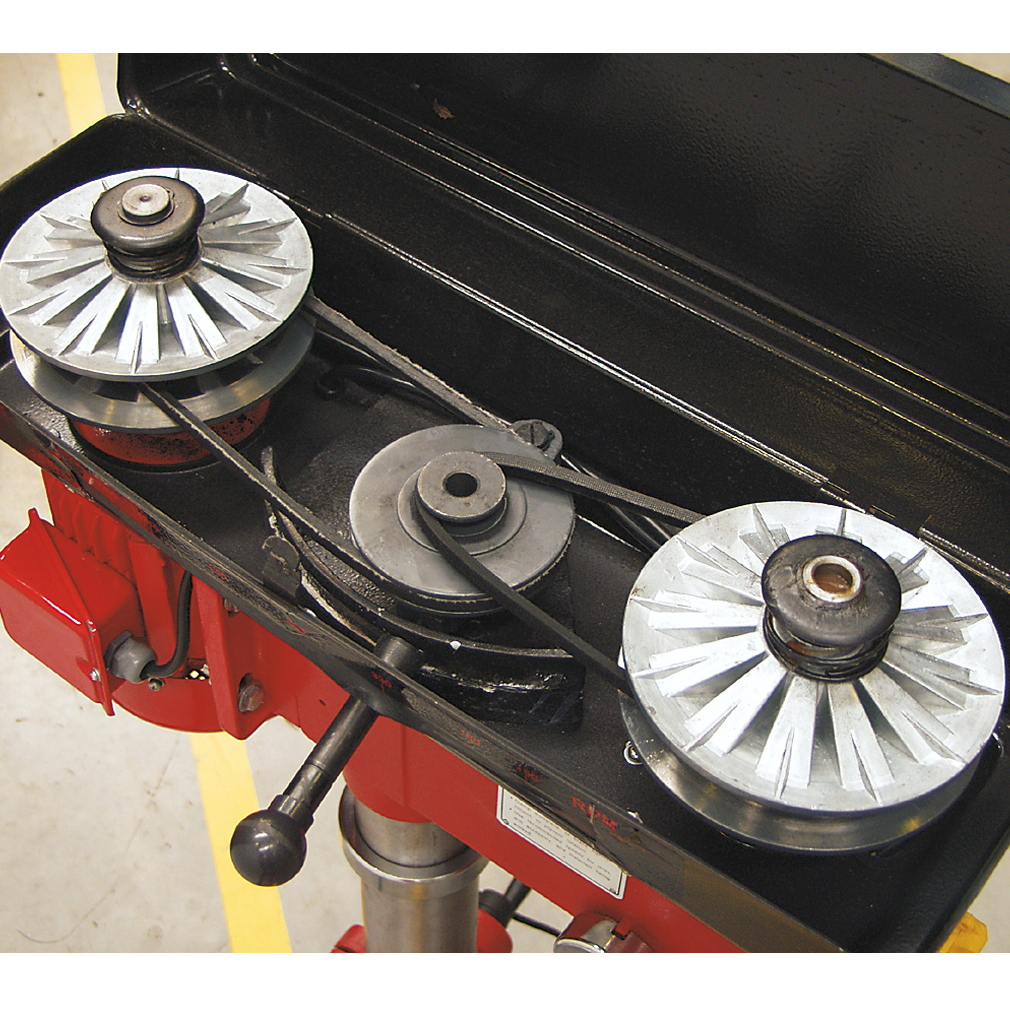

The belt transmission uses two spring tensioned cone pulleys, the diameter of which can be adjusted by moving a centre idle pulley with the speed adjustment control lever.
Meets Safety of Machinery (Safety) Regulations 1992 (and amendments).
Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments.
Supplied with chuck guard.
The belt transmission uses two spring tensioned cone pulleys, the diameter of which can be adjusted by moving a centre idle pulley with the speed adjustment control lever.
Meets Safety of Machinery (Safety) Regulations 1992 (and amendments).
Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments.
Supplied with chuck guard.
Features / Specification
Base Size: | 460 x 275mm | |
|---|---|---|
| Collar Diameter: | Ø60mm | |
| Column Diameter: | Ø80mm | |
| Drilling Capacity (Chuck Size): | 16mm | |
| Maximum Distance Spindle to Base: | 1170mm | |
| Maximum Distance Spindle to Table: | 730mm | |
| Motor Power (Start): | 450W(650W) | |
| Nett Weight: | 71kg | |
| Number of Speeds: | Variable | |
| Optional Accessories: | GDMX/KC - Keyless Pillar Drill Chuck 16mm | |
| Overall Height: | 1630mm | |
| Speed Range: | 150-2300rpm | |
| Spindle Centre to Column: | 178mm | |
| Spindle Nose Taper: | MT2 | |
| Spindle Travel: | 80mm | |
| Supply: | 230V Swing: | 356mm |
| Working Base Surface Size: | 200 x 220mm | |
| Working Table Surface Size: | Ø310mm |
