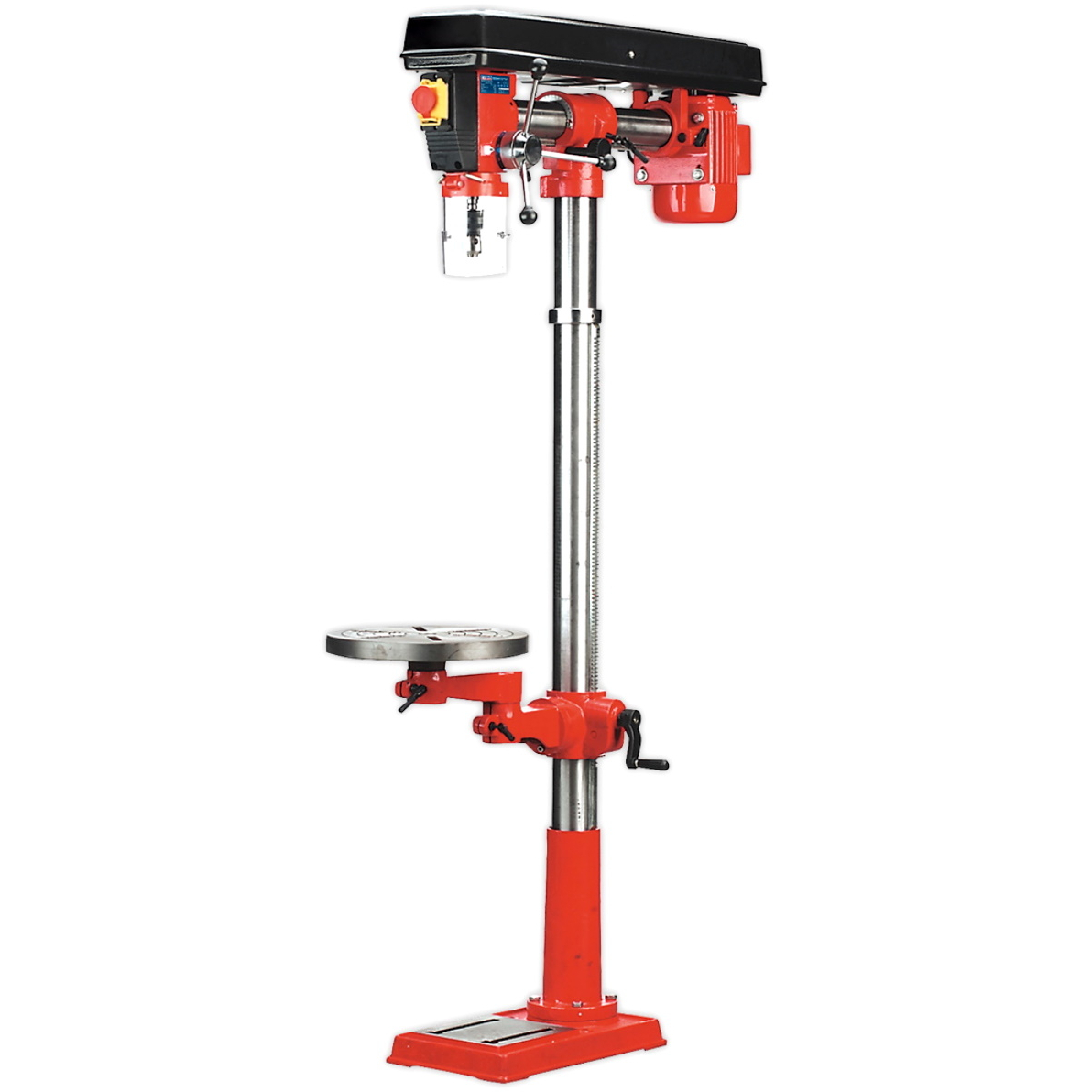

Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1620mm Height 550W/230V
Heavy-duty construction meets Safety of Machinery (Safety) Regulations 1992 (and amendments)
Order within
SKU
S-GDM1630FR
Barcode
5024209116817
£535.00
(
£445.83
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Sealey GDM1630FR
Heavy-duty construction meets Safety of Machinery (Safety) Regulations 1992 (and amendments).

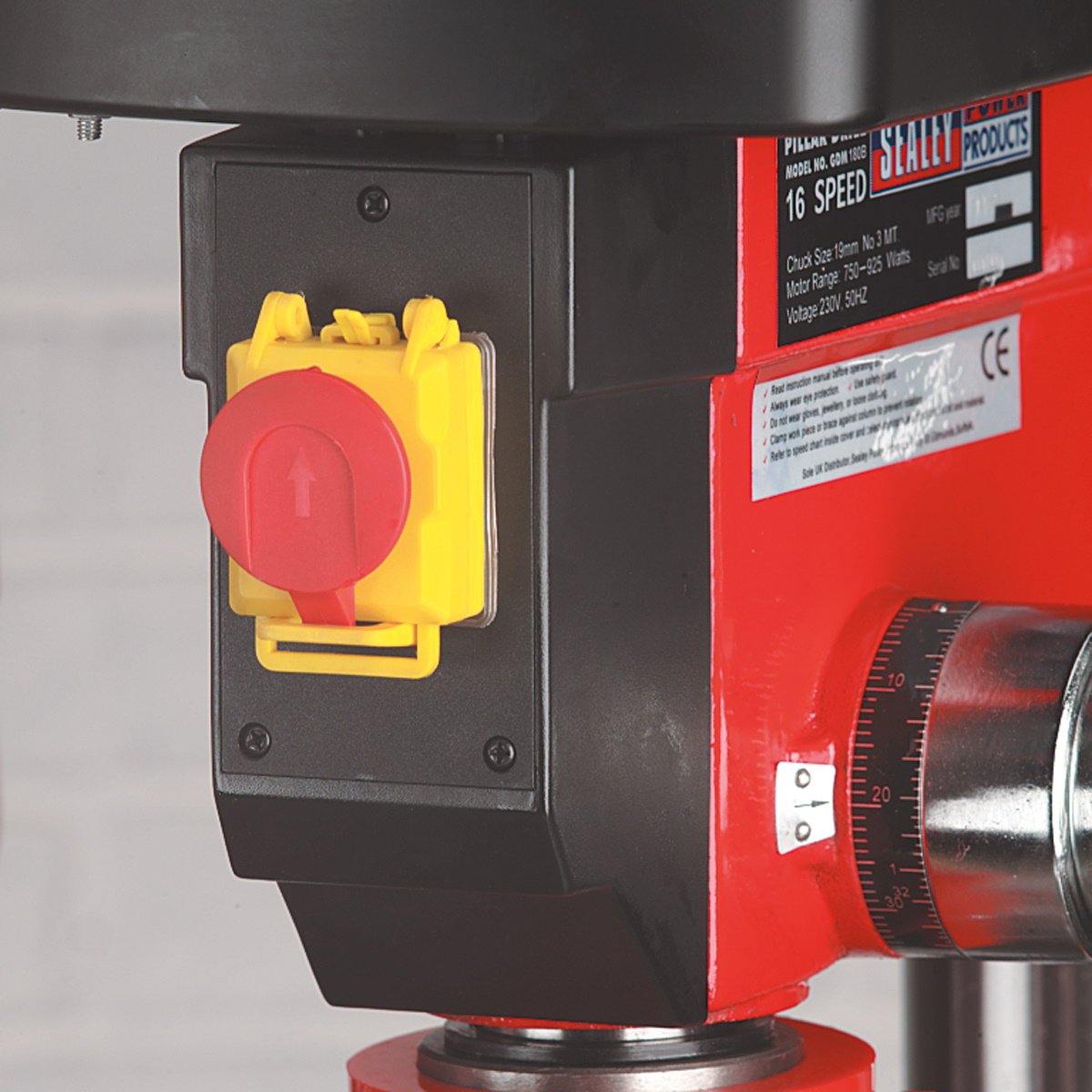

Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

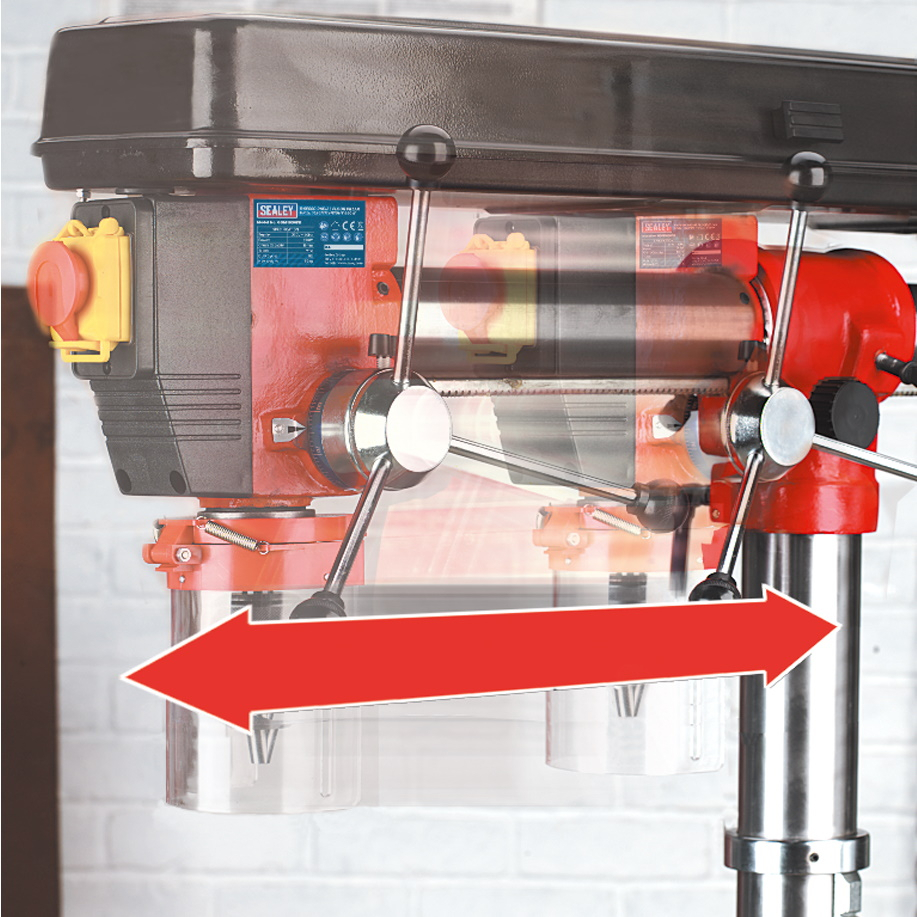

Radial feature allows off-table drilling and angle drilling.
Features a maximum throat depth of 420mm.

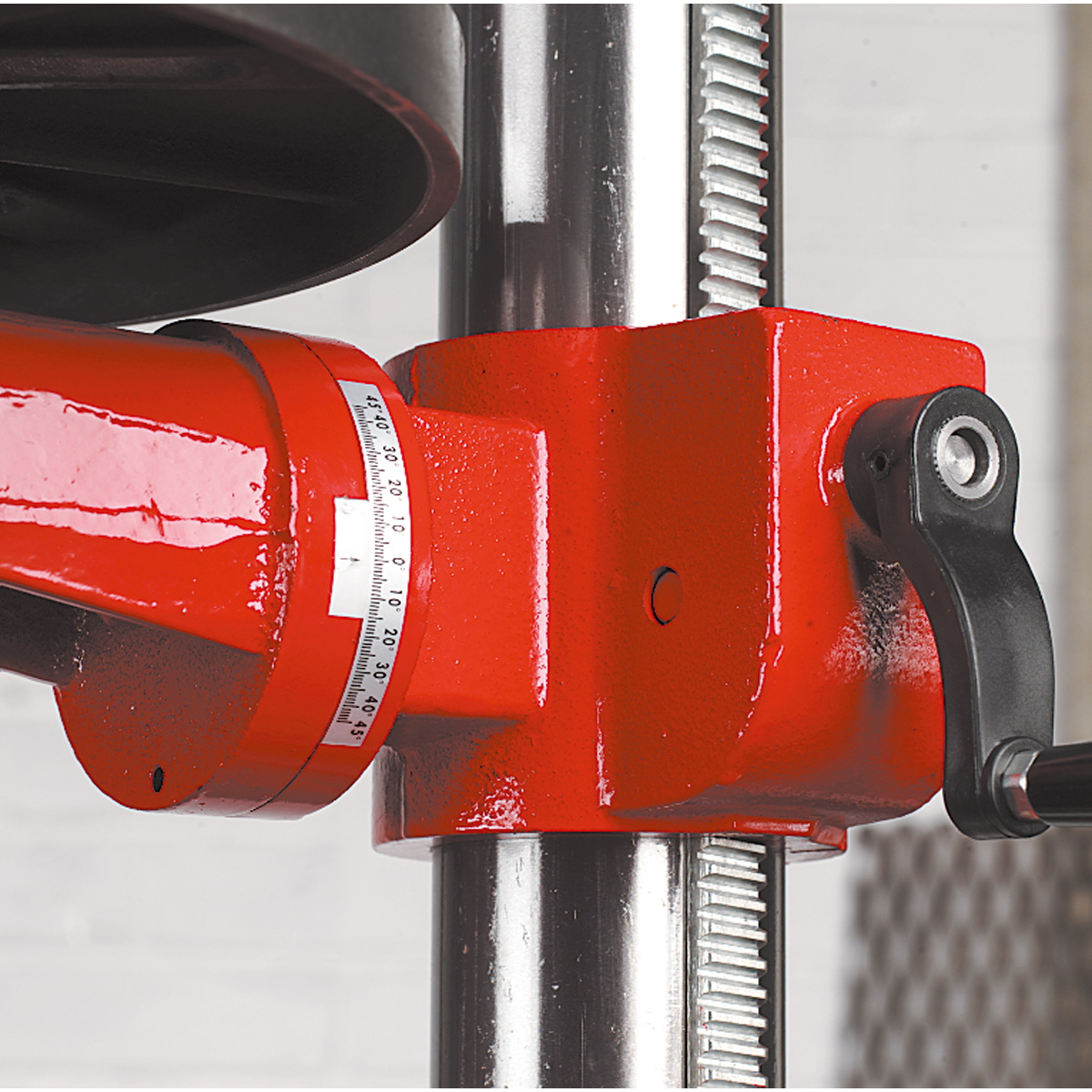

Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
Also available as bench mounting type - GDM790BR.
Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.
Radial feature allows off-table drilling and angle drilling.
Features a maximum throat depth of 420mm.
Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
Also available as bench mounting type - GDM790BR.
Features / Specification
Base Size: | 420 x 250mm |
|---|---|
| Collar Diameter: | Ø60mm |
| Column Diameter: | Ø70mm |
| Drilling Capacity (Chuck Size): | 16mm |
| Maximum Distance Spindle to Base: | 1280mm |
| Maximum Distance Spindle to Table: | 830mm |
| Motor Power (Start): | 350W(550W) |
| Nett Weight: | 59kg |
| Number of Speeds: | 5 |
| Optional Accessories: | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height: | 1620mm |
| Radial Arm Travel: | 285mm |
| Speed Range: | 500-2450rpm |
| Spindle Centre to Column: | 420mm |
| Spindle Nose Taper: | MT2 |
| Spindle Travel: | 80mm |
| Supply: | 230V |
| Swing: | 840mm |
| Working Base Surface Size: | 210 x 190mm |
| Working Table Surface Size: | Ø310mm |
