DetailsA comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. All machines meet Safety of Machinery (Safety) Regulations 1992 (and amendments). Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments. Models GDM92B and up have Morse taper spindle housings for taking taper shank drill bits. All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection. All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work. Mortise attachments are available for models GDM120B, GDM140F and GDM160F.

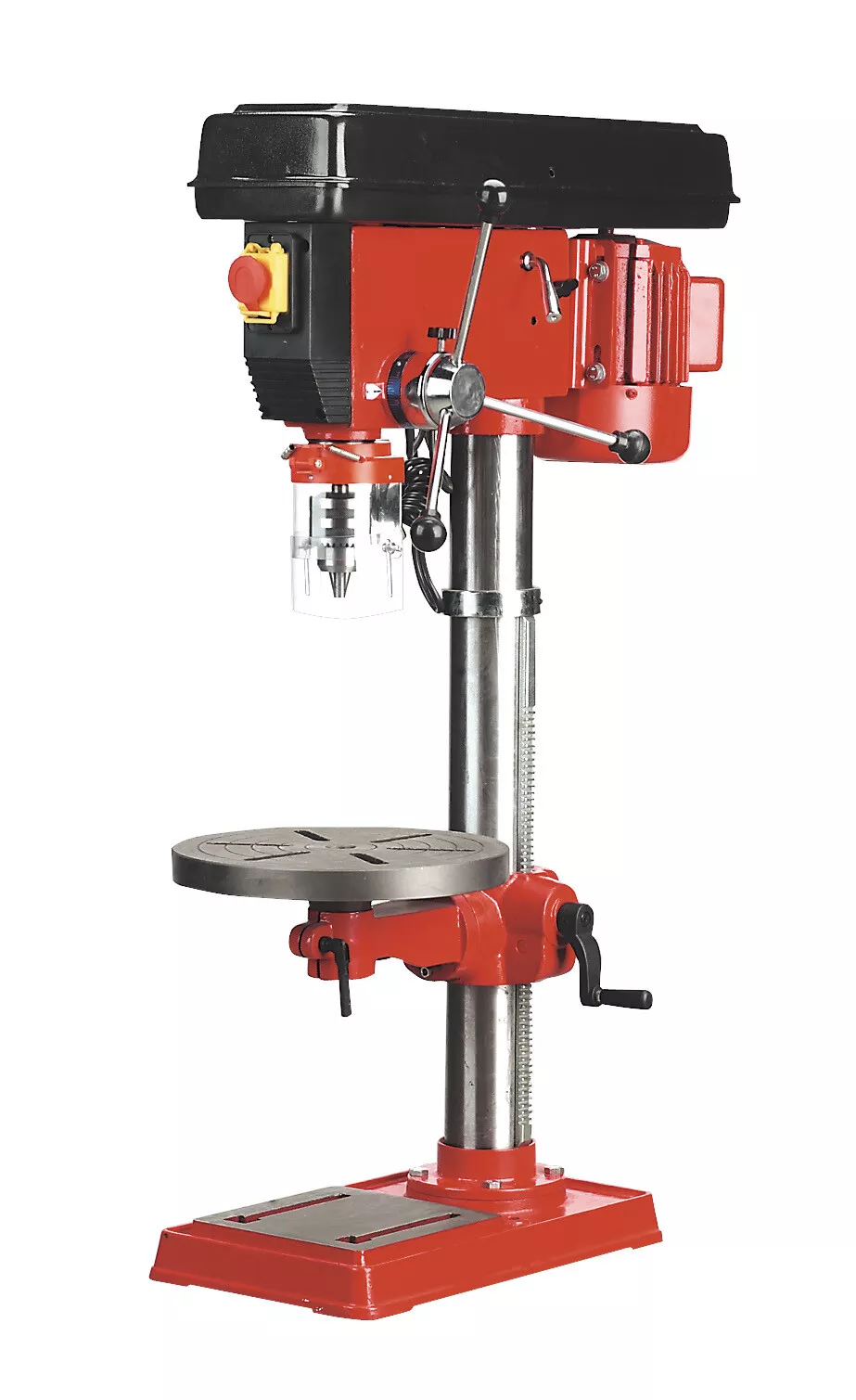

Model No: GDM150B, Drilling Capacity (Chuck Size): 16mm, Spindle Nose Taper: MT2, Swing: 436mm, Spindle Centre to Column: 178mm, Spindle Travel: 80mm, Number of Speeds: 16, Speed Range: 120-3000rpm, Maximum Distance Spindle to Table: 480mm, Maximum Distance Spindle to Base: 670mm, Working Table Surface Size: ø310mm, Working Base Surface Size: 205 x 205mm, Overall Base Size: 440 x 260mm, Column Diameter: 80mm, Collar Diameter: 60mm, Overall Height: 1070mm, Motor Power: 370W - 230V, Input Power: 550W - 230V, Weight: 68kg, Optional Keyless Chuck 16mm: GDMX/KC
