- Description
-
Details

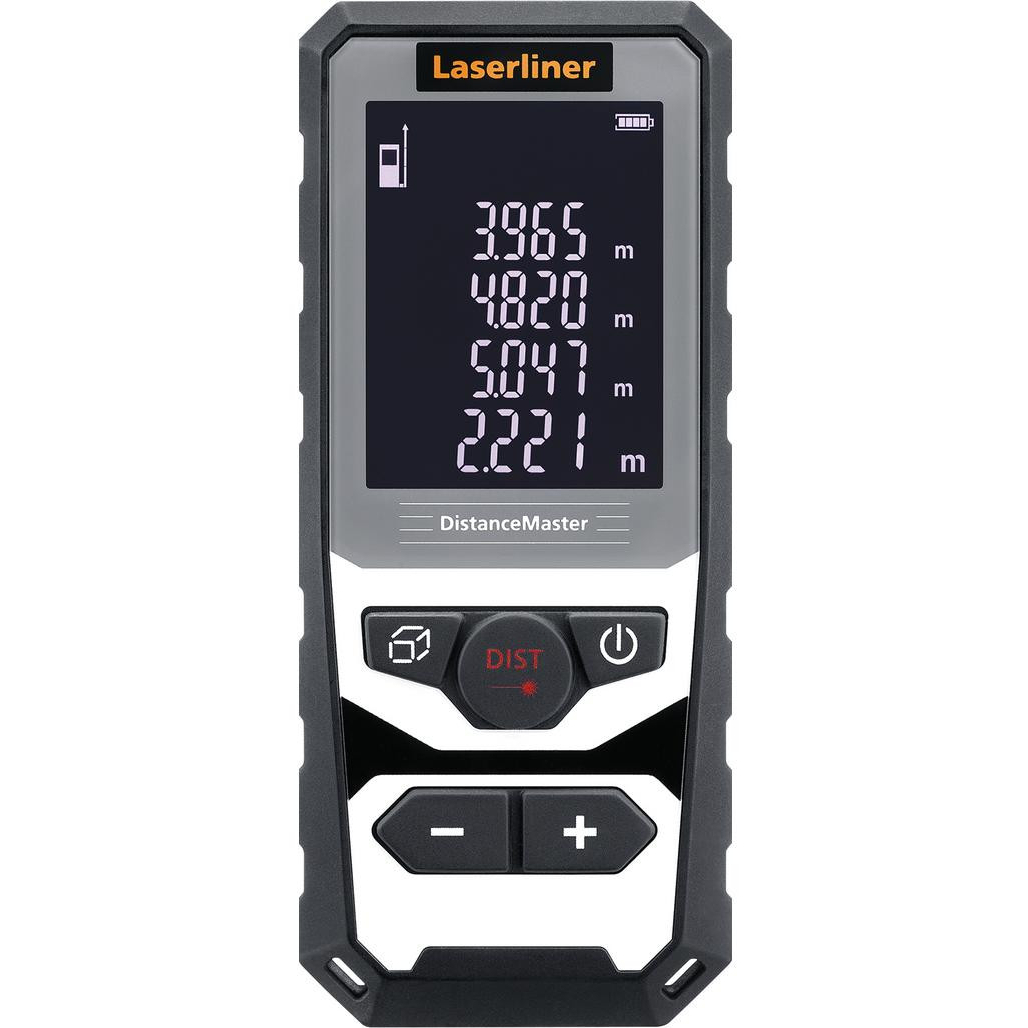

- This versatile rangefinder, with a measuring range of 50 metres, allows lengths, areas and volumes to be measured, added and subtracted accurately
- Heights can also be determined indirectly using the Pythagoras angle function
- This means it can be used in hard to reach locations
- The continuous measuring function makes it easier to work in situations where continuous range-finding measurements are required, such as when the target object moves during measurement
- The housing reference point can be adjusted to suit the particular application
- 50 memory locations are available for optimum recording of results from the project
- Energy-saving Auto Off function when not in use
- Supplied with batteries and a carrying case
Supplied With:
- Batteries and a Carrying Case
- Features
Features
Length/area/volume Yes Min/Max Yes Continuous measurement Yes Indirect determination of height (Pythagoras) Yes Selectable housing reference point Yes Addition/subtraction Yes Addition of wall area (decorators’ function) Yes Precision (Typical)* ± 1.5 mm Measurement Range (Inside)** 0,05 m - 50 m Laser Wavelength 635 nm Laser Class 2 / < 1 mW (EN 60825-1 2014/A11 2021 / EN 50689: 2021) Memory 50 storage locations Power Supply 3 x 1.5V LR03 (AAA) Operating Conditions -10°C … 40°C Dimensions (W x H x D) 54 mm x 126 mm x 27 mm Weight 142g (incl. Batteriea)
