- Description
-
Details

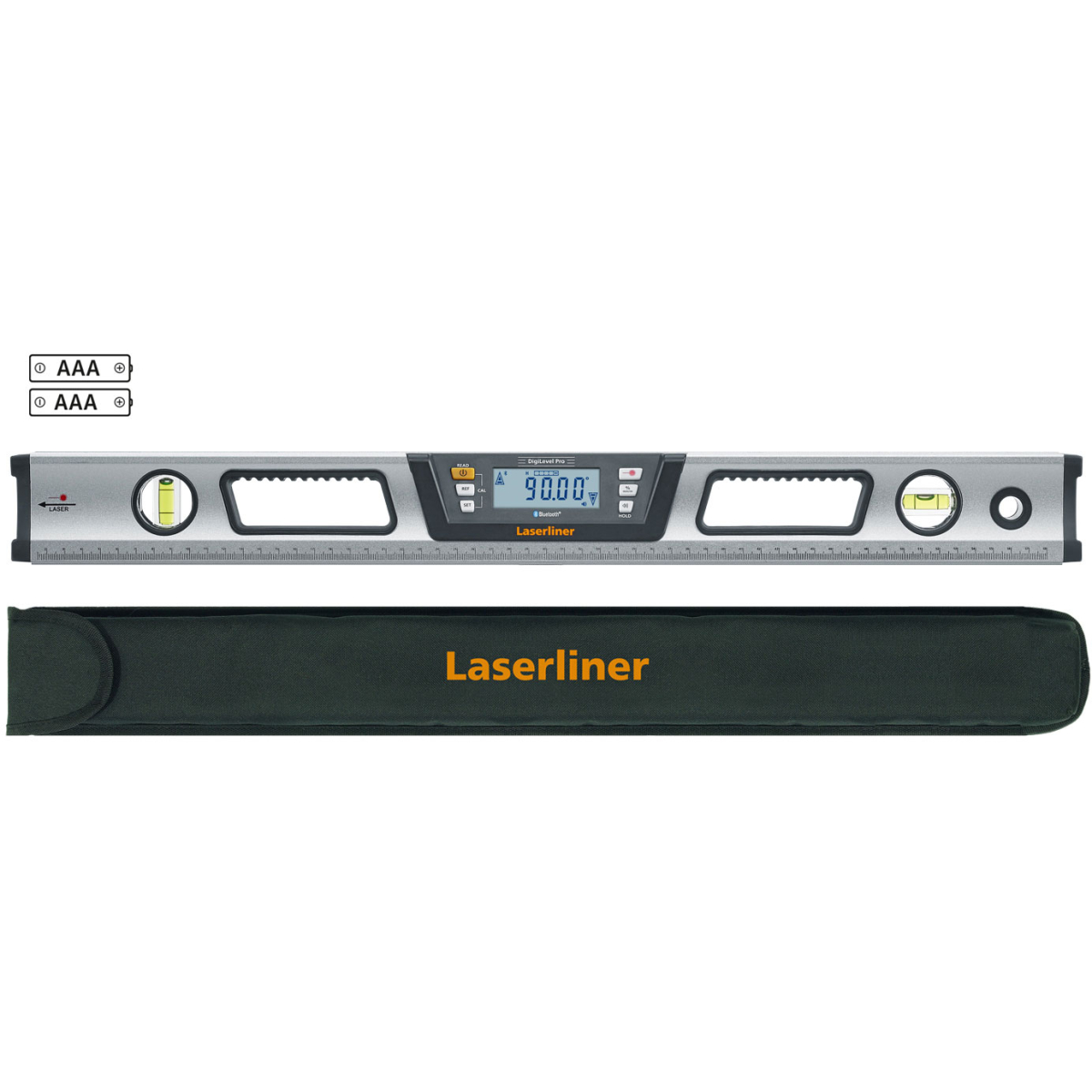

- The digital spirit level is ideal for the accurate alignment of slopes, has a Digital Connection interface and is splashwater-proof
- Operation is very easy thanks to the acoustic guidance function and defined standard gradients for typical applications
- Supplied with batteries and softbag
- Exact alignment of slopes
- Comfortable overhead measurements thanks to flip display
- Free hands when working on metal constructions thanks to magnetic holder
- Standard gradients for roof pitch, slopes, drain pipes
- Calibration: permanent accuracy via reverse measurement
- Acoustic guidance with 3 different signal tones
- Measurement units can be switched
- Digital Connection interface for use with MeasureNote app
- Illuminated display with direction indicator
- Warranty 4 years
Supplied With:

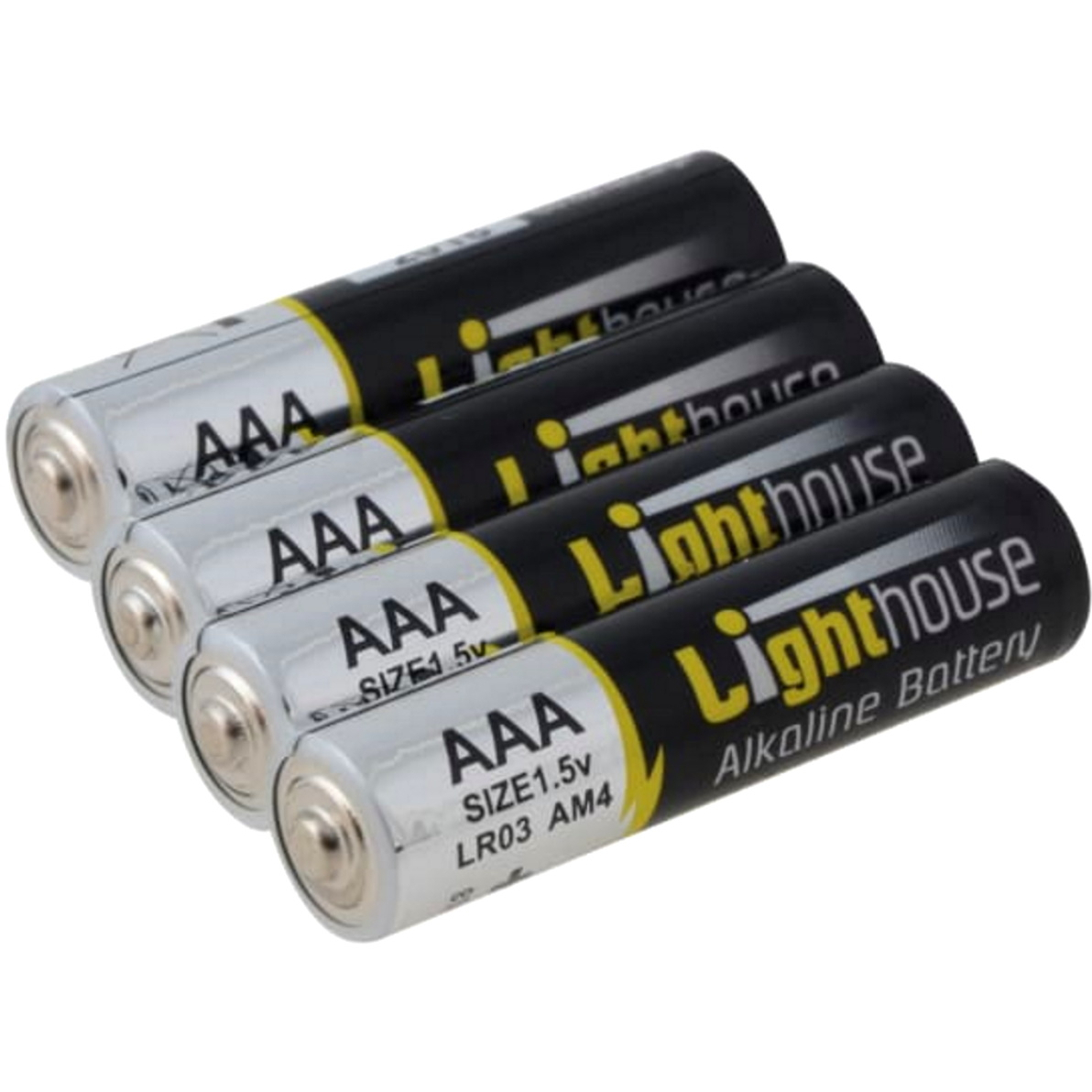

- Batteries And Softbag
- Features
Features
SPECIFICATION: Laser projection: Yes Slope transfer (ref. mode): Yes Data transfer: Yes Angle display: Yes Digital 360° slope measurement: Yes 90°/45°/0° signal: Yes Overhead measurement (flip display): Yes Vial Accuracy: ±0.5 mm/m Display Accuracy: 2 decimal places Display Accuracy 0° - 1°: 2 decimal places Display Accuracy 1° - 90°: 2 decimal places Laser Wavelength: 635nm Protection Class: IP 54 Port: Digital Connection Power Supply: 2 x 1.5V LR03 (AAA) Operating Time: with laser approx. 10 hours, without laser: approx. 55 hours Dimensions (W x H x D): 600 mm x 63 mm x 33 mm Weight: 722g
