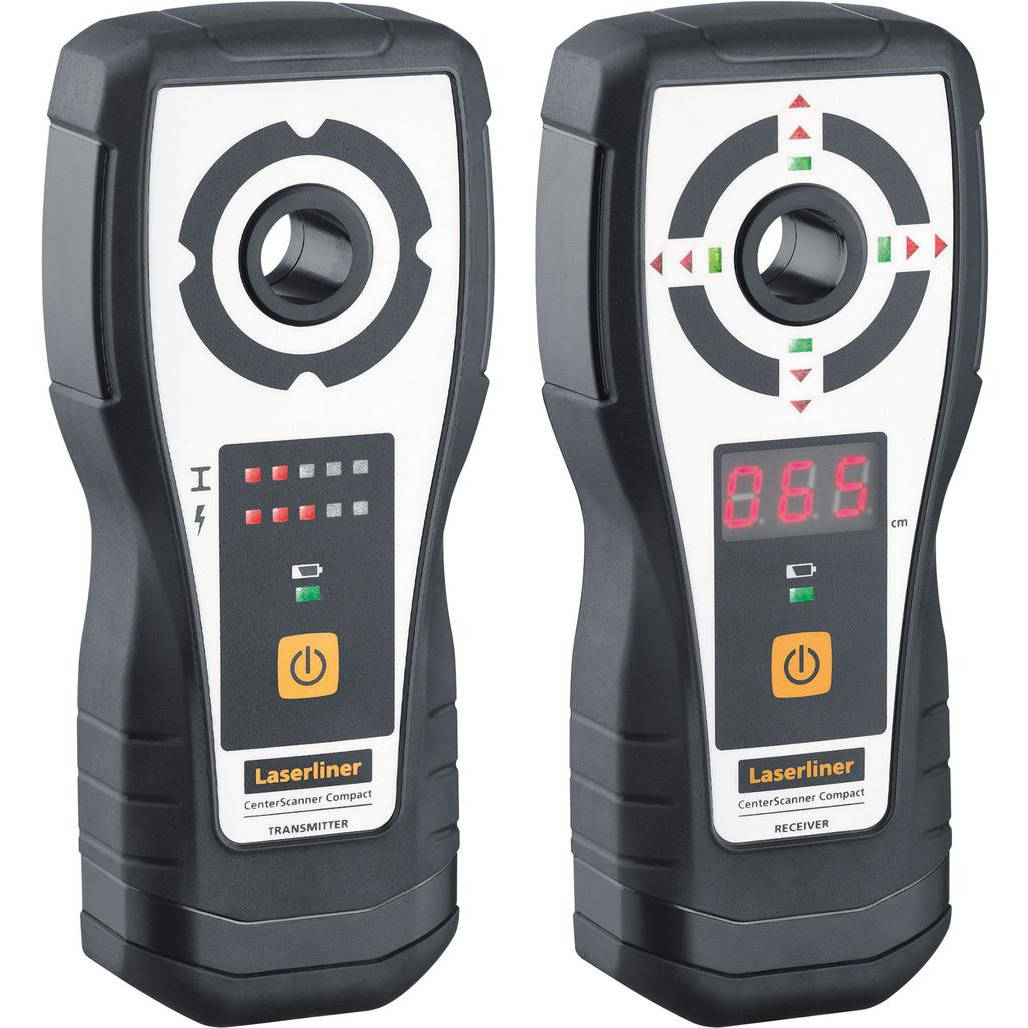

Laserliner 32088 075.400A CenterScanner Compact Drilling Guide Device
This highly accurate drill guide consists of a transmitter and a receiver and provides safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm
Order within
SKU
DRA32088
Barcode
4021563730346
£484.68
(
£403.90
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Laserliner 32088
- This highly accurate drill guide consists of a transmitter and a receiver and provides safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm
- Easily visible LED indicators and acoustic signals that can be switched off provide the location
- Highly accessible marking aids in the sender and receiver provide the centring
- The required drilling depth can be determined up to 150 cm using the integral LCD display
- A visual and acoustic warning is sent when foreign objects are detected
- The sender and receiver fit comfortably in the hand thanks to their ergonomic design
- Supplied with receiver RECV, adhesive kit, sliding pads (x4) batteries & a carrying case
Features / Specification
| SPECIFICATION: | |
|---|---|
| Operating instructions: | Yes |
| Drill channel alignment: | Yes |
| Wall thickness display: | Yes |
| Measuring depth display: | Yes |
| Warning for 230 V wires: | Yes |
| Metal detection: | Yes |
| Accuracy: | typically 3% of measured depth |
| Detection Range AC 2 cm | |
| Power Supply RECV 3 x 1.5V LR03 (AAA) / TX 3 x 1.5V LR03 (AAA) | |
| Operating Time RECV approx. 20 hours / TX approx. 12 hours | |
| Storage Conditions: | -20°C 60°C, Luftfeuchtigkeit max. 85% rH, nicht kondensierend |
| Dimensions (W x H x D): | 77 mm x 179 mm x 31 mm |
| Weight: | 507g (RECV und TX inc. Batteries) |
Supplied With
- 1 X Laserliner CenterScanner Compact Drilling Guide Device 1 x Receiver RECV 1 x Adhesive kit 1 x Sliding pads (x4) 1 x Batteries 1 x Carrying case
