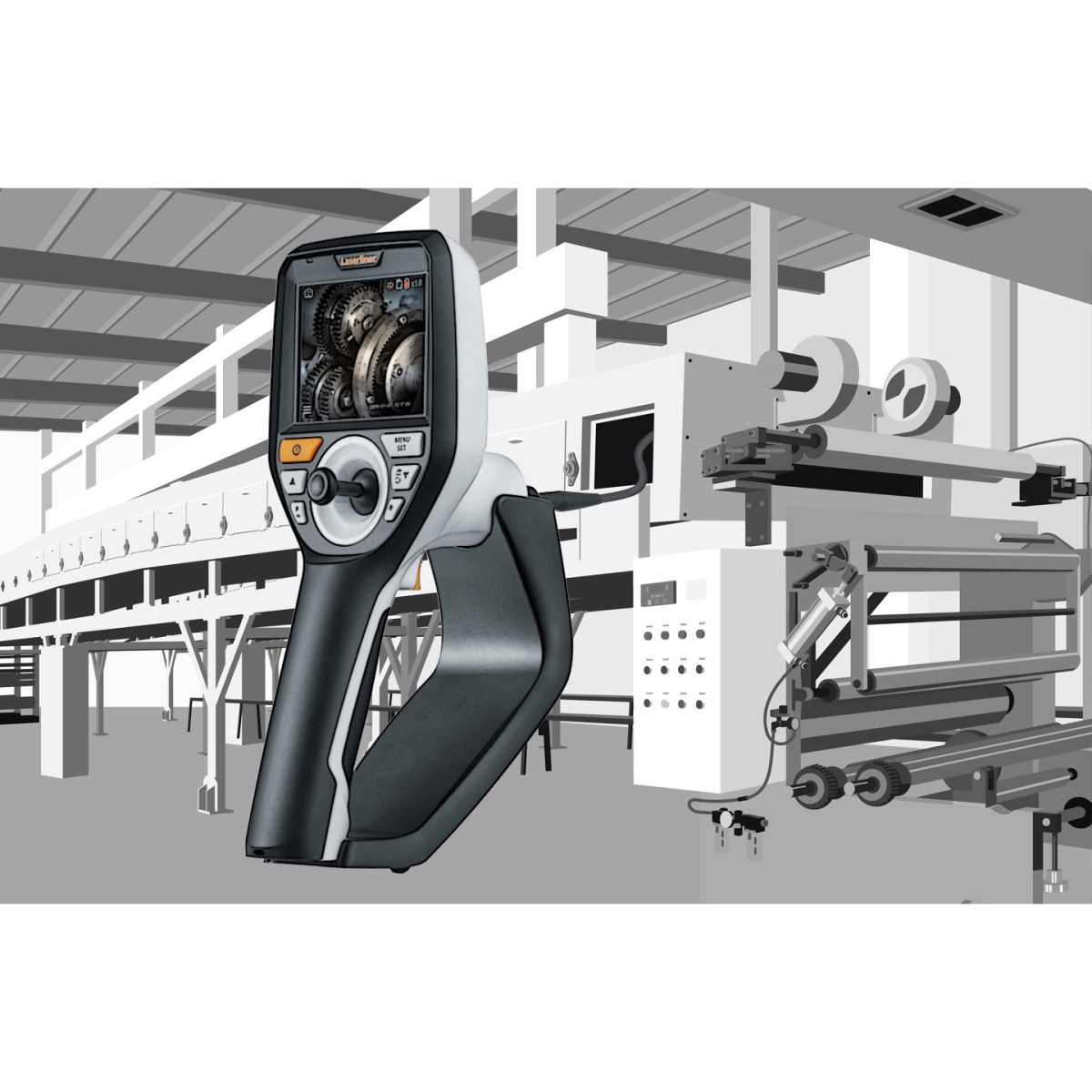

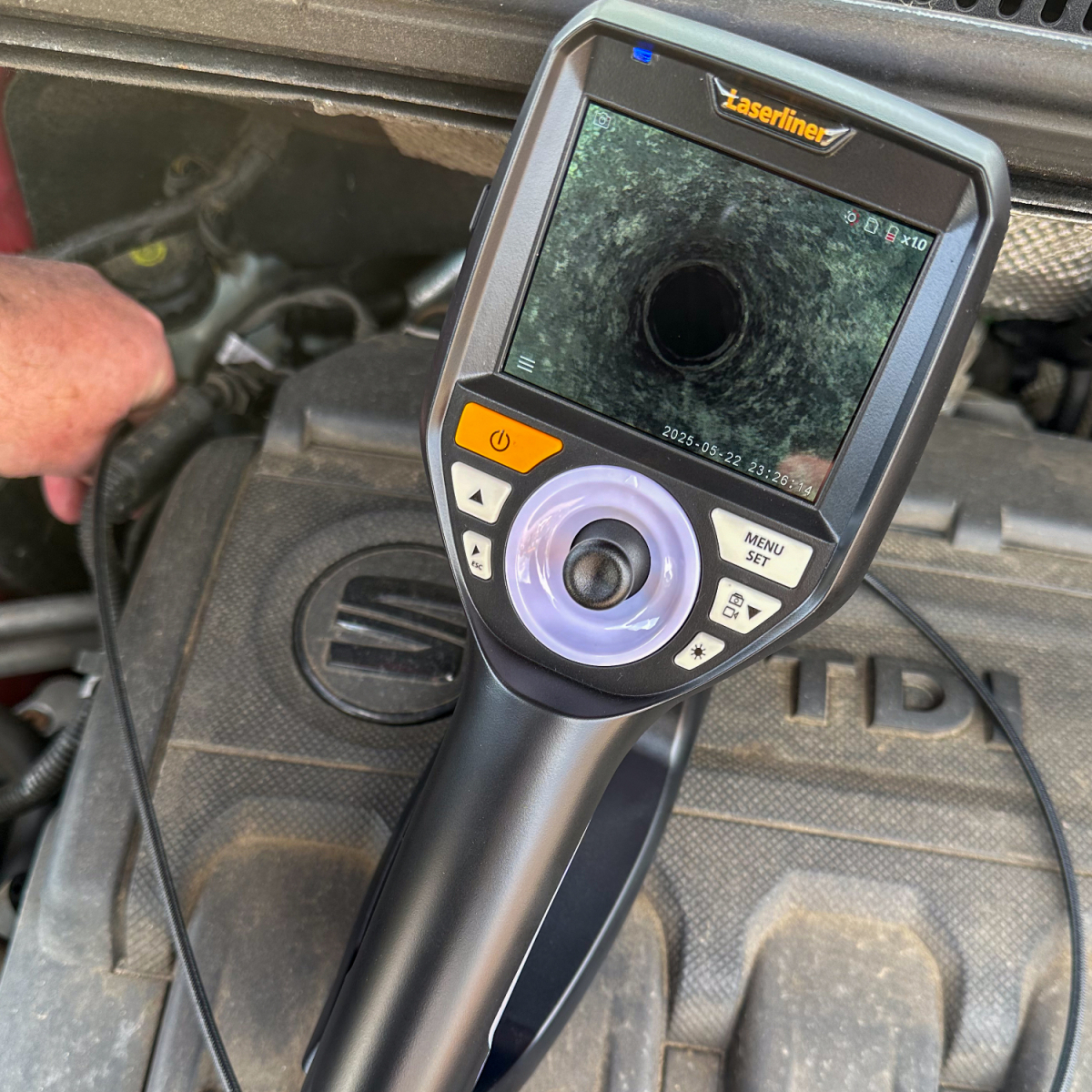

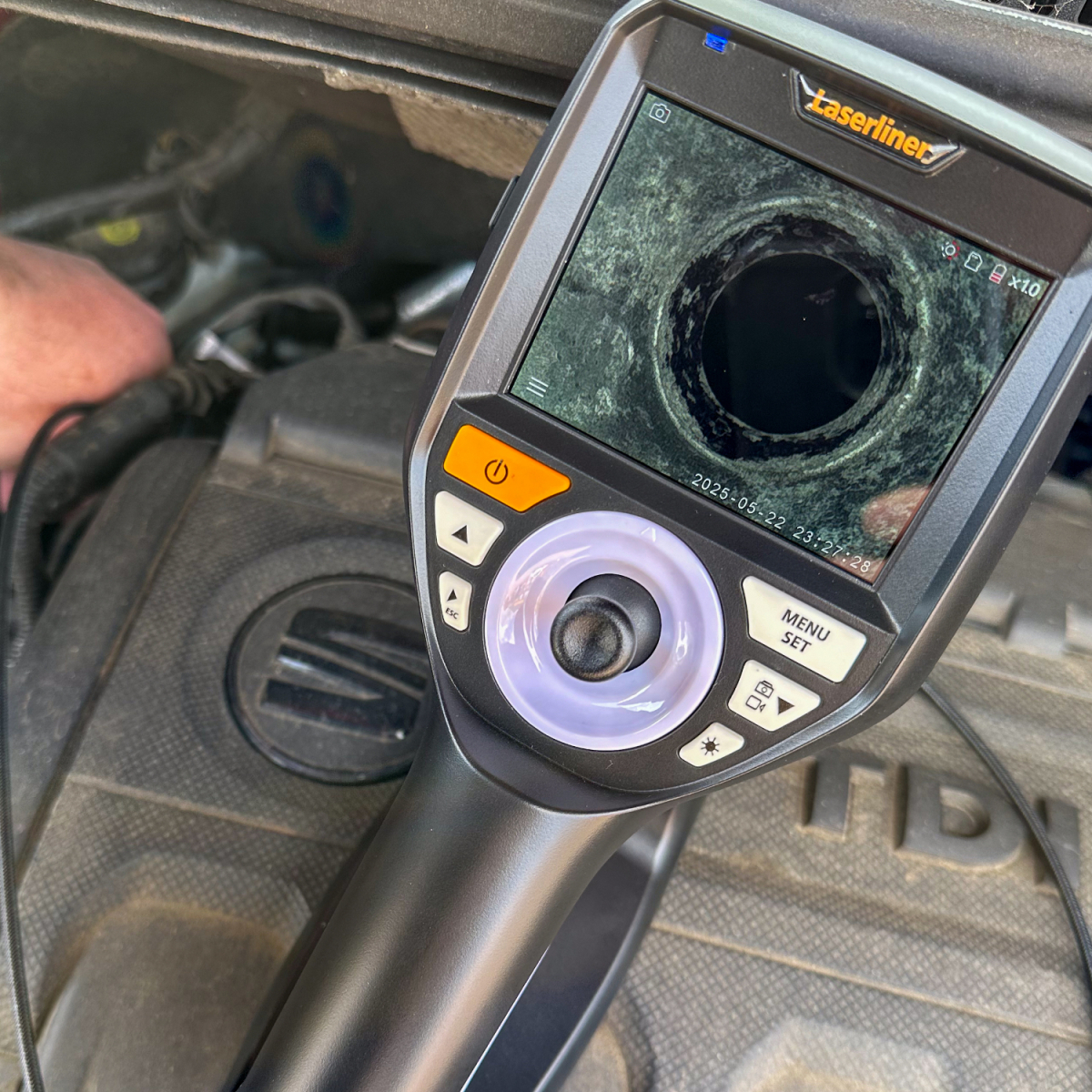

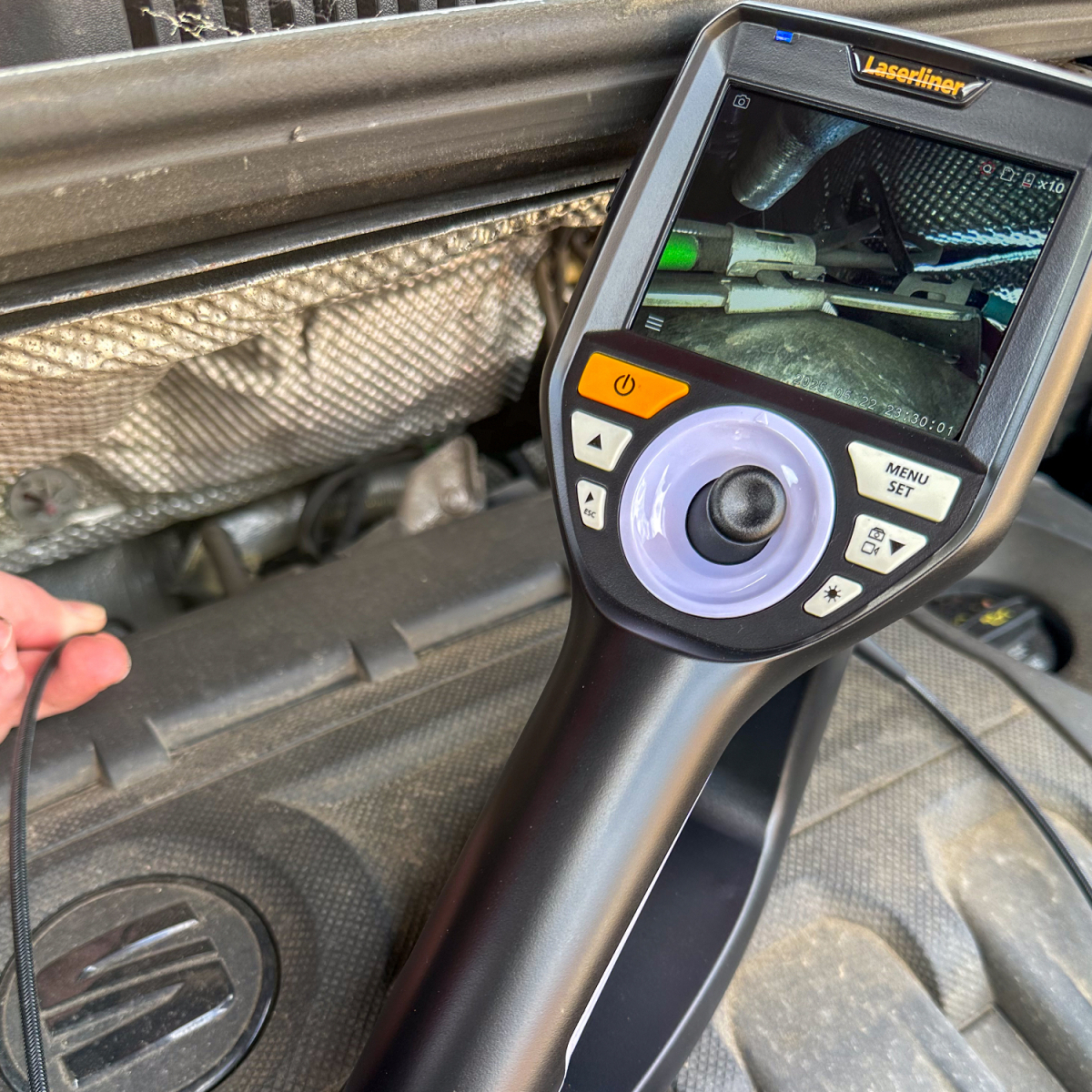

- The professional video inspection system with extremely compact camera head is ideal for precise visual inspections of small openings, for example in motor vehicles or machines
- The watertight, movable camera head can be optimally adjusted for the location using the 3D control
- Thanks to the object illumination with six high-performance ceramic LEDs, clear images can be achieved even under the worst conditions

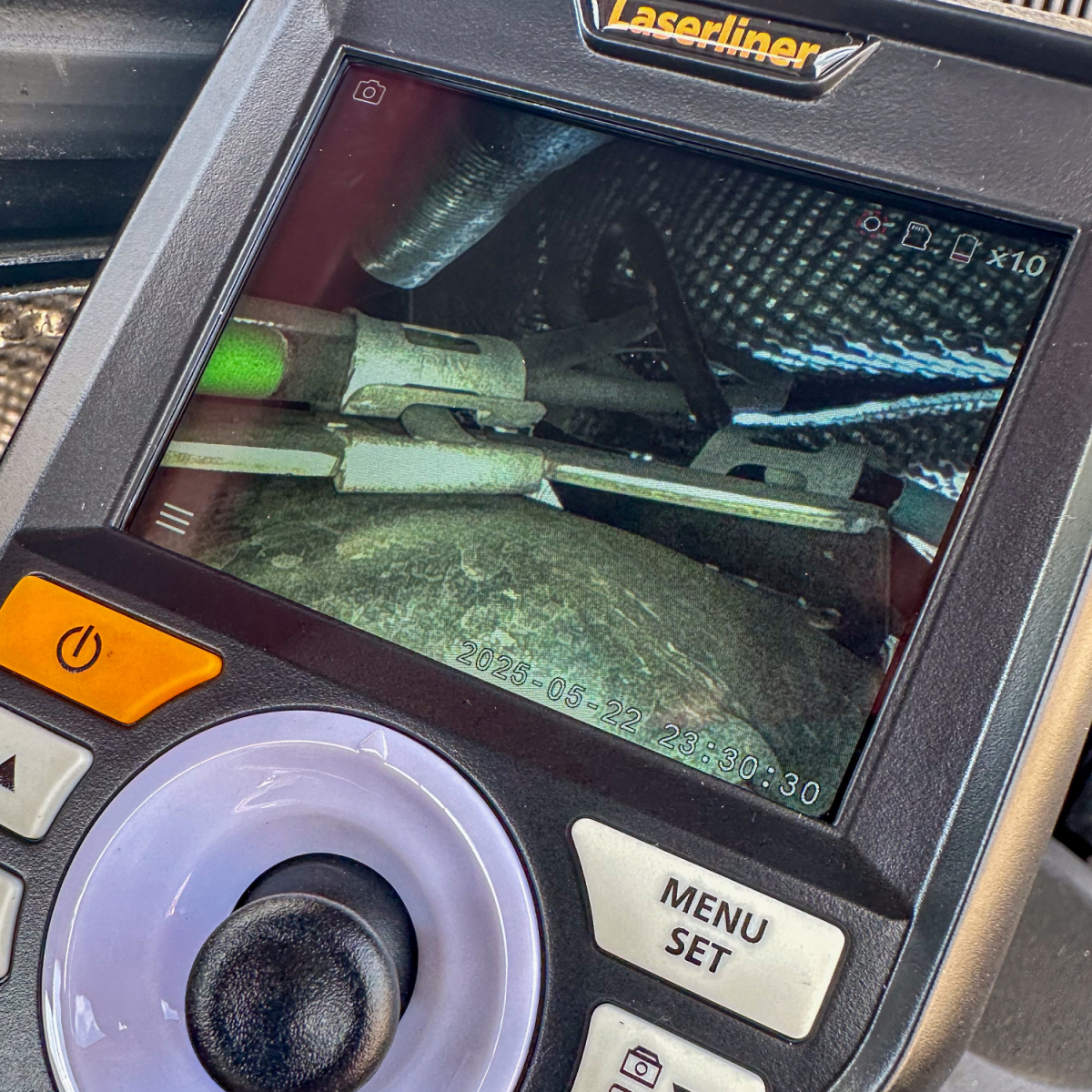

- The high-contrast TFT display rotates the image in 90° steps
- The REC function can be used to record still images and videos for later analysis

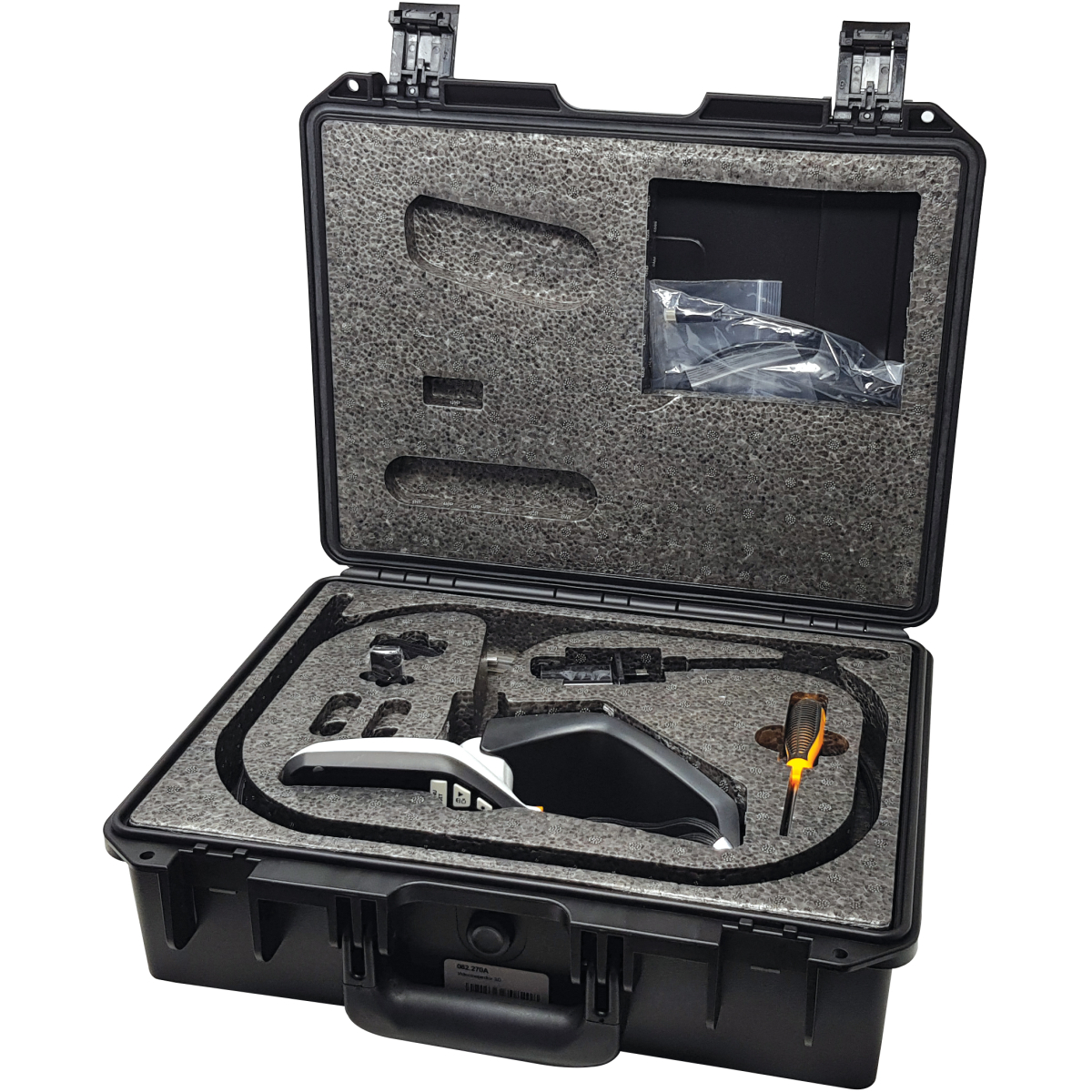

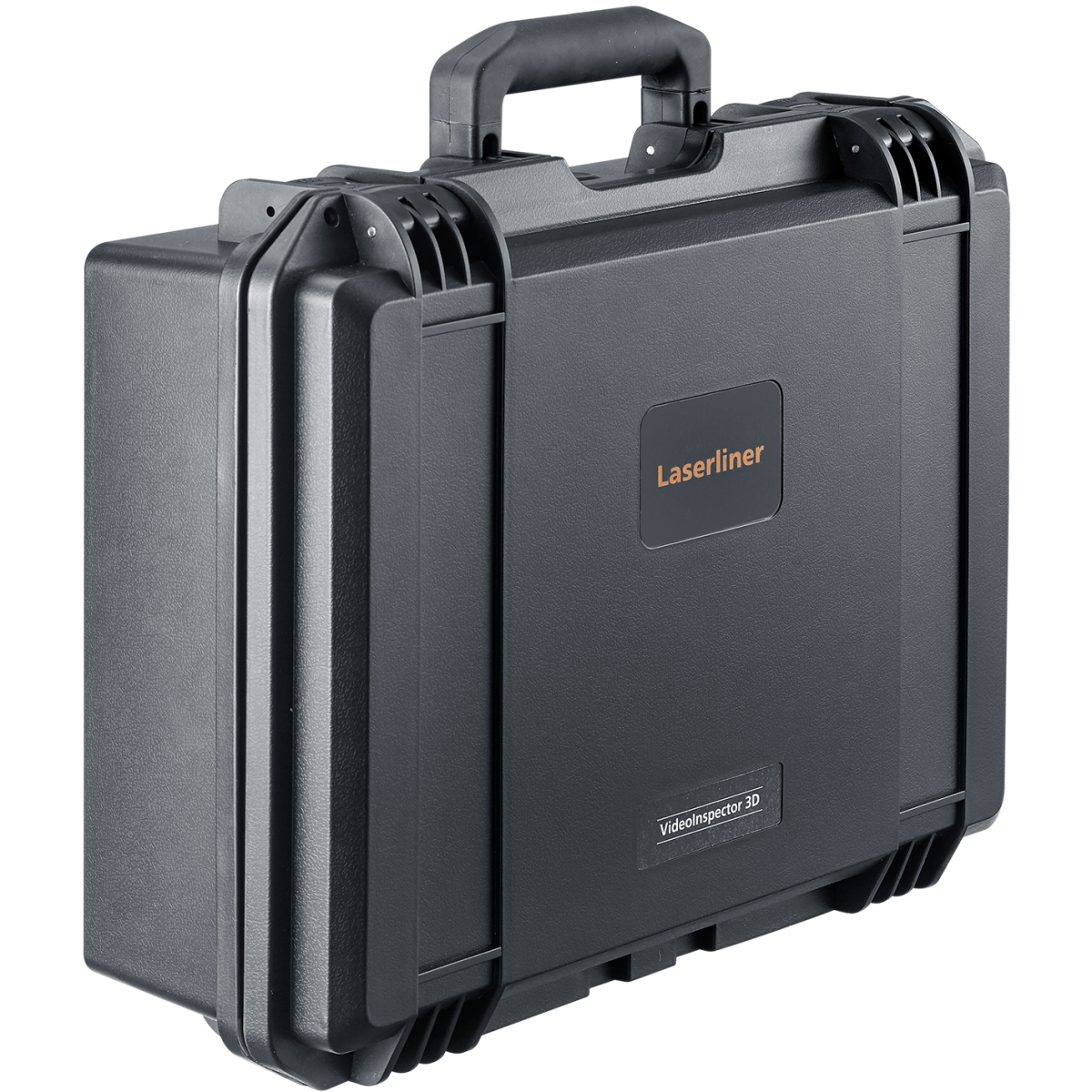

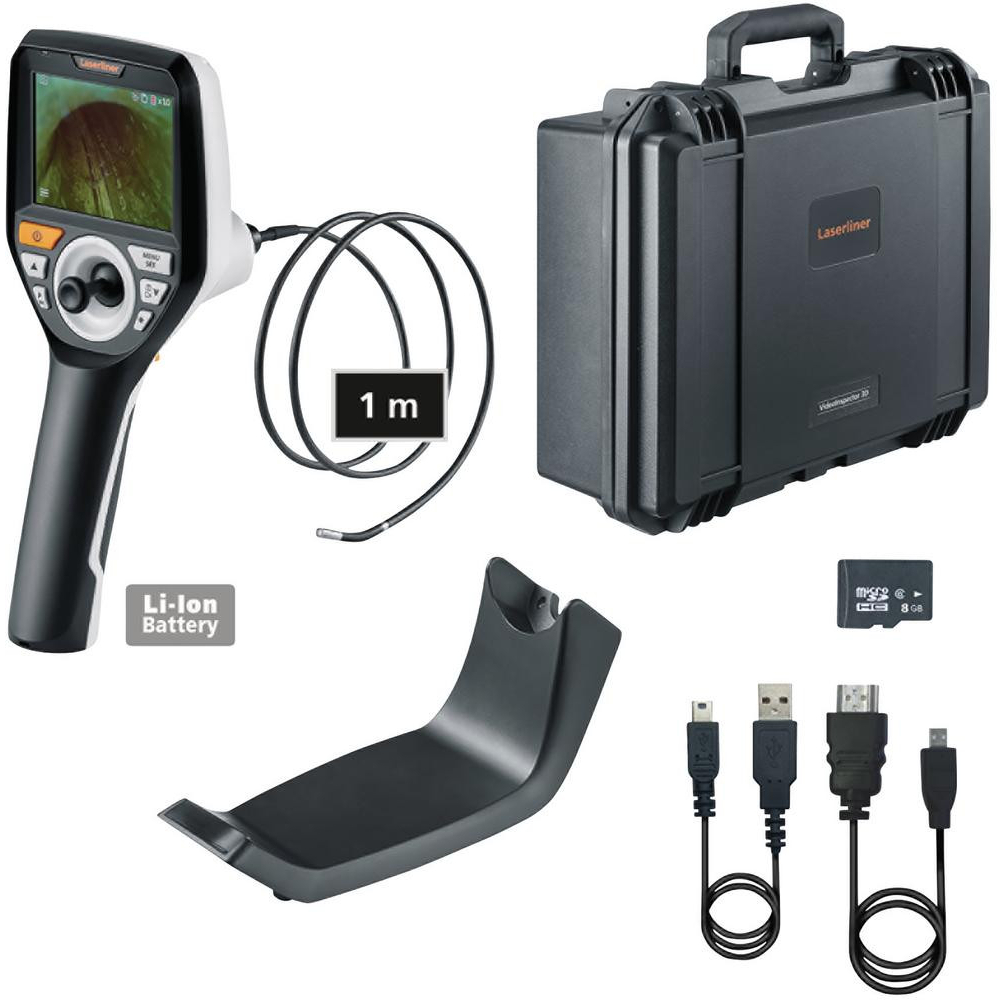

- Supplied with battery pack, magnetic bracket, USB charging cable, 8 GB micro-SD card, card reader, screwdriver and carrying case
- Extremely small camera head diameter – perfect for small openings

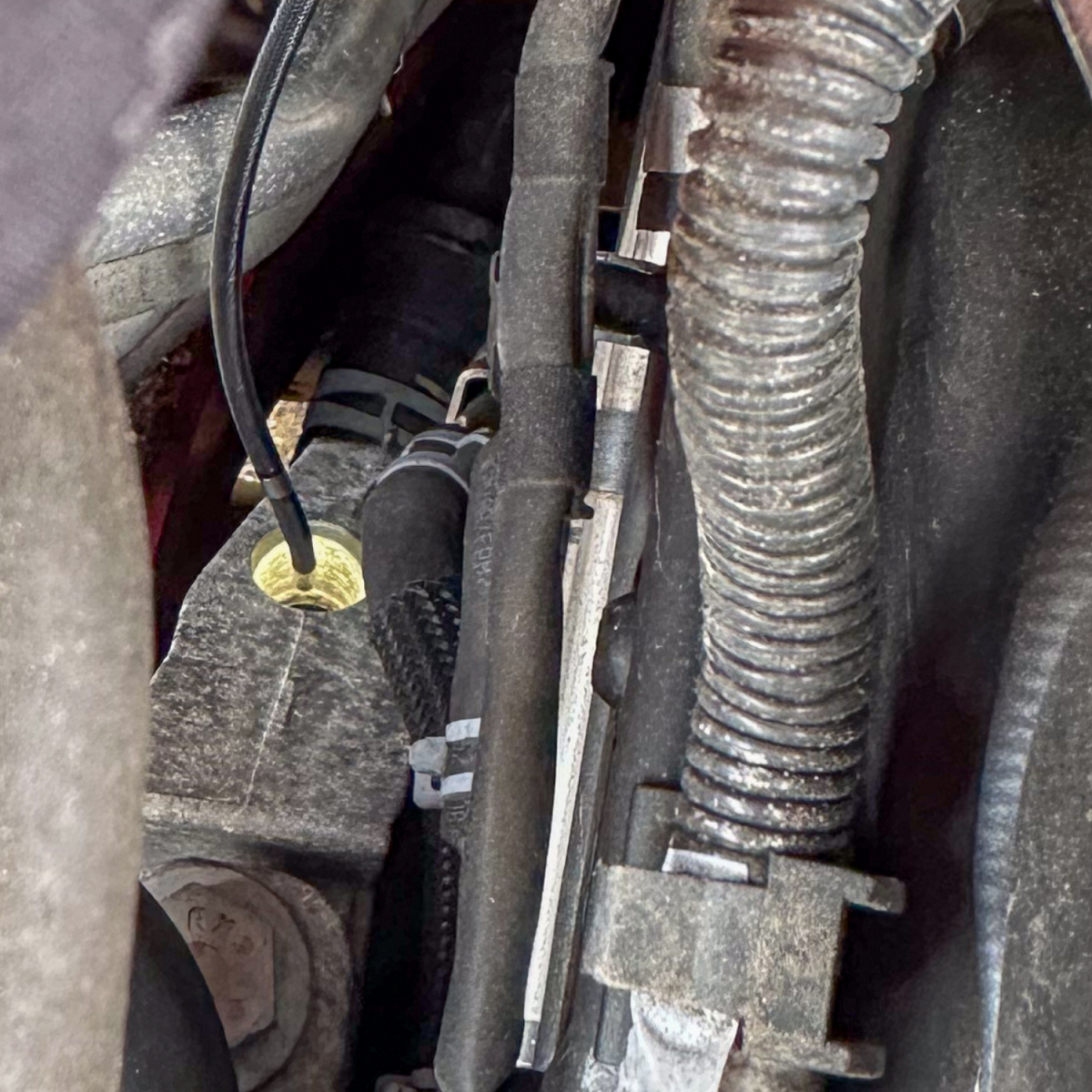

- Easy problem localisation behind or in objects, walls, pipes, cavities
- Clear images even under the worst conditions

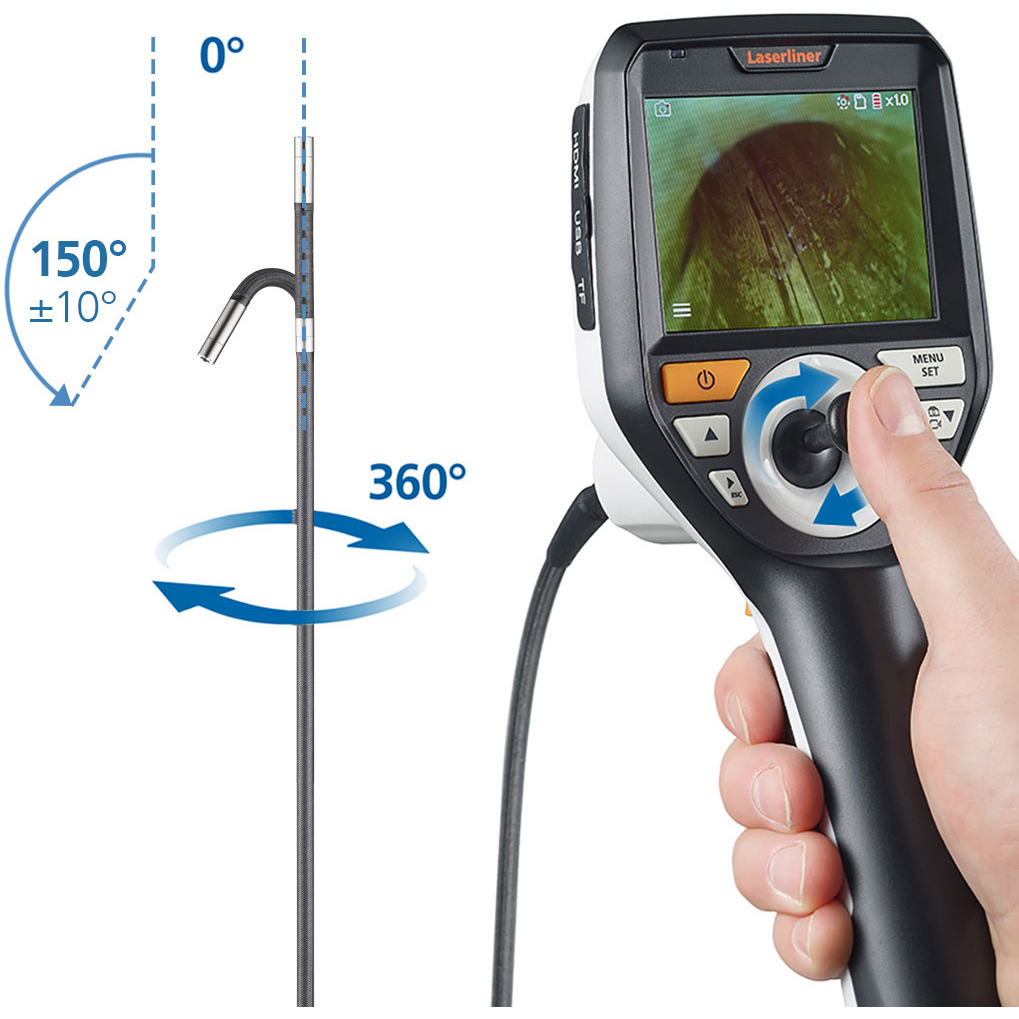

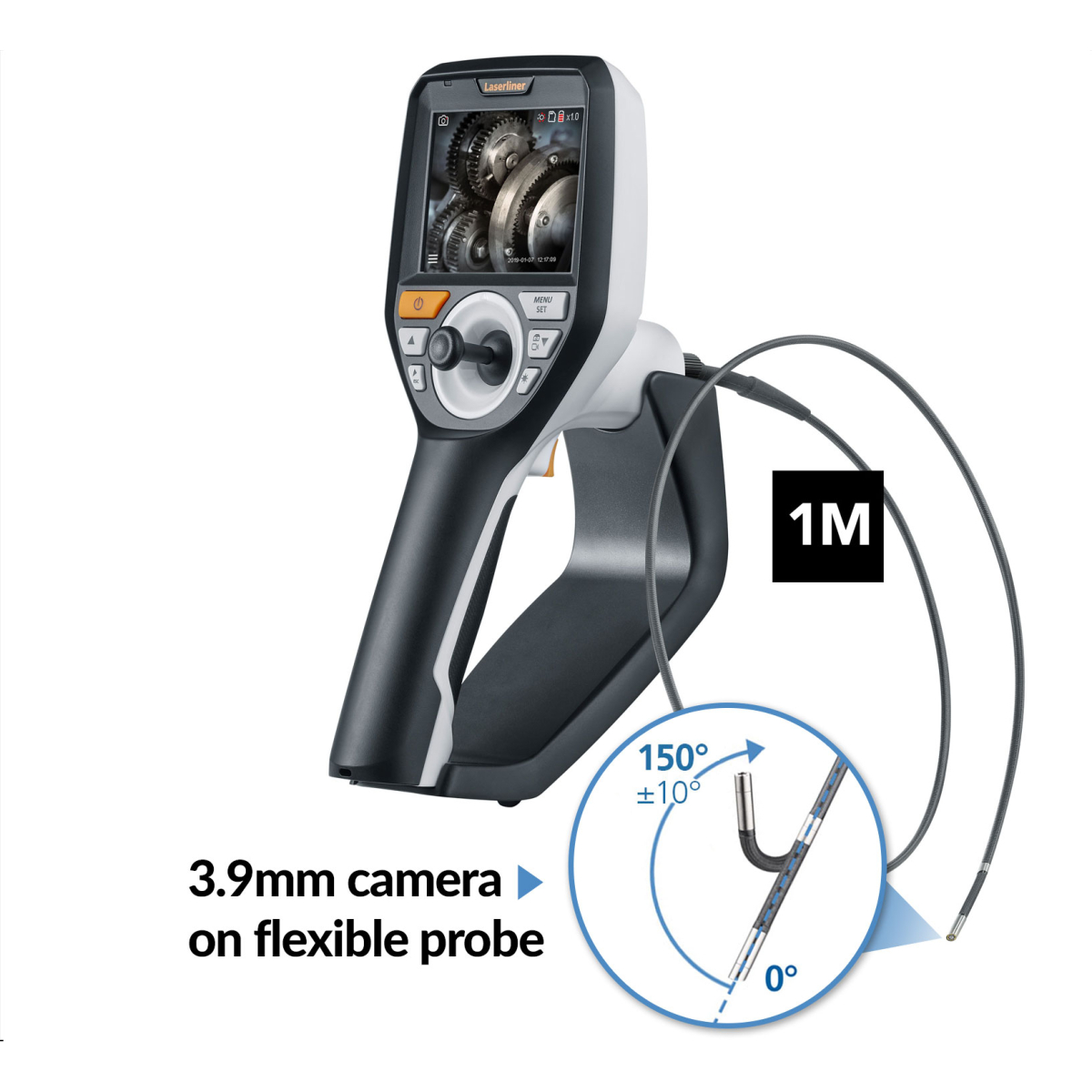

- Manual 3D control of titanium camera head which moves through max. 160°

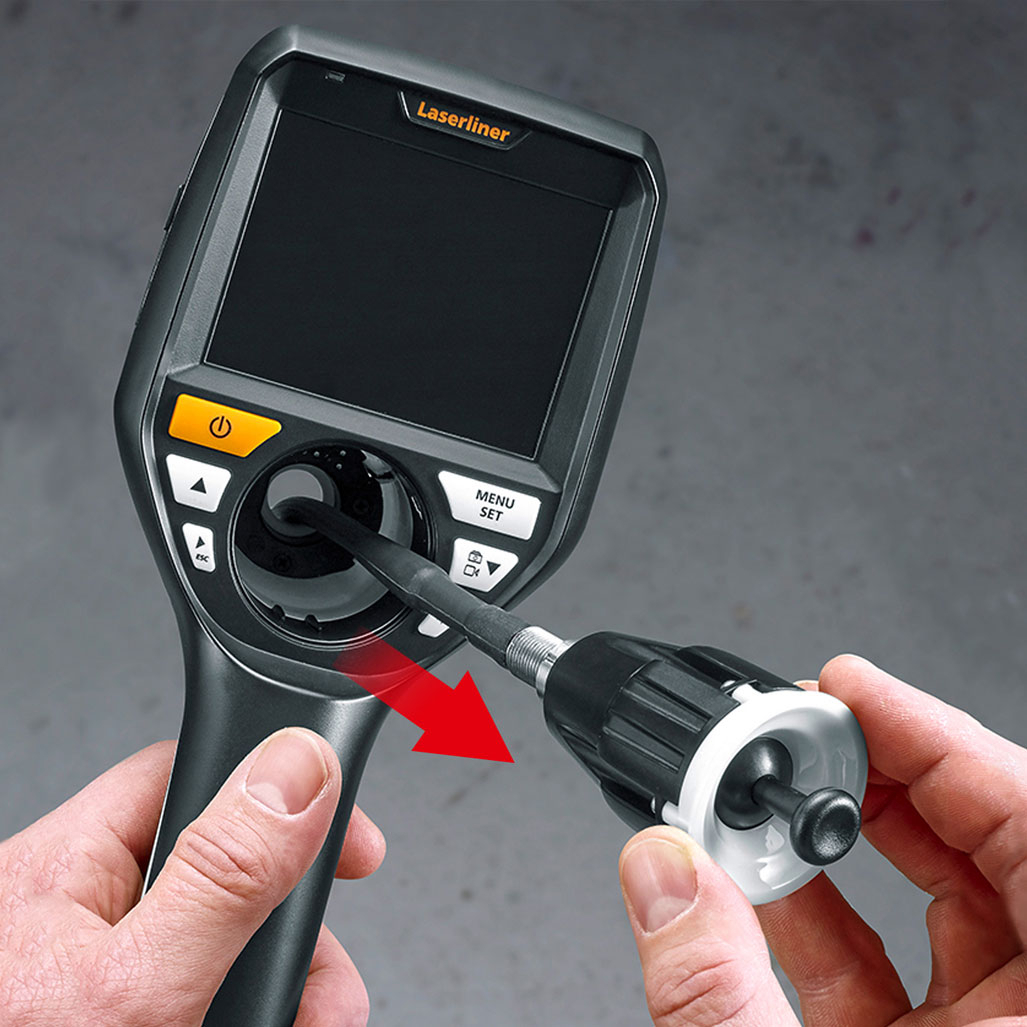

- Sturdy, durable adjustment mechanism
- Powerful object lighting thanks to 6 high-performance ceramic LEDs
- Image rotation in 90° increments
- Image and video REC function on SDHC memory card High-grade, long-life flexible tungsten tubing
- Features
Features
SPECIFICATION: Live display: Yes Image/video recording: Yes Image/video playback: Yes Digital zoom: Yes Controllable camera head: Yes Time stamp: Yes Image alignment: Yes External image/video output: Yes Data transfer: Yes Diameter Camera Head: 3.9 mm Camera Resolution: 960 x 720 pixels Field of View (FOV): 120° Depth of Focus (DOF): 0,5 10 cm Screen Type: 3,5" TFT display Display Resolution: 640 x 480 pixels Image Format: JPEG Length of Probe: 1 m Illumination: 10 brightness levels Digital Zoom: 10 zoom levels Memory: Micro-SD memory card up to 8 GB Ports: Micro USB, Power supply 5V / DC Dimensions (W x H x D): 115 mm x 190 mm x 115 mm Weight: 625g
