Laserliner 036.733E SmartCross-Laser GX Work Set 38164
This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects
Order within
SKU
DRA38164
Barcode
4021563731817
£95.99
(
£79.99
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Laserliner Laserliner

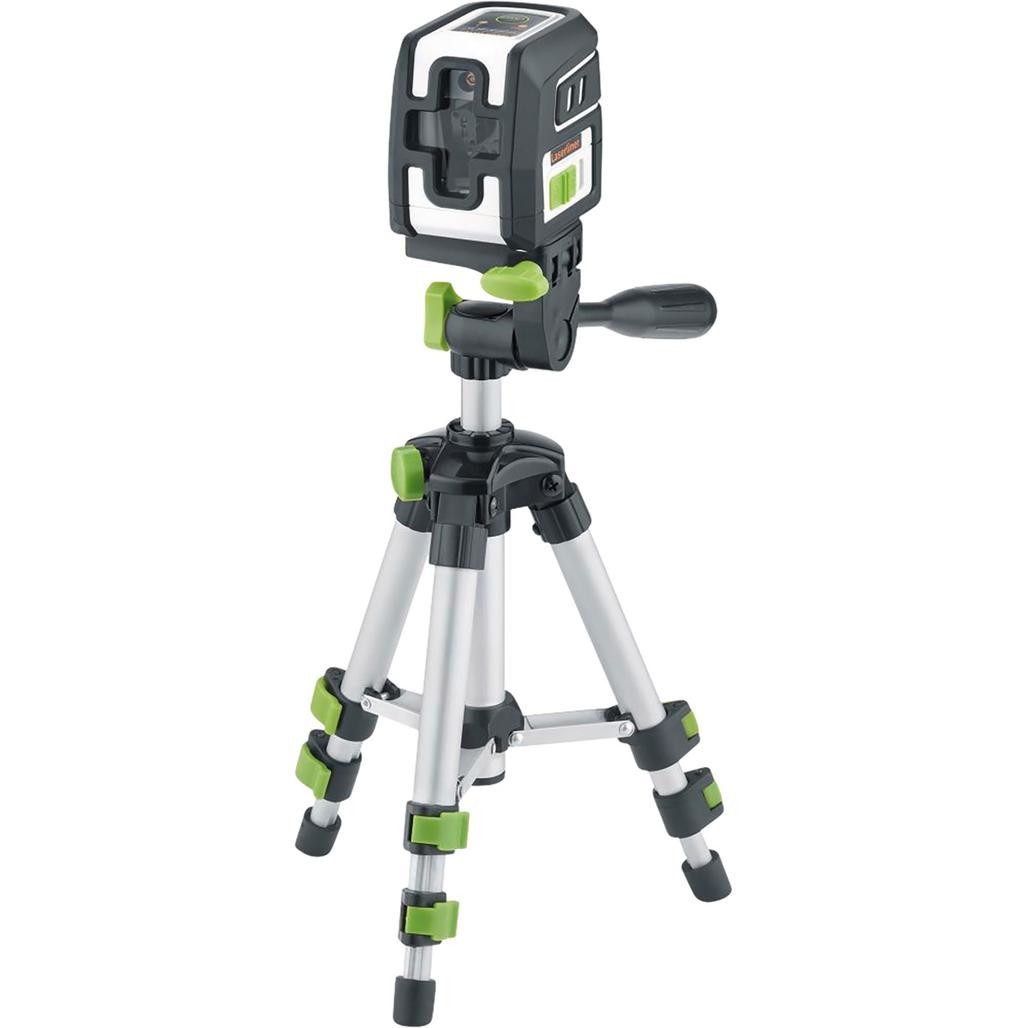

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also has a manual slope function for easy creation of gradients and a ¼” thread for mounting on the 45 cm compact tripod supplied, making it ideal for low-to-the-ground use. It has multi-section telescopic legs and a three-way tripod head for inclining, lowering, and tilting. The laser can also be used for outdoor applications and alignment work at long distances with the integrated hand-held receiver mode.
Features / Specification
| Horizontal/vertical levelling: | Yes |
|---|---|
| Manual slope function: | Yes |
| Battery operation: | Yes |
| Self-Levelling Range: | ± 4° |
| Accuracy: | ±0.3 mm/m |
| Levelling: | Automatic |
| Visibility (Typical): | 40m |
| Laser Wavelength: | 515nm |
| Laser Class: | 2 / < 1 mW |
| Power Supply: | 2 x 1.5V LR6 (AA) |
| Operating Time: | approx. 6 hours |
| Operating Conditions: | -10°C 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level |
| Storage Conditions: | -20°C 70°C, max. humidity 85% rH |
| Dimensions (W x H x D): | 84mm x 76mm x 62mm |
| Weight: | 276g (incl. battery) |
