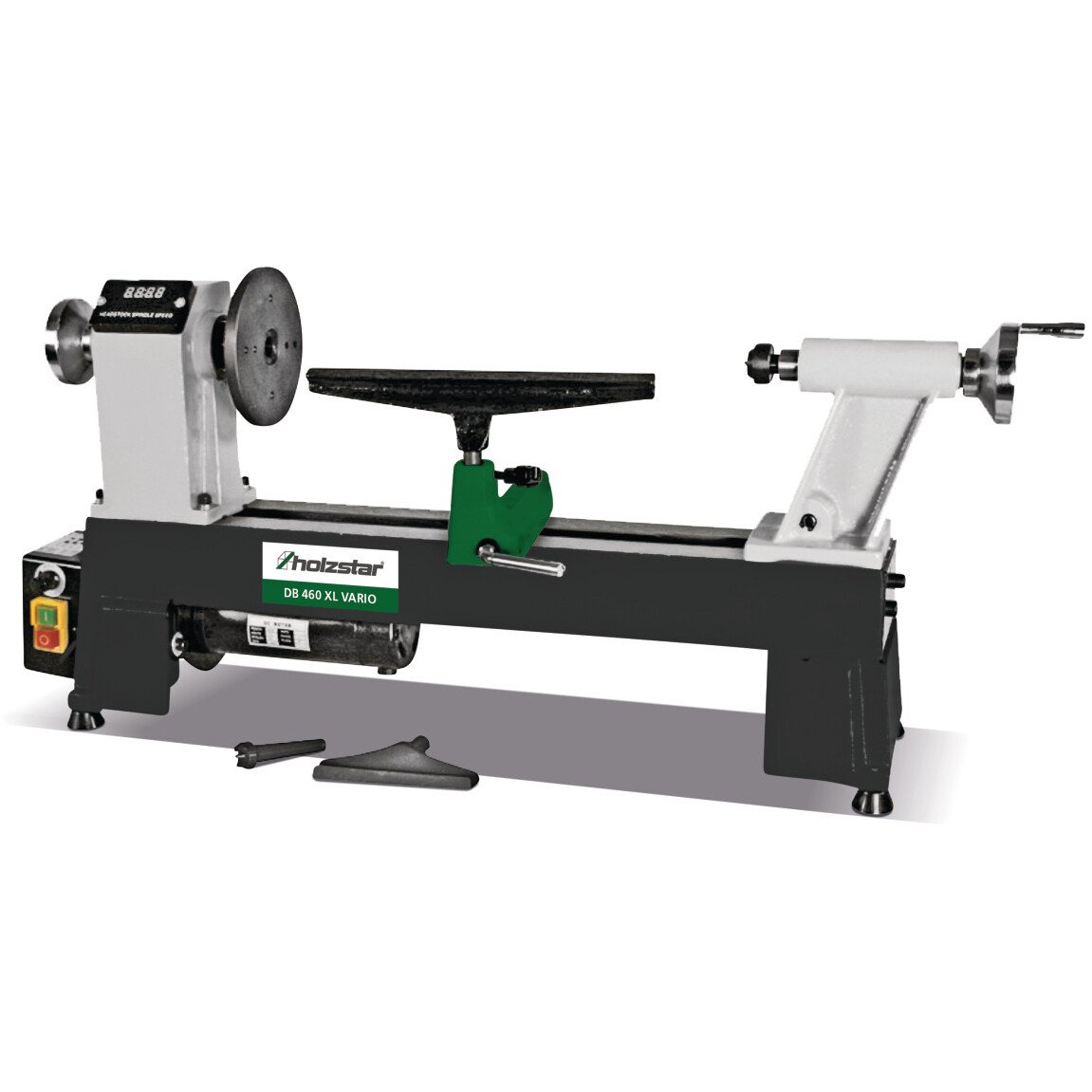

- Description
-
Details
- Variable speed regulation in three speed stages: 650 – 1430; 1240 – 2790; 1600 – 3800
- Integrated digital speed display
- Large turning diameter of 305 mm
- Machine bed made of torsion-free grey cast iron for smooth running and great precision
- The tailstock and headstock are made of stable grey cast iron
- Tailstock quill with bore hole for machining longer workpieces
- The tailstock is easily and quickly clamped on the machine bed thanks to single lever clamping
- Bed extension for 550 mm max. width available as accessory
- Features
Features
Technical Details Max. turning diameter 305 mm Speeds 650 – 1430, 1240 – 2790, 1600 – 3800 min¯¹ Speed stages 3 Speed control Electronically variable Travel of tailstock sleeve 55 mm VPE 1 Dimensions and weights Length approx. 900 mm Width/depth approx. 340 mm Height approx. 410 mm Weight approx. 38 kg Electrical Data Motor power input 0.55 kW Supply voltage 230 V Mains frequency 50 Hz
