Fischer 510969 Pipe Clamp FRS 12 - 15 M8/M10 Pack x 100

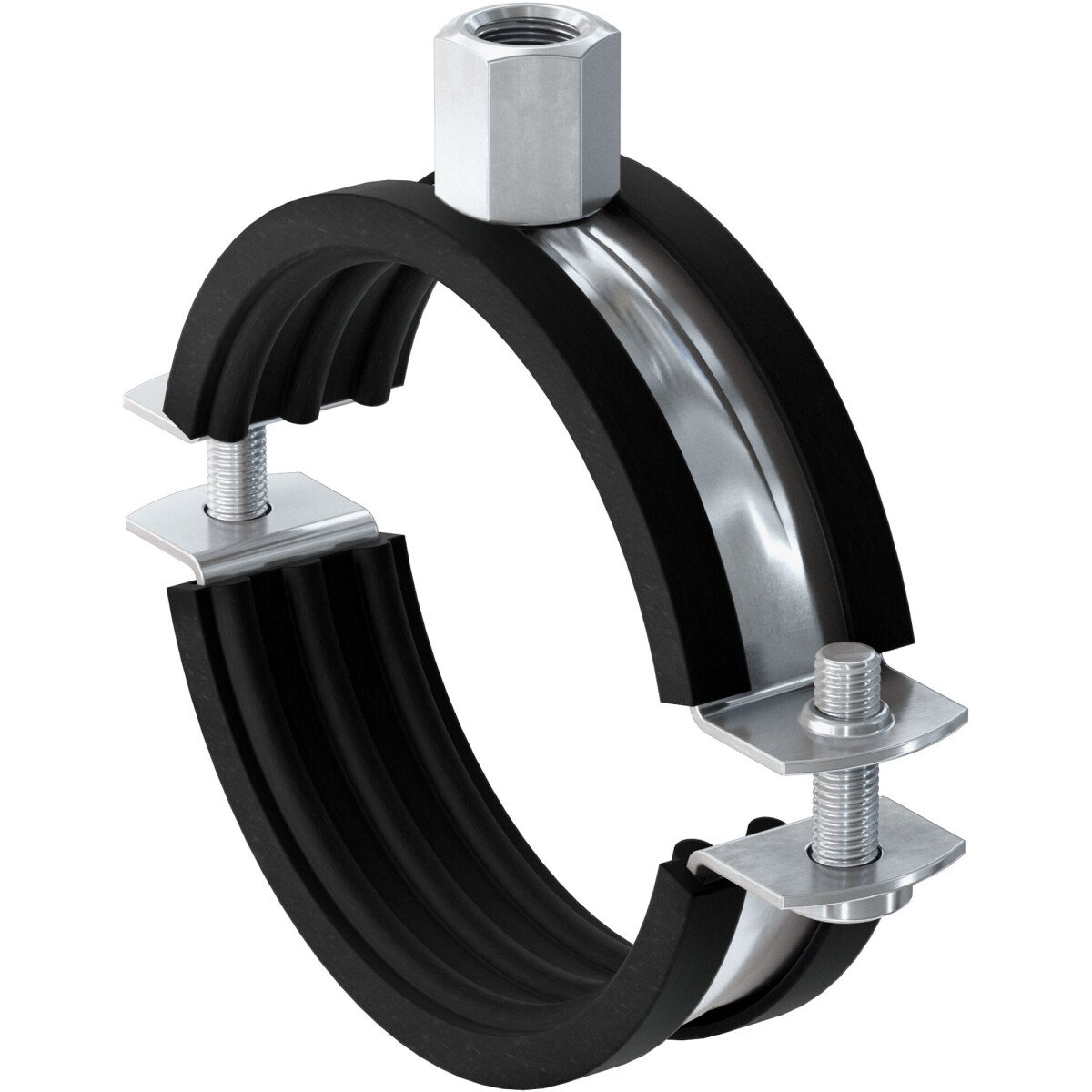

The fischer pipe clamp FRS is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with an M8/M10 combination connecting thread. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. Together with the combination connecting thread, this increases flexibility. This enables pipelines with an outer diameter of 12 to 168 mm to be securely fixed with a threaded rod or stud screw indoors in accordance with the fire protection requirements of fire resistance class R 120 and MLAR. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109. The fischer FRS is suitable for applications in the temperature range from -40°C to +100°C

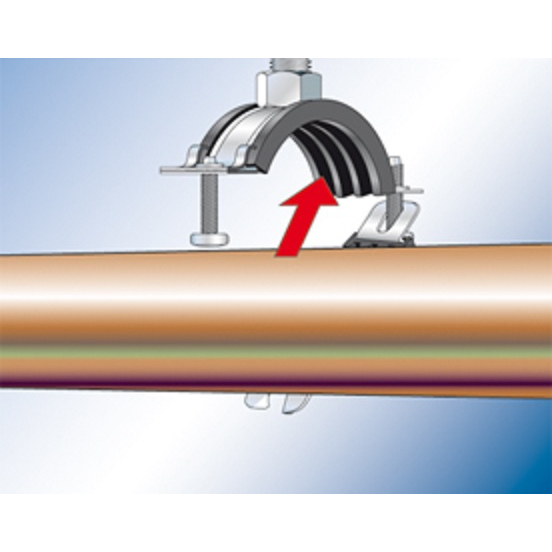

• The rapid-locking mechanism allows for fast, time-saving installation of pipelines
• The two screws allow for ideal adaptation to suit the outer pipe diameter
• The safety mechanism and fixed sound insulation insert guarantee safe pipe adjustment

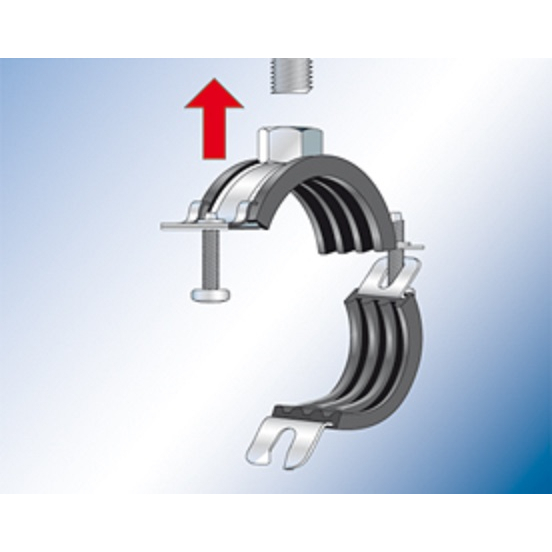

• Connecting nut with combination thread M8 / M10 for holding threaded rods or hanger bolts
• Pipe clamp screws with loss protection
• The rapid-locking mechanism allows for fast and time-saving installation

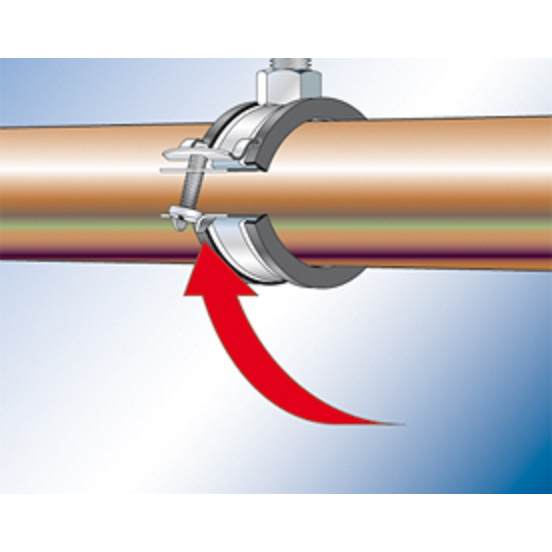

• The safety latch fastening guarantees pipe installation without the clamp springing open
• The tight fit of the sound insulation insert prevents it from falling out when aligning the pipe
• The combination connecting nut with M8/M10 thread enables optimised mounting choices

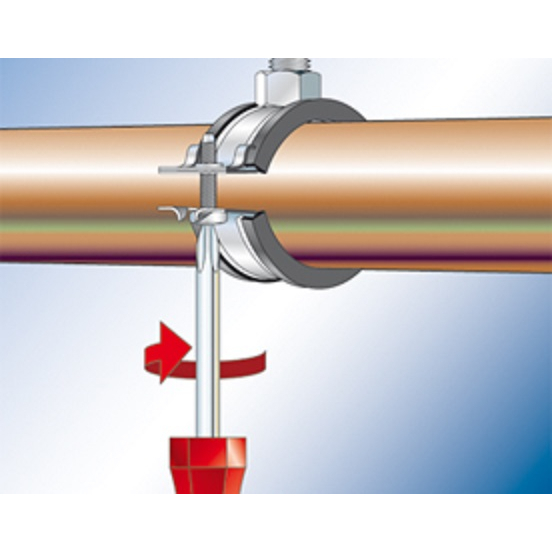

• The two screws allow an easy adjustment to suit the outer pipe diameter
• The screw's safety feature ensures trouble-free installation.
