Fischer 90160 Hammerset Anchor EA M8 x 30 N Electro Zinc Plated (Pack x 100)

• The fischer hammerset anchor EA N is an internal thread anchor made from zinc-plated and stainless steel
• The hammerset anchor is ideal for the multiple fixation of non-structural systems that do not require approved anchorage
• The assembly of the internal thread anchor is extremely cost-effective thanks to the low embedment depth, fast hammerset installation, and direction-controlled screwing process

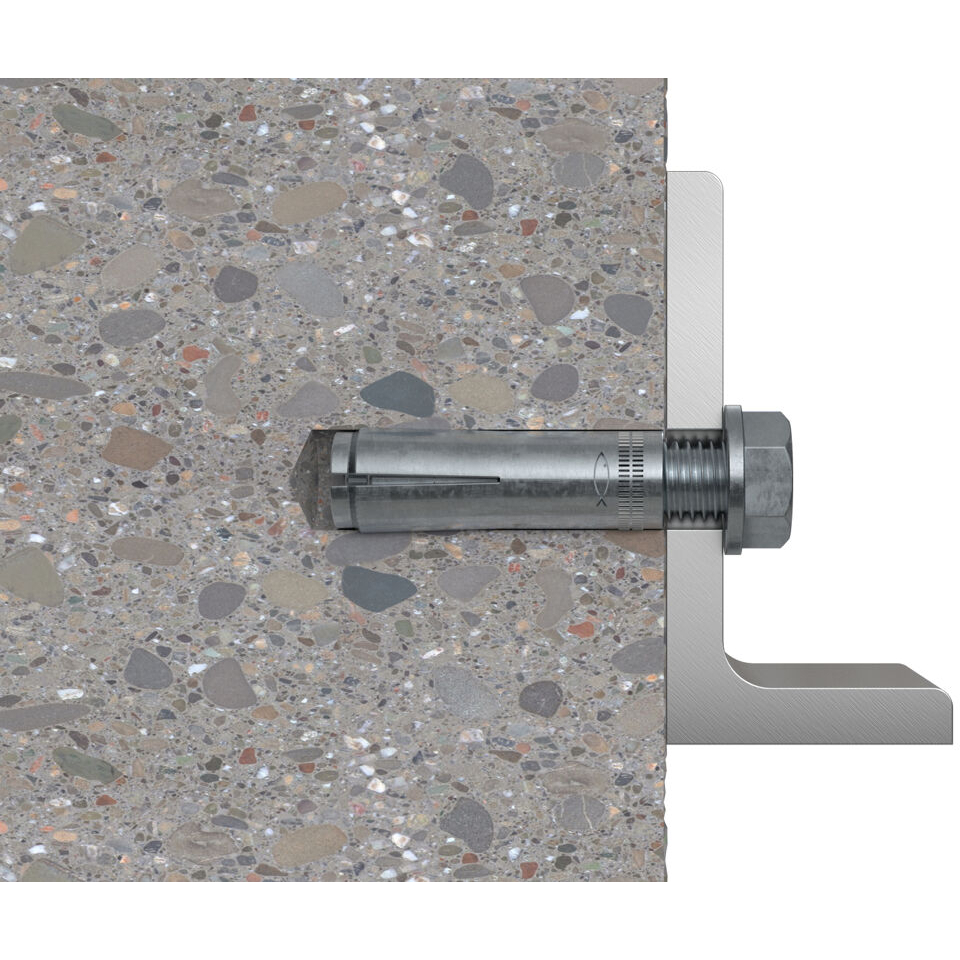

• The EA N is mounted with the hammer flush to the base material
• With the setting tool EA-ST, the sleeve is expanded and braced against the drill hole wall through the driving in of the internal pin
• No torque should be applied to the screw to enable correct expansion

Advantages

• Simple hammerset installation
• The metric internal thread allows for the use of standard screws or threaded rods for ideal adaptation in line with the intended use
• The hand setting tool EA-ST facilitates fast installation

Functionality

• The EA N is suitable for pre-positioned installation
• Position the hammerset anchor in the drill hole and drive in flush to the surface of the base material using the hammer
• The setting tool EA-ST is then used to expand the sleeve against the drill hole wall by driving in the internal pin
• The setting tools must sit on the edge of the anchor to ensure correct expansion
