Fischer 61064 Metal Frame Fixing F 10 M 202 electro zinc plated Pack x 50

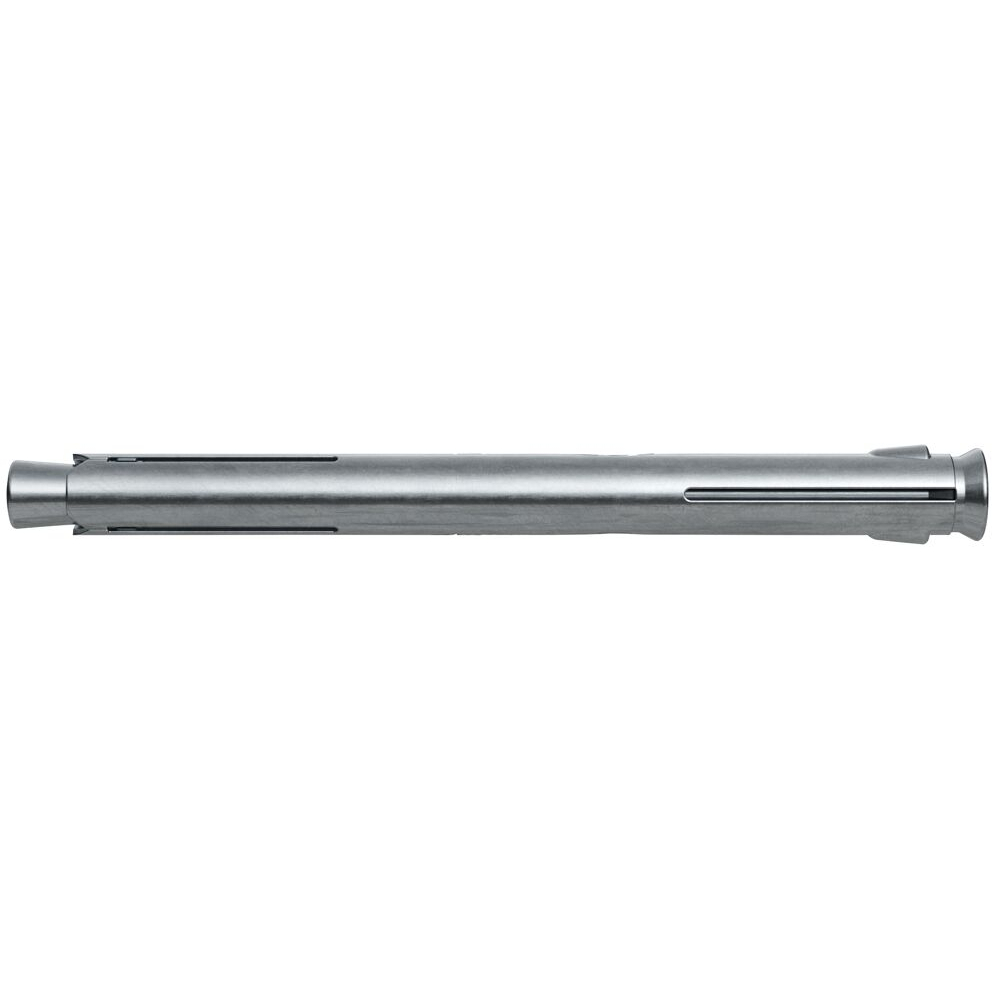

• The Fischer metal frame fixing F-M is a special plug for the stress-free, lasting stand-off installation of window and door frames and of squared timbers. It consists of a metal sleeve and a zinc-plated steel screw

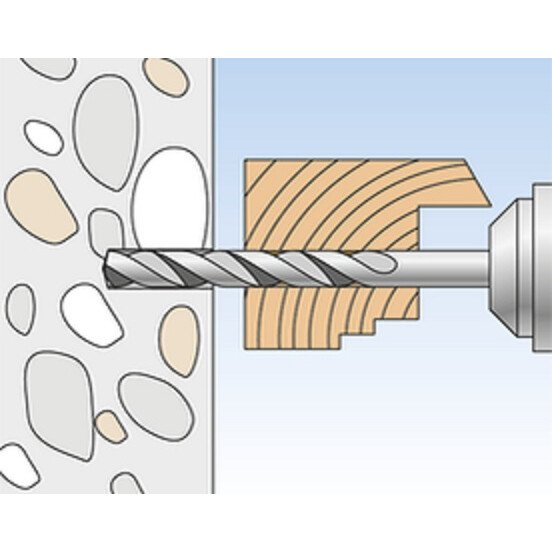

• The F-M is set in a time-saving push-through installation
• When the screw is tightened, the cone is pulled into the plug sleeve and expands against the wall of the drill hole
• This ensures a fixation that is free from tensile force and pressure, thus guaranteeing a secure hold in solid and hollow building materials
• The F-M is tested for fire resistance class R120, and offers safety for fire-protection-relevant applications.

Top Features

• Fire protection tested in line with R 120: Usage in areas where fire resistance is relevant
• Stress-free, durable fixing of the frame
• Continuous thread prevents the frame from being pulled
• Use for all solid and hollow building materials lowers complexity
• .Compression and tensile-resistant anchoring of metal and plastic profiles
• With countersunk head screw

Advantages

• The F-M metal frame plug achieves fire resistance F 120.
• This allows for use in areas where fire resistance is relevant
• The operating principle prevents the window frame from being pulled against the substrate, and ensures a stress-free and long-lasting fixing of the frame
• The special plug geometry anchors the metal and plastic profiles against compressive and tensile loads, and allows for a secure hold of the window frame

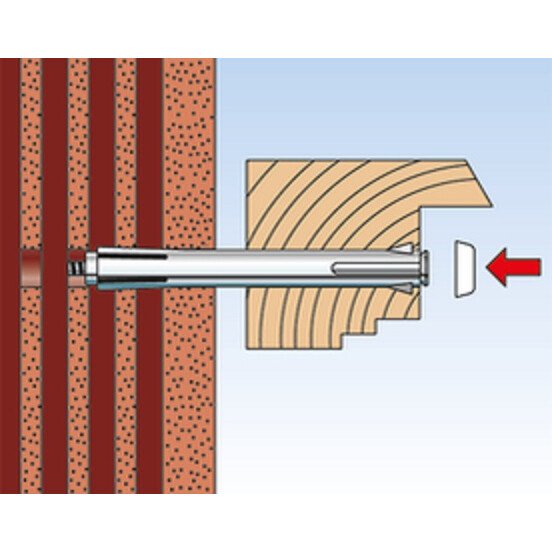

• The cover caps (available separately) can be used to discreetly cover the screw heads.

Functioning

• The F-M is suitable for push-through installation. By tightening the screw, the cone is drawn into the sleeve and the fixing is expanded which wedges it inside the drill hole
• The window frames are thus fixed in a stress-free manner
• The maximum installation torque is 5 Nm

Load Table

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_f-m_f_%23sen_%23aip_%23v2.pdf

Fire Test Report For Downloading

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_b_02_fm_f_%23sen_%23aip_%23v1.pdf
