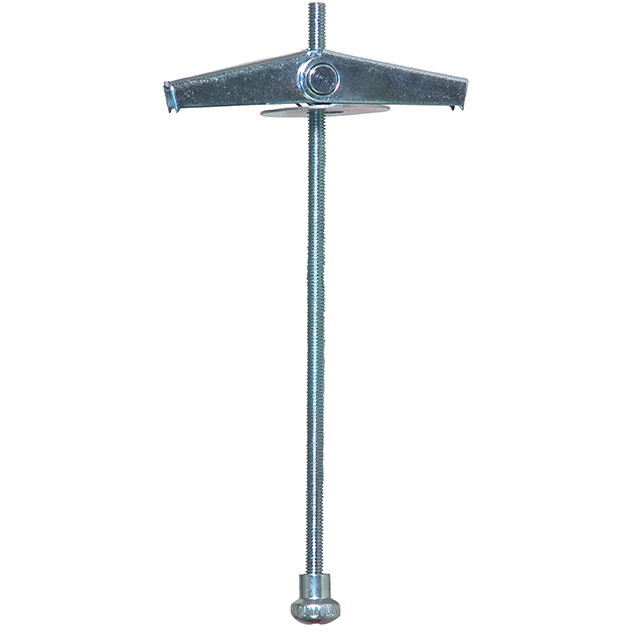

Fischer 80193 Spring Toggle KD 4 B bag Pack x 10

• With the fischer toggle and spring fixing KD/KDH different fittings such as pictures, lamps and shelves can be fixed in gypsum plasterboard and gypsum fibreboards, chipboard and cavity floor slabs made from bricks and concrete
• The long threaded rod allows use in different panel thicknesses and fitting thicknesses
• Also available with head (KD 3+4), nut with washer (KD 5+6+8) or round hook (KDH 3+4+5+6+8)
• As a result the fischer KD/KDH can be used particularly flexibly

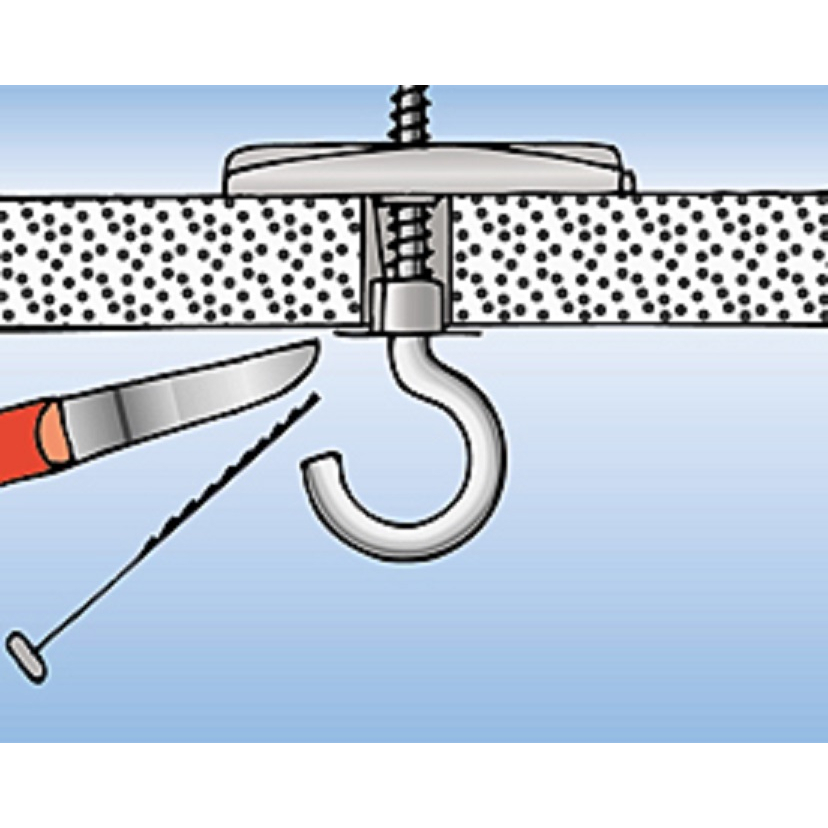

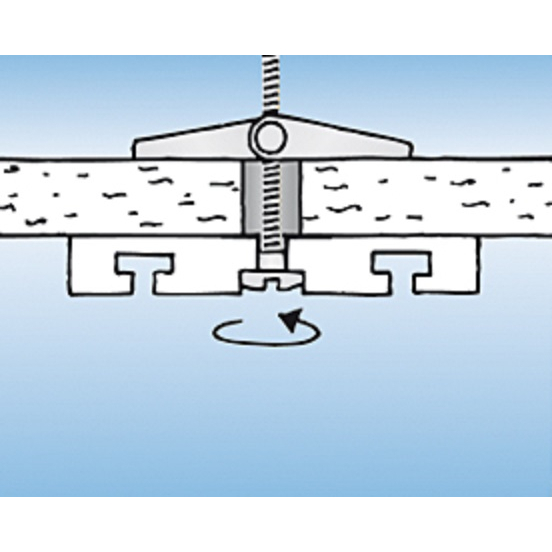

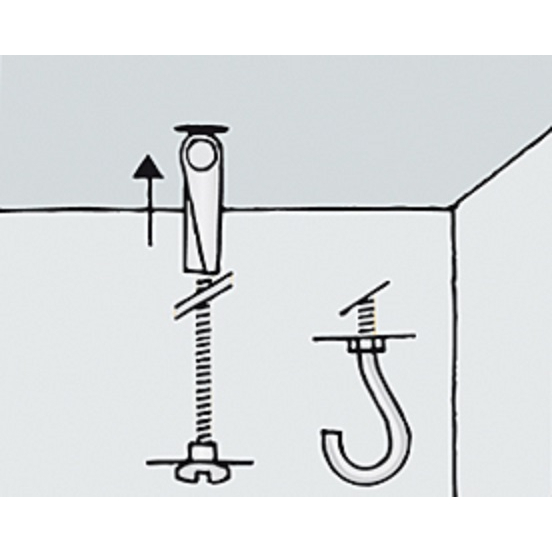

• The plugs are inserted in the pre-position installation into the drill hole and automatically fold out behind the panel.
• A special installation tool is not needed and this allows comfortable and quick installation.

Loads Table for Download

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_kd-n_f_%23sen_%23aip_%23v2.pdf

Top Features

• High load capacity due to good load distribution on the transition beams
• Simple assembly due to self-opening tension spring
• High flexibility due to a long threaded rod
• Use with various panel thicknesses and attachment thicknesses
• Suitable for pre-positioned installation.

Advantages

• The long threaded rod allows use in different panel thicknesses and fitting thicknesses
• The folding elements open automatically and facilitate easy installation
• No special installation tool necessary
