Fischer 79506 Ventilation Duct Clamp LGS 355 Pack x 10
The fischer ventilation duct clamp LGS is the ideal fixing solution for ventilation ducts of all types
Order within
SKU
FIS-79506
Barcode
4006209795064
£113.39
(
£94.49
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Fischer 79506

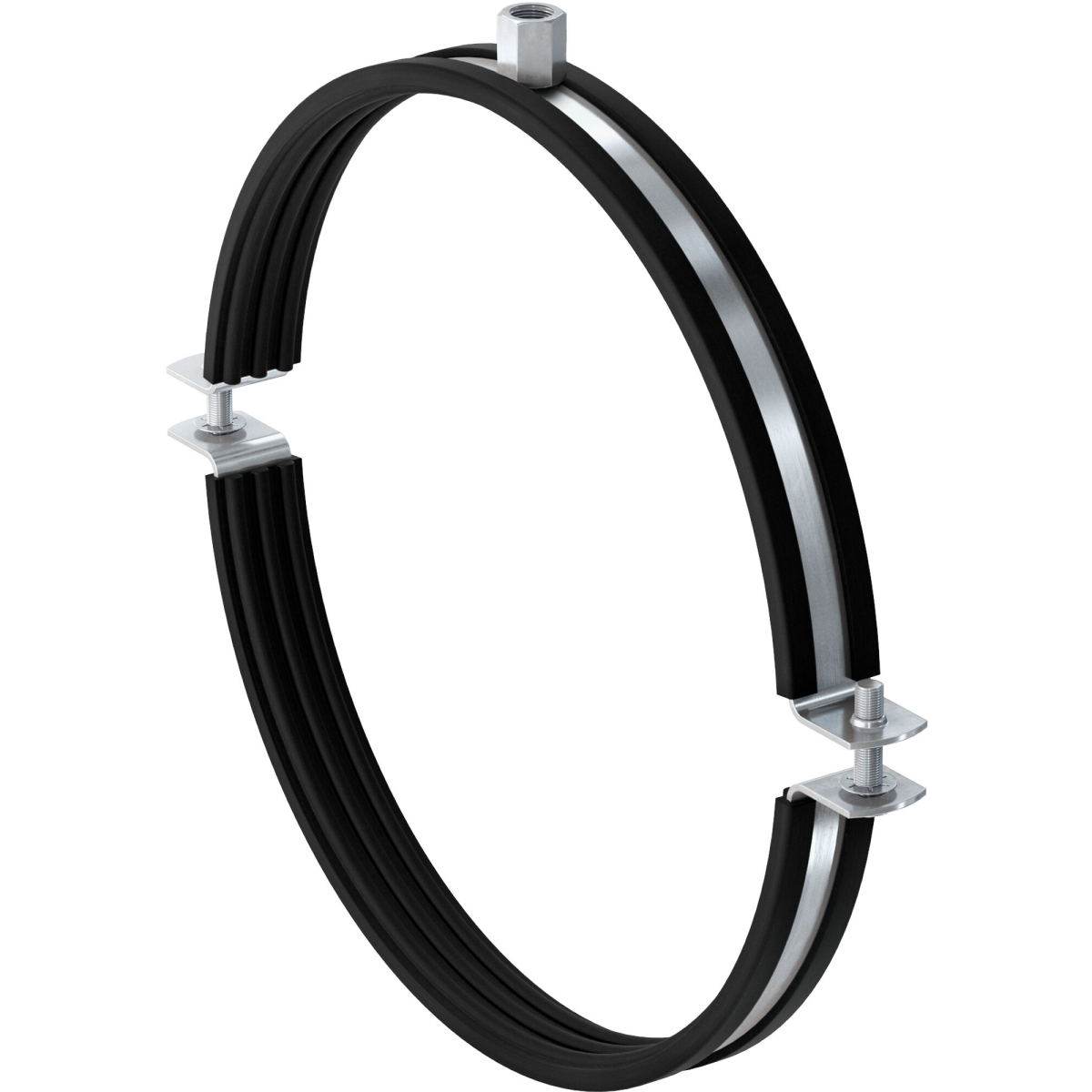

- The fischer ventilation duct clamp LGS is the ideal fixing solution for ventilation ducts of all types.=

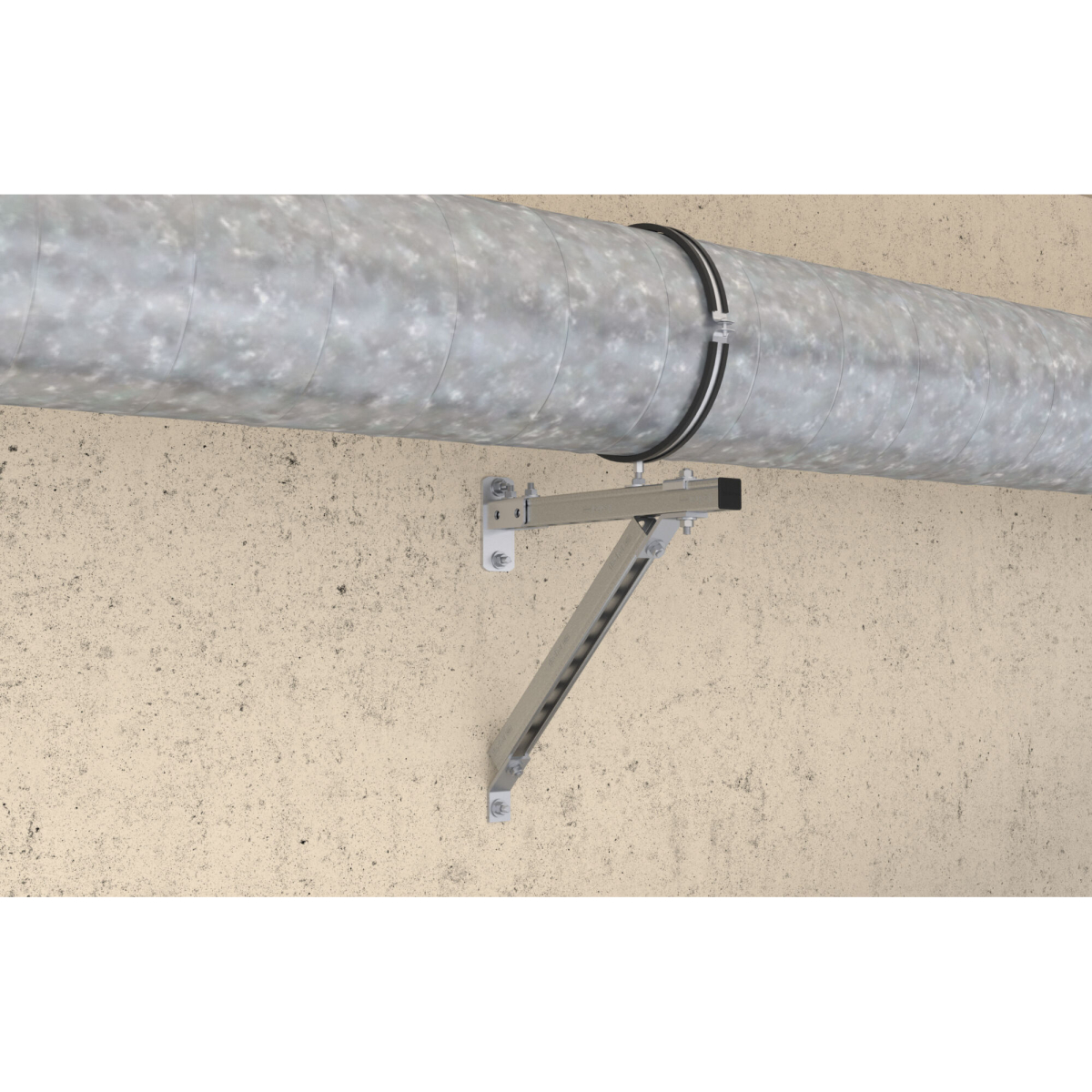

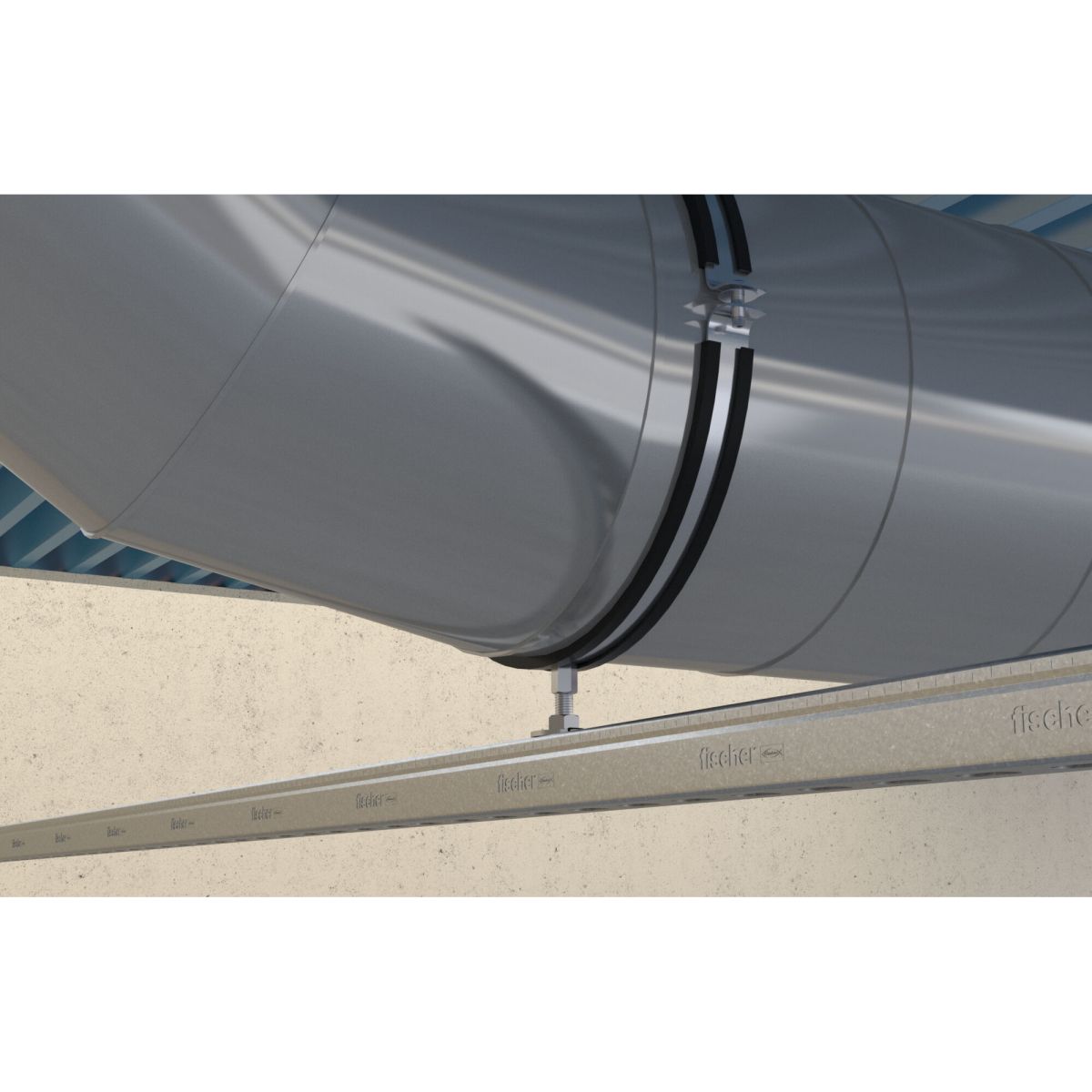

- With the LGS, you can secure spiral pipes to the substrate particularly easily and quickly
- The large opening angle enables the easy insertion of the pipeline, whereas the two-screw concept of the LGS allows for optimal adjustment in line with the outer diameter of the pipe
- The LGS has holes on both halves of the clamp from a diameter of 450 mm
- This enables the doubling of the recommended load with two threaded rods with nuts
- The sound insulation insert ensures reliable acoustic decoupling from the structure
Features / Specification
| Thread (A) M8 / M10 | ||
|---|---|---|
| Clamping range (D) 355 mm | ||
| Height (H) 383 mm | ||
| Width (B) 410 mm | ||
| Width x thickness clamp band (b x s) 25 x 1.5 mm | ||
| Height (Z) 200 mm | ||
| Locking screw M6 | ||
| Max. recom. static load (centr. tension) 0,6 kN | ||
| Amount 10 pcs | ||
| GTIN (EAN-Code) 4006209795064 | ||
| GTIN (EAN-Code) 4006209794937 | ||
| Properties | ||
| Material: | steel DC01 (material no. 1.330) acc. to DIN EN 10130 | |
| Zinc plating: | electro zinc-plated | |
| Connecting nut: | resistance welded domed nut, M8 / M10, SW13 | |
| Locking screw: | oval head screw with combination recessed head | |
| Material sound insulation insert: | SBR/EPDM; chlorine-free; silicone-free | |
| Sound insulation: | for DIN 4109 | |
| Temperature range: | -50 °C to +110 °C | |
| Hardness: | 45 ± 5° Shore A | |
| Fire behaviour: | DIN 4102: | Class B2 |
