Fischer 537985 Pipe Clamp FRS 32 - 37 M8/M10 ZL ( Pack x 100 )

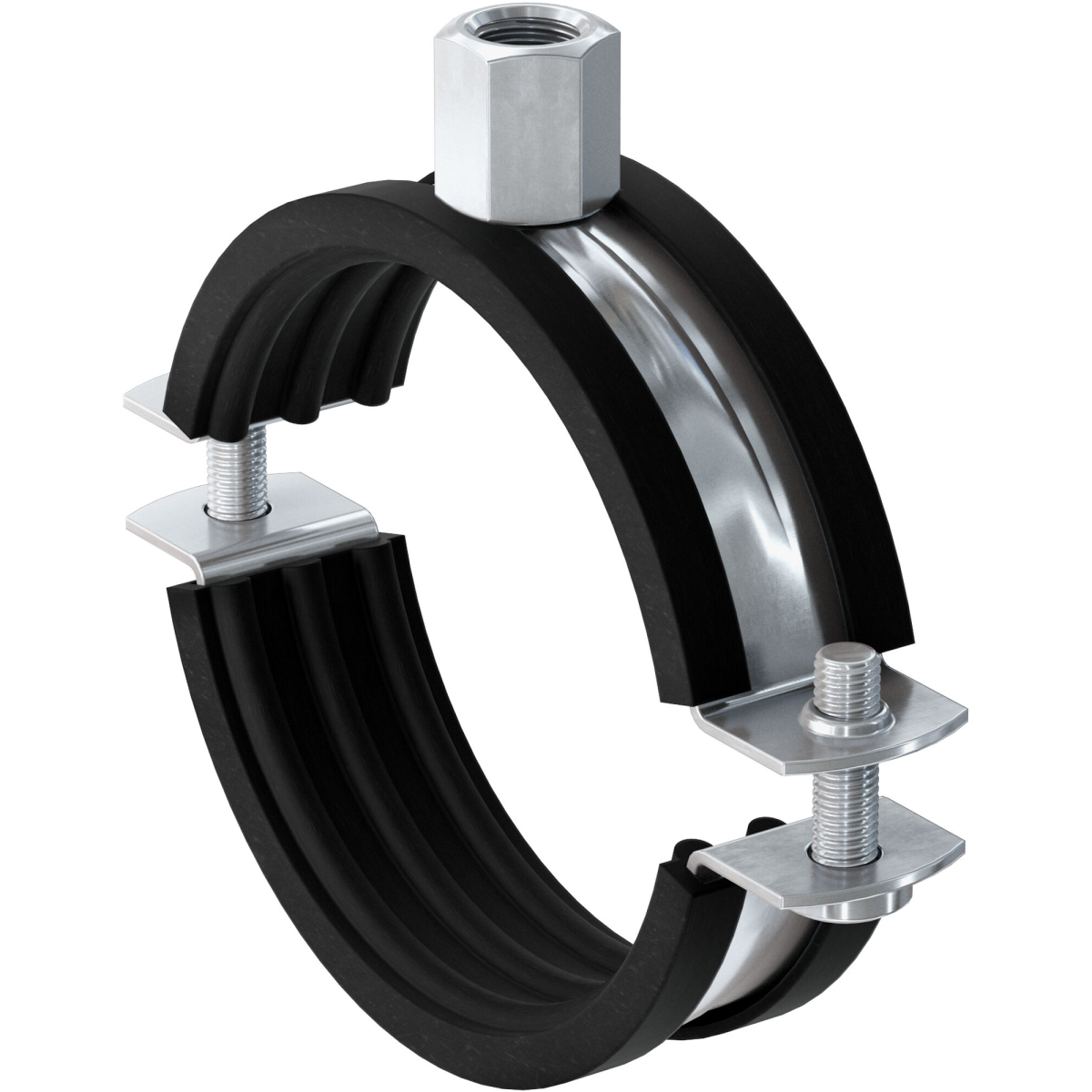

The fischer pipe clamp FRS zl is a two-screw pipe clamp made from zinc lamella coated steel in material quality DC01 with an M8/M10 combination connecting thread

Order within
SKU FIS-537985
Barcode 4048962260076

£201.59 ( £167.99 Ex VAT)

Description / Fischer 537985

  • The fischer pipe clamp FRS zl is a two-screw pipe clamp made from zinc lamella coated steel in material quality DC01 with an M8/M10 combination connecting thread
  • The two-screw version enables optimised adjustment in line with the outer diameter of the pipe
  • Together with the combination connecting thread, this increases flexibility

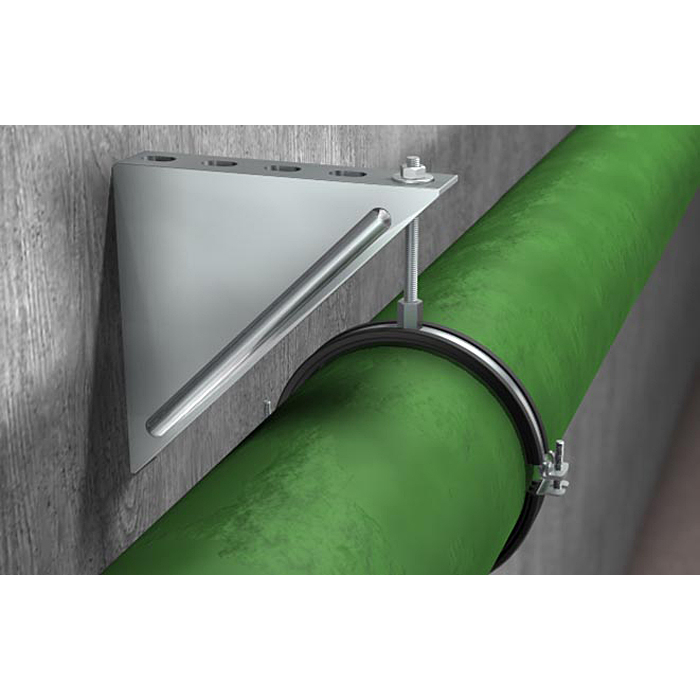

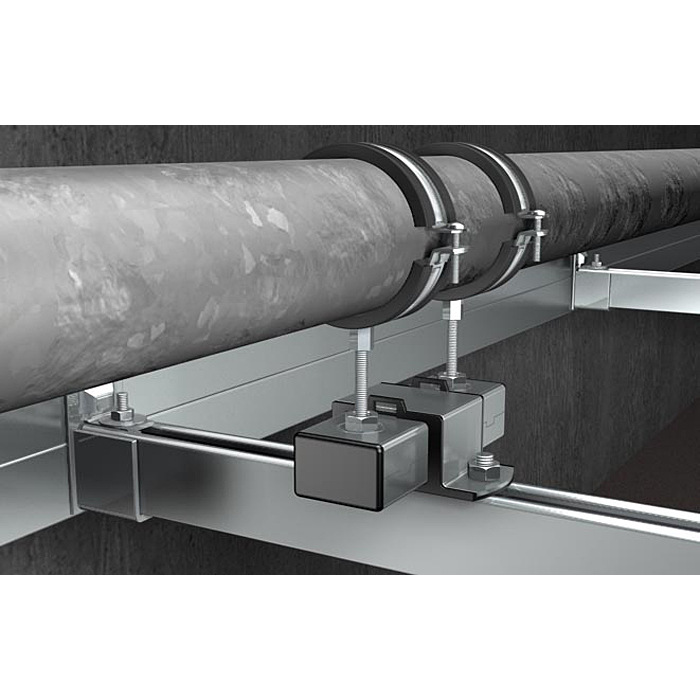

  • This enables pipelines with an outer diameter of 12 to 168 mm to be securely fixed with a threaded rod or stud screw indoors in accordance with the fire protection requirements of fire resistance class R 120 and MLAR
  • With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109
  • The FRS zl has an outstanding corrosion protection through the application of a zinc lamella coating
  • The fischer FRS zl is suitable for applications in the temperature range from -40°C to +100°C
  • The fire test report guarantees independently tested functional safety
  • The two screws allow an easy adjustment to suit the outer pipe diameter
  • The combination connecting nut with thread M8 / M10 enables optimised mounting choices
  • The sound insulation insert offers noise protection and prevents contact corrosion
  • The screw's safety feature ensures trouble-free installation.

Features / Specification

Thread (A) M8 / M10
Size 1 in
Clamping range (D) 32 - 37 mm
Width (B) 77 mm
Height (H) 61 mm
Width x thickness clamp band (b x s) 20 x 1.25 mm
Height (Z) 38 mm
Locking screw M6
Max. recom. static load (centr. tension) (Nrec) 1 kN
Amount 100 pcs
GTIN (EAN-Code) 4048962260076
Material:steel DC01 (material no. 1.0330) acc. to DIN EN 10130
Coating:zinclamella
Connecting nut:resistance welded, M8 / M10 SW13
Locking screw:flat head screw with combination recessed head
Material sound insulation insert:EPDM; chlorine-free; silicone-free
Sound insulation:for DIN 4109
Temperature range:-40 °C to +100 °C
Hardness:55 ± 5° Shore A
