Fischer 78416 Turbo Aircrete Anchor FTP M 8 Metal Pack x 25

Fischer 78416 Turbo Aircrete Anchor FTP M 8 Metal Pack x 25
Ex. VAT £29.99 Inc. VAT £35.99

Usually ships within 10 working days

The metal anchor for metric screws for aerated concrete

Description

Details

  • The fischer turbo Aircrete anchor FTP M is a special fixing for fixings in aerated concrete

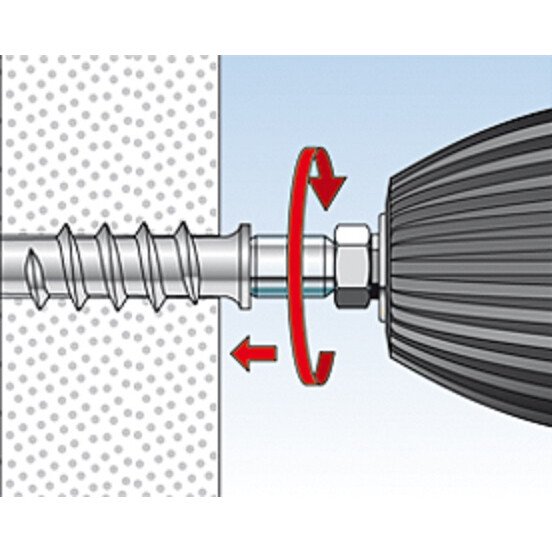

  • The metal anchor is inserted into the drill hole in the pre-positioned installation using an Allen key
  • The spiral external thread cuts a mechanical interlock in the building material
  • The fischer turbo Aircrete anchor FTP M is ideally suited to securely fix mirror cabinets, radiators, and TV consoles to aerated concrete

Top Features

  • No setting tool necessary
  • High retention forces due to interlocking in building materials
  • Convenient assembly: reduced wear and tear
  • Low axial and edge distances due to expansion pressure-free anchoring

Advantages

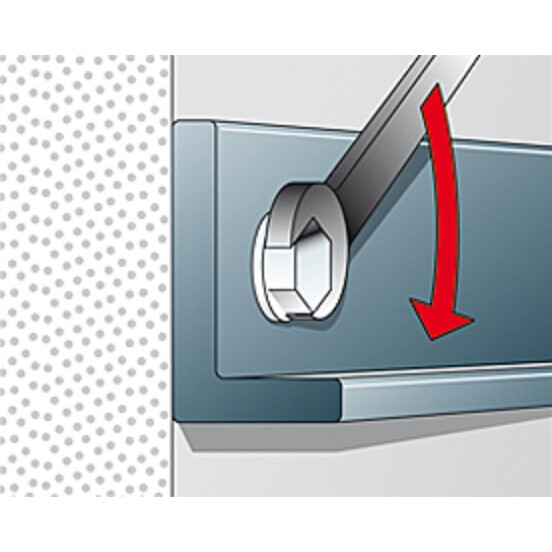

  • The Allen key chuck makes it possible to set the FTP M without the need for a special setting tool
  • This allows for a simple installation
  • The FTP M achieves a very high load-bearing capacity in aerated concrete for increased safety
  • The spiral-shaped outer thread taps itself into the aerated concrete with a positive fit
  • This means that it can be set without the need for much force
  • The special geometry allows for an almost expansion-force-free anchoring
  • This allows for small edge and spacing distances, and avoids splitting in the case of plastered surfaces

Load Table for Download

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_ftp-m_f_%23sen_%23aip_%23v2.pdf

Features

Features

Technical Data
Drill hole diameter d0 10 - (12) [mm]
Min. drill hole depth h1 70 [mm]
Anchor length l 60 [mm]
Metric screw M M 8
Min. bolt penetration lE,min 20 [mm]
Max. bolt penetration lE,max 25 [mm]
Amount 25 Unit(s)
GTIN (EAN Code) 4006209784167
Applications
Pictures
Lighting
Shelves
Mirror cabinets
Curtain rails
Cable and pipe clips
Stand-off installations
Radiators
TV consoles
Building materials
Aerated concrete
Solid panel made from gypsum
