- Description
-
Details
- The fischer sleeve anchor FSA-B is a zinc-plated steel anchor with nut and washer for structural fixings made of zinc-plated steel

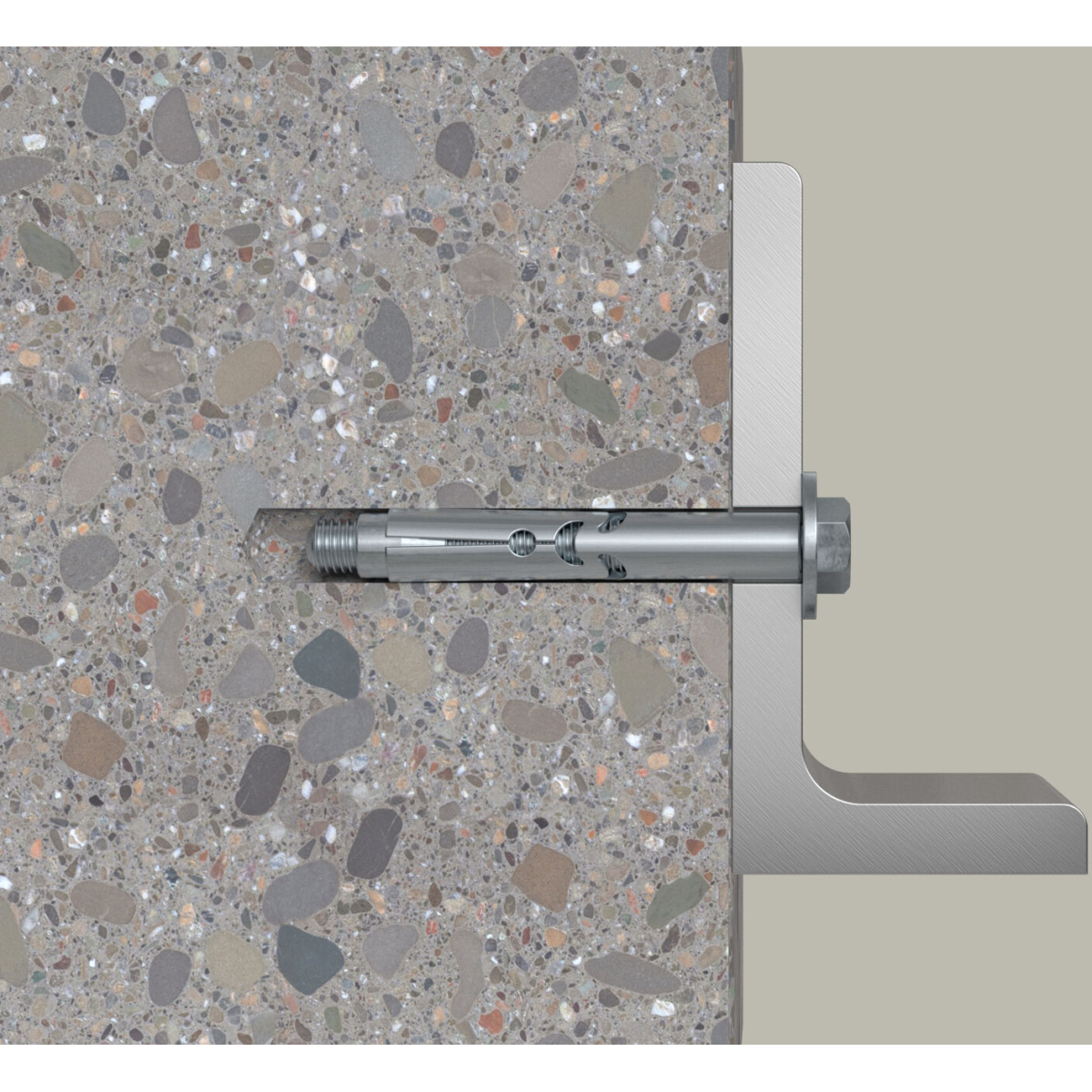

- The FSA-B is set in the time-saving through-type installation. When tightening, the cone is pulled into the expansion sleeve and expands it against the hole wall
- The recesses act as a crumple zone to take the torque slippage
- The fixture is therefore pulled towards the anchoring base
- The fischer sleeve anchor FSA-B is ideal for fastening fixings that are not relevant in safety terms such as ladders, gates, and temporary fixings in non-cracked concrete
Advantages
- The optimised geometry minimises setting energy and enables the use in extremely narrow spaces
- This allows for user-friendly installation
- The anchor design makes it possible to use different head shapes for flexible design solutions: Hexagon head (type S), bolt version with nut and washer (type B).
- The detachable screw connection allows for surface flush removal
Top Features
- Simple alignment due to optimised anchor geometry, even in narrow spaces
- Surface flush removal due to detachable screw connection
- With nut and washer
- Features
Features
Drill diameter (d0) 12 mm Min. drill hole depth for through fixings (h2) 140 mm Width across nut 17 mm Packaging Folding box Amount 20 pcs GTIN (EAN-Code) 4006209685099 Applications Handrails Consoles Ladders Cable trays Gates Façades Temporary or structural fixings Building materials Suitable for: Concrete C12/15 to C20/25, non-cracked Natural stone with dense structure
