Fischer 63505 Silicone pipe clamp FRSH 74 - 78 Pack x 25
The two-screw pipe clamp with a sound insulation insert with resistance to high temperatures
Order within
SKU
FIS-63505
Barcode
4006209635056
£125.99
(
£104.99
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Fischer 63505
- The fischer silicone pipe clamp FRSH has a sound insulation insert for fixing high-temperature pipelines
- The two screws allow for ideal adaptation to suit the outer pipe diameter
- Connecting nut with thread M 8 for holding threaded rods or hanger bolts
- Pipe clamp screws with loss protection
Properties
- Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
- Zinc plating: electro zinc-plated
- Connecting nut: (up to FRSH 59 - 63) resistance welded, M8 and M8/M10 SW 13, M10 SW 17
- Locking screw: flat head screw with combination recessed head
- Material sound insulation insert: silicone
- Sound insulation: for DIN 4109
- Temperature range: -40 °C to +220 °C
- Hardness: 60 ± 5° Shore A
- Fire behaviour: DIN 4102: Class B2
Applications

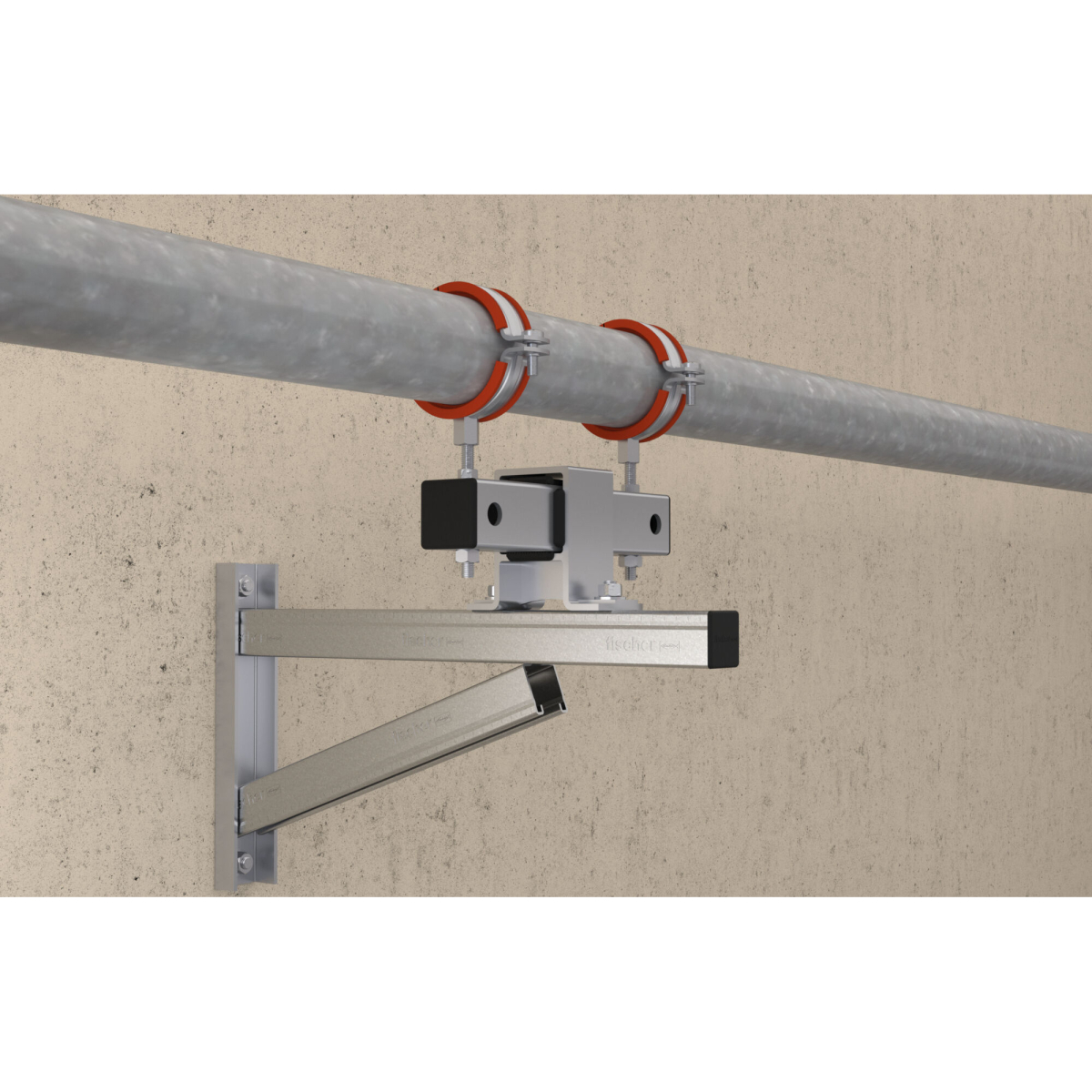

- Fixing of high-temperature pipelines with threaded rods or stud screws (e.g. steam pipes)
- For use in dry interior areas
Documents for download
Features / Specification
| Thread (A) M10 |
|---|
| Size 2 1/2 in |
| Clamping range (D) 74 - 78 mm |
| Width (B) 130 mm |
| Height (H) 100 mm |
| Width x thickness clamp band (b x s) 25 x 1.5 mm |
| Height (Z) 55 mm |
| Locking screw M6 |
| Max. recom. static load (centr. tension) (Nrec) 1,3 kN |
| Amount 25 pcs |
| GTIN (EAN-Code) 4006209635056 |
| Advantages |
| The special silicone sound insulation insert allows a use with average temperatures of up to +220 °C. |
| The two screws enable an easy adjustment to suit the outer pipe diameter. |
| The screw's safety feature ensures trouble-free installation. |
