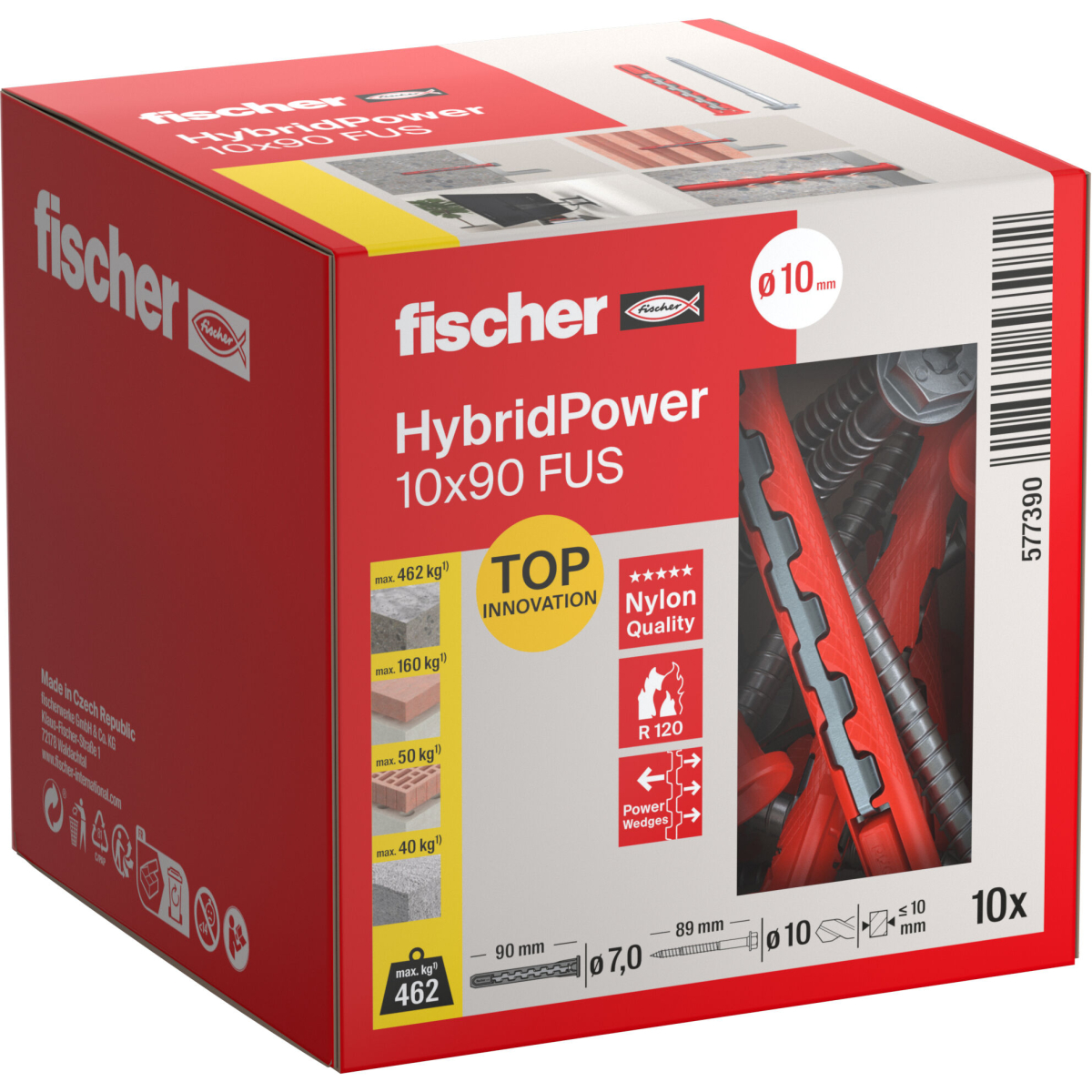

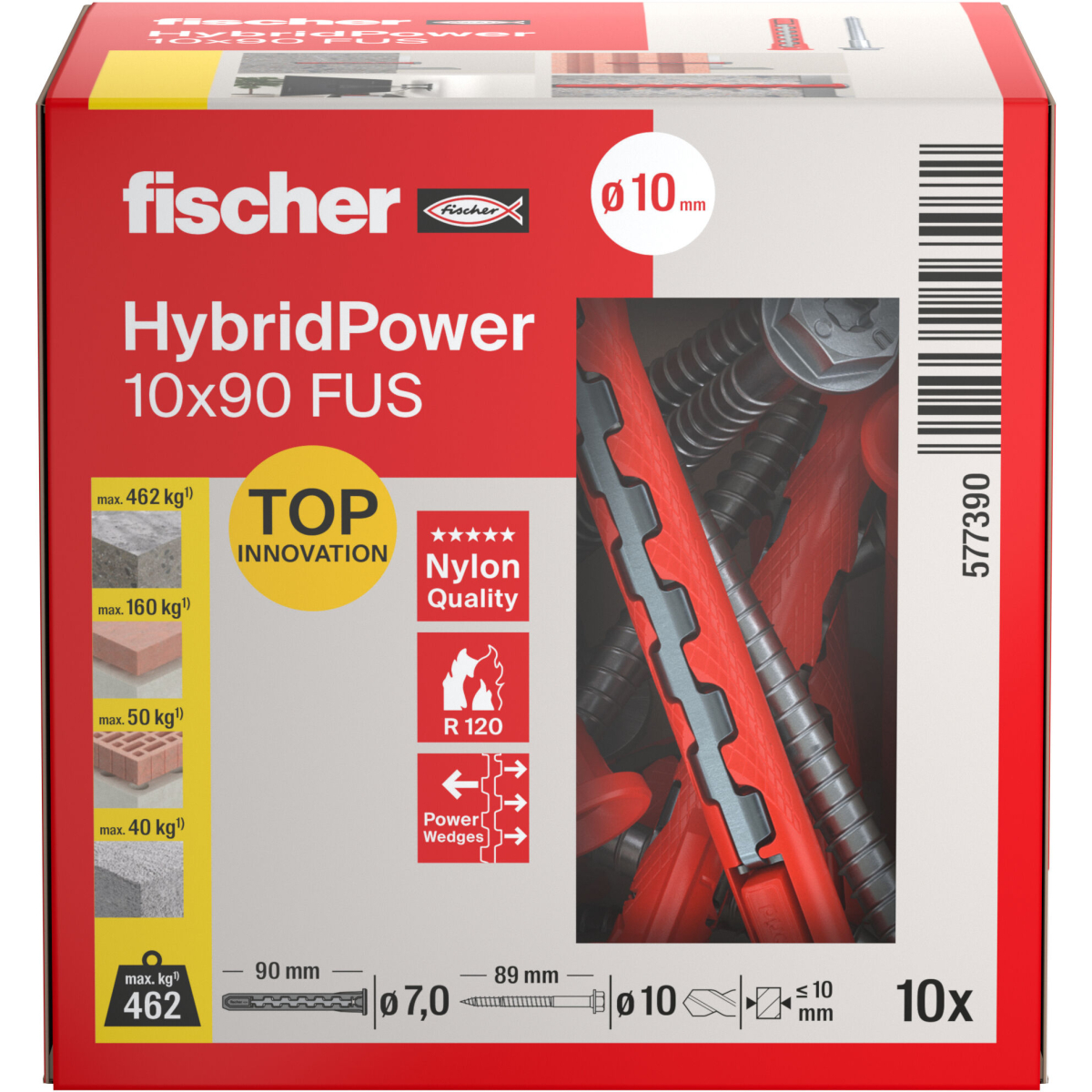

Fischer 577390 HybridPower 10 x 90 FUS Pack x 10

Fischer 577390 HybridPower 10 x 90 FUS Pack x 10
Ex. VAT £7.99 Inc. VAT £9.59

Want it by Tomorrow, 16 September? Order within

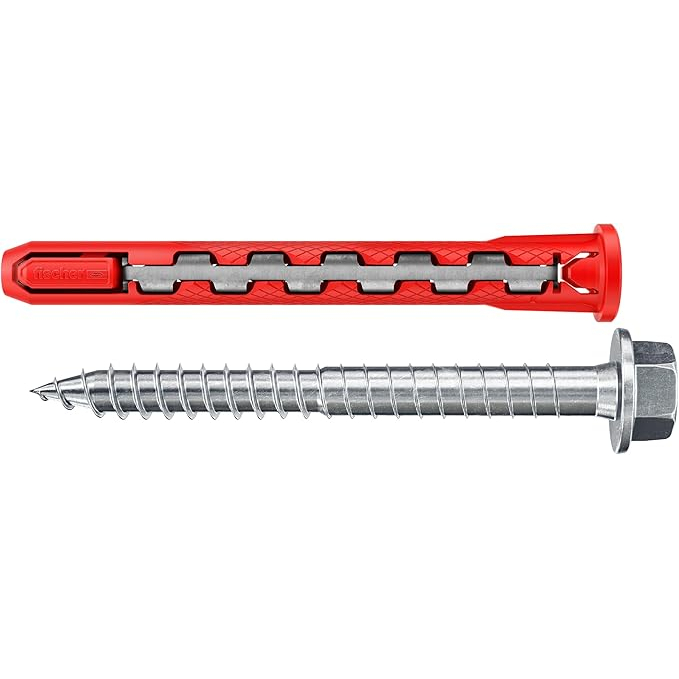

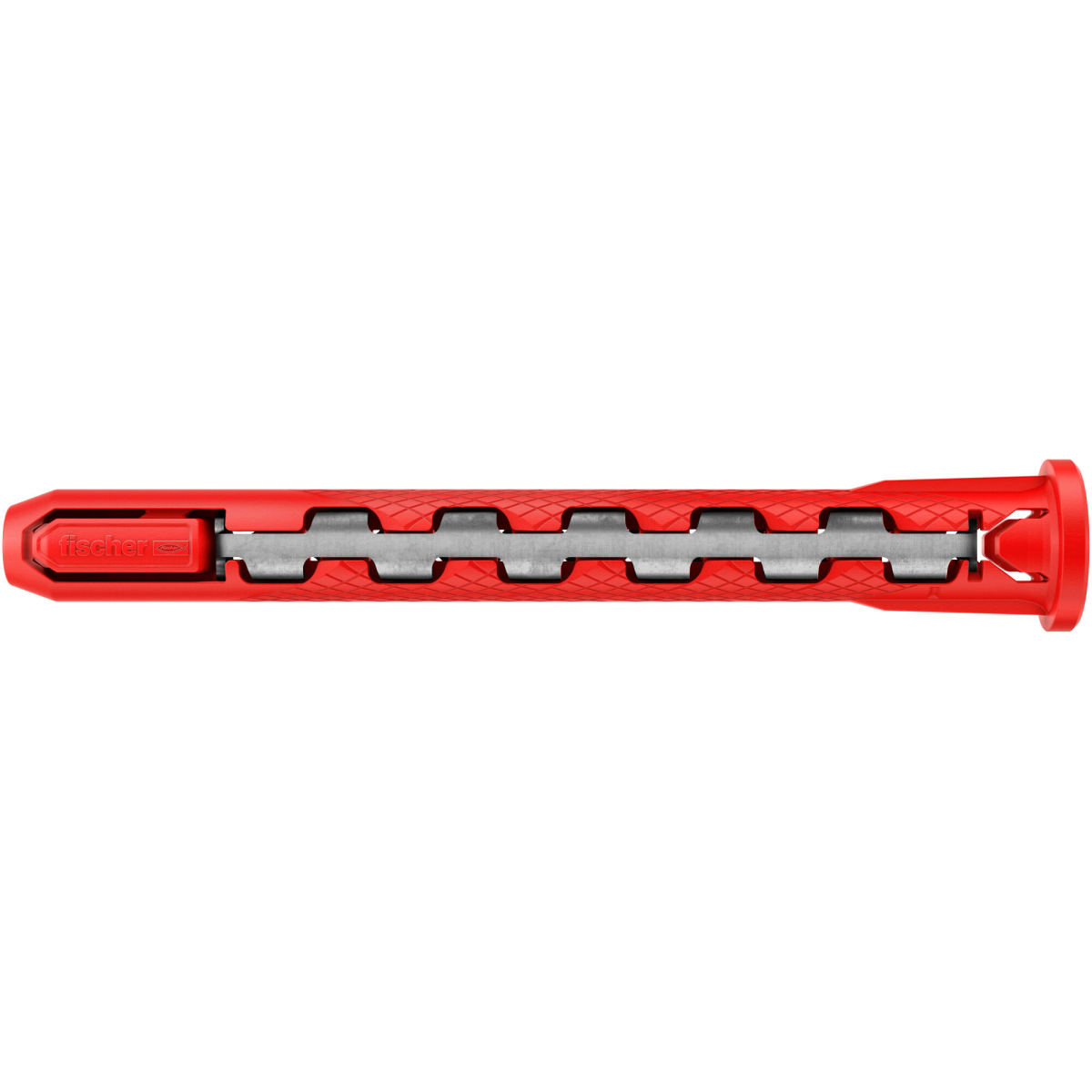

The fischer HybridPower combines the advantages of a classic plastic plug with the security of a steel anchor

Description

Details

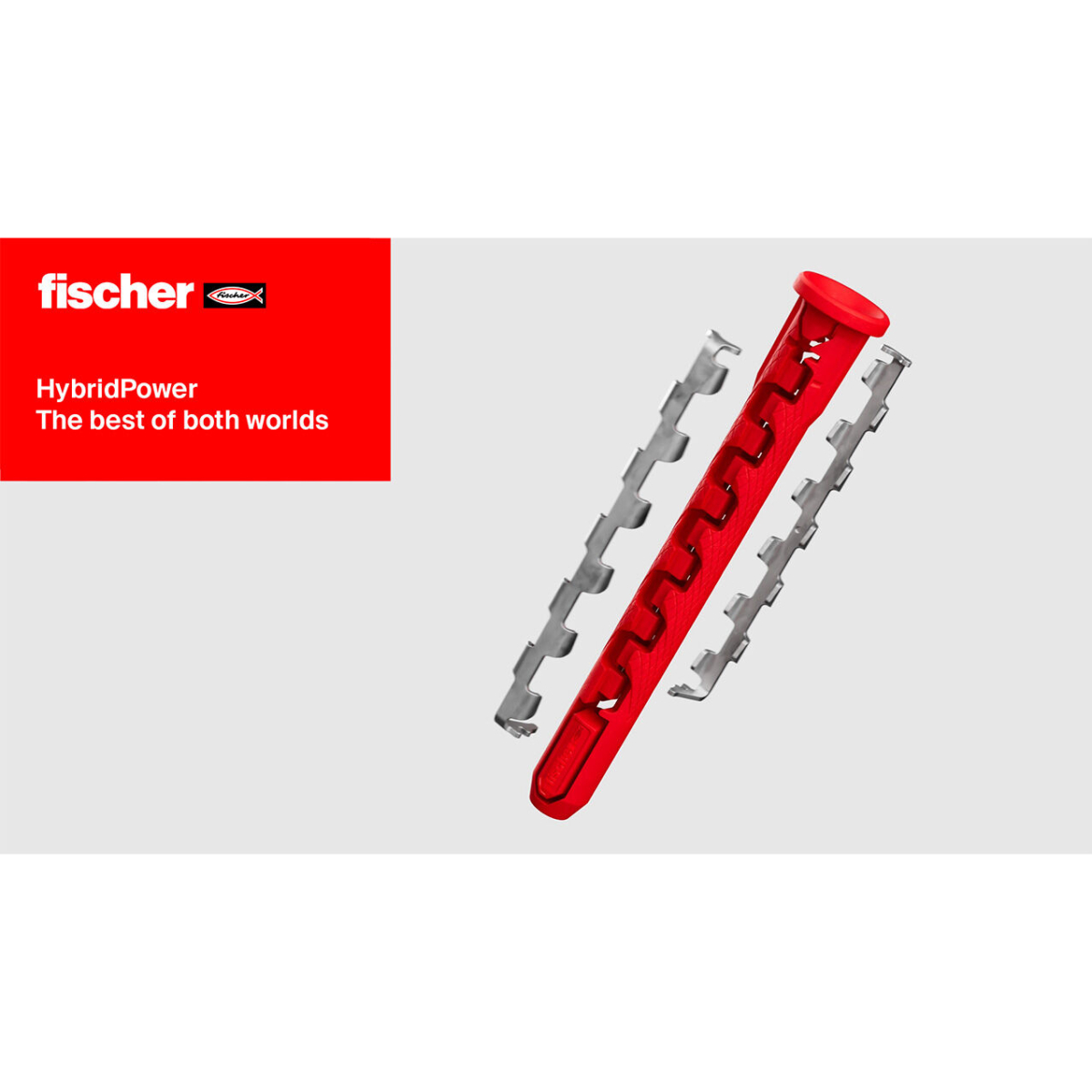

  • HybridPower. Plastic meets steel. Strong, safe & simple
  • The fischer HybridPower combines the advantages of a classic plastic plug with the security of a steel anchor
  • Thanks to the combination of the two materials, the HybridPower is set like a classic plug and can be used in all building materials
  • At the same time, it offers high load-bearing capacities and secure anchoring, even in the event of fire
  • The range is suitable for metal and timber attachments up to 10 mm
  • The plug can be used for pre-positioned and push-through installation
  • The HybridPower can be installed quickly and easily, just like a conventional plastic plug
  • It can be inserted by hand and no special tools or torque wrench are required
  • Thanks to the metal component, the plug also holds heavy loads and offers a high load-bearing capacity and additional safety
  • The HybridPower is universally applicable and can be used in solid and hollow building materials
  • The flexible plastic expands in any building material
  • The metal component also withstands fire and offers certified safety in case of fire
  • The universal plug head enables the use of the plug for pre-positioned and push-through installation and thus offers maximum flexibility in application
  • The included screw offers an appealing and straight finish to the fixing point, without protruding threaded rod
  • The fixing point can be released at any time by simply removing the screw

Applications

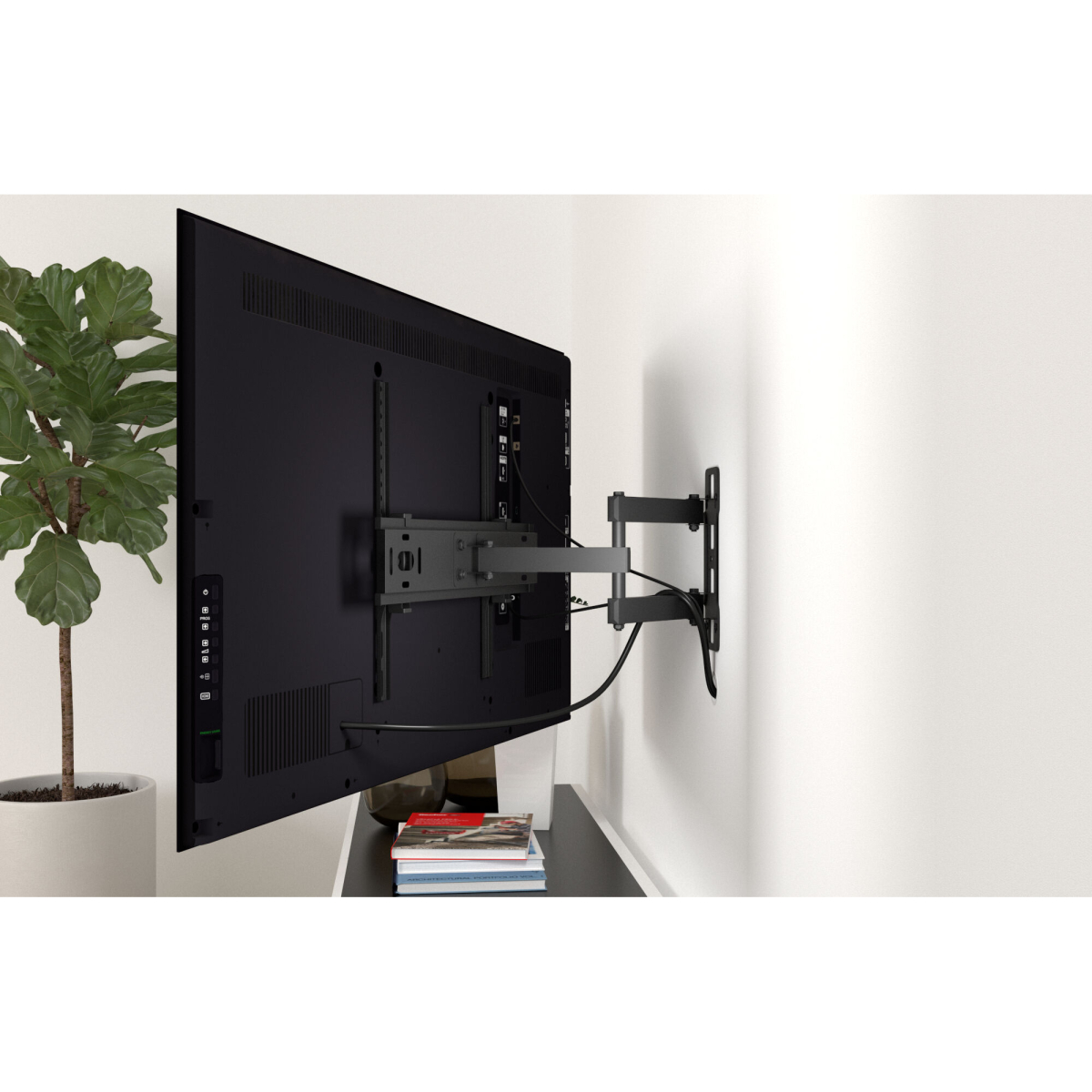

  • TV mountings

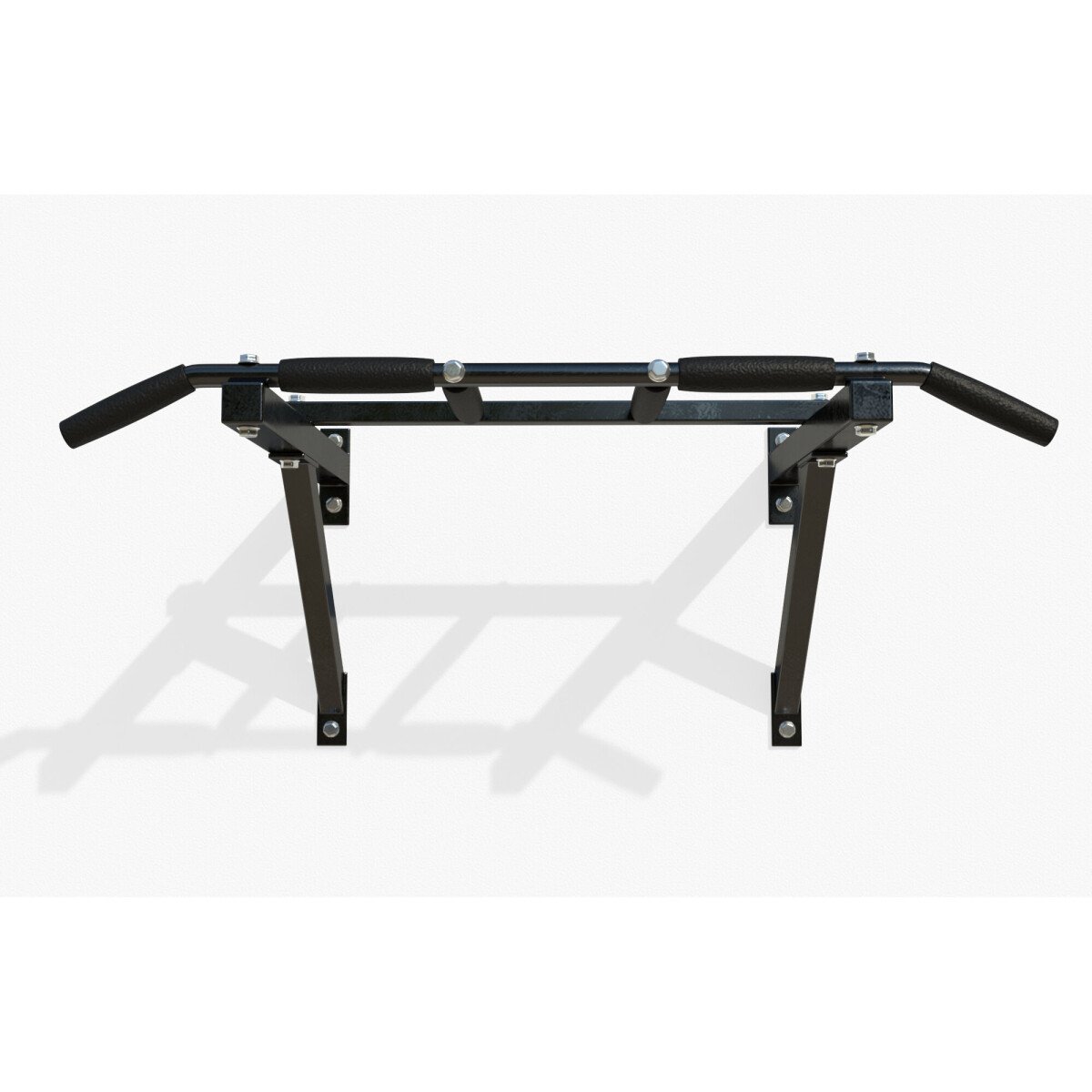

  • Pull-up bars

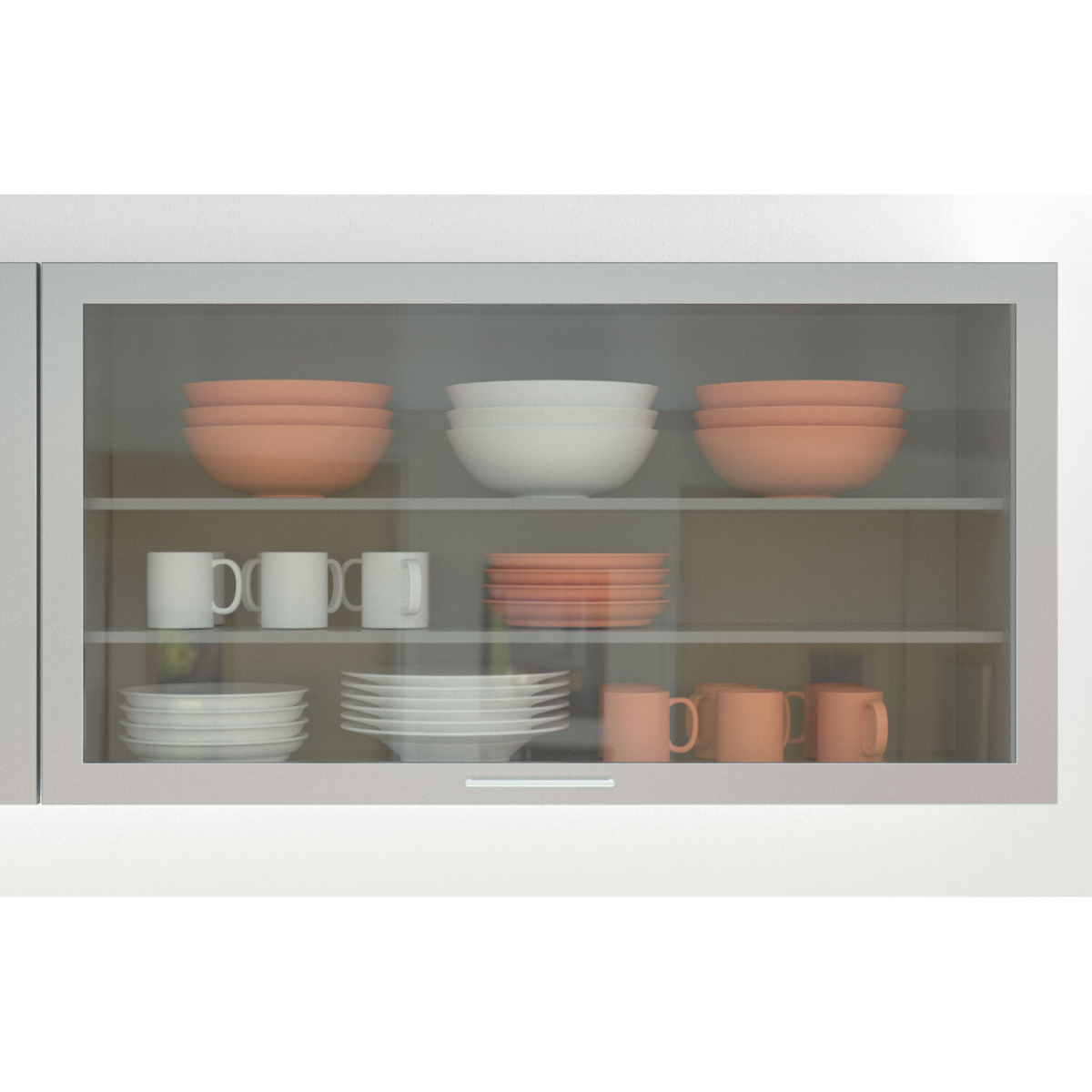

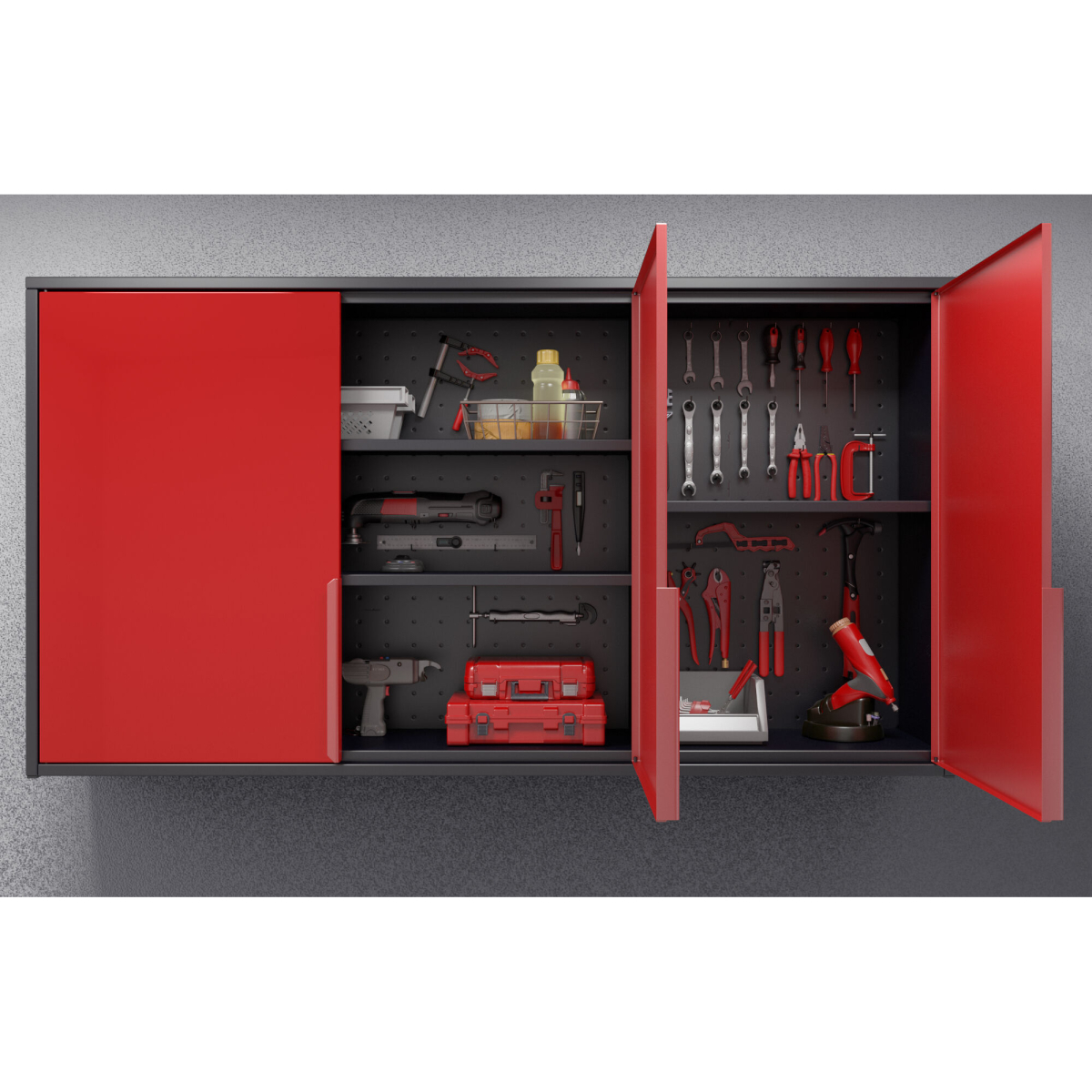

  • Shelves Kitchen hanging cabinets
  • Wardrobes Lighting
  • Wooden slats
  • Metal brackets
  • Metal supports

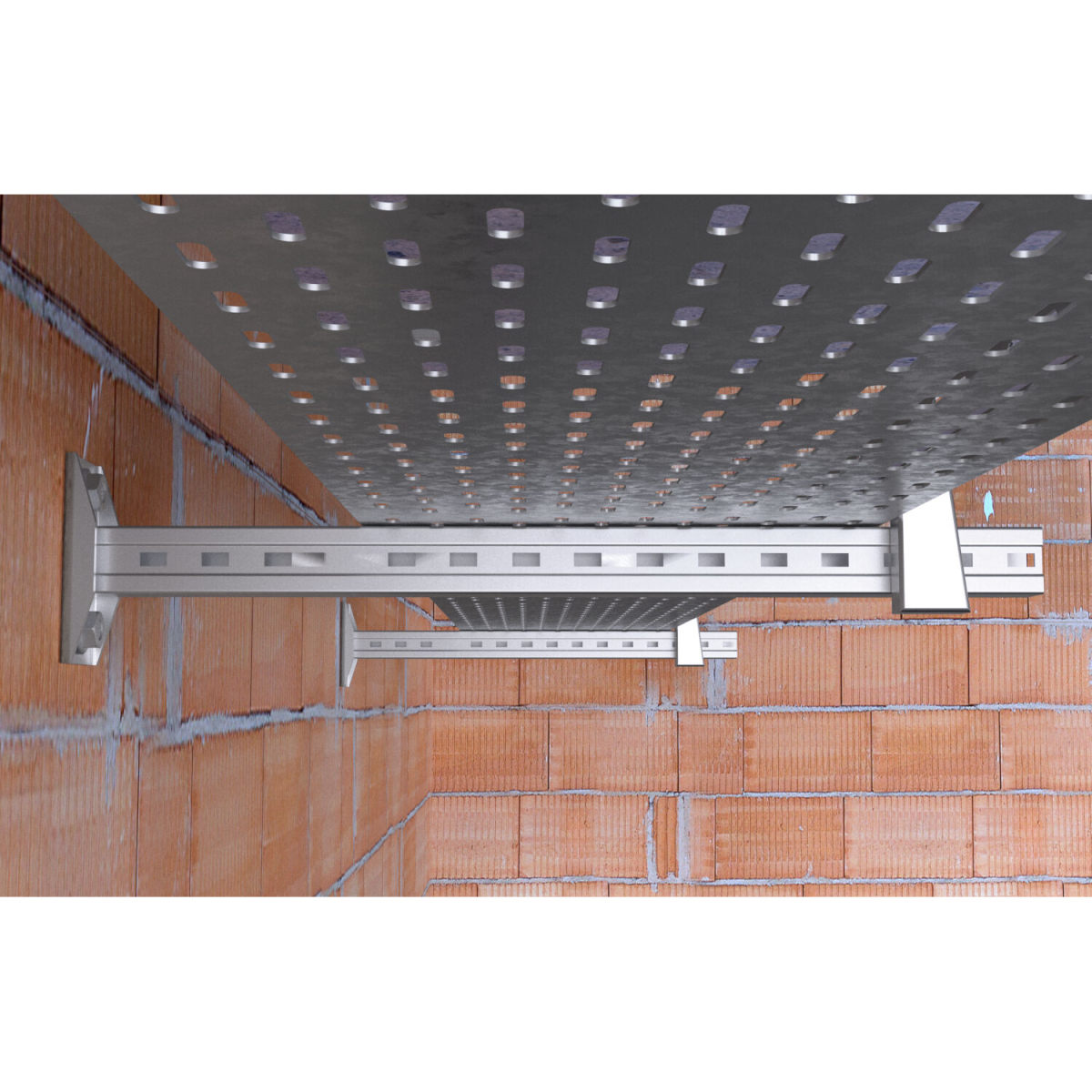

  • Air conditioners Plumbing and heating fixings
  • Building materials
  • Concrete Solid sand-lime brick Solid brick Solid block made from lightweight and normal weight concrete
  • Vertically perforated brick
  • Perforated sand-lime brick
  • Hollow blocks made from lightweight concrete
  • Aerated concrete
Features

Features

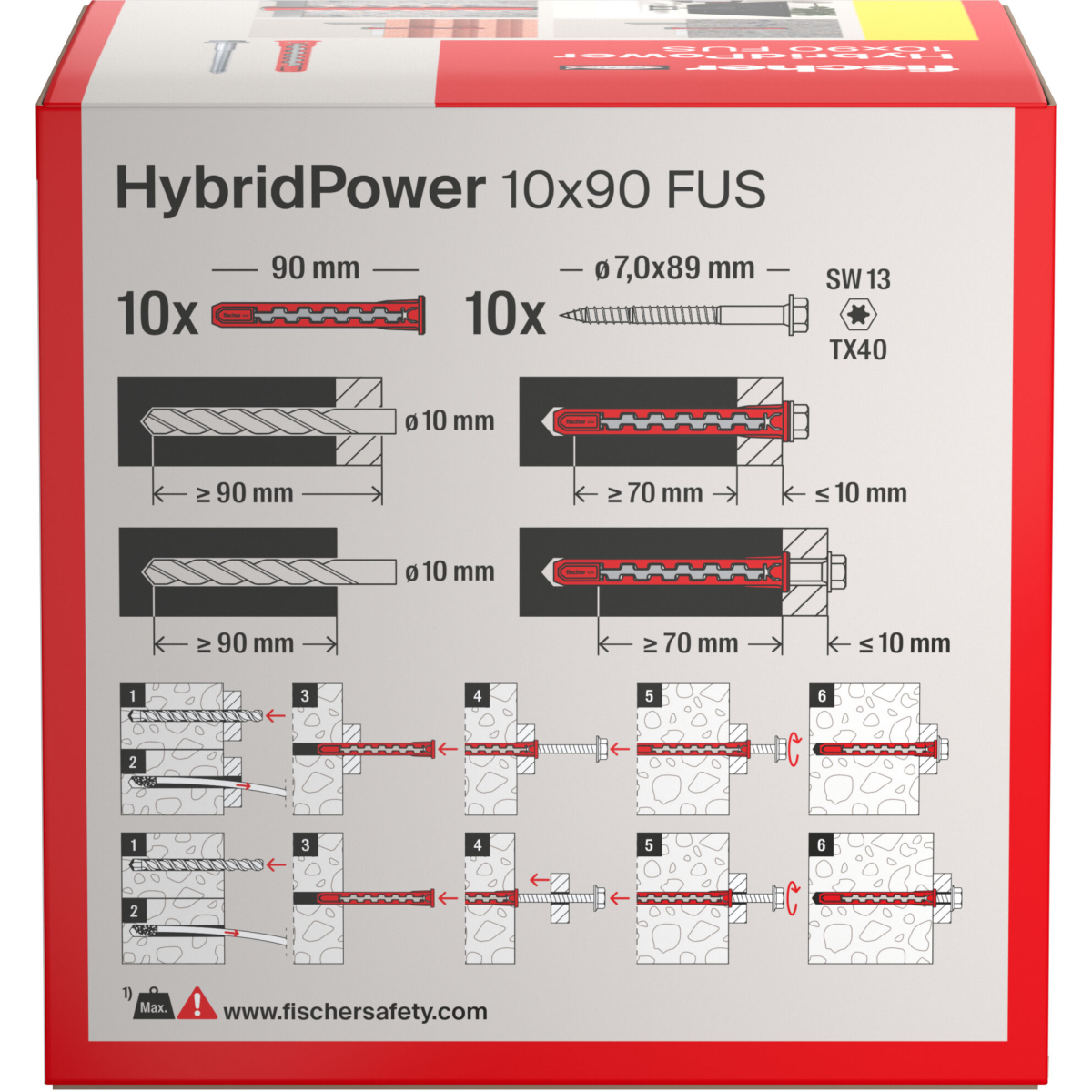

Drill diameter (d0) 10 mm
Anchor length (l) 90 mm
Min. drill hole depth for through fixings (h2) 90 mm
Screw dimension (ds x ls) 7.0x89 mm
Min. drill hole depth (h1) 90 mm
Min. effect. anchorage depth (hef) 70 mm
Max. fixture thickness (tfix) 10 mm
Drive TX40 / SW 13
Width across nut 13 mm
Amount 10 pcs
Packaging Folding box
GTIN (EAN-Code) 4048962565072
