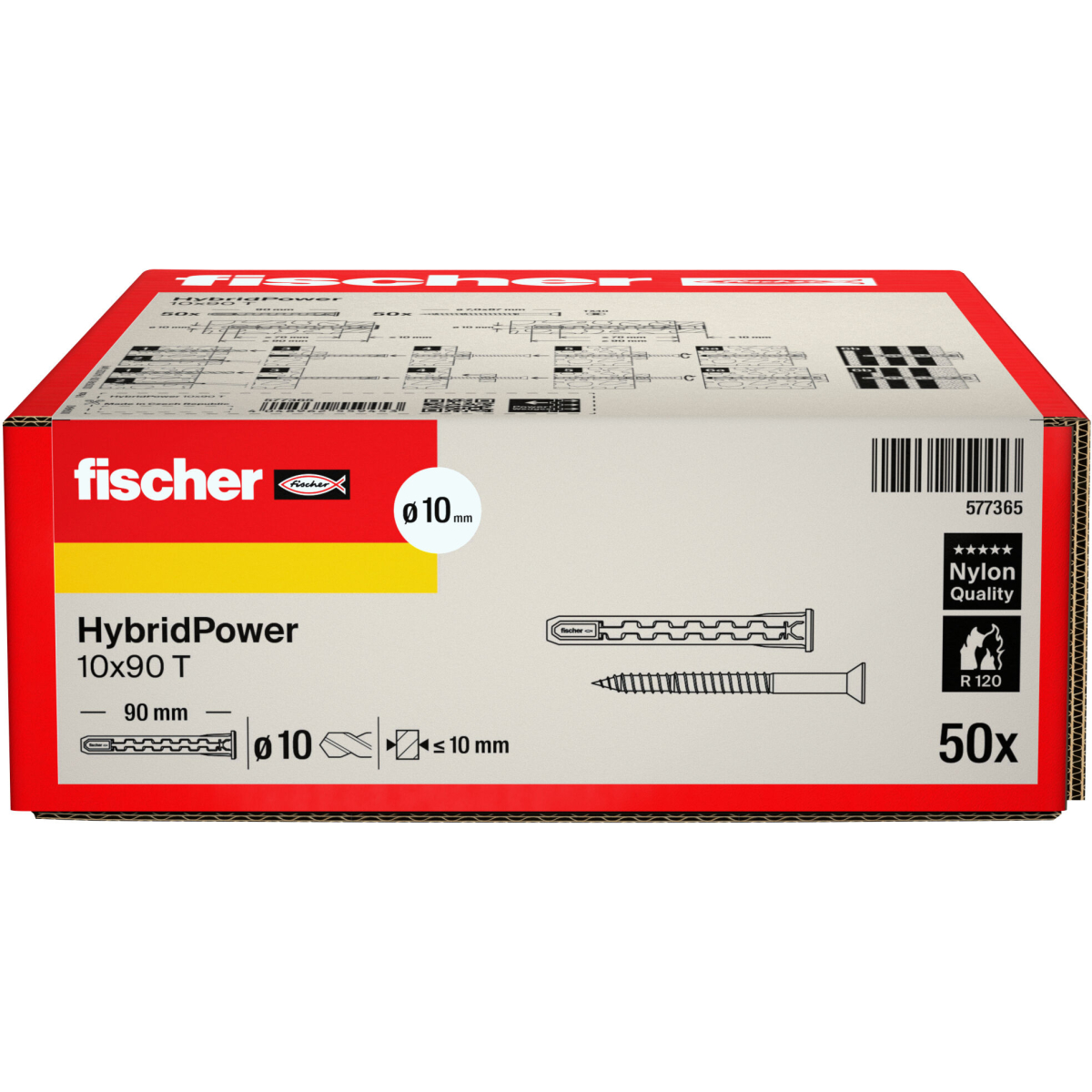

Fischer 577365 HybridPower 10 x 90 T Pack x 50
The fischer HybridPower combines the advantages of a classic plastic plug with the security of a steel anchor
Order within
Only 3 left in stock
SKU
FIS-577365
Barcode
4048962559453
£23.99
(
£19.99
Ex VAT)
£40.31
(
£33.59
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Fischer 577365
- HybridPower. Plastic meets steel. Strong, safe & simple
- The fischer HybridPower combines the advantages of a classic plastic plug with the security of a steel anchor
- Thanks to the combination of the two materials, the HybridPower is set like a classic plug and can be used in all building materials
- At the same time, it offers high load-bearing capacities and secure anchoring, even in the event of fire
- The range is suitable for metal and timber attachments up to 10 mm
- The plug can be used for pre-positioned and push-through installation
- The HybridPower can be installed quickly and easily, just like a conventional plastic plug
- It can be inserted by hand and no special tools or torque wrench are required
- Thanks to the metal component, the plug also holds heavy loads and offers a high load-bearing capacity and additional safety
- The HybridPower is universally applicable and can be used in solid and hollow building materials
- The flexible plastic expands in any building material
- The metal component also withstands fire and offers certified safety in case of fire
- The universal plug head enables the use of the plug for pre-positioned and push-through installation and thus offers maximum flexibility in application
- The included screw offers an appealing and straight finish to the fixing point, without protruding threaded rod
- The fixing point can be released at any time by simply removing the screw
Applications
- TV mountings

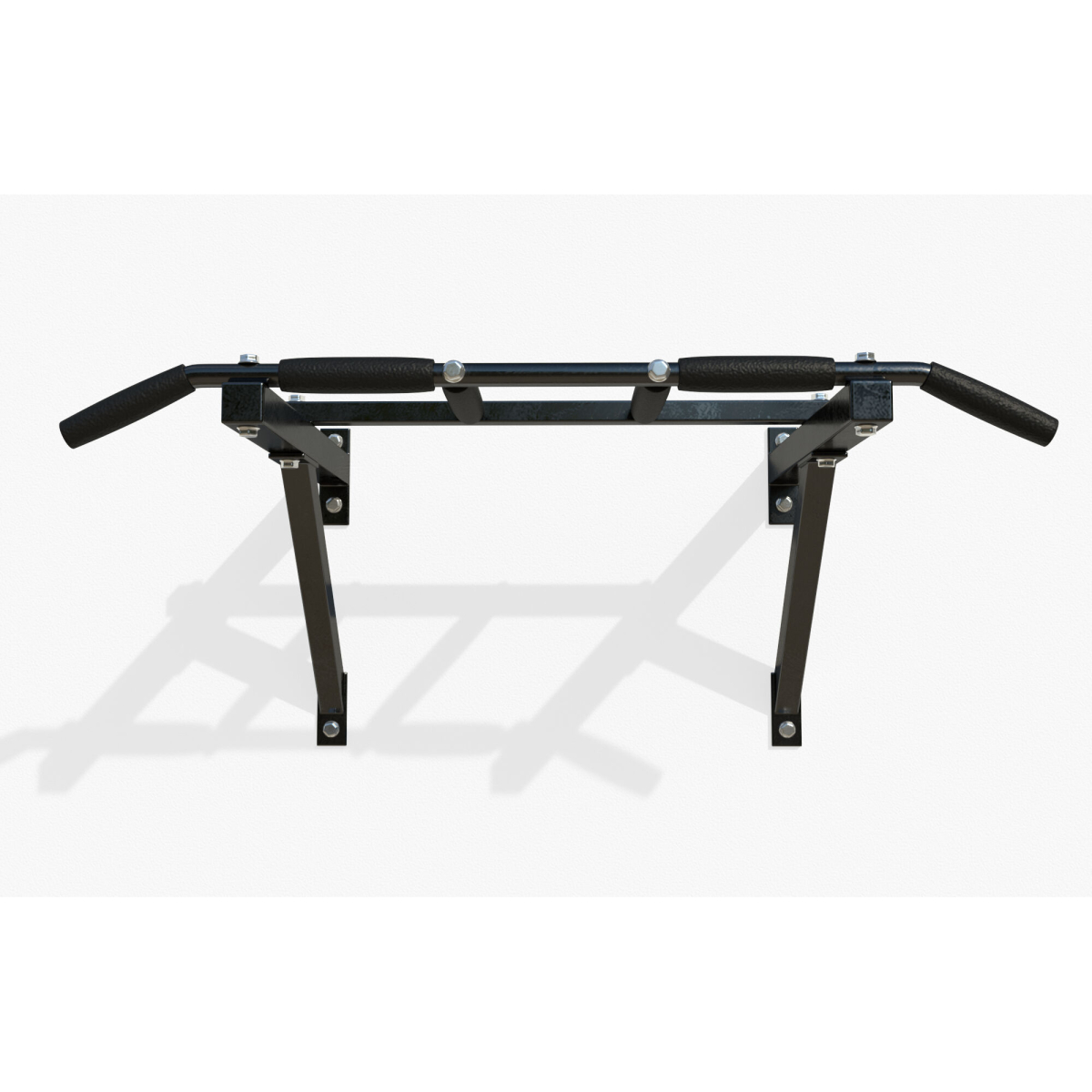

- Pull-up bars
- Shelves Kitchen hanging cabinets
- Wardrobes Lighting Wooden slats
- Metal brackets Metal supports
- Air conditioners
- Plumbing and heating fixings
- Building materials Concrete Solid sand-lime brick
- Solid brick Solid block made from lightweight and normal weight concrete
- Vertically perforated brick
- Perforated sand-lime brick Hollow blocks made from lightweight concrete
- Aerated concrete
Features / Specification
| Drill diameter (d0) 10 mm |
|---|
| Anchor length (l) 90 mm |
| Min. drill hole depth for through fixings (h2) 90 mm |
| Screw dimension (ds x ls) 7.0x87 mm |
| Min. drill hole depth (h1) 90 mm |
| Min. effect. anchorage depth (hef) 70 mm |
| Max. fixture thickness (tfix) 10 mm |
| Drive TX40 |
| Amount 50 pcs |
| Packaging Folding box |
| GTIN (EAN-Code) 4048962559453 |
