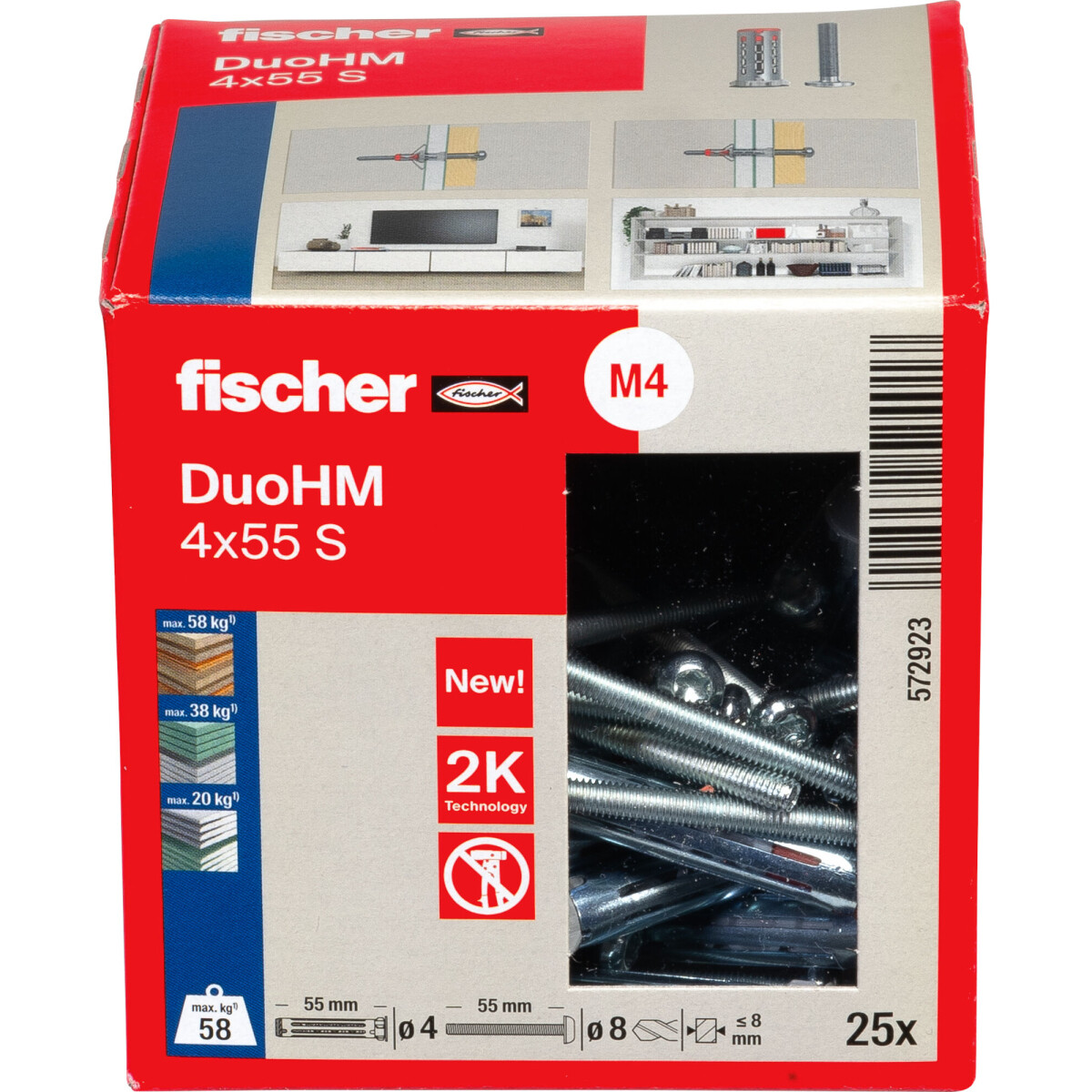

Fischer 572923 Cavity Fixing DuoHM 4 x 55 S PH TX, Panhead Screw, TX-drive Pack x 25

• Up to 50% faster installation than comparable panel plugs
• Easy installation with cordless screwdriver without setting tool
• One plug length per diameter for all common building material thicknesses
• High loads thanks to 2-component technology
• Nylon plug edge prevents damage to the building material surface
• The DuoHM cavity plug covers all common building material thicknesses from 9.5-30 mm with just one length
• Thanks to the unique combination of nylon and metal, the DuoHM enables high loads and maximum flexibility in panel building materials
• The metal sleeve folds behind the building material and presses against the back of the panel, while the plastic part knots in the panel
• The DuoHM is installed quickly and easily using a cordless screwdriver without any additional setting tools
• This reduces the installation time by up to 50% compared to conventional panel plugs
• Thanks to the metric internal thread, the attachment can be screwed in and unscrewed several times
• In addition to the screw supplied, the DuoHM can also be used with other metric screws
• The nylon anti-rotation lock protects the surface of the building material from damage
• Due to the narrow plug edge, the anchor is no longer visible behind the attachment

Functionality

• The DuoHM is suitable for panel thicknesses from 9.5 to 30 mm
• The DuoHM is mounted as a push-fit installation, i.e. the screw is installed directly through the attachment part
• The metal sleeve folds behind the building material and presses against the back of the panel, the nylon base body knots in the building material
• Installation is only complete when the tightening torque is clearly noticeable and the metal sleeve is fully pressed against the panel
• Thanks to the metric internal thread, the attachment can be fastened and unfastened several times
