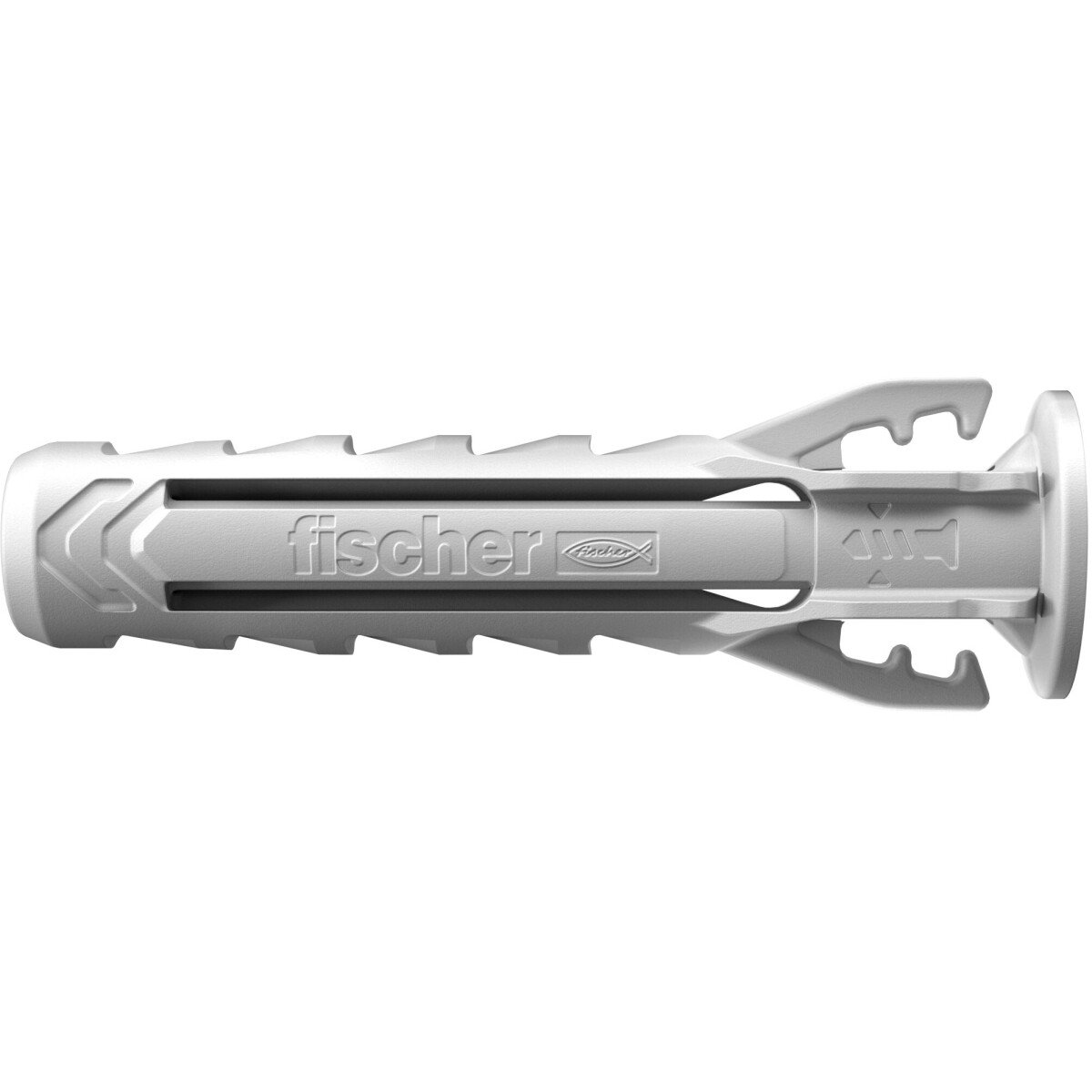

Fischer 568005 Expansion plug SX Plus 5 x 25 Pack x 100
The specialist for solid building materials
Description / Fischer 568005
- Thanks to its 4-way expansion, the fischer SX Plus expansion plug is the specialist for solid building materials such as concrete, sand-lime brick and masonry
- The special fixing blades ensure pre-fixation of the screw, which means that it does not have to be additionally held in place for overhead applications
- This screw fixation allows the user a flexible and comfortable setting process
- The flexibel plug edge also prevents the plug from slipping deeper into the drill hole for secure installation
- The high-quality nylon material guarantees a permanently secure hold in a wide range of solid and perforated building materials
Advantages
- The 4-way spread ensures optimum force transmission into the building material and guarantees high holding values in solid and perforated building materials
- The special fixing blades ensure pre-fixation of the screw, leaving both of the user's hands free during the setting process
- The expansion-free plug neck prevents the creation of expansion forces on the material surface whilst screwing in the screw
- This helps to prevent damage to tiles and plaster
- The special shape of the plug makes it easy to place in the drill hole with just a few hammer blows
- The pronounced edge of the plig prevents it from slipping deeper into the drill hole and enables secure installation
- Due to the noticeable tightening torque, the user automatically recognizes when the screw is properly installed and thus prevents overtightening of the screw
Features / Specification
| Drill diameter (d0) 5 mm |
|---|
| Min. drill hole depth (h1) 35 mm |
| Anchor length (l) 25 mm |
| Min. bolt penetration (lE,min) 29 mm |
| Wood and chipboard screws (ds) 3.0 - 4.0 mm |
| Contents 100 x Expansion plug SX Plus 5 x 25 |
| Amount 100 pcs |
| Packaging Folding box |
| GTIN (EAN-Code) 4048962480818 |
| Applications |
| Lamps |
| Wardrobes |
| Motion detectors |
| Skirting boards |
| Light wall shelves |
| Mirror cabinets |
| Mailboxes |
| TV consoles |
| Trellis |
| Folding shutters |
| Bathroom and WC equipment |
| Fire detector |
| Building materials |
| Concrete |
| Solid brick |
| Solid sand-lime brick |
| Aerated concrete |
| Vertically perforated brick |
| Perforated sand-lime brick |
| Plasterboard |
| Plastered wall (Forato type F8/ Sepa Parpaing) |
| DOPPIO UNI 19 |
