- Description
-
Details
- The fischer strong undercut anchor FSU-P is a self-cutting undercut anchor made of galvanised steel for applications where highest loads and safety are required (e.g. heavy steel plant construction, nuclear power plants, oil & gas industry)

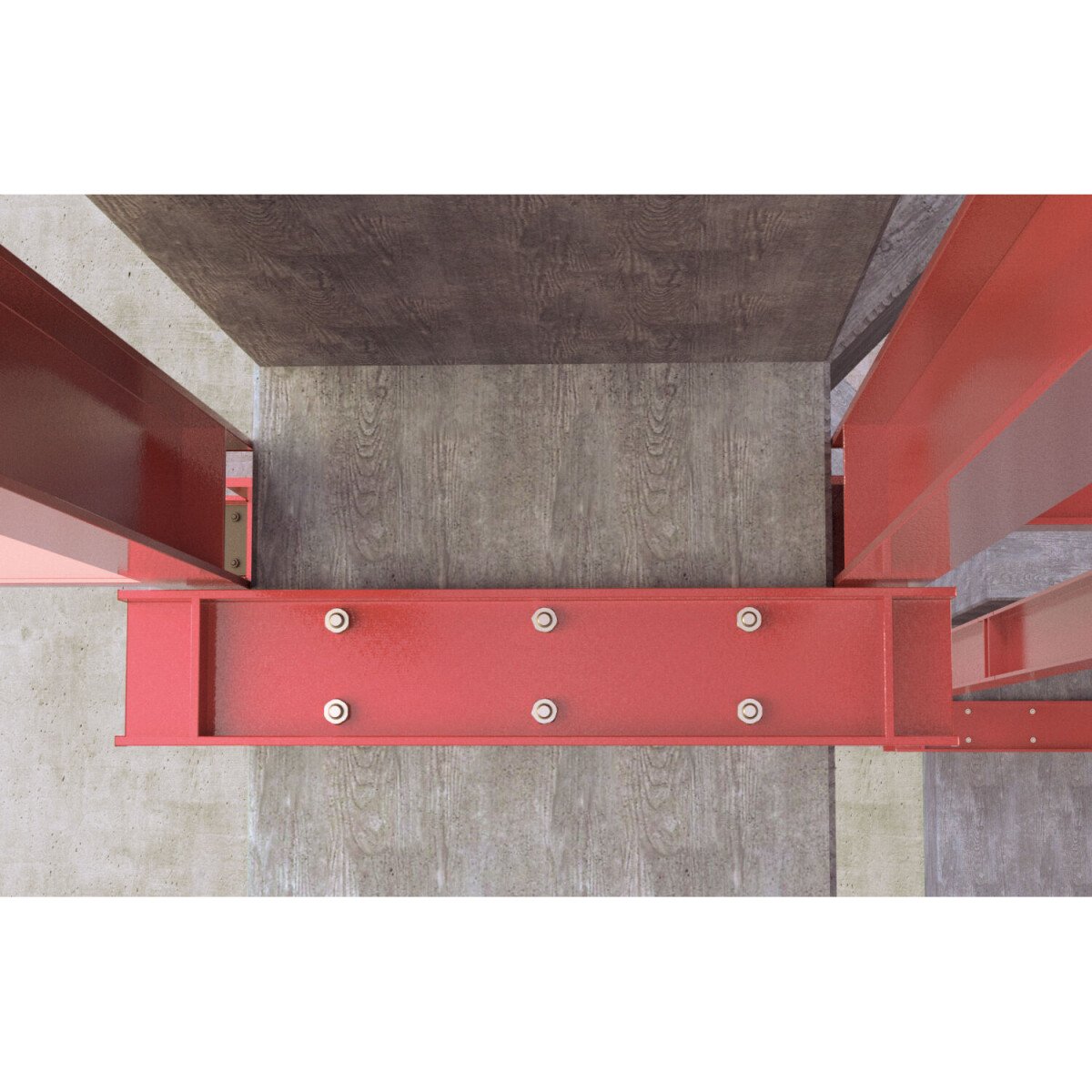

- The undercut anchor is ideal for heavy duty fixings to anchor steel structures, heavy piping and industrial machinery indoors in cracked and non-cracked concrete
- The FSU-P is set in push-through installation with the FSU-ST setting tool in a drilled hole created with the FSU-SD stop drill
- The anchor cuts itself the undercut, creating a positive connection
- This ensures maximum safety even with large crack widths in seismic areas
- With the disassembly tool FSU-DT, the anchor can be removed quickly and completely
Advantages
- The perfect form fit in the undercut guarantees the absorption of high loads (head bolt theory) for applications with the highest level of safety
- Six robust cutting teeth and the principle of self-undercutting enable precise and powerful setting in the concrete and thus simple and fast installation
- The plastic element of the FSU prevents the anchor from falling out of the drill hole and allows easy and safe overhead installation
- The low spreading forces of the FSU allow small edge and axial distances and offer maximum flexibility in all applications
- The setting depth markings on the anchor and setting tool (FSU-ST) ensure a quick visual installation check and provide additional safety and installation convenience
- The DMC (DataMatrix-Code) for unique identification and readout of product data on the anchor offers the possibility for flexible and exact data transparency and storage before and after installation
- The code can be scanned using the fischer PRO app
- The ETA rating confirms a service life of 100 years
- The FSU will last a whole century and is therefore perfect for large, long-lasting construction projects.
- Extreme load and safety level thanks to perfect form fit
- Six cutting teeth independently and quickly create an undercut. Low axial and edge distances due to low spreading forces
- Plastic element fixes the anchor in the drill hole during overhead installation
- DMC (DataMatrix-Code) for unique identification and readout of product data
- The ETA rating confirms a service life of 100 years.
- Features
Features
ETA-approval Seismic-Approval C1 / C2 Required drill bit FSU-SD 22 x 175 Required setting tool FSU-ST M12 Drill diameter (d0) 22 mm Drill hole diameter in fixture (df) 23 mm Anchor length (l) 210 mm Max. fixture thickness (tfix) 50 mm Thread (M) M12 Width across nut 19 mm Amount 10 pcs GTIN (EAN-Code) 4048962481129 Applications Heavy duty fixings Steel constructions Pipelines Ventilation ducts Cable trays Industrial machinery Elevator channels Building materials Approved for: Concrete C20/25 to C50/60, cracked and non.cracked Approvals ETA-22/0674 DoP No. 0321 PR467647 BZS D 24-601
