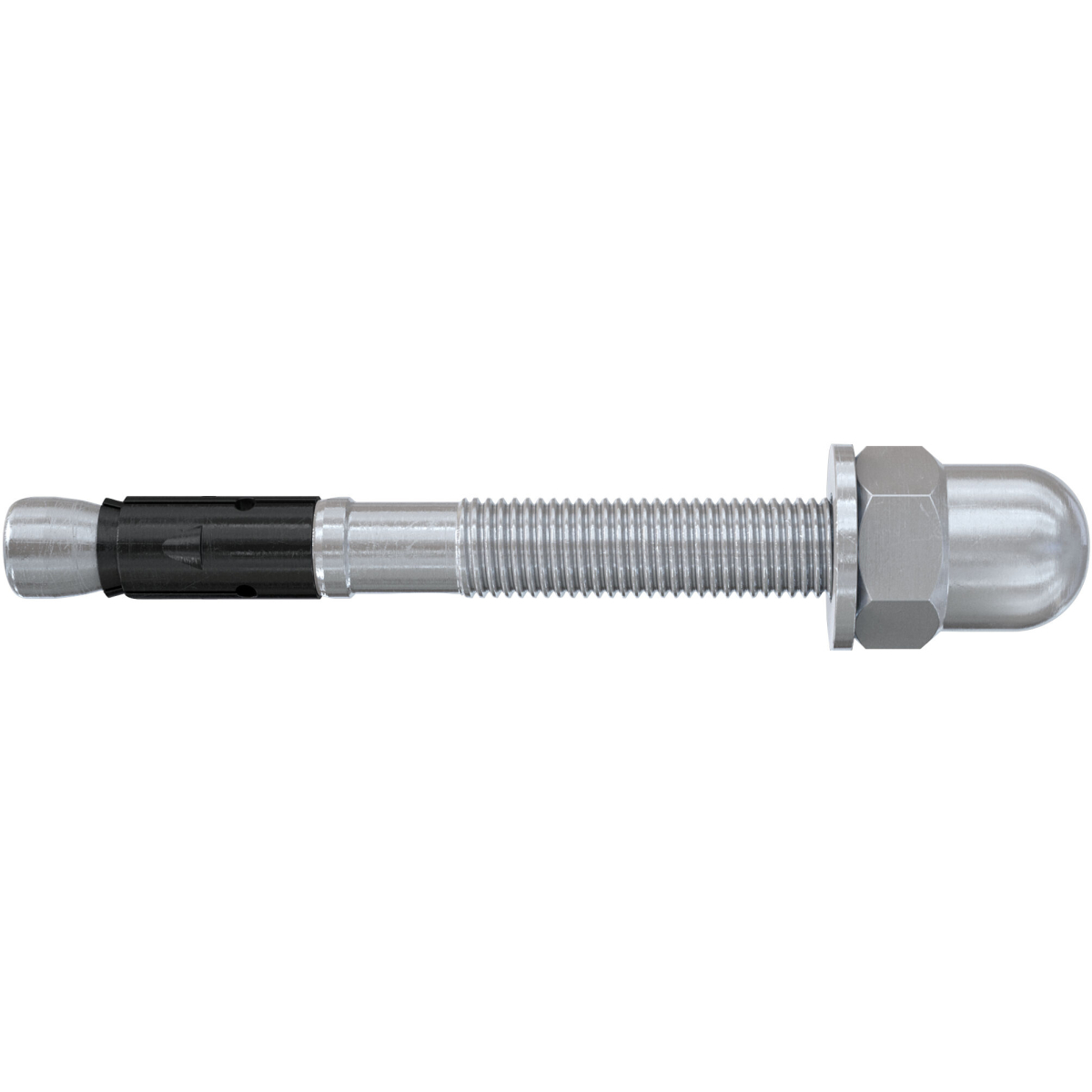

Fischer 564690 Bolt Anchor FAZ II Plus 12/20 H ZP Electro Zinc Plated Pack x 20

With cap nut. For highest demands. Powerful and flexible

Order within
SKU FIS-564690
Barcode 4048962463156

£75.59 ( £62.99 Ex VAT)

Description / Fischer 564690

  • The fischer bolt anchor FAZ II Plus H is the steel anchor for highest demands
  • The new sizes of the special cap nut version (M10 and M12) are also implemented in the ETA assessment and it is ideal for architecturally sophisticated applications
  • Thanks to variable anchorage depths and easy installation, the FAZ II Plus can be used in many different ways
  • The tried-and-trusted expansion clip securely feeds the loads into the concrete and ensures a high load-bearing-capacity

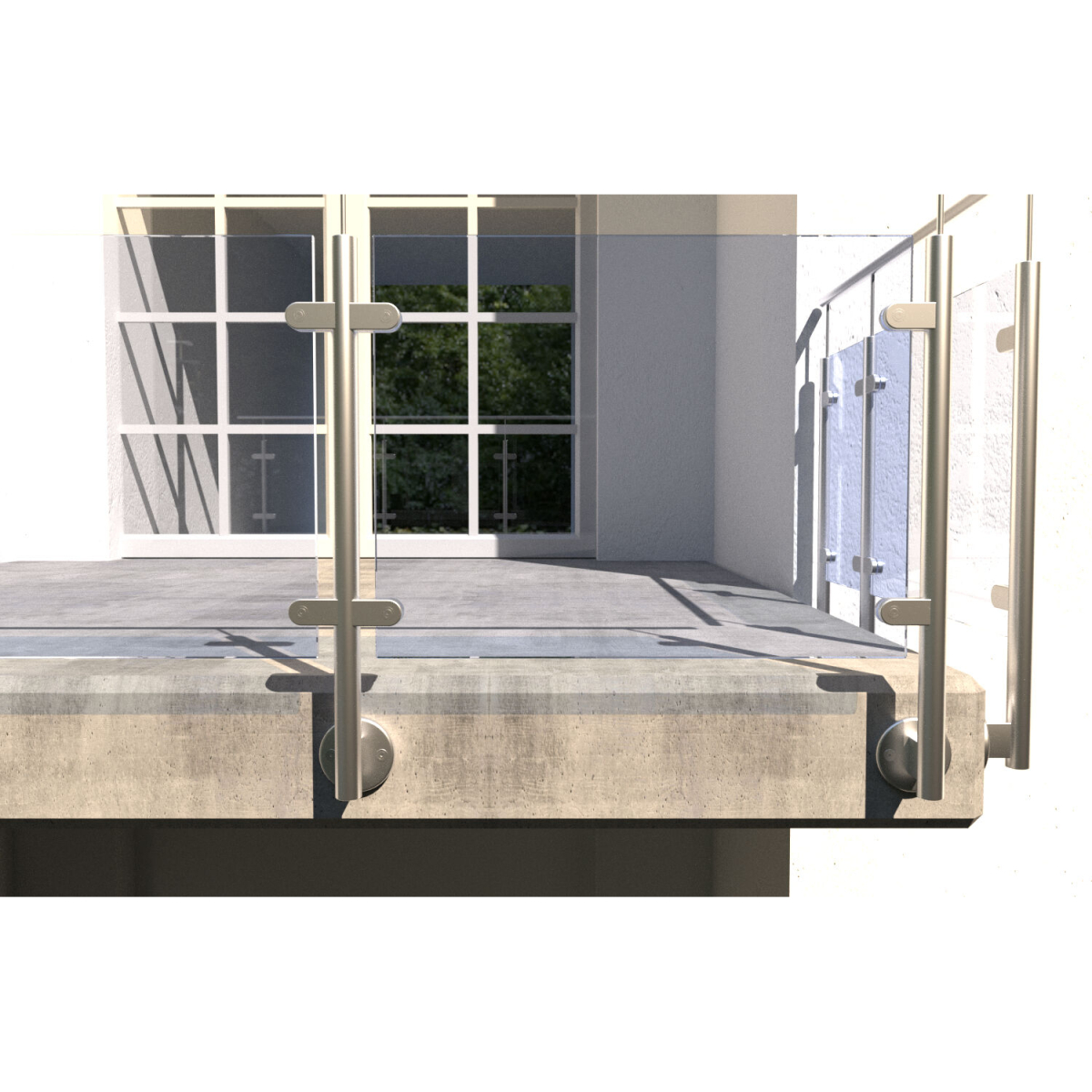

  • The FAZ II Plus H is the optimal solution (for example) for the anchorage of railings in visible areas: The cap nut, not only gives the option for a better and refined optical design but also, ensures an accident free installation due to its closed shape

Features / Specification

ETA-approval
Seismic-Approval C1 / C2
Drill diameter (d0) 12 mm
Min. drill hole depth for through fixings (h2) 109 mm
Max. usable length hef,stand./hef,min. (tfix) 20 / 40 mm
Anchor length (l) 119 mm
Thread (ø x length) M12 x 71 mm
Width across nut 19 mm
Amount 20 pcs
GTIN (EAN-Code) 4048962463156
